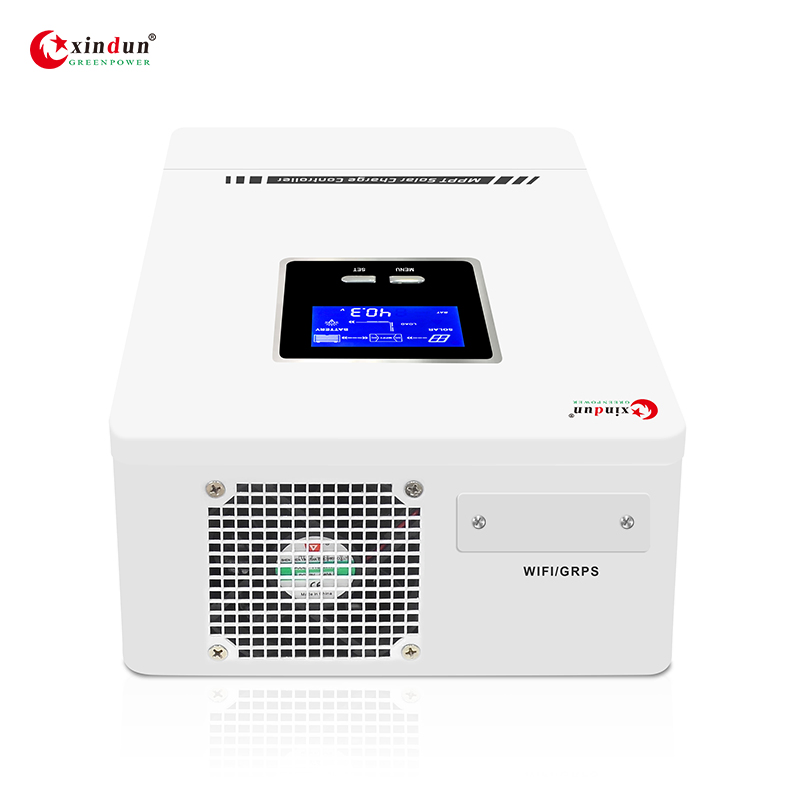

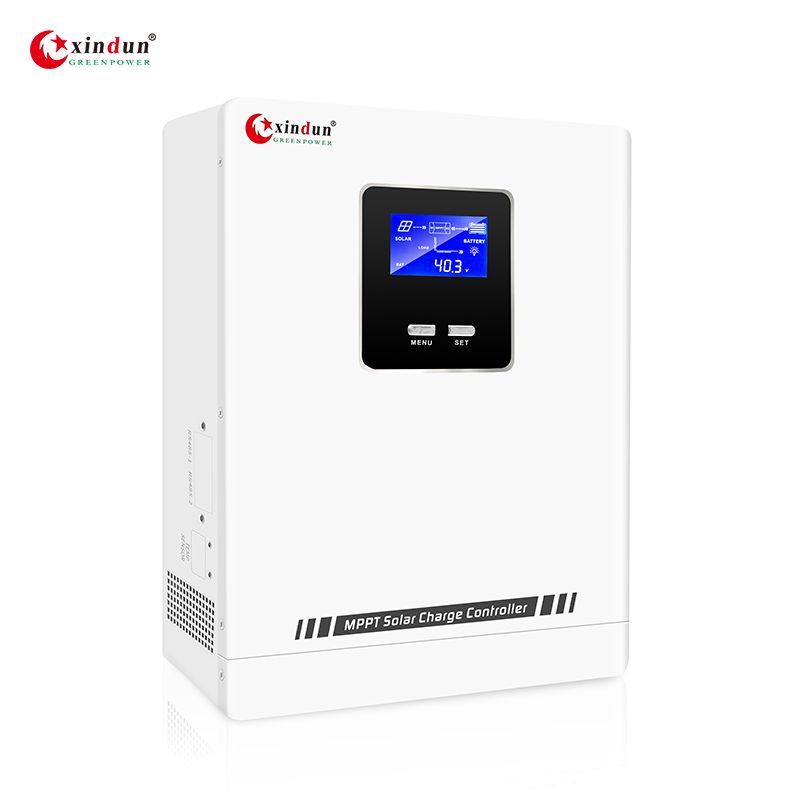

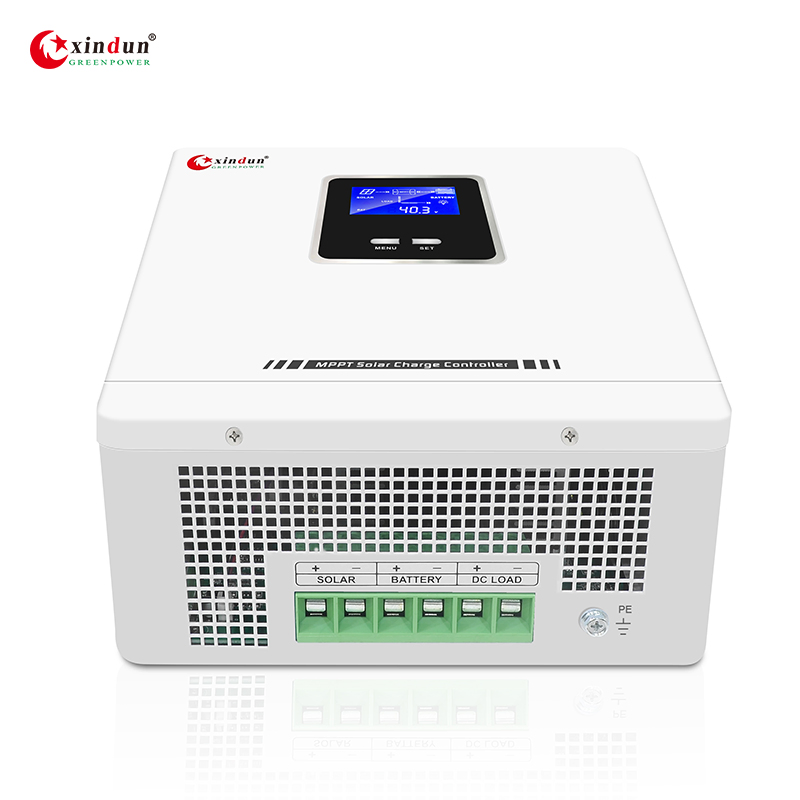

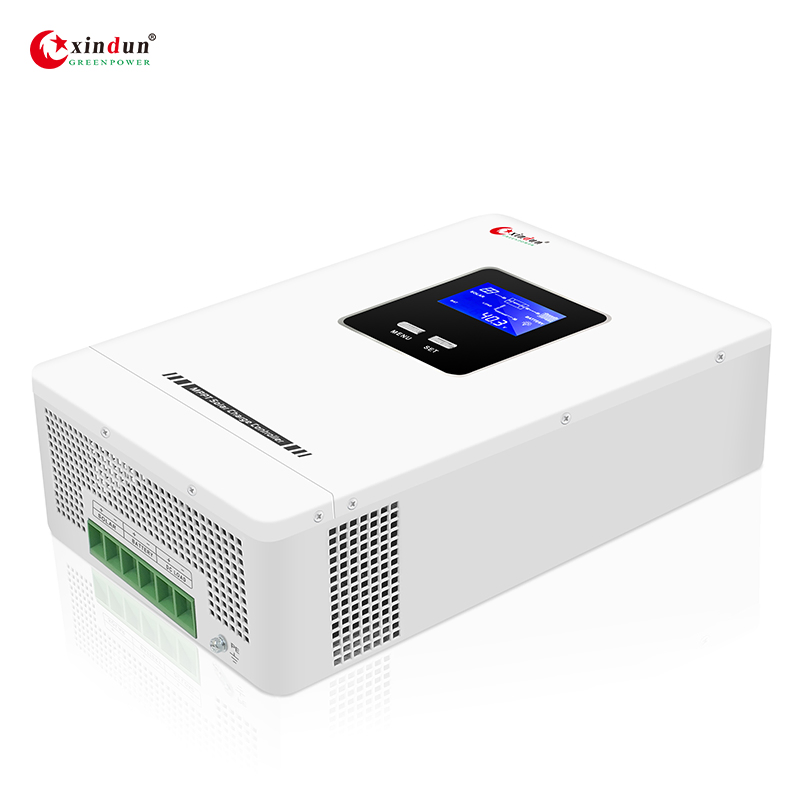

10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
1 / 5
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller
10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller

10A 20A 40AMP 60A 80A 100AMP MPPT Solar Hybrid Lithium Charge Controller

Customization: Available
After-sales Service: Free Parts
Warranty: 2 Years
Send Inquiry

Product Description

  • Overview
  • Inverter Feature
  • Highlight
  • Specification
  • Product Detail
  • Wiring diagram
  • Packing&Delivery
  • Workshop
Basic Info.
Model NO.
XD-Wonder2
Condition
New
Certification
ISO, CE
Application
Collector Controller, Charger Controller, Solar Working Station, Voltage Controller
Rated Voltage
12V/24V/48V
Rated Current
10A/20A/30A/40A/50A/60A/80A/100A
MPPT Tracking Efficiency
>99%
Conversion Efficiency
>98%
Max PV Power
140W~5600W
Cooling Method
Intelligent Fan Control
Inverter Feature
1

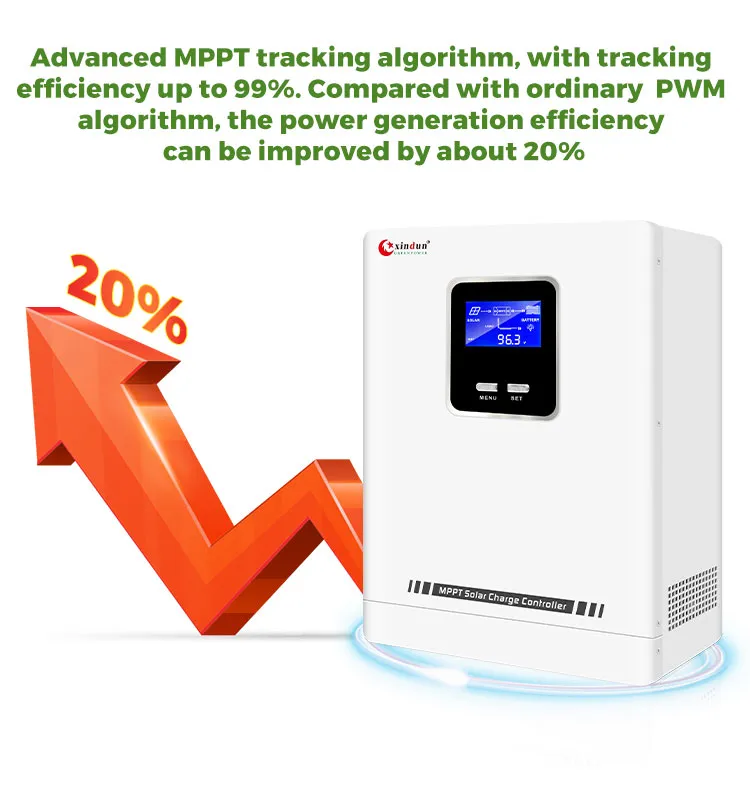

Advanced MPPT tracking algorithm, with tracking efficiency up to 99%. Power generation efficiency improved by about 20% compared to PWM.
2
LCD graphic display of photovoltaic power generation data and simulation of power generation process.
3
Multiple load working modes can be set to adapt to different working occasions.
4
Ultra wide photovoltaic input voltage range, more convenient system configuration.
5
Supports lead-acid and lithium batteries; custom charging and discharging parameters available.
6
Lithium battery activation function included.
7
Full electronic protection: Anti-reverse connection, over-current, over-temperature, and over/under-voltage protection.
8
Intelligent battery management function to extend battery life.
9

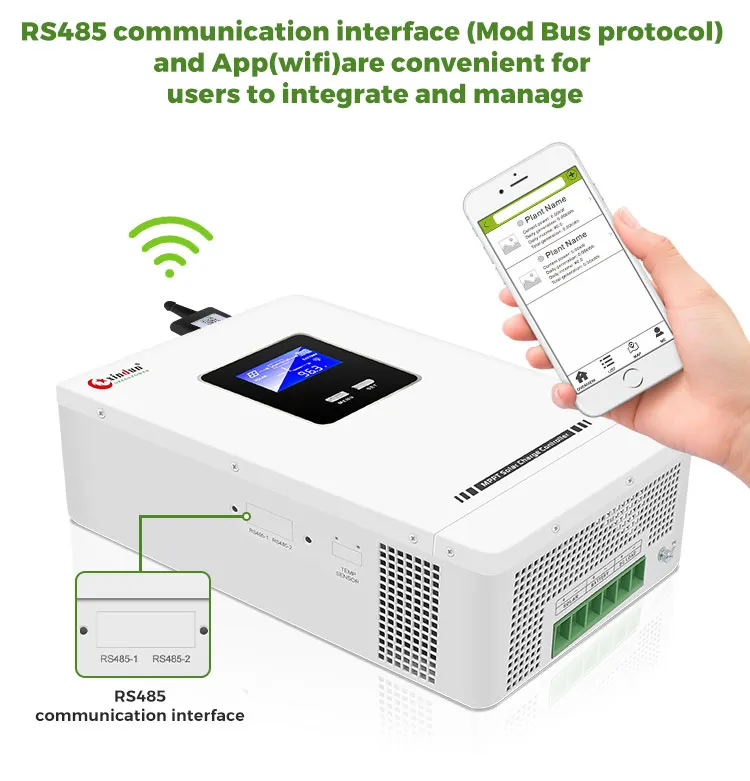

RS485 communication interface (Mod Bus protocol) and mobile phone APP for integrated management.
Highlight
MPPT Feature 1

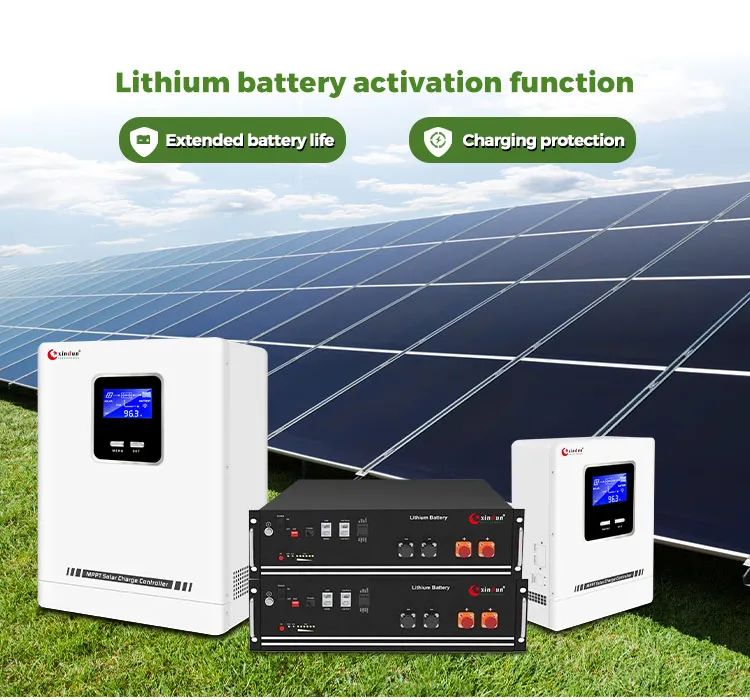

MPPT Feature 2

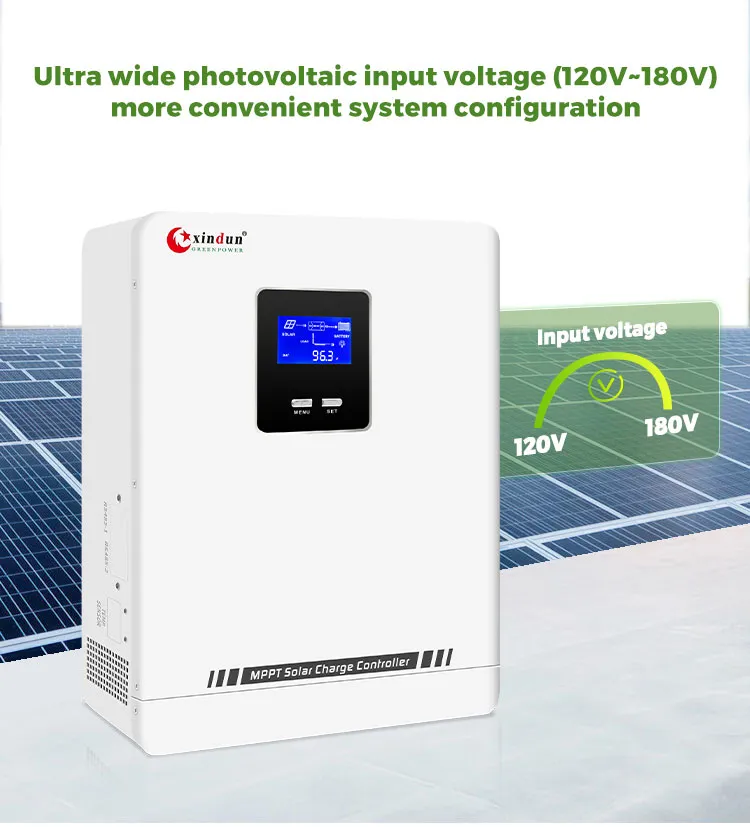

MPPT Feature 3
MPPT Feature 4

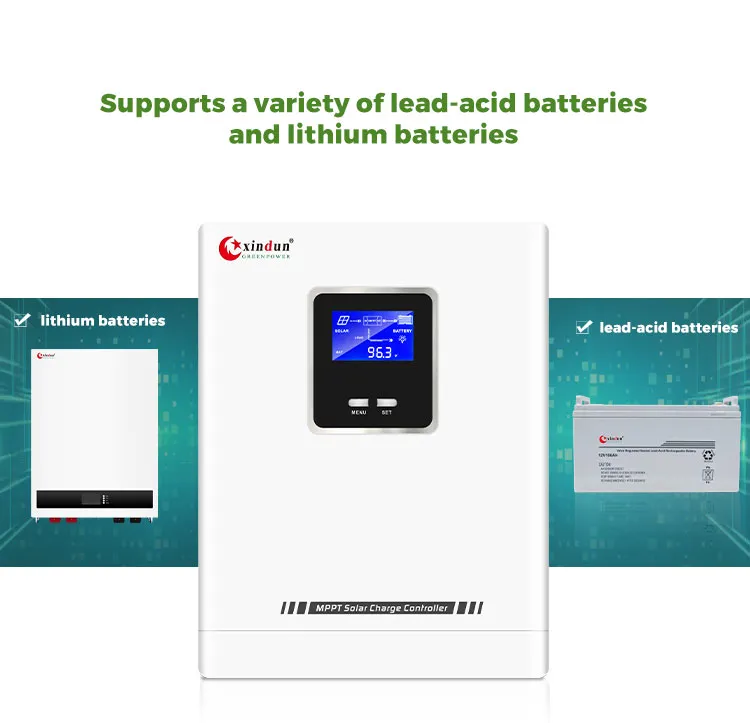

MPPT Feature 5
MPPT Feature 6
Specification
Model: Wonder2 10124 - 30124 1048 - 3048 40124 - 60124 4048 - 6048 80124 - 100124 8048 - 10048
Rated Current 10A/20A/30A 40A/50A/60A 80A/100A
Max PV Input Voltage(Voc) 120V 180V 120V 180V 120V 180V
MPPT Efficiency >99%
Conversion Efficiency >98%
Battery Type Lead acid battery / Lithium battery (Customizable)
Charging Method Three stages: Constant current(MPPT), Constant voltage, Floating charge
Product Detail

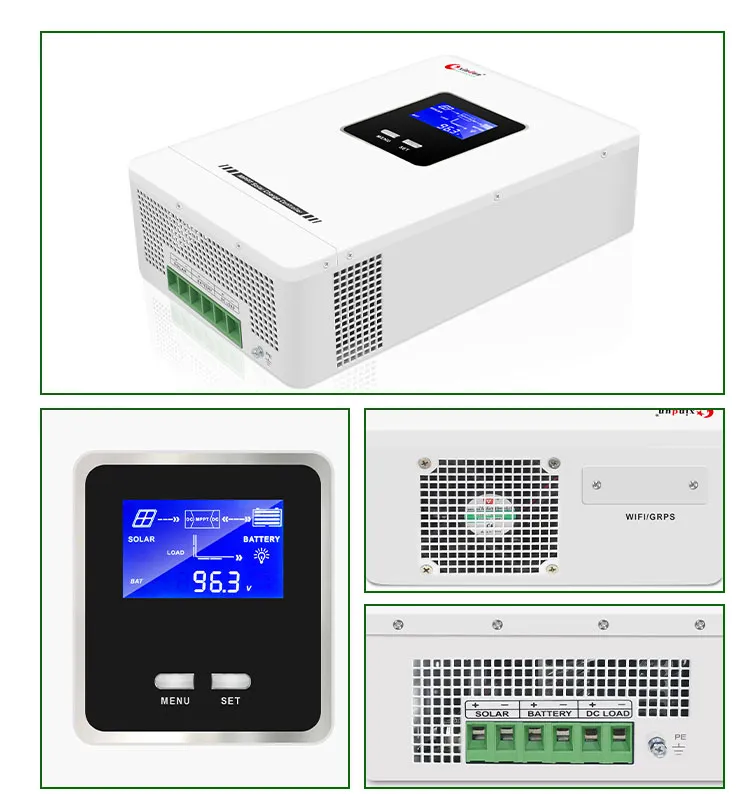

Product Detail Image

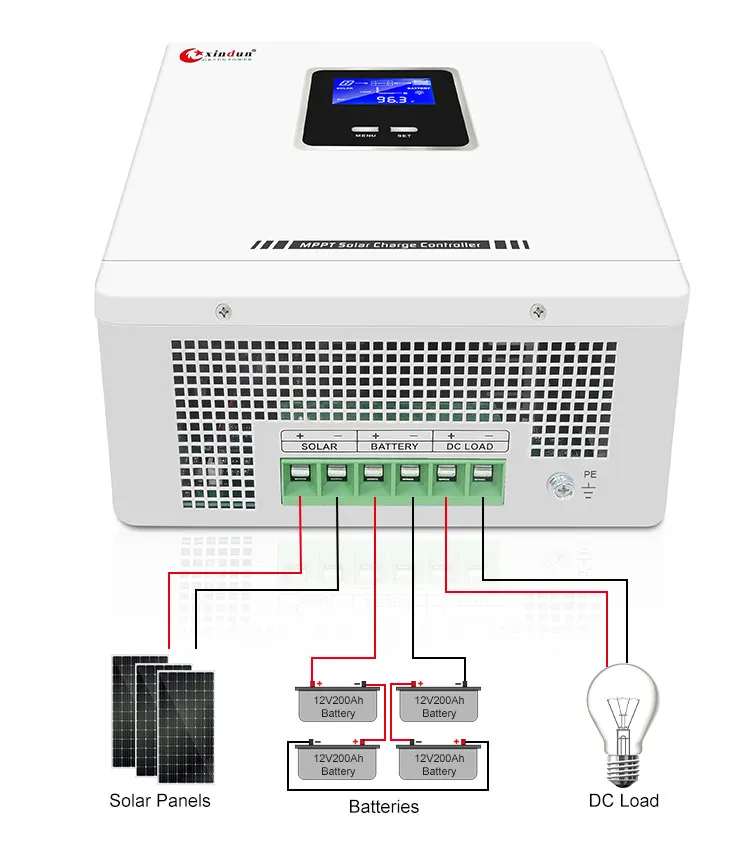

Wiring Diagram
Wiring Diagram
Packing & Delivery

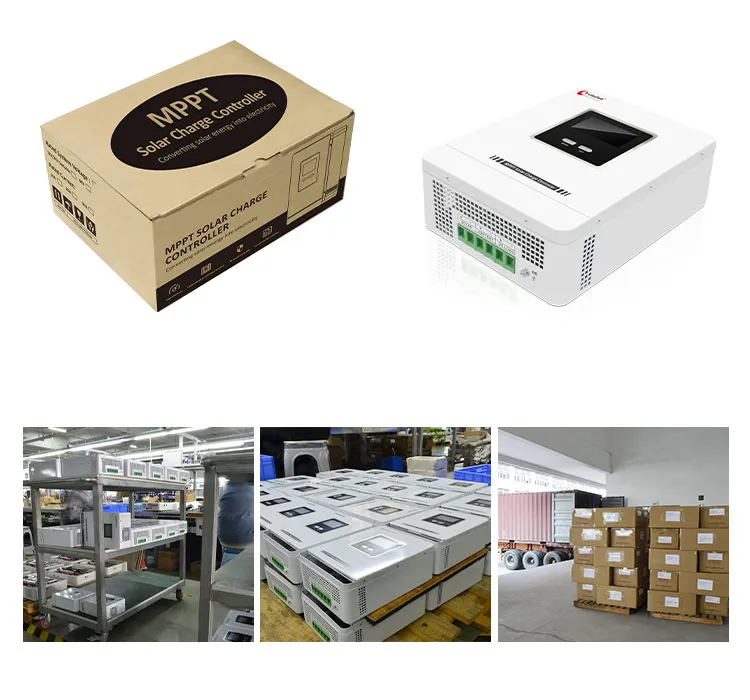

Packing Info

Package: Carton Box for packaging, or Wooden Box for samples to protect in transportation.

Shipping: 1. FedEx/DHL/TNT/UPS for samples (Door-to-door); 2. By air or sea for batch goods; 3. Specified freight forwarders or negotiable methods; 4. Delivery time: 7 days for samples, 10-25 days for batch goods.

Workshop

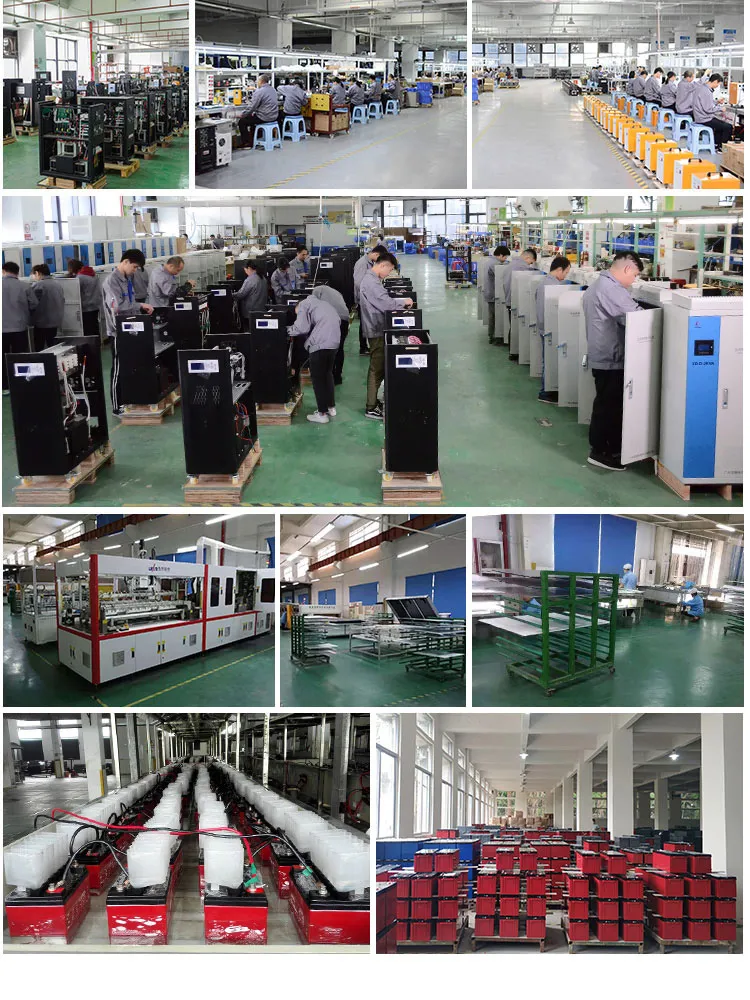

Workshop 1
Workshop 2
Workshop 3
FAQ
What is the advantage of MPPT over PWM?
The advanced MPPT algorithm can improve power generation efficiency by approximately 20% compared to ordinary PWM algorithms, achieving tracking efficiency up to 99%.
Which battery types are compatible with this controller?
It supports a variety of lead-acid and lithium batteries. Users can also customize charging and discharging parameters for other specific battery types.
Can I monitor the system remotely?
Yes, the device features an RS485 communication interface (Mod Bus protocol) and supports mobile phone APP monitoring via WiFi or GPRS modules.
What kind of electronic protections are included?
It provides a full range of protection including battery/PV anti-reverse connection, charging over-current, DC output over-current, over-temperature, and over/under-voltage protection.
Does the controller support lithium battery activation?
Yes, this controller includes a specific lithium battery activation function to ensure optimal performance of modern battery systems.
What is the maximum PV input voltage?
Depending on the model, the maximum PV input voltage (Voc) is either 120V (for 12V/24V systems) or 180V (for 48V systems).
