Product quality assurance is based on the correct storage, installation, use and maintenance of the product. Product damage caused by improper installation and use, violation of product operating procedures, is not within the scope of this warranty. For quality problems within the warranty period, repair, adjustment (parts) or replacement will be provided. If the period is exceeded, appropriate material and labor costs will be charged.
More Smart Led, More Energy Saving

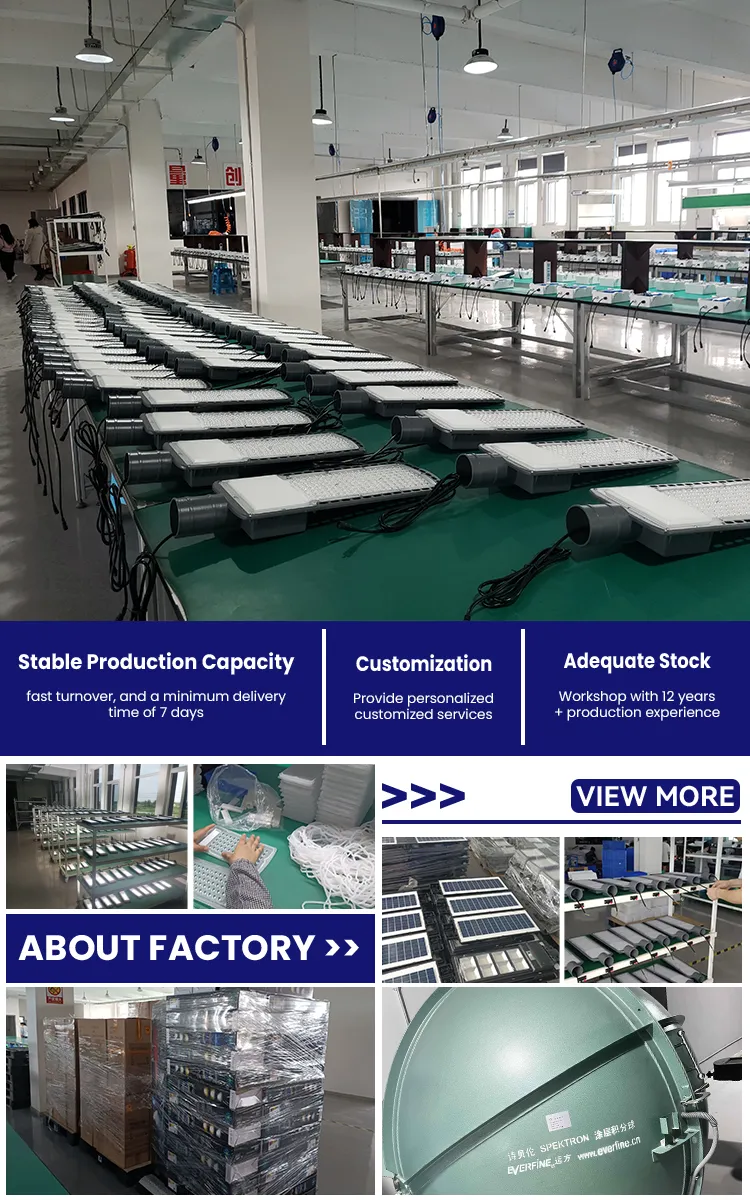

Our comprehensive quality management system enables us to scale production across commercial, industrial, municipal, outdoor, office, and solar photovoltaic applications. We are developing intelligent system solutions and building an ecosystem promoting intelligent manufacturing for international development.
Preventive Measures

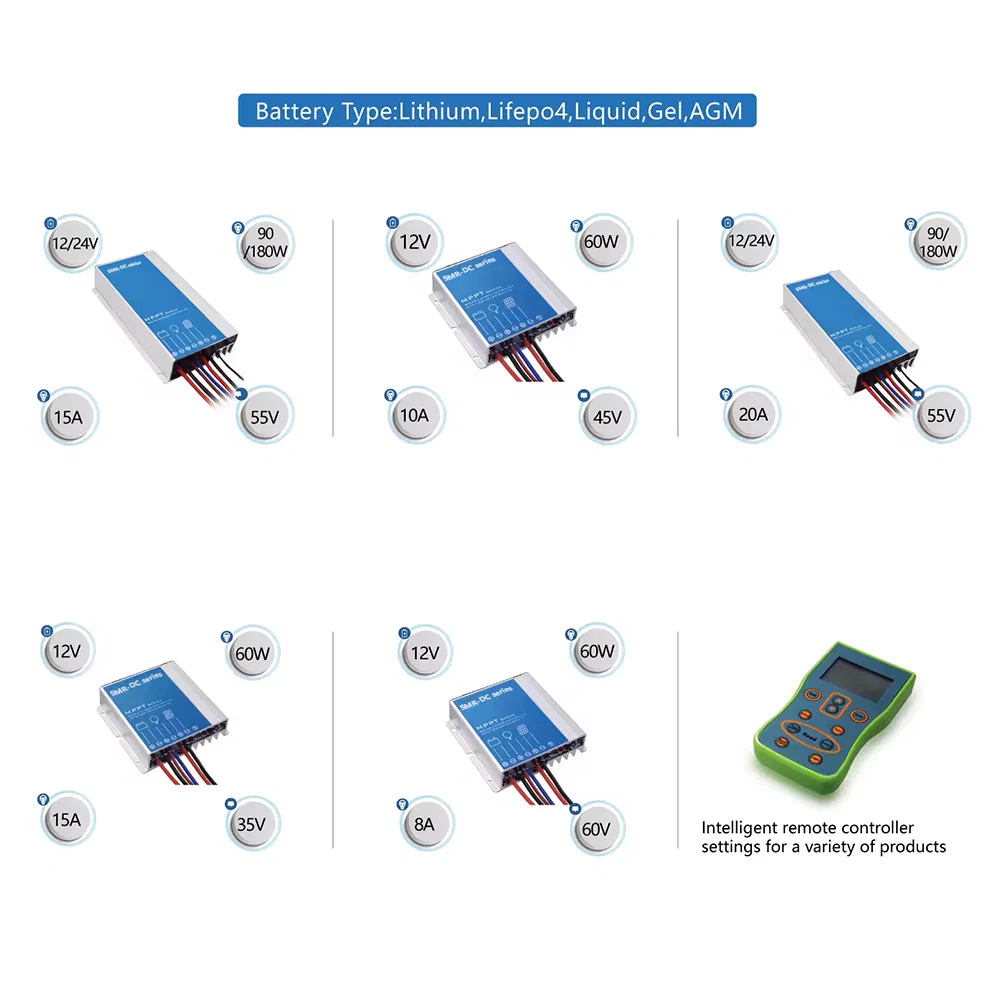

| Parameter | 8A | 10A | 15A |
|---|---|---|---|
| System Voltage | 12V | 12V | 12V |
| Mppt Charging Voltage | < 14.5 @25℃ | ||
| Battery Type | Liquid, AGM, GEL, Lithium battery | ||
| Max PV Input Voltage | 35V / 60V | 45V | 35V |
| Max PV Input Power | 100W ~ 120W | 120W ~ 150W | 180W ~ 225W |

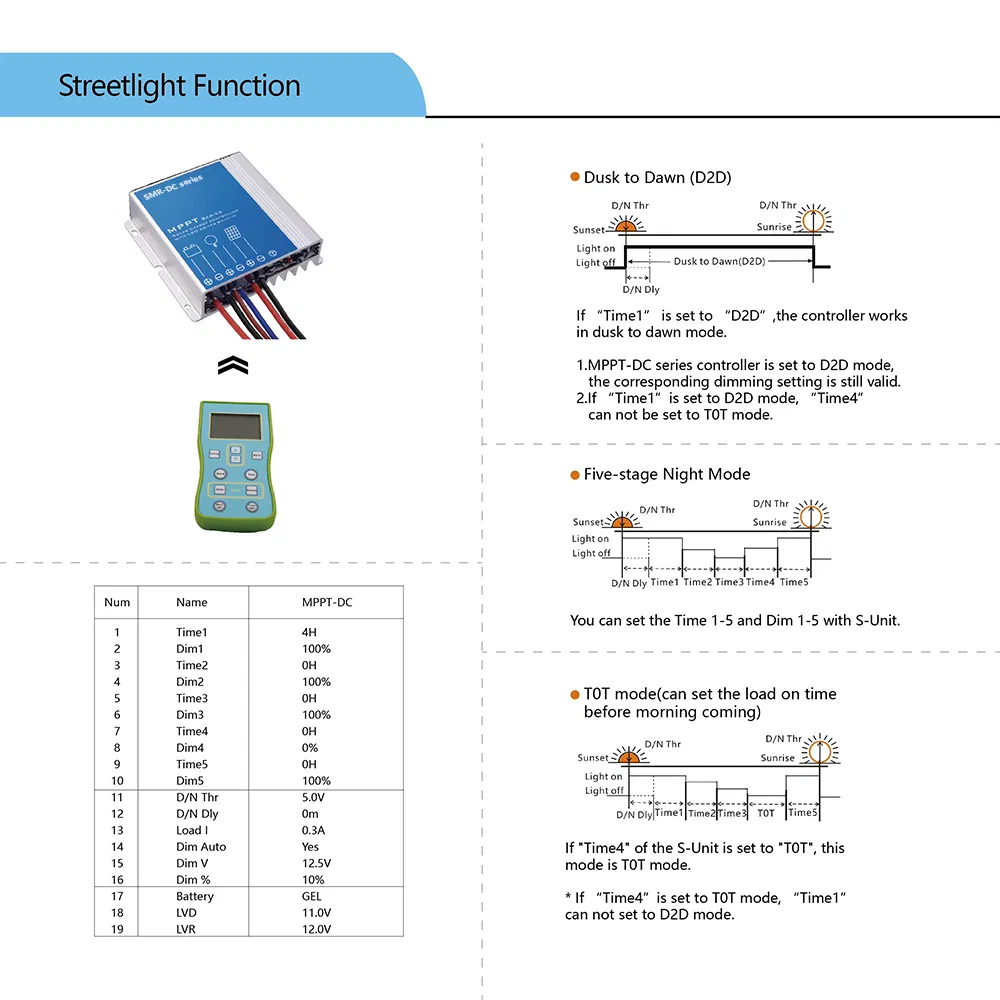

| Dusk/Dawn Detect | 3.0~8.0V (Programmable) | ||
| LED Power Range | 1~50W | 1~60W | 1~60W |
| Max Tracking Efficiency | >99.9% | ||

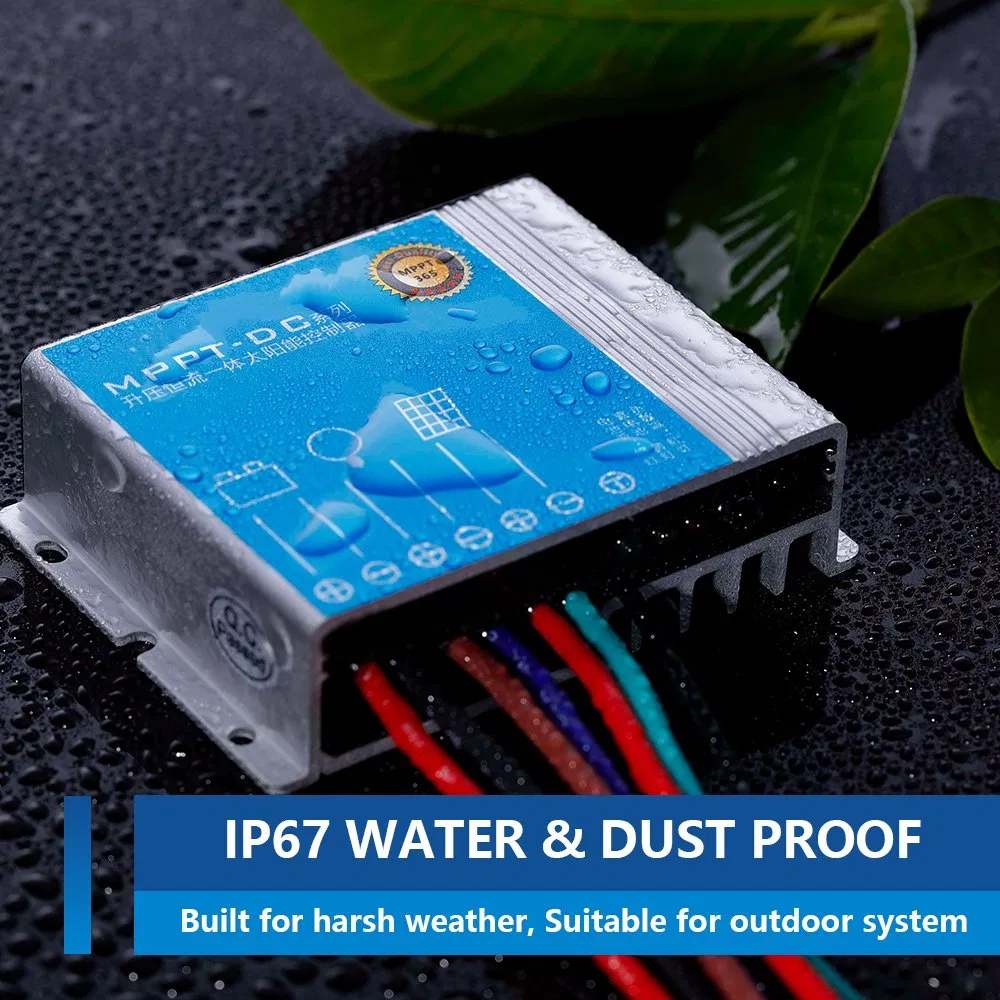

| Protection Degree | IP67 | ||

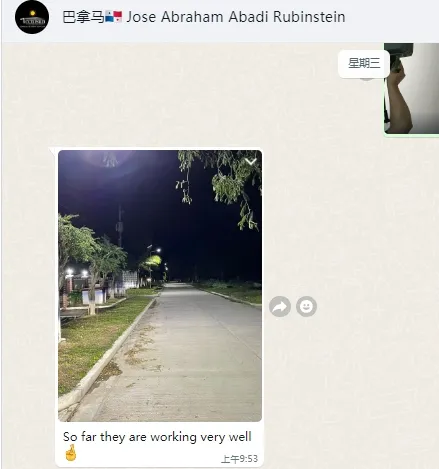

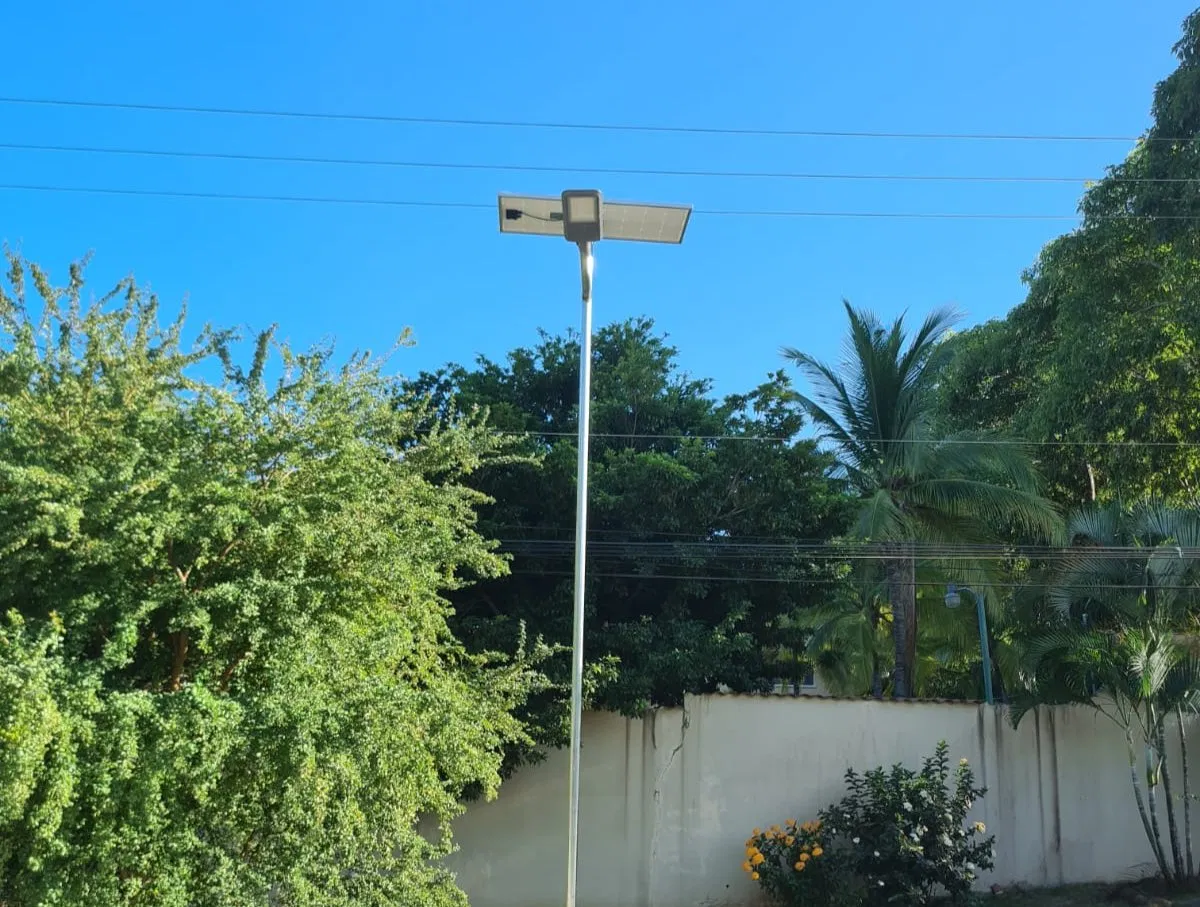

Installed and working perfectly (After-sales installation guidance provided)
