5000W MPPT Wind Turbine Generator Booster Charge Controller Compatible Wind Generator
5000W MPPT Wind Turbine Generator Booster Charge Controller Compatible Wind Generator
5000W MPPT Wind Turbine Generator Booster Charge Controller Compatible Wind Generator
5000W MPPT Wind Turbine Generator Booster Charge Controller Compatible Wind Generator
5000W MPPT Wind Turbine Generator Booster Charge Controller Compatible Wind Generator
1 / 5
5000W MPPT Wind Turbine Generator Booster Charge Controller Compatible Wind Generator
5000W MPPT Wind Turbine Generator Booster Charge Controller Compatible Wind Generator
5000W MPPT Wind Turbine Generator Booster Charge Controller Compatible Wind Generator
5000W MPPT Wind Turbine Generator Booster Charge Controller Compatible Wind Generator
5000W MPPT Wind Turbine Generator Booster Charge Controller Compatible Wind Generator

5000W MPPT Wind Turbine Generator Booster Charge Controller Compatible Wind Generator

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
FKJ-MPPT 5KW
Certification
CE
Application
Wind / Solar Hybrid System
Rated Voltage
48V/96V/220V
DC Dump Load
DC170V
Braking Voltage
DC190V
Braking Current
DC100A
HS Code
8504403090
🚀 Product Description
MPPT Wind Solar Hybrid Controller

FKJ-MPPT Off-Grid Wind Solar Hybrid Charge Controller

✔
Manufactured according to JB/T6939.1-2004 and GB/T 19115.1-200 NATIONAL standards.
✔
Big LCD Display: Visual operating status including turbine voltage, current, power, solar data, and battery charging status.
✔
MPPT Maximum Power Tracking: Enhances power generation efficiency for various wind generators.
✔
Dual Control Systems: DC constant dump load and three-phase dump load systems.
✔
Multiple Protection: Anti-reverse connection, anti-disconnection, overcharge, over-voltage, over-current, and lightning protection.
✔
Manual Brake Control: Ensures safety during maintenance and extreme weather conditions.
✔
Smart Communication: Supports Modbus, RS485, WIFI, GPRS, and Ethernet for real-time remote monitoring via PC or Mobile.
🌍 Application Areas
📌 Remote areas without electricity (islands, pastoral areas, border posts).
📌 Transportation field (navigation lights, traffic signals, wireless telephone booths).
📌 Communication field (unattended microwave relay stations, optical cable stations).
📌 Hybrid power stations (parking lot charging stations, factory small power plants).

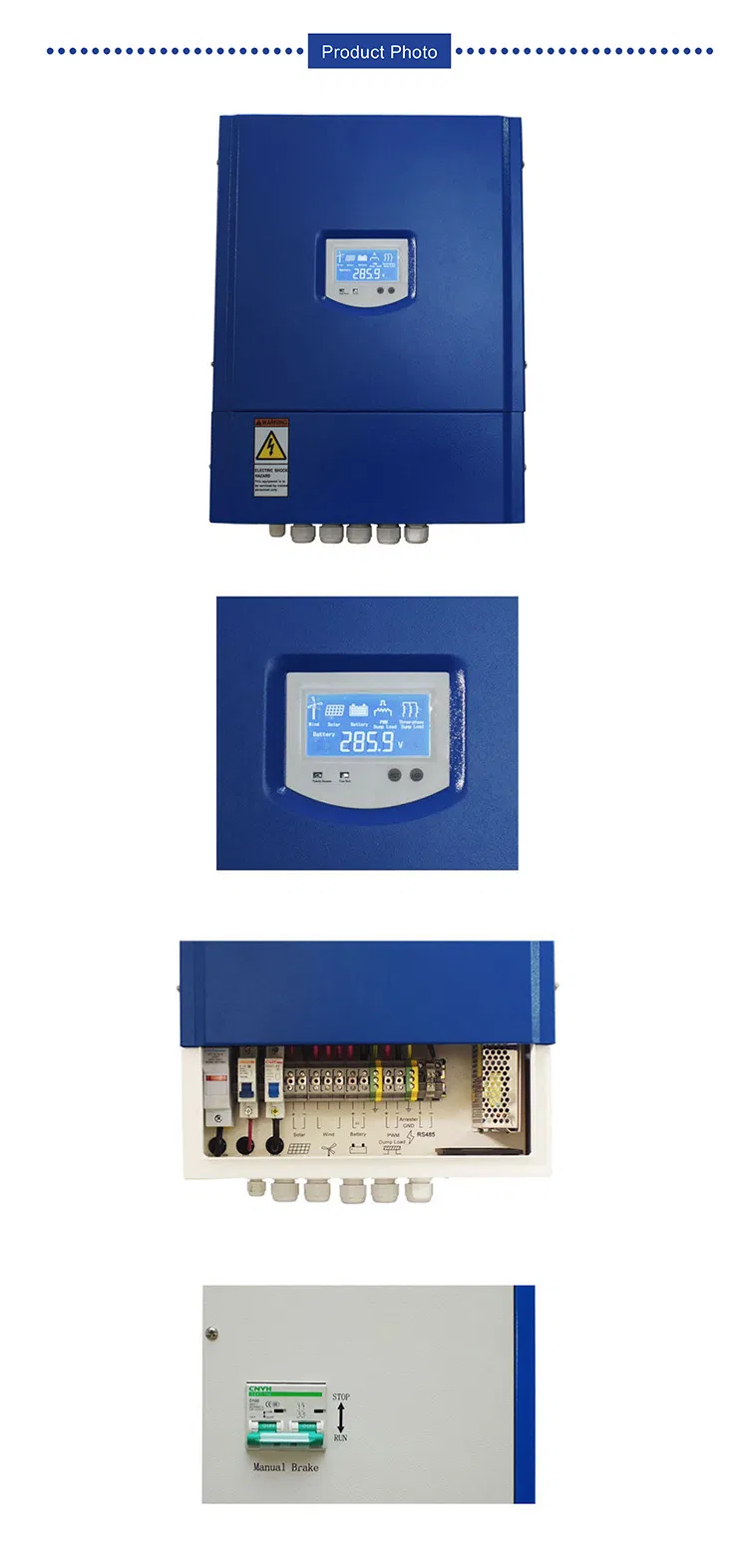

📸 Detailed Photos
Detailed Product View
📊 Technical Parameters
MPPT Hybrid Controller 5KW Series
TYPEFKJ-MPPT 5KW
Wind Turbine Input
Rated Power2500W (24V)3500W (36V)5000W (48V)
Max Control Power5000W / 100A7000W / 100A10KW / 100A
DC Dump Load VoltageDC 170V
Braking VoltageDC 190V
Battery Parameters
Rated Voltage24V / 36V / 48V (Auto Recognition)
Supported TypeLead-acid, Lithium Battery
Rated Charging Current100A
General Parameters
EfficiencyMPPT Tracking ≥ 99.5%, Max Conversion 98.5%
Protection LevelIP20 (Indoor) / IP65 (Outdoors)
Dimensions / Weight400*230*550mm / 31Kg
🖼️ Product Gallery
Controller Interface
Internal Components
Installation Diagram
System Connection
Certifications
Shipping Package
Operation Panel
Safety Features
Hybrid Setup
Frequently Asked Questions
What is the advantage of MPPT in this wind solar controller?
The MPPT (Maximum Power Point Tracking) system allows the controller to track the maximum power of the wind turbine in real-time, significantly improving the power generation efficiency compared to traditional controllers.
How does the braking system protect the wind turbine?
The controller features a dual braking system: DC constant dump load and three-phase braking. It automatically engages when voltage or current exceeds limits and can be manually activated for maintenance or during extreme weather.
Can I monitor the system data remotely?
Yes, the controller supports optional WIFI, GPRS, and Ethernet modules. You can monitor real-time data and historical records through a PC or mobile terminal (Android and iOS compatible).
What types of batteries are compatible with this controller?
It supports standard lead-acid batteries and various lithium battery types. The system features automatic recognition for 24V, 36V, and 48V battery banks.
Is the controller suitable for outdoor installation?
The standard protection level is IP20 for indoor use, but an IP65 version is available for outdoor environments to ensure durability against dust and water.
