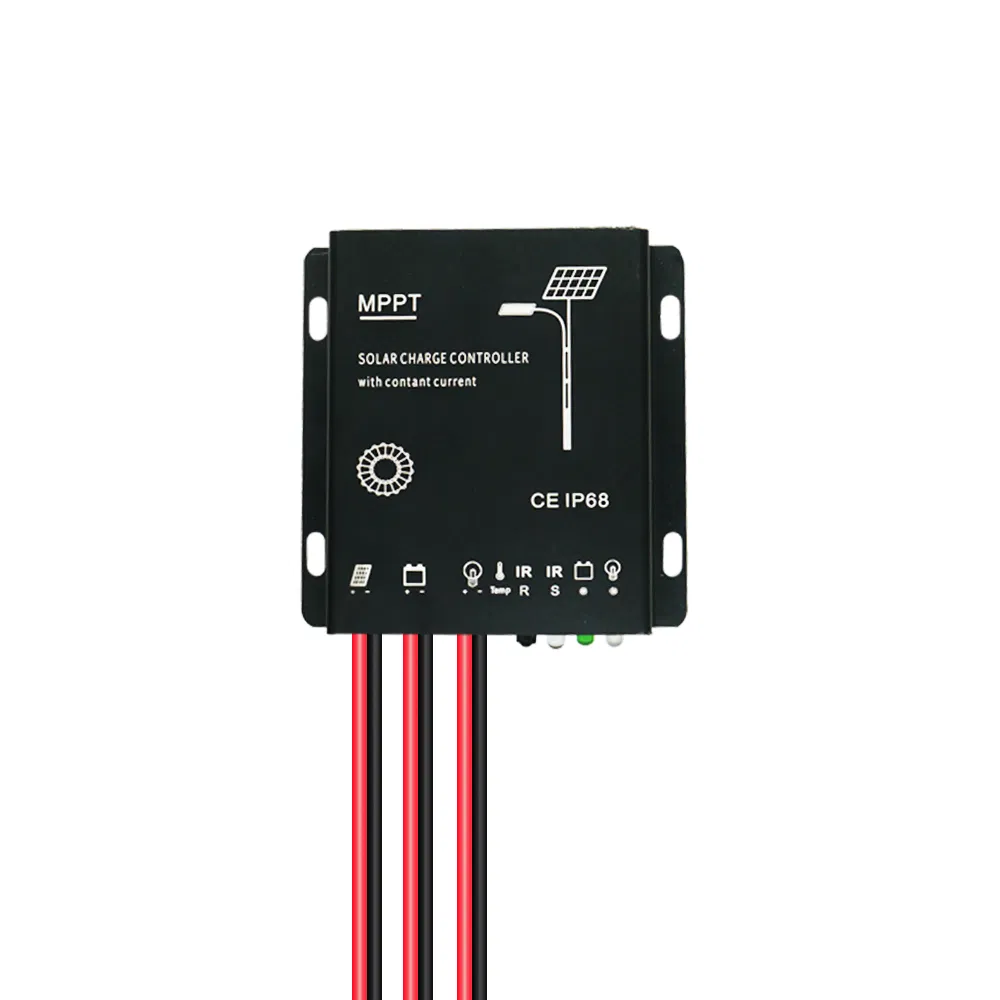

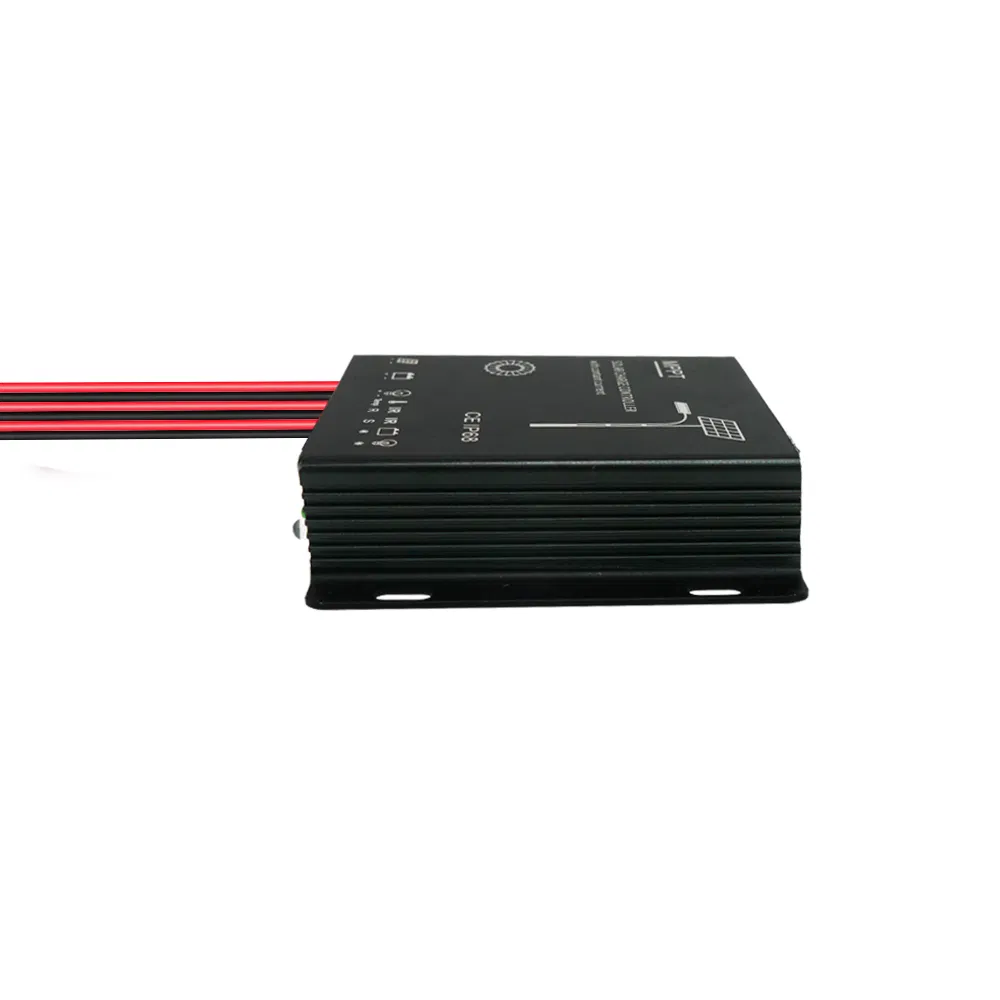

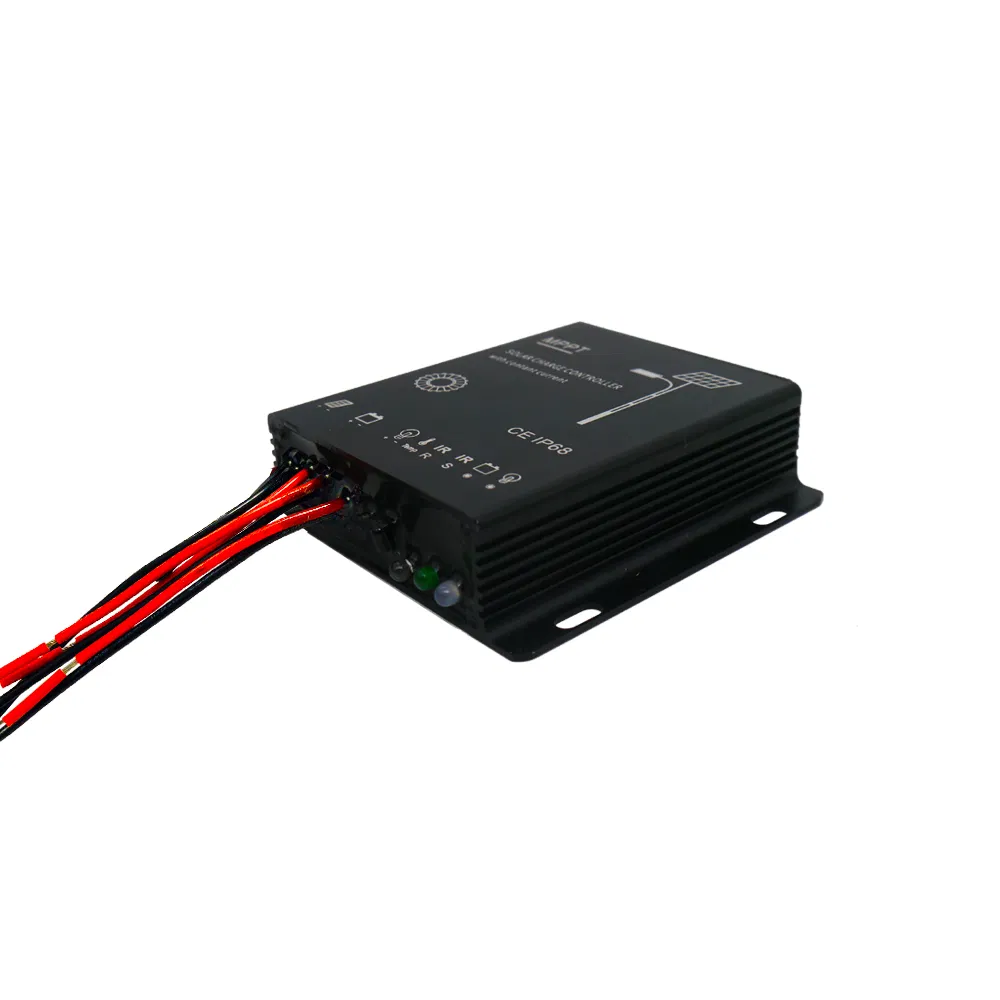

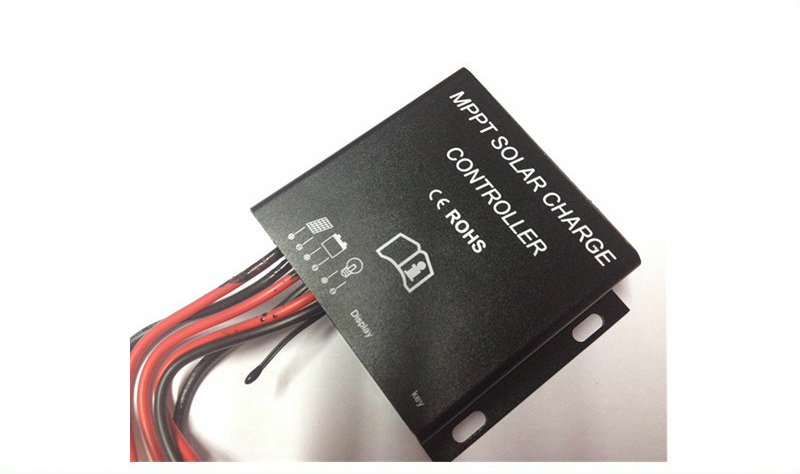

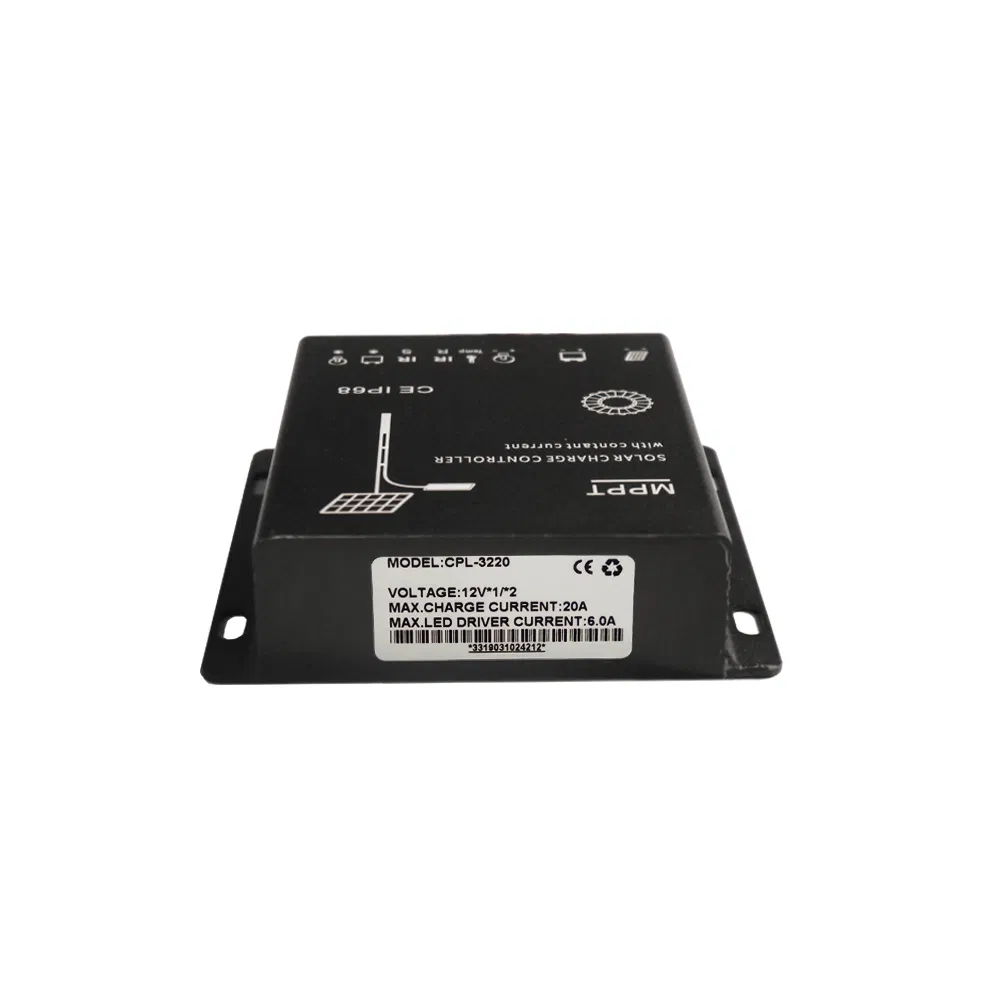

5A 10A 15A 20A 12V/24V MPPT Solar Charge Controller
5A 10A 15A 20A 12V/24V MPPT Solar Charge Controller
5A 10A 15A 20A 12V/24V MPPT Solar Charge Controller
5A 10A 15A 20A 12V/24V MPPT Solar Charge Controller
5A 10A 15A 20A 12V/24V MPPT Solar Charge Controller
1 / 5
5A 10A 15A 20A 12V/24V MPPT Solar Charge Controller
5A 10A 15A 20A 12V/24V MPPT Solar Charge Controller
5A 10A 15A 20A 12V/24V MPPT Solar Charge Controller
5A 10A 15A 20A 12V/24V MPPT Solar Charge Controller
5A 10A 15A 20A 12V/24V MPPT Solar Charge Controller

5A 10A 15A 20A 12V/24V MPPT Solar Charge Controller

Customization: Available
Warranty: 12 Month
Condition: New
Send Inquiry

Product Description

i

Basic Information

Model NO.
5A 10A 15A 20A
Application
Solar System Controller, Charger Controller, Lighting Controller
Rated Voltage
12V
AMP
5A/10A/15A/20A
Voltage
12/24V Auto
Boost Voltage
14.6V/29.2V
Equalization Voltage
14.8V/29.6V
Float Voltage
13.6V/27.2V
Ambient Temperature
-40° C to +50° C
HS Code
8542310090
P

Product Description

5A 10A 15A 20A 12V/24V MPPT Solar Charge Controller

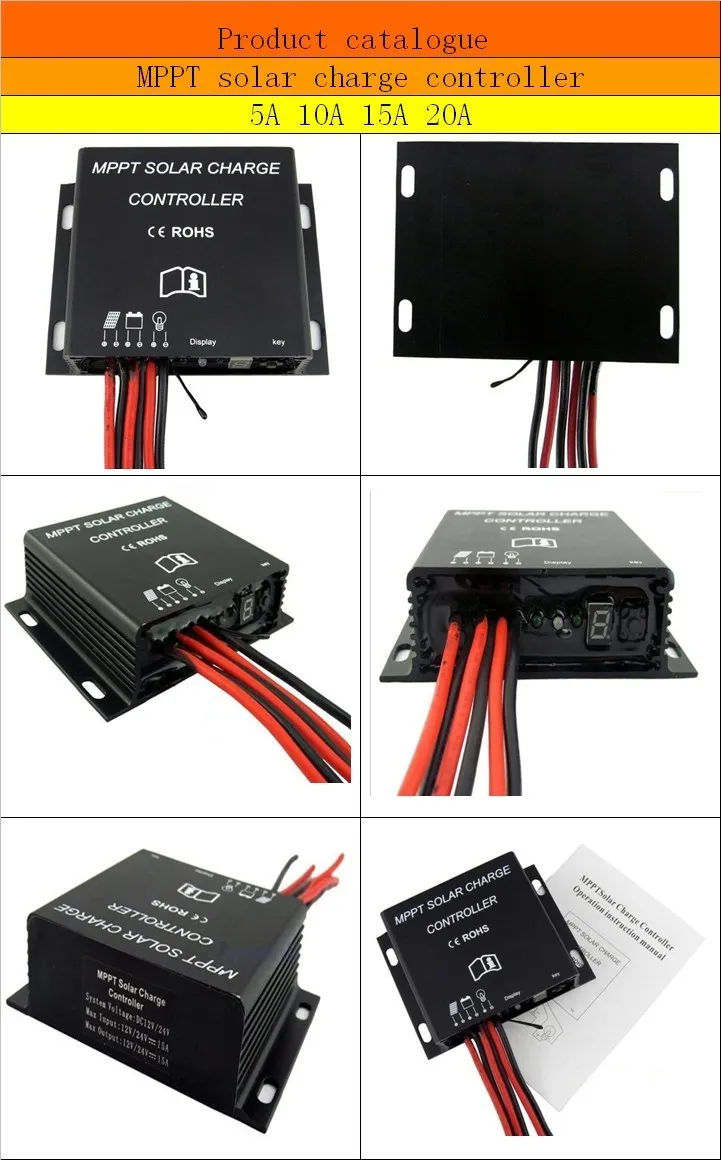

MPPT Solar Charge Controller
T

Technical Parameters

Model5A, 10A, 15A, 20A
Max. Solar Panel Current10A / 15A / 20A
Max. Load Current10A / 15A / 20A
Nominal Voltage12V/24V (Automatic Recognition)
Boost Voltage14.5V / 29.0V
Equalization Voltage14.8V / 29.6V
Float Voltage13.7V / 27.4V
Low Voltage Disconnect11.4-11.9V / 22.8-23.8V
Load Reconnect Voltage12.8 / 25.6V
Temperature Compensation-4mv/(° C*cell)
Max. Wire Size16mm²
Internal ProtectionIP22
MaterialHigh-Quality PC
Dimensions150mm x 100mm x 40mm
A

Our Advantages

  • Automatic adjustment to 12V or 24V system voltage.
  • Clear and readable display of the state of charge.
  • Programmable Nightlight Function.
  • Advanced day and night detection using the PV array.
  • Efficient three-stage charging method.
  • Automatic adaptation to the ambient temperature.
  • Low voltage disconnected regulated by state of charge or voltage.
  • Large 16mm² binding clamp for secure connections.
  • Complete electronic protection and Self-Test function.
D

Packaging & Delivery

Package Size
60.00cm * 36.00cm * 32.00cm
Gross Weight
20.000kg
Packing
1PCS / Colour Box
Production
50000 PCS/Month
?

Frequently Asked Questions

Q1: Can this controller automatically detect my battery voltage?
A: Yes, the controller is designed to automatically recognize 12V or 24V system voltages upon connection.
Q2: What is the maximum wire size supported by the terminals?
A: The controller features a large binding clamp that supports wire sizes up to 16mm².
Q3: Does the device provide protection against environmental factors?
A: It has an internal protection rating of IP22 and is built with durable PC material to withstand ambient temperatures from -40°C to +50°C.
Q4: What charging method does this controller use?
A: It utilizes a three-stage charging method to ensure battery health and efficiency.
Q5: Is there a nightlight function included?
A: Yes, it includes a programmable nightlight function that uses the PV array to detect day and night cycles.
Q6: What kind of electronic protections are included?
A: The controller offers complete electronic protection, including low voltage disconnect regulated by state of charge or voltage.
