MPPT Solar Charge Controller 12V Volts 24 Volts Automatically Regulated 40A 60A with LCD
MPPT Solar Charge Controller 12V Volts 24 Volts Automatically Regulated 40A 60A with LCD
MPPT Solar Charge Controller 12V Volts 24 Volts Automatically Regulated 40A 60A with LCD
MPPT Solar Charge Controller 12V Volts 24 Volts Automatically Regulated 40A 60A with LCD
1 / 4
MPPT Solar Charge Controller 12V Volts 24 Volts Automatically Regulated 40A 60A with LCD
MPPT Solar Charge Controller 12V Volts 24 Volts Automatically Regulated 40A 60A with LCD
MPPT Solar Charge Controller 12V Volts 24 Volts Automatically Regulated 40A 60A with LCD
MPPT Solar Charge Controller 12V Volts 24 Volts Automatically Regulated 40A 60A with LCD

MPPT Solar Charge Controller 12V Volts 24 Volts Automatically Regulated 40A 60A with LCD

Customization: Available
Condition: New
Certification: ISO, CE
Send Inquiry

Product Description

Basic Specifications

Model NO.
SL-40A 60A
Application
Solar System Controller, Charger Controller, Solar Working Station
System Voltage
12V/24V Auto Detection
Maximum Charge Current
40A and 60A
Conversion Efficiency
97%
Display
LED and Optional LCD
Charging Type
3-Stage Charging
Parallel Connection
Yes
DC Output Port
Yes
Temperature Compensation
Yes
Natural Cooling
Yes
Size(mm)
260*200*140
Package Size
26.00cm * 20.00cm * 14.00cm
Package Gross Weight
5.000kg
Transport Package
Carton
Specification
CE, FCC
HS Code
8537109090
Production Capacity
25000/Year

Product Description

MPPT solar charge controller 12V/24V Volts automatically regulated 40A 60A with LCD

⚡
High Efficiency: Converting efficiency higher than 97% for minimizing energy loss.
🔍
MPPT Tracker: Built-in MPPT tracker for optimizing the power transformation.
🛡️
Full Protection: Reversed current protection for preventing equipment damage.
🌡️
Temperature Comp: Automatic battery temperature compensation for long term reliability.
🔋
Multi-Mode: Capable of selecting different charging mode for various type of batteries.
📈
3-Stage Charge: Bulk, absorption, and float mode with temperature compensation.

Application:
SL solar charge controller is mainly used for solar power station, home solar power system, solar street light control system, mobile solar power system, DC wind solar generating systems.

Product Photos

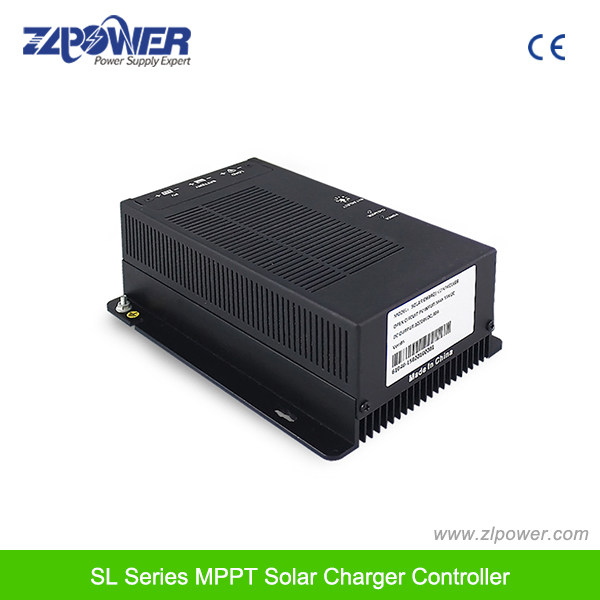

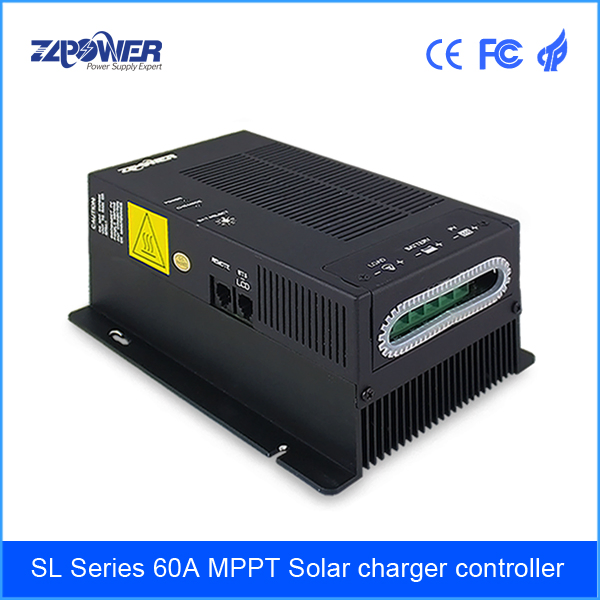

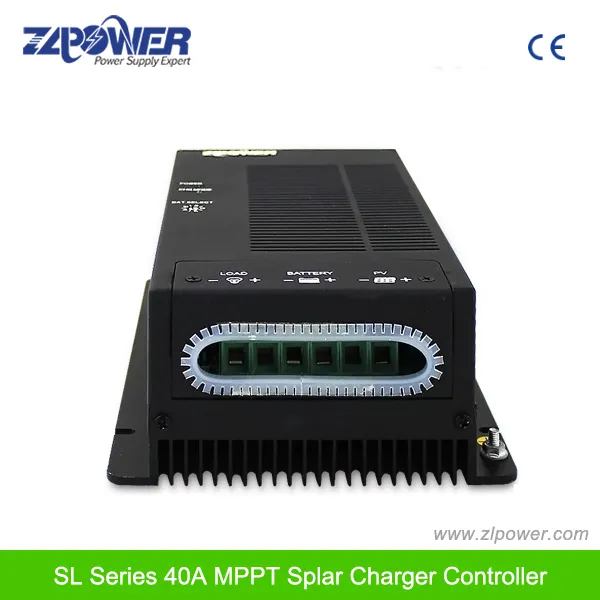

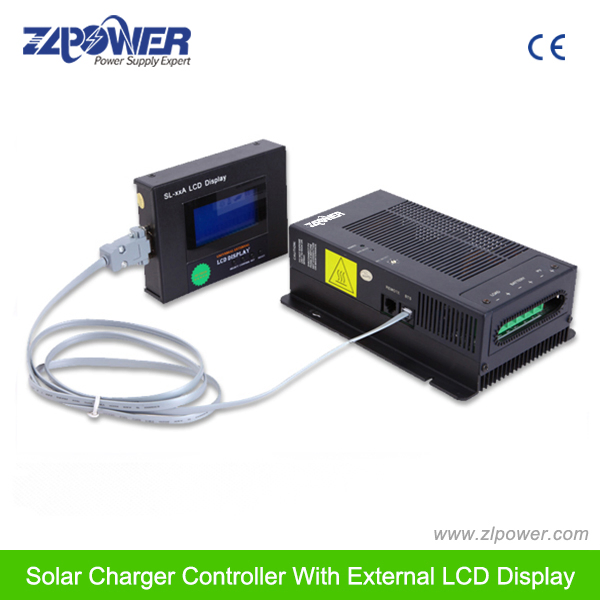

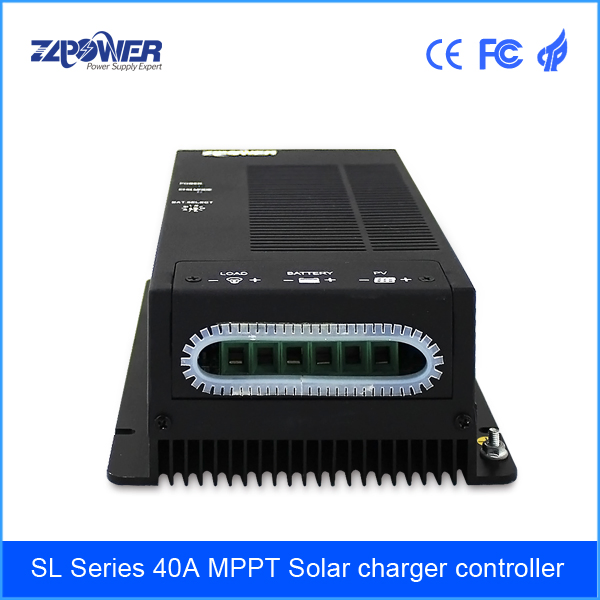

MPPT Solar Charge Controller

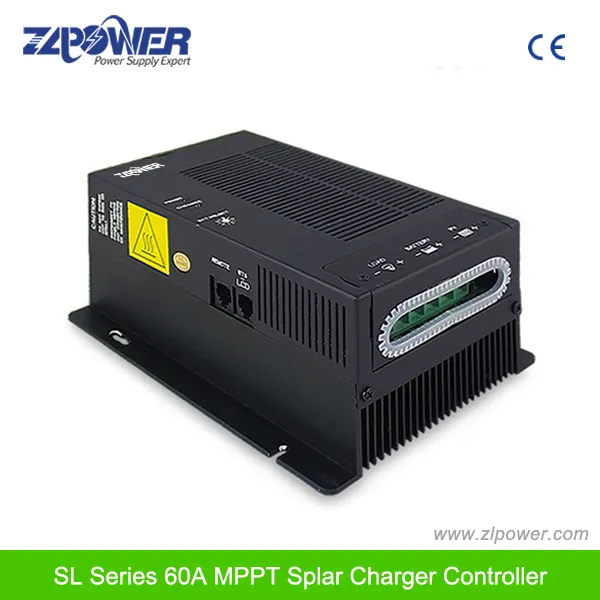

MPPT Solar Charge Controller Detail
Solar Charge Controller Interface

Technical Parameters

Model SL-40A/60A SL-40A-48
Rated Voltage 12/24V DC auto-detection 48V DC
Rated charge current 40Amp/60 Amp 40 Amp
Input voltage range 15-55V DC 58-110V DC
Bulk charge 14.6V DC (default) 29.2V DC (default) 58.4V DC (default)
Floating charge 13.4V DC (default) 26.8V DC (default) 53.6V DC (default)
Protection class IP21
Cooling Natural cooling

Frequently Asked Questions

What is the maximum conversion efficiency of this controller?
The SL series MPPT controller provides a high conversion efficiency of over 97%, significantly minimizing energy loss during power transformation.
Does it support automatic voltage detection?
Yes, the controller supports 12V and 24V DC automatic detection for easy integration into various solar systems.
What are the three stages of the charging system?
The system utilizes a superior 3-stage charge control algorithm consisting of Bulk, Absorption, and Float modes, enhanced with temperature compensation.
Can I use different types of batteries with this unit?
Yes, the controller is capable of selecting different charging modes for various battery types, including adjustable settings for Lead-acid and NiCad batteries.
What safety protections are built into the device?
The device includes reversed current protection, overload protection for DC loads, and automatic battery temperature compensation for enhanced reliability.
Is the cooling system noisy?
No, the controller uses a natural cooling design, ensuring silent operation while maintaining safe internal temperatures.
