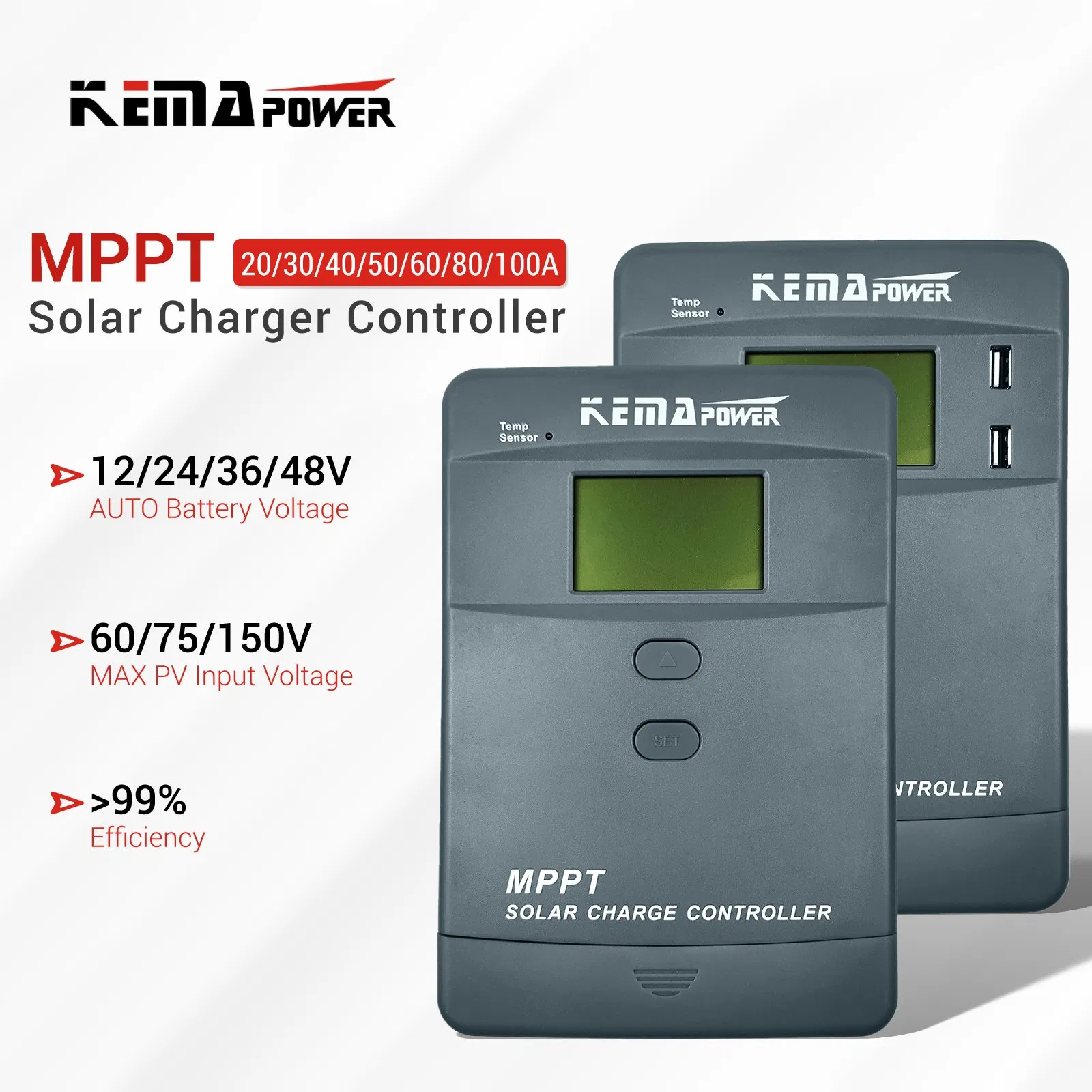

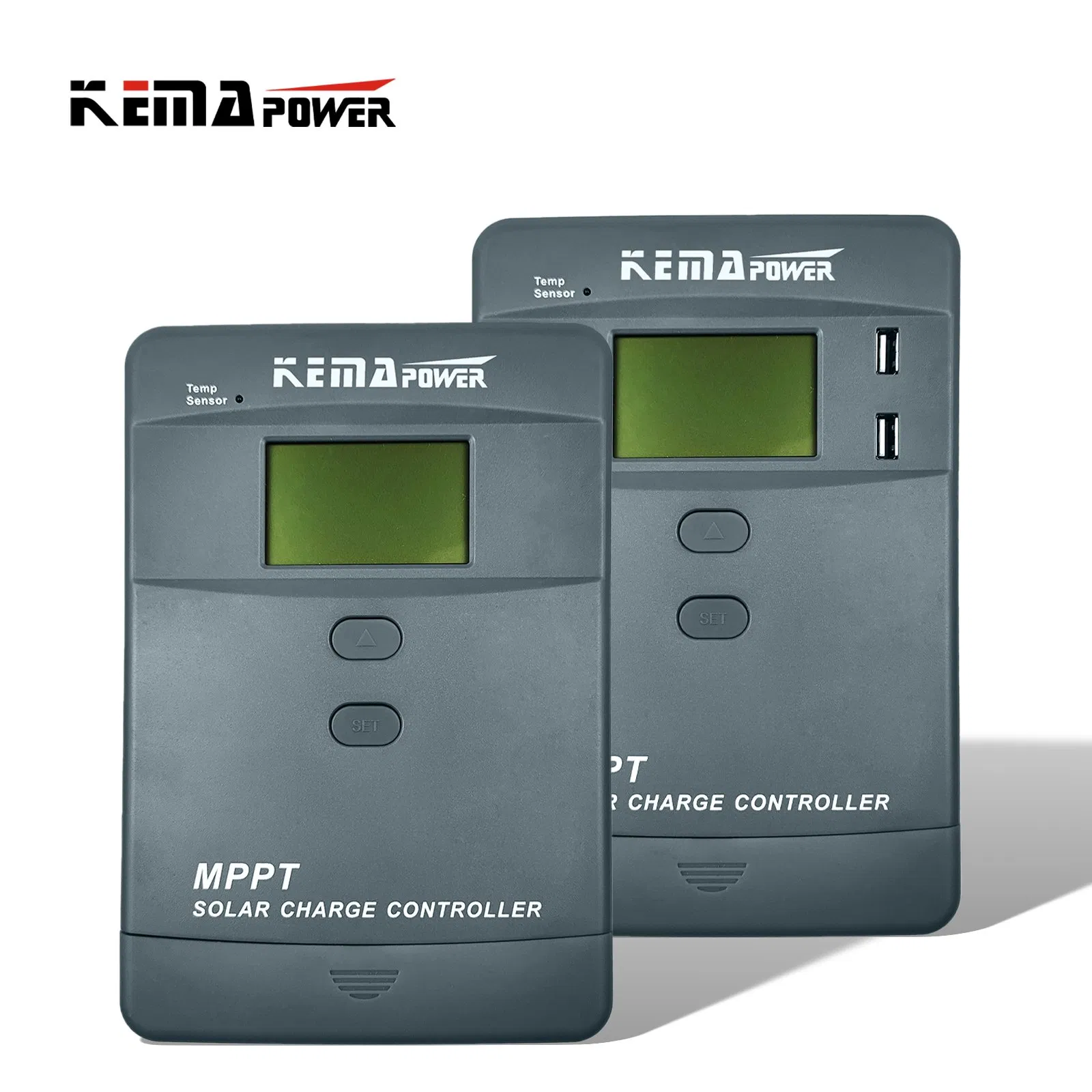

MPPT 20/30/40/50/60/80/100A Charge Controller 12/24/36/48V Auto Solar Regulator MPPT Controller for Solar Panel Lithium Battery

1 / 5

MPPT 20/30/40/50/60/80/100A Charge Controller 12/24/36/48V Auto Solar Regulator MPPT Controller for Solar Panel Lithium Battery

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

MPPT-R

Condition

New

Certification

ISO, CB, CE

Rated Voltage

12V/24V/36V/48V

HS Code

9032899090

Production Capacity

50,000 PCS/Year

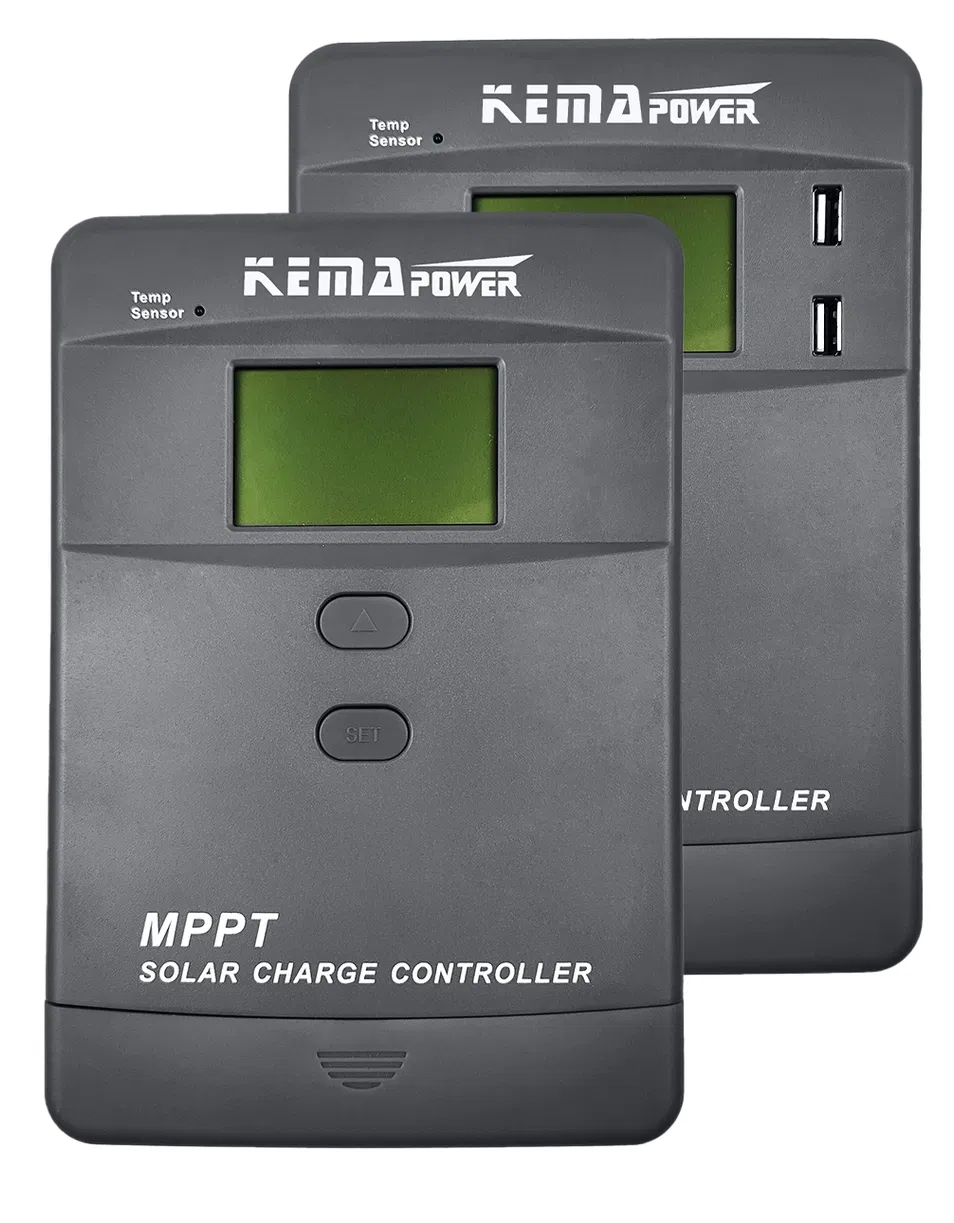

MPPT Solar Charge Controller (MPPT-R)

Key Features

MPPT 12/24V (20-60A) & 12/24/36/48V (30-100A) range
Common Positive design with max PV input up to 150V

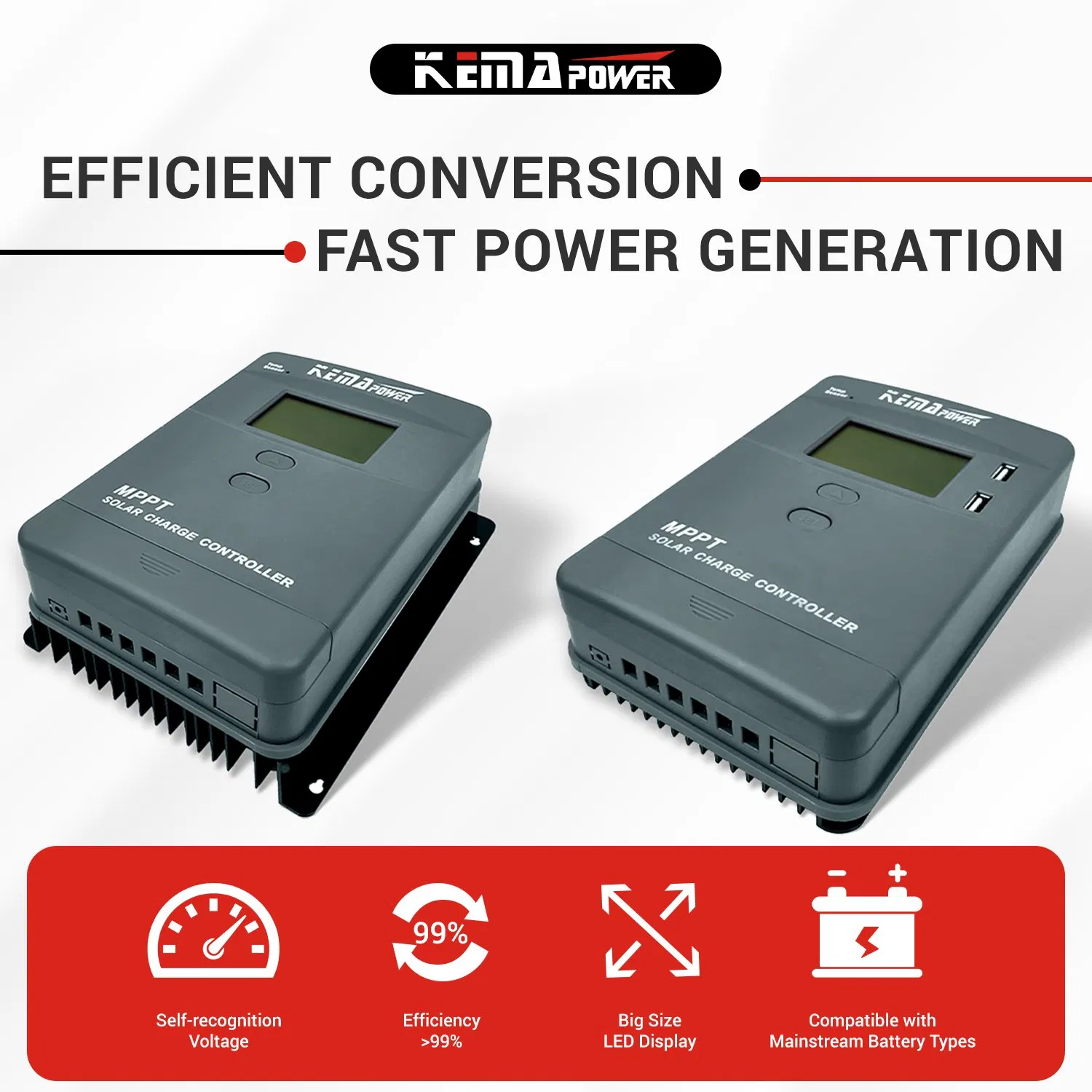

High conversion efficiency >99%
Real-time LCD display for PV, Battery, and Load status
Multi-stage charging: Bulk, Absorption, Float, Equalization
Supports GEL, Sealed, Flooded, LiFePO4, and Lithium batteries
Temperature Compensation & current limiting protection
Lithium battery activation function included
Internal Bluetooth or External WIFI communication (Optional)
Dual 2A/5V USB ports (for 12/24V 20-40A models)

Product Gallery

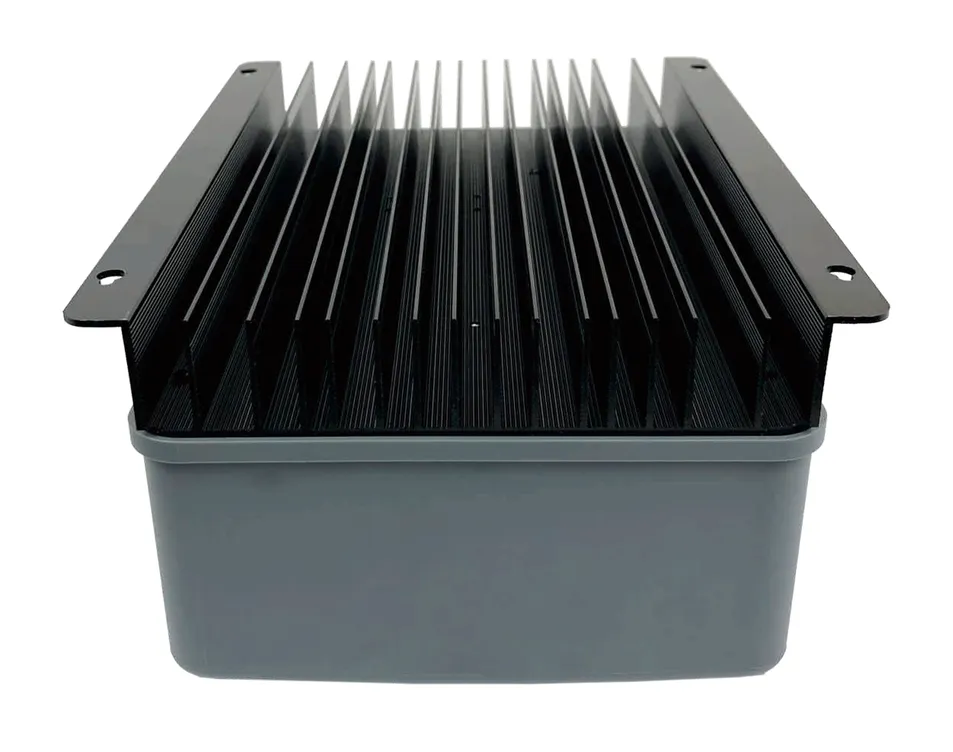

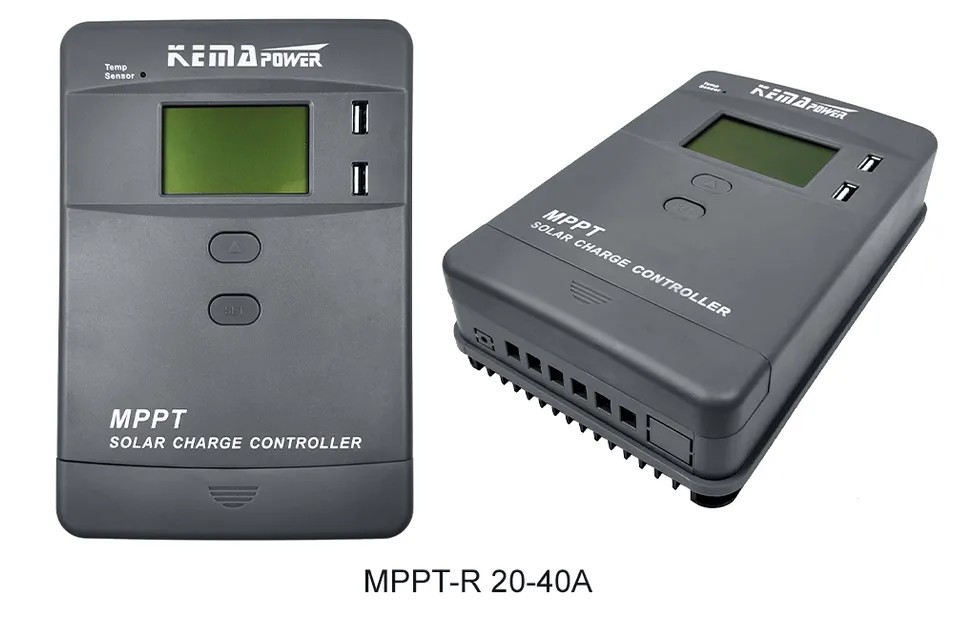

20-40A: Natural Cooling

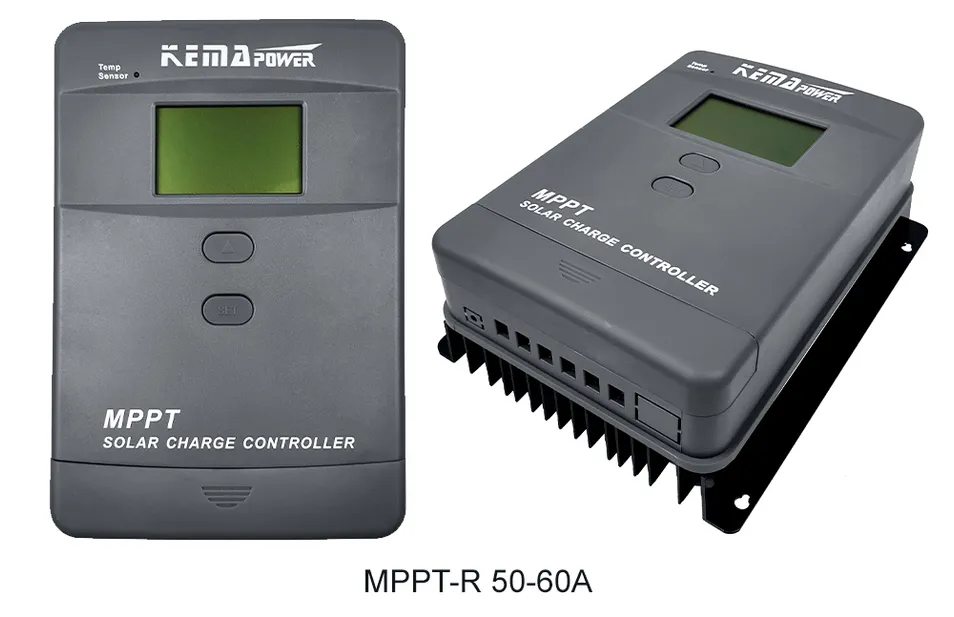

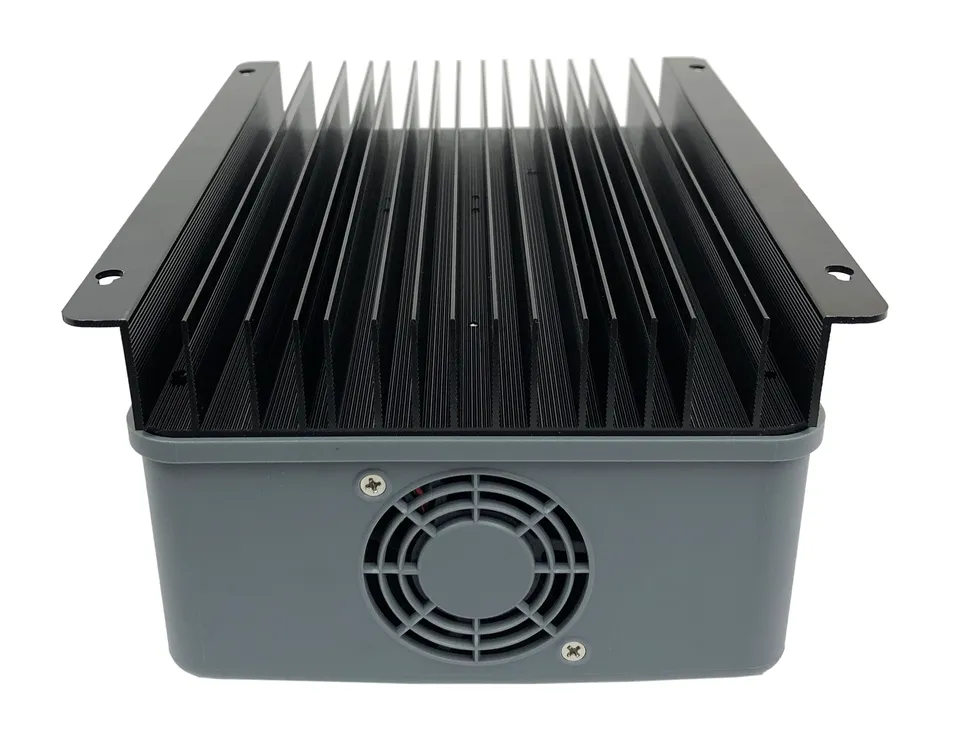

50-100A: Fan Cooling

Technical Specifications

Model	2420R	2430R	2440R	2450R	2460R	4830R	4850R
System Voltage	12/24V Auto					12/24/48V Auto
Rated Current	20A	30A	40A	50A	60A	30A	50A
Max PV VOC	<60V	<75V	<100V			<150V
Max PV Power (12V)	260W	390W	520W	650W	780W	390W	650W
Max PV Power (24V)	520W	780W	1040W	1300W	1560W	780W	1300W
Conversion Efficiency	>99%
Battery Type	GEL, Sealed, Flooded, LiFePO4, Li(NiCoMn)O2, Custom
Cooling Mode	Natural			Fan		Natural	Fan

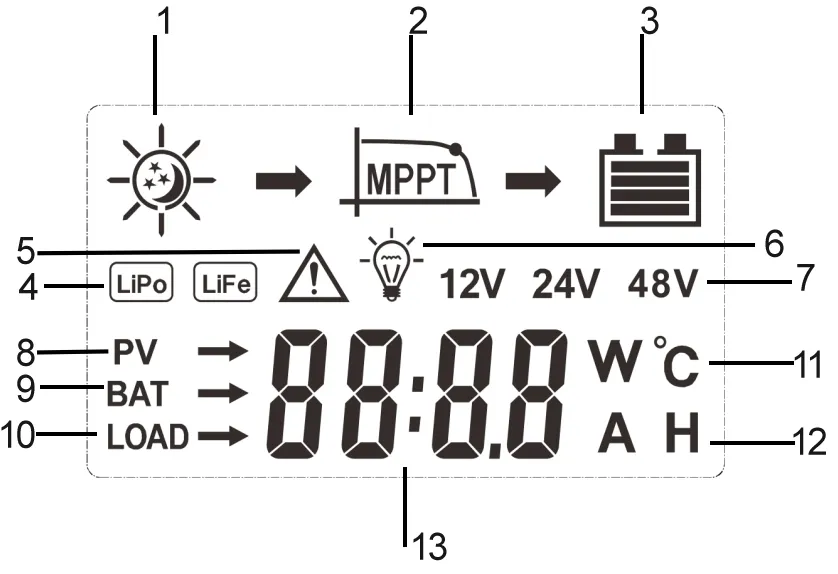

LCD Interface Overview

1. Day/Night indicator
2. Charge status tracking
3. Battery capacity visualization
4. Battery type selection
5. System Warning codes
6. Load Switch status
7. System Voltage real-time monitor
8. PV/Battery/Load parameter setup

Frequently Asked Questions

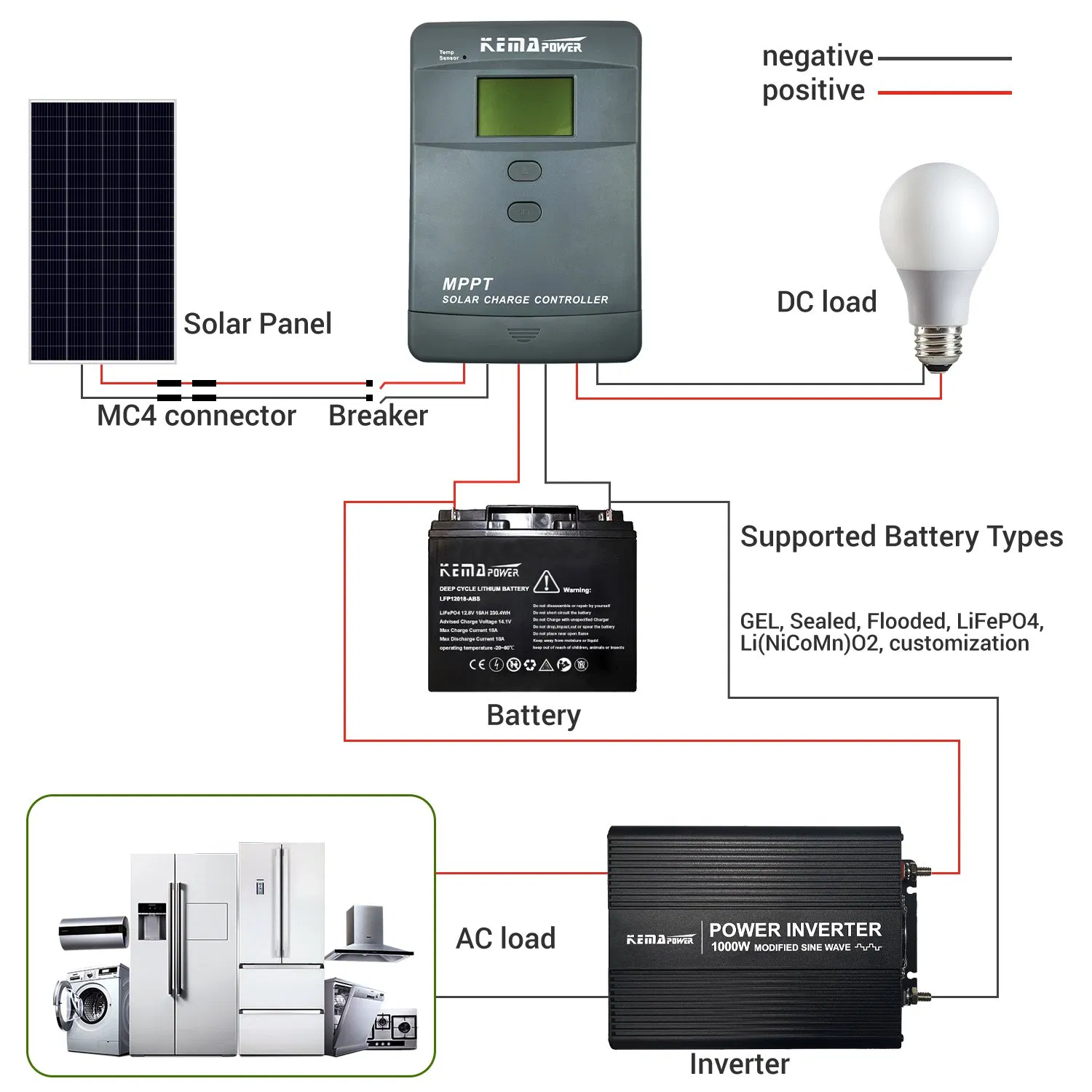

What types of batteries are compatible with this MPPT controller?

The controller supports a wide range of batteries including GEL, Sealed, Flooded, LiFePO4 (Lithium Iron Phosphate), Li(NiCoMn)O2, and user-defined custom settings.

What is the maximum PV input voltage?

Depending on the model, the maximum PV Open Circuit Voltage (VOC) ranges from <60V for smaller models up to <150V for high-capacity 48V models.

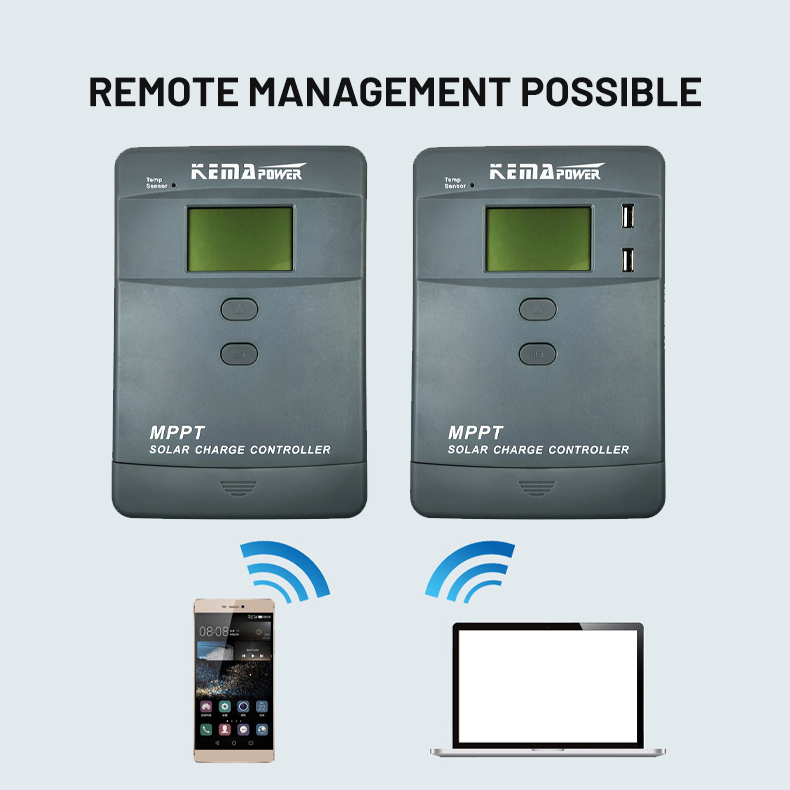

Does this controller support mobile monitoring?

Yes, it offers optional internal Bluetooth or external WIFI communication modules, allowing you to monitor and setup parameters via a mobile app.

What is the difference between natural cooling and fan cooling models?

The 20A to 40A models use an efficient natural cooling heatsink design for silent operation, while the higher power 50A to 100A models utilize intelligent fan cooling for optimal heat dissipation.

Can this controller activate a "dead" lithium battery?

Yes, this MPPT solar charge controller features a specialized Lithium Battery Activation function to restart lithium batteries that have entered sleep mode due to low voltage.

What protection features are built-in?

It includes PV and Battery Reverse Connection protection, Battery Over/Low Voltage protection, and Overload/Short-circuit protection to ensure long-term system safety.
