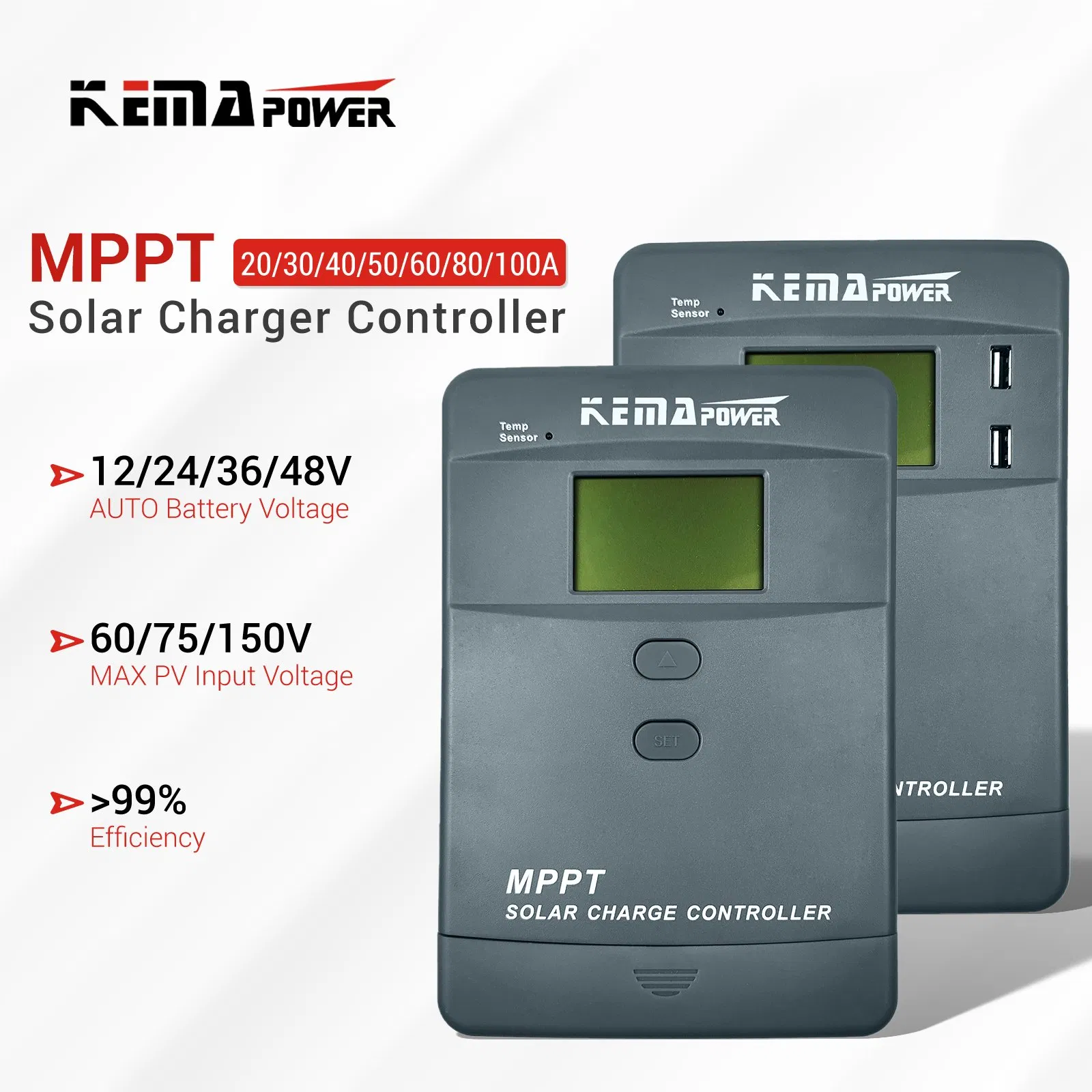

Intelligent Clear LCD Large Screen 12/24/36V Auto 60A MPPT Solar Charge Controller for Solar Home off Grid Energy System
Intelligent Clear LCD Large Screen 12/24/36V Auto 60A MPPT Solar Charge Controller for Solar Home off Grid Energy System
Intelligent Clear LCD Large Screen 12/24/36V Auto 60A MPPT Solar Charge Controller for Solar Home off Grid Energy System
Intelligent Clear LCD Large Screen 12/24/36V Auto 60A MPPT Solar Charge Controller for Solar Home off Grid Energy System
Intelligent Clear LCD Large Screen 12/24/36V Auto 60A MPPT Solar Charge Controller for Solar Home off Grid Energy System
1 / 5
Intelligent Clear LCD Large Screen 12/24/36V Auto 60A MPPT Solar Charge Controller for Solar Home off Grid Energy System
Intelligent Clear LCD Large Screen 12/24/36V Auto 60A MPPT Solar Charge Controller for Solar Home off Grid Energy System
Intelligent Clear LCD Large Screen 12/24/36V Auto 60A MPPT Solar Charge Controller for Solar Home off Grid Energy System
Intelligent Clear LCD Large Screen 12/24/36V Auto 60A MPPT Solar Charge Controller for Solar Home off Grid Energy System
Intelligent Clear LCD Large Screen 12/24/36V Auto 60A MPPT Solar Charge Controller for Solar Home off Grid Energy System

Intelligent Clear LCD Large Screen 12/24/36V Auto 60A MPPT Solar Charge Controller for Solar Home off Grid Energy System

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications

Model NO. MPPT-R Condition New
Certification ISO, CB, CE Rated Voltage 12/24/36/48V Auto
Application Collector Controller, Solar System Controller, Charger Controller, Solar Working Station, Voltage Controller
HS Code 9032899090 Capacity 50,000 PCS/Year

Key Features

✔ MPPT tracking efficiency >99% with multi-stage charging (Bulk, Absorption, Float, Equalization).
✔ Supports various battery types: GEL, Sealed, Flooded, LiFePO4, Li(NiCoMn)O2, and customization.
✔ LCD display for real-time PV/Battery/Load parameter setup and working status monitoring.
✔ Lithium battery activation function and temperature compensation for optimized charging.
✔ Flexible communication: Internal Bluetooth or External WIFI/RS485 modules (Optional).
✔ Dual USB ports (2A/5V) available for 12/24V 20-40A models.

Technical Specifications

Model MPPT2420R MPPT2440R MPPT2460R MPPT4840R MPPT4860R MPPT48100R
System voltage 12/24V Auto 12/24V Auto 12/24V Auto 12/24/48V Auto
Rated current 20A 40A 60A 40A 60A 100A
Max PV VOC <60V <100V <100V <150V
Max PV Input 12V 260W 520W 780W 520W 780W 1300W
24V 520W 1040W 1560W 1040W 1560W 2600W
Protection Class IP30
Cooling Mode Natural Fan Natural Fan

Product Gallery

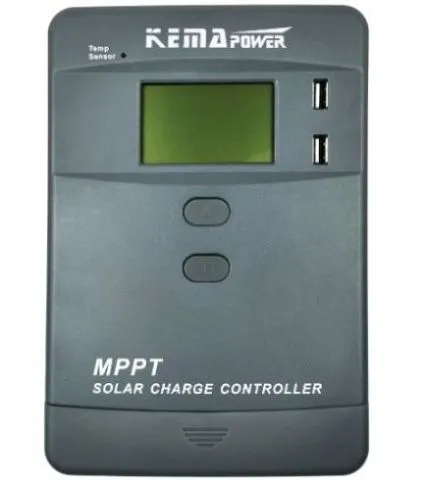

MPPT Controller Front View

MPPT-R 20-40A Series

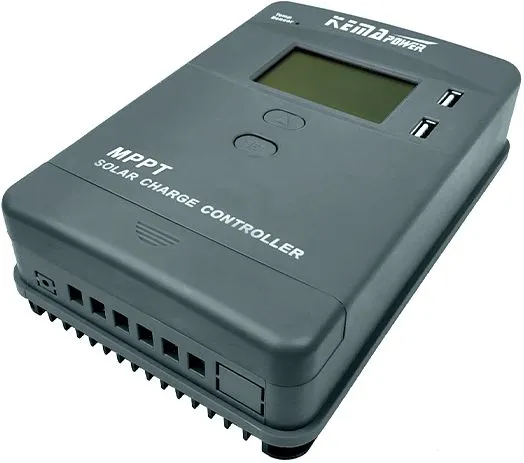

MPPT Controller Side View

Compact Design

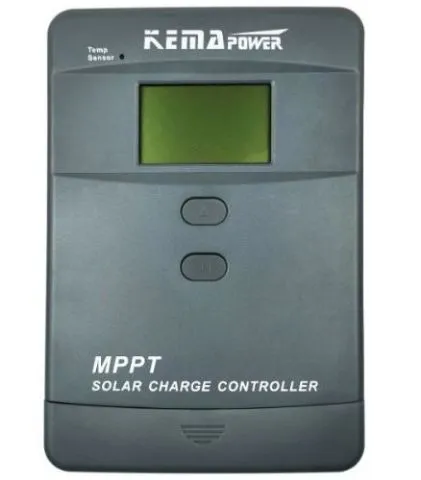

MPPT-R 50-60A Series

MPPT-R 50-60A High Power

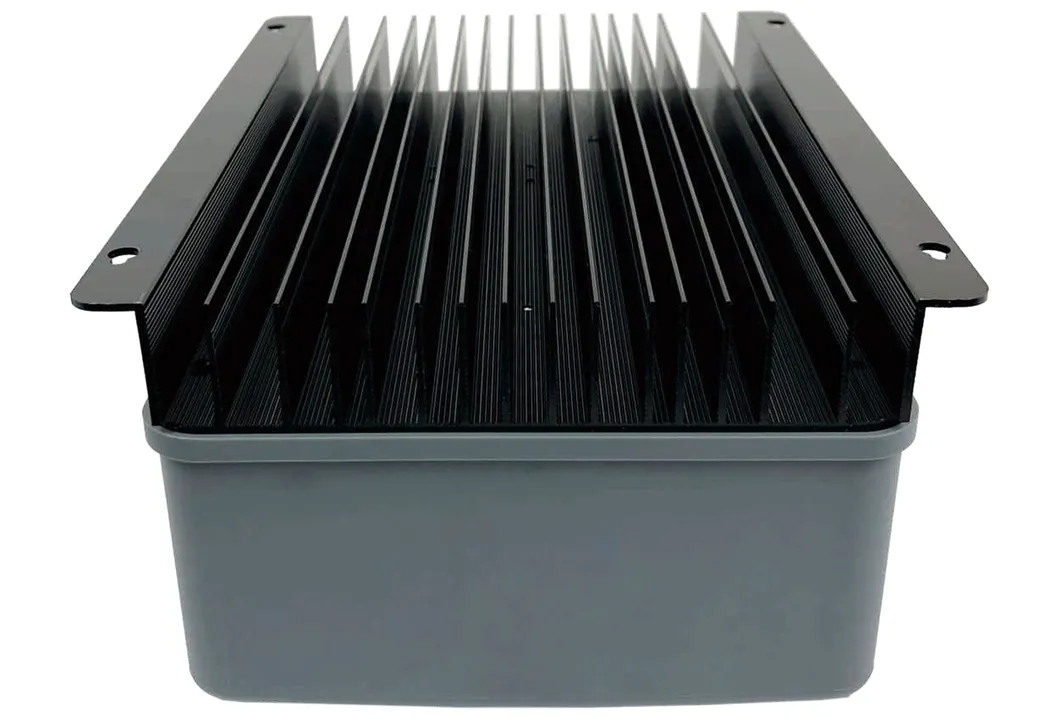

Natural Cooling Model

Natural Cooling (20-40A)

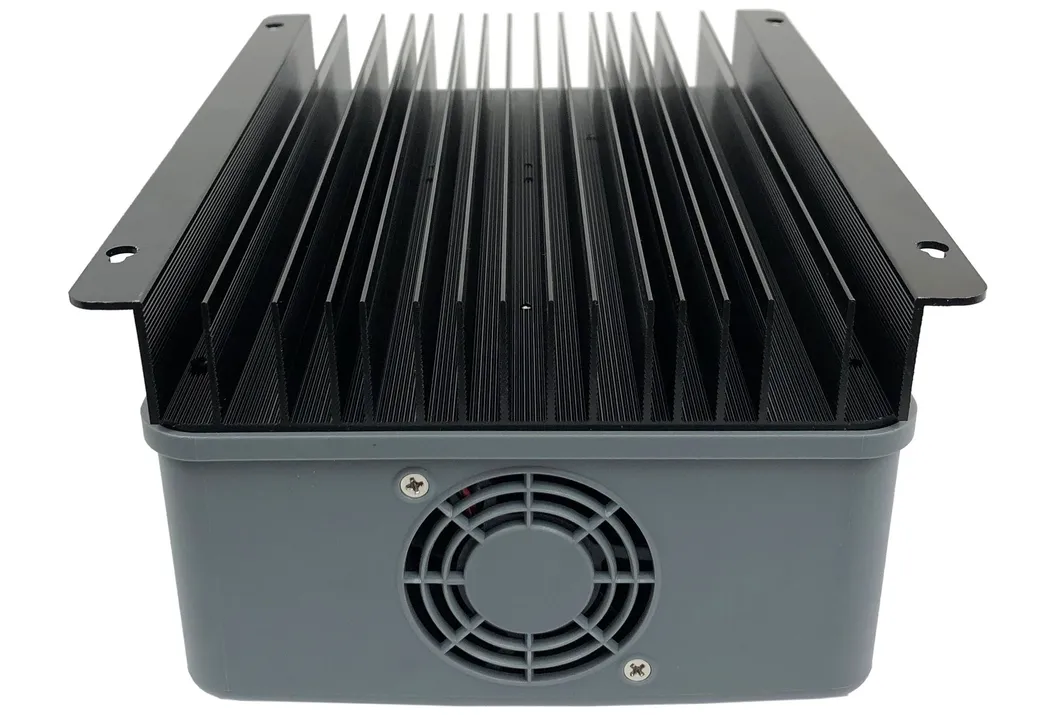

Fan Cooling Model

Fan Cooling (50-100A)

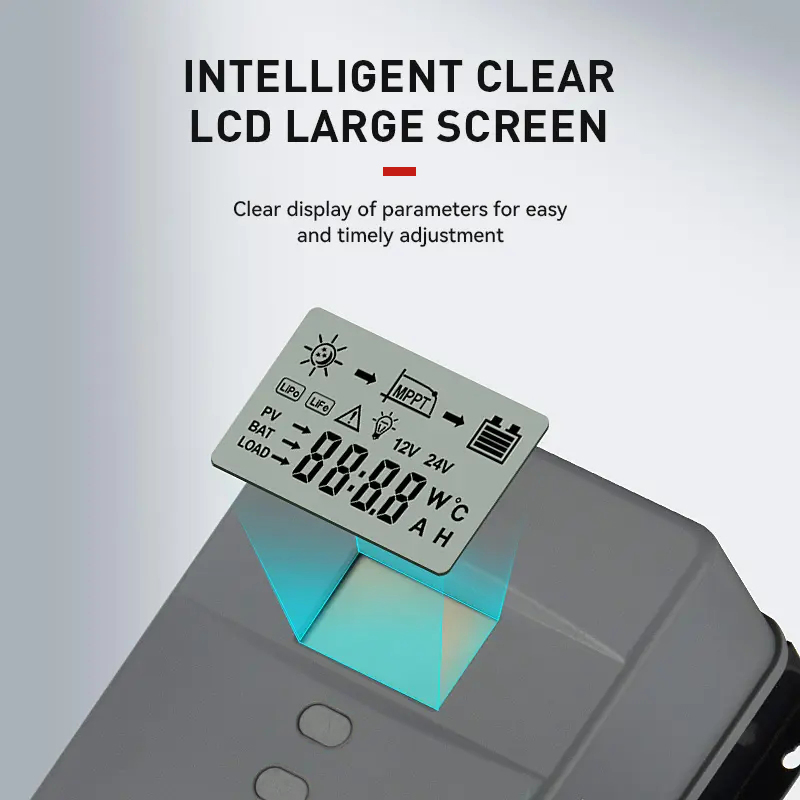

Intelligent LCD Interface

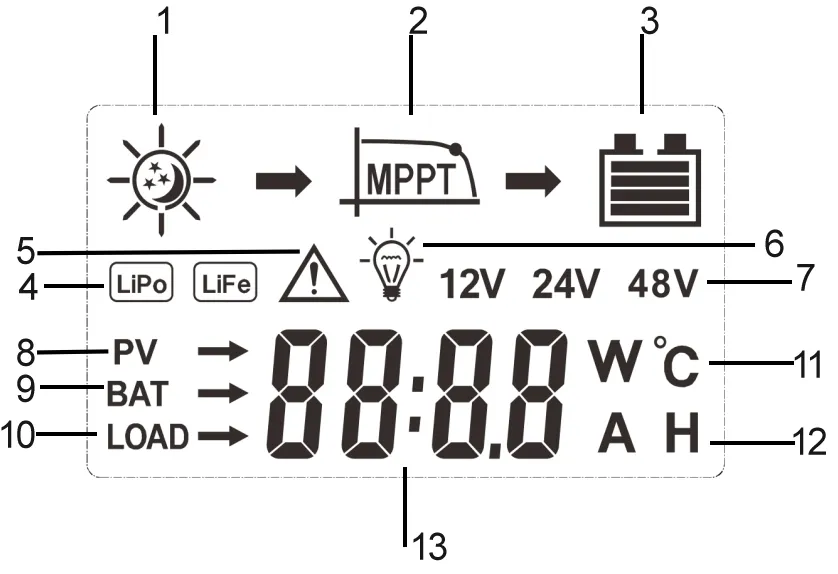

LCD Interface details
Display Parameters:
1. Day/Night Status | 2. Charge Status
3. Battery Capacity | 4. Battery Type
5. Error Warnings | 6. Load Status
7. System Voltage | 8. PV Parameters
9. BAT Parameters | 10. Load Parameters
Controller Dimensions Wiring Diagram Product Features Application Scenarios

Frequently Asked Questions

Q1: What is the maximum tracking efficiency of this MPPT controller? A: The MPPT-R series features advanced Maximum Power Point Tracking technology with an efficiency greater than 99%.
Q2: Which battery types are compatible with the MPPT-R? A: It supports a wide range of batteries including GEL, Sealed, Flooded, LiFePO4, and Li(NiCoMn)O2, with options for custom settings.

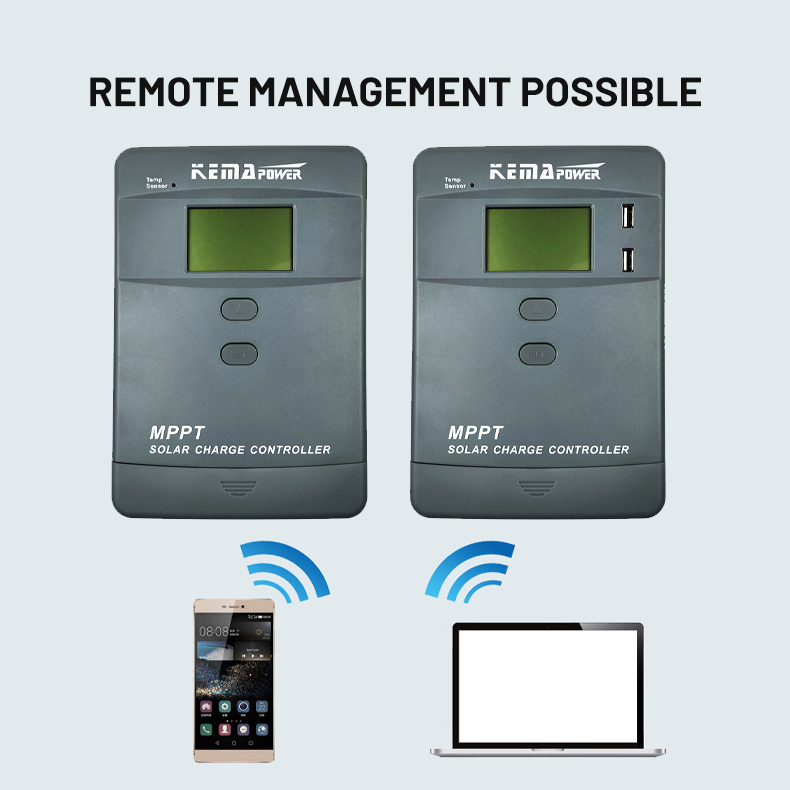

Q3: Can I monitor the controller remotely via my smartphone? A: Yes, the controller supports optional internal Bluetooth or external WIFI modules for remote monitoring and parameter setup.
Q4: How does the cooling system work for different models? A: Models between 20-40A utilize natural cooling for silent operation, while 50-100A high-power models use intelligent fan cooling.
Q5: Does the controller support lithium battery activation? A: Yes, it includes a built-in Lithium battery activation function, making it ideal for modern energy storage systems.
Q6: What protections are integrated into the device? A: It includes PV and Battery Reverse Connection protection, Battery Over/Low Voltage protection, and Over Load protection.
