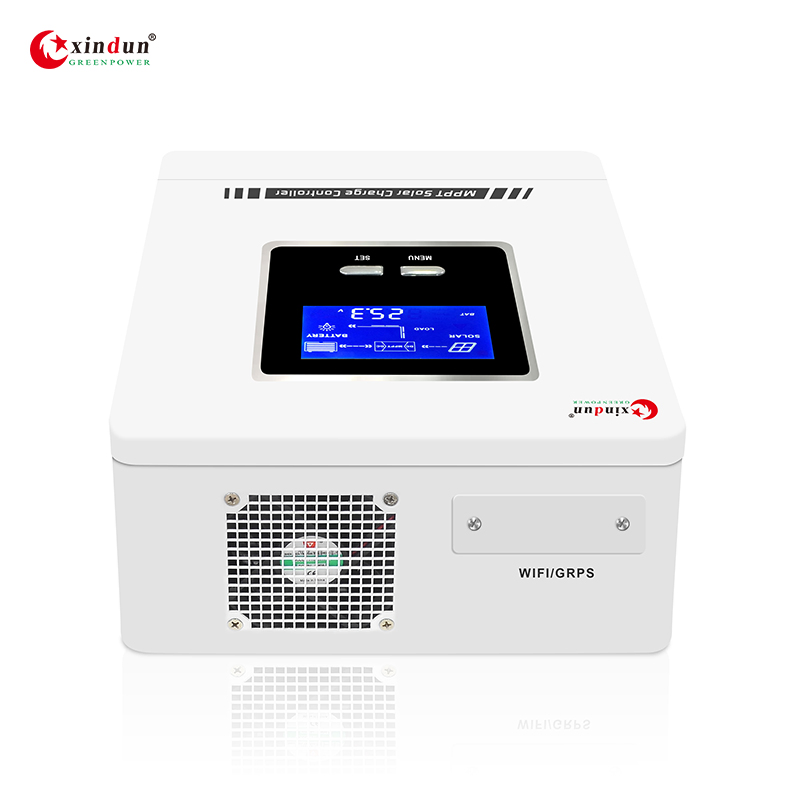

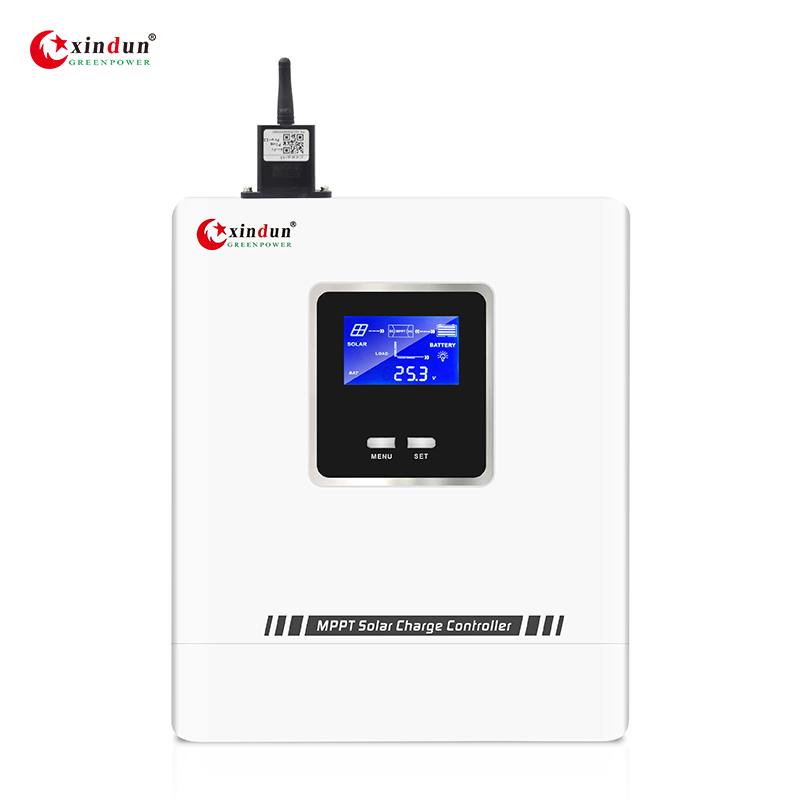

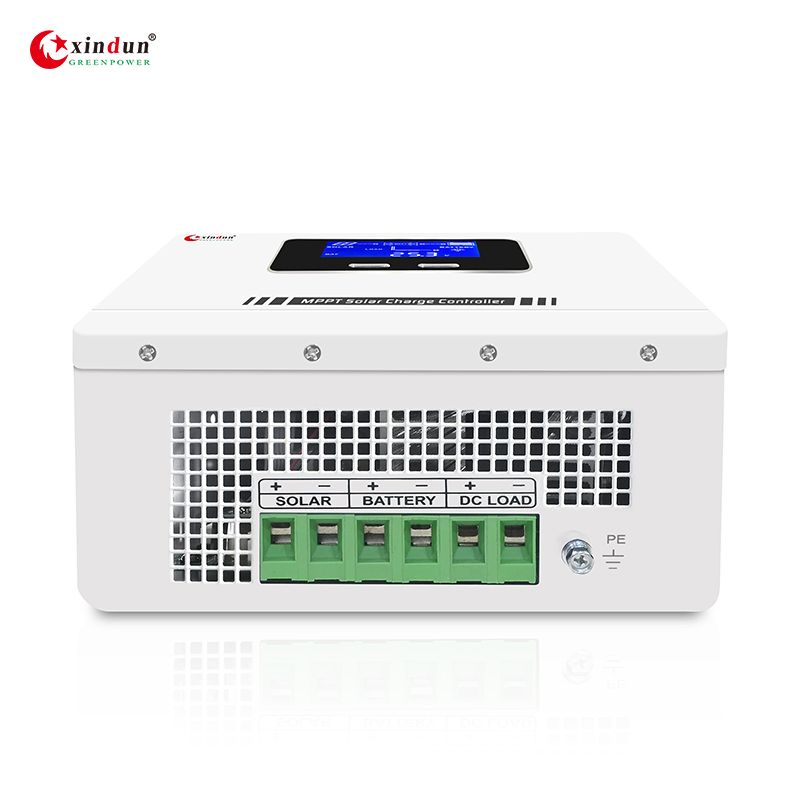

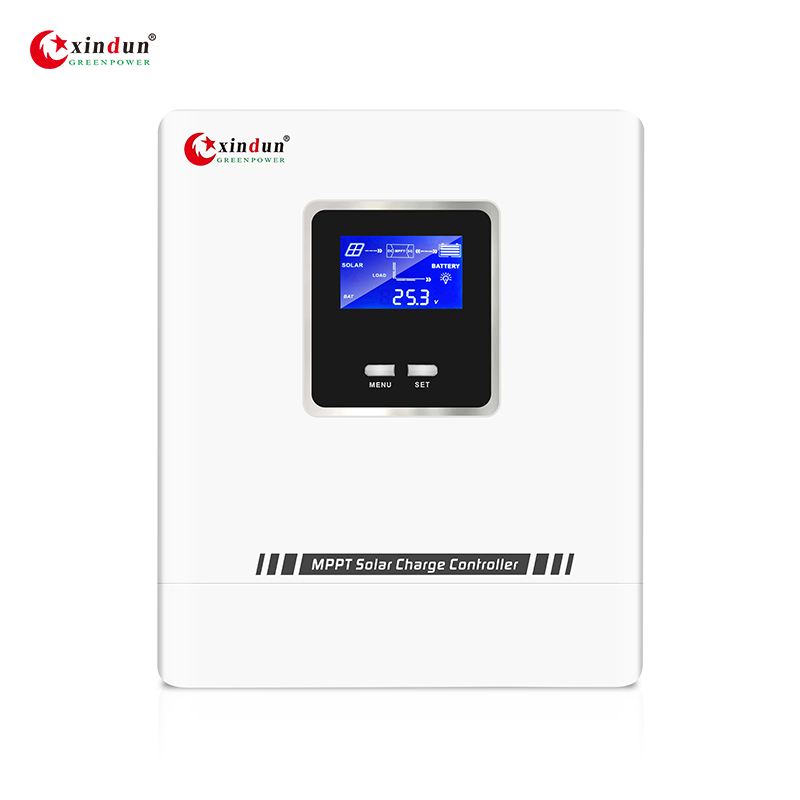

12V 10A 30A 60AMP 80 AMP 100A MPPT Based Solar Lithium Charge Controller
12V 10A 30A 60AMP 80 AMP 100A MPPT Based Solar Lithium Charge Controller
12V 10A 30A 60AMP 80 AMP 100A MPPT Based Solar Lithium Charge Controller
12V 10A 30A 60AMP 80 AMP 100A MPPT Based Solar Lithium Charge Controller
12V 10A 30A 60AMP 80 AMP 100A MPPT Based Solar Lithium Charge Controller
1 / 5
12V 10A 30A 60AMP 80 AMP 100A MPPT Based Solar Lithium Charge Controller
12V 10A 30A 60AMP 80 AMP 100A MPPT Based Solar Lithium Charge Controller
12V 10A 30A 60AMP 80 AMP 100A MPPT Based Solar Lithium Charge Controller
12V 10A 30A 60AMP 80 AMP 100A MPPT Based Solar Lithium Charge Controller
12V 10A 30A 60AMP 80 AMP 100A MPPT Based Solar Lithium Charge Controller

12V 10A 30A 60AMP 80 AMP 100A MPPT Based Solar Lithium Charge Controller

Customization: Available
After-sales Service: Free Parts
Warranty: 2 Years
Send Inquiry

Product Description

Basic Specifications
Model NO.
XD-Wonder2
Condition
New
Certification
ISO, CE
Application
Collector Controller, Charger Controller, Voltage Controller
Rated Current
10A - 100A
Communication
RS485/APP (WiFi or GPRS Monitoring)
Efficiency
MPPT Tracking >99%, Conversion >98%
Charging Method
Three Stages (MPPT, Constant Vol, Floating)
Inverter & Controller Features
✔

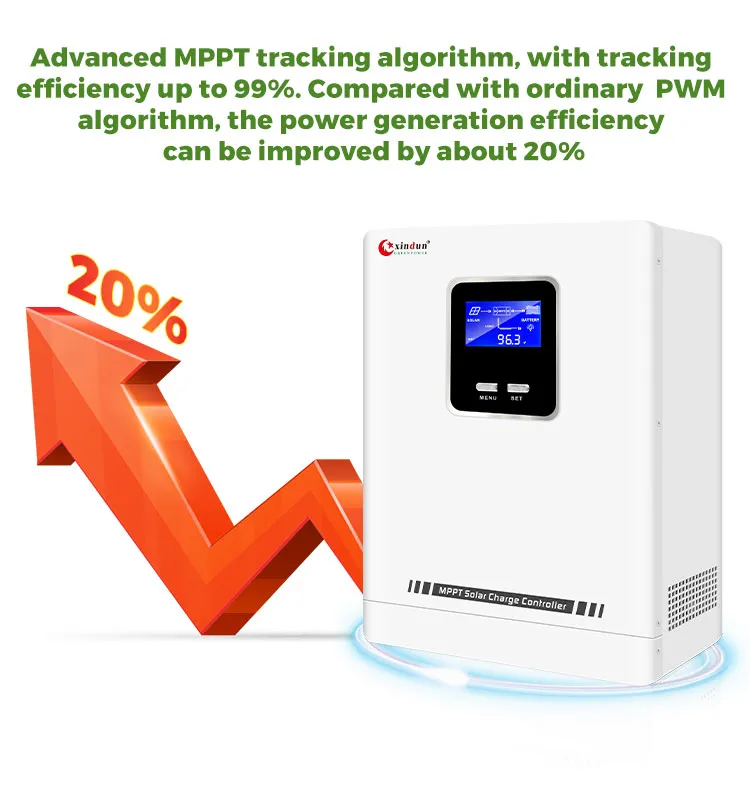

Advanced MPPT tracking algorithm with efficiency up to 99%. Power generation improved by 20% over standard PWM.
✔
LCD graphic display for real-time PV data and simulation of power generation processes.
✔
Multiple load working modes adaptable to various industrial and residential occasions.
✔

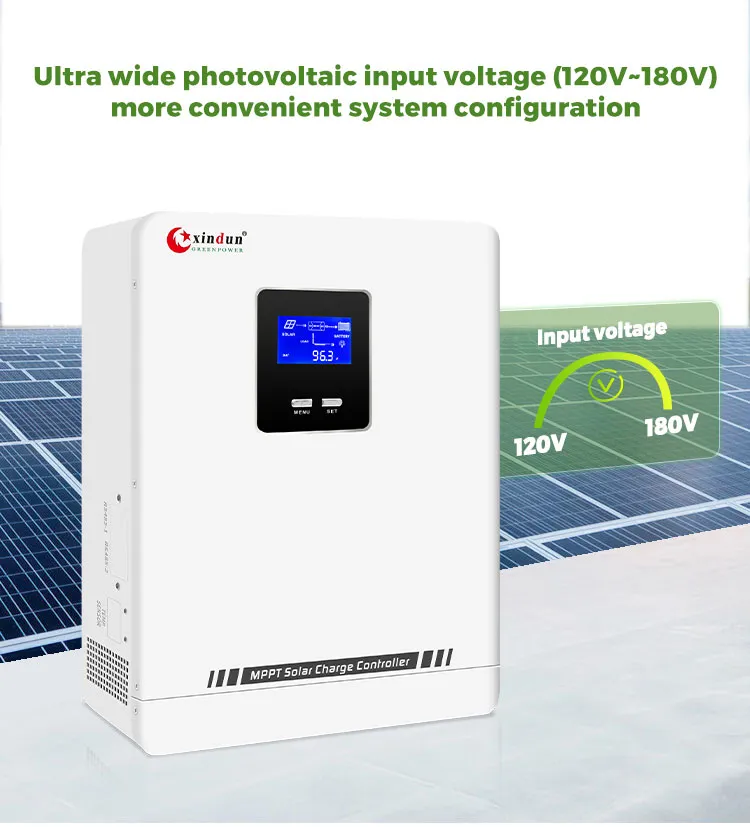

Ultra-wide PV input voltage range for flexible system configuration.
✔

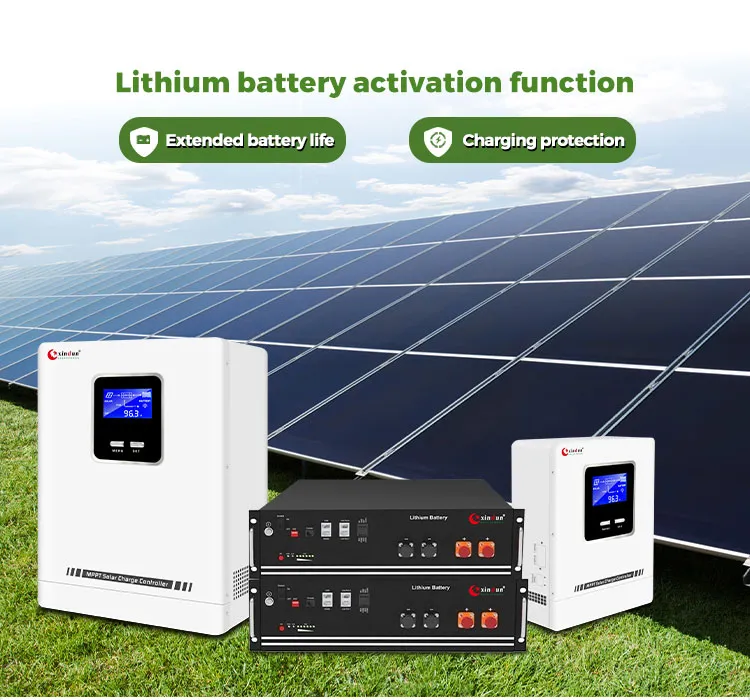

Supports lead-acid and lithium batteries with customizable charging/discharging parameters.
✔
Full electronic protection: anti-reverse connection, over-current, over-temperature, and over-voltage.
Product Highlights
Highlight 1 Highlight 2 Highlight 3
Highlight 4 Highlight 5 Highlight 6
Technical Specifications
Model: Wonder2 10A-30A Series 40A-60A Series 80A-100A Series
Rated System Voltage 12V/24V/48V 12V/24V/48V 12V/24V/48V
Max PV Input (Voc) 120V / 180V 120V / 180V 120V / 180V
MPPT Voltage Range 12V: 15V-80V; 24V: 30V-100V; 48V: 60V-140V
Max PV Array Power Up to 1680W Up to 3360W Up to 5600W
Battery Type Lead acid / Lithium / User Custom
Tracking Efficiency >99%
Conversion Efficiency >98%
Product Details & Connection

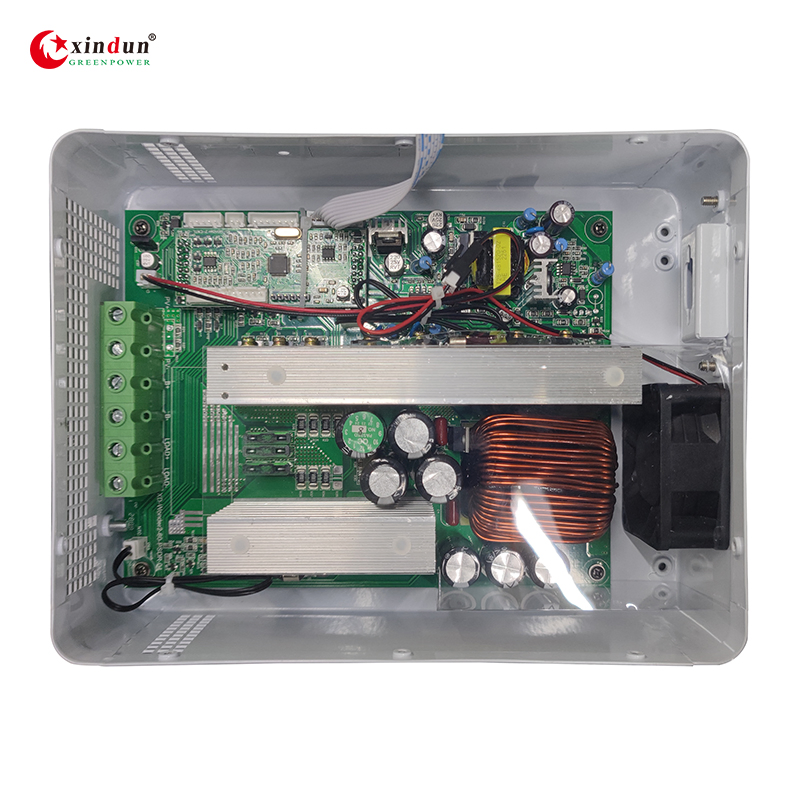

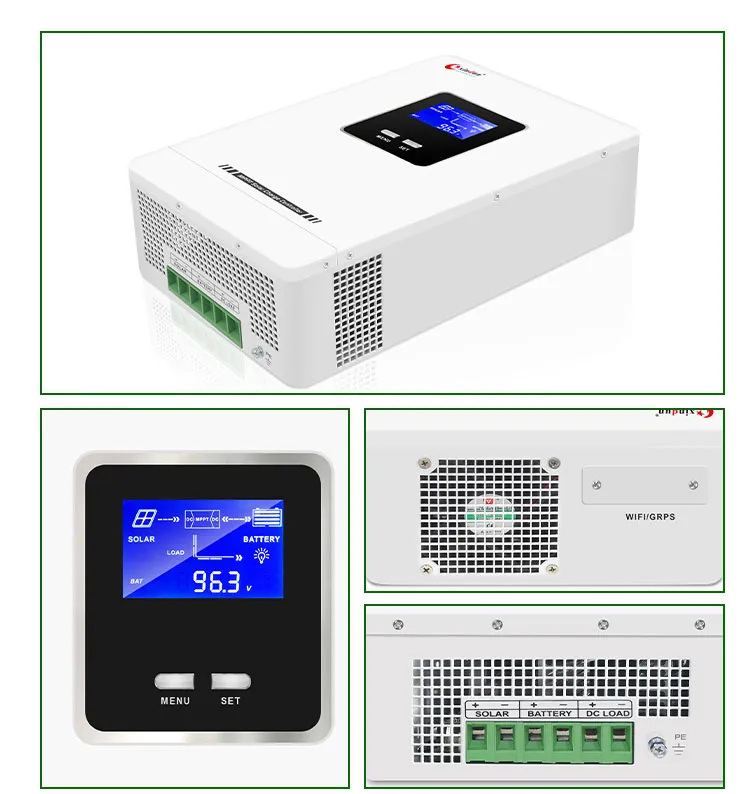

Product Detail

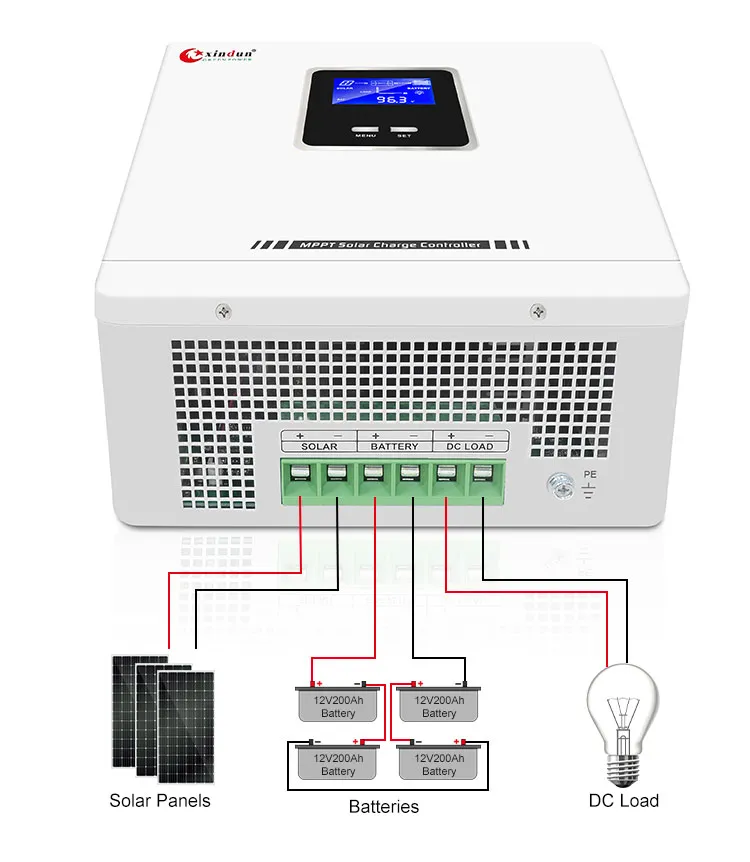

Wiring Diagram
Packing & Shipping

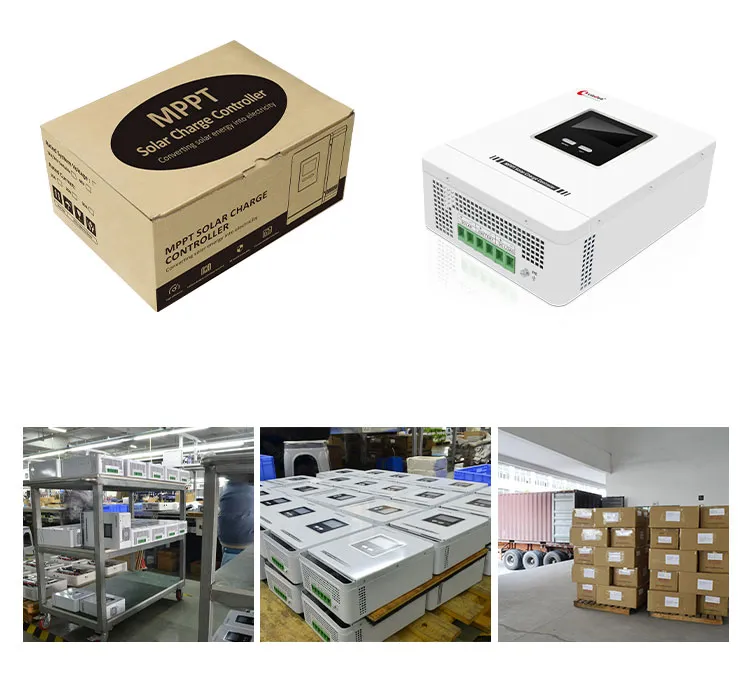

Packaging
Package
Standard Carton Box or protective Wooden Box for safe transportation.
Shipping Methods
1. Express: Fedex/DHL/TNT/UPS (Door-to-door).
2. Sea/Air: For batch orders, port-to-port.
3. Lead Time: 7 days for samples; 10-25 days for bulk orders.
Production Workshop
Production 1

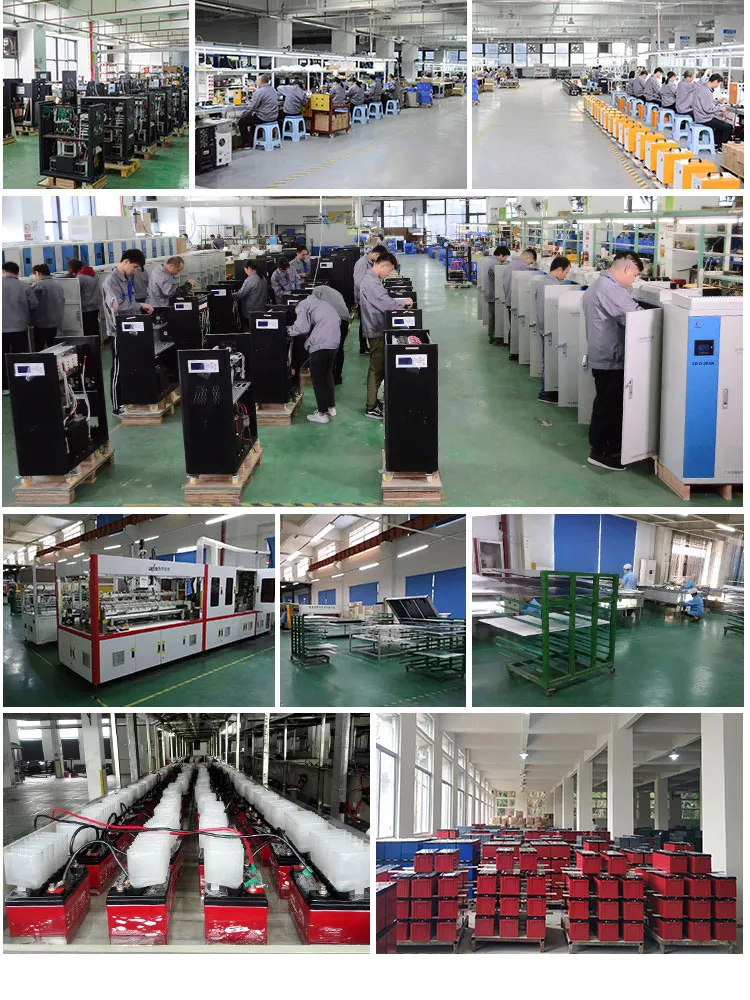

Workshop 1 Workshop 2
Workshop 3
Frequently Asked Questions
1. What is the tracking efficiency of the XD-Wonder2 MPPT controller?
The controller utilizes an advanced MPPT tracking algorithm with an efficiency rating of over 99%, significantly outperforming standard PWM controllers.
2. Does this controller support lithium batteries?

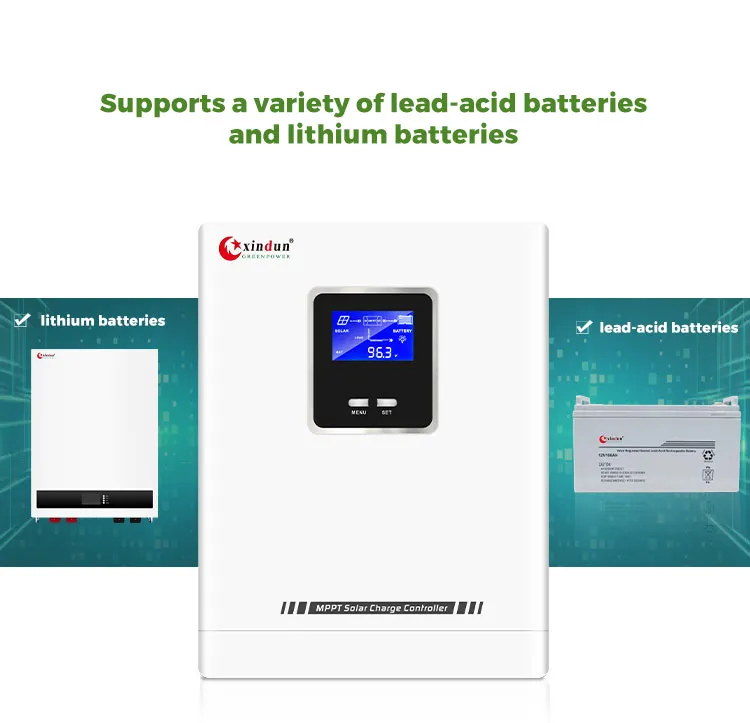

Yes, it supports a wide variety of lead-acid batteries and lithium batteries. Users can also customize charging and discharging parameters to suit specific needs.
3. Can I monitor the solar system through my phone?

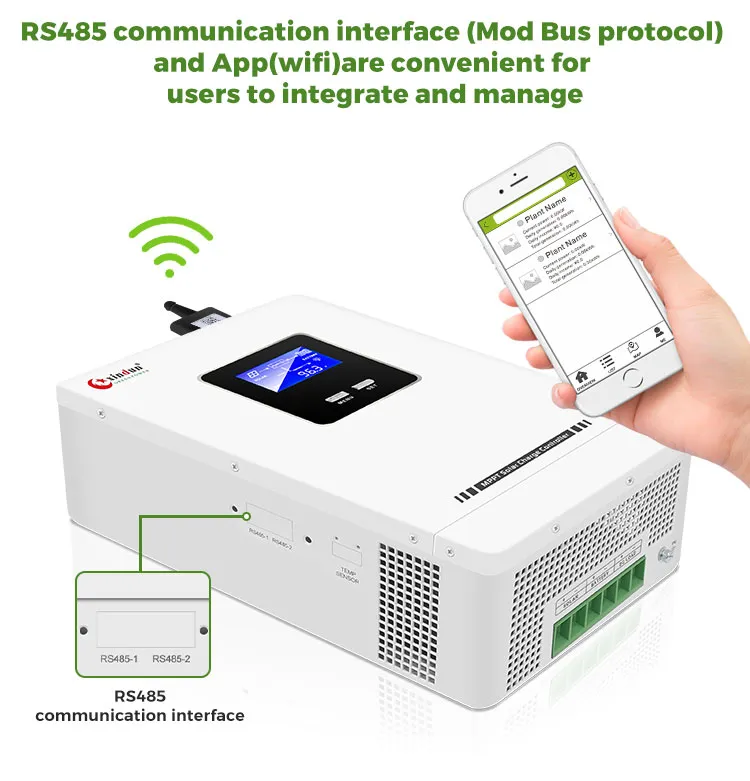

Yes, the device features an RS485 communication interface and supports mobile app monitoring via WiFi or GPRS modules.
4. What safety protections are included?
It includes a full range of electronic protections: battery and PV anti-reverse connection, over-current, DC output over-current, over-temperature, and over/under-voltage protection.
5. What is the maximum PV input voltage?
The Max PV input voltage (Voc) is 120V for standard systems and up to 180V for specific 48V configurations.
6. What is the typical delivery time?
Samples are typically delivered within 7 days, while batch production orders take between 10 to 25 days.
