Basic Info.
Rated Voltage
12V/24V/36V/48V
Name
Solar Charge Controller
Rate Current
30A 40A 50A 60A 80A 100A
Control Mode
Max Power Piont Tracking(MPPT)
Battery Type
Lead Acid, Gel, Deep Cycle, AGM, Lithium and Etc

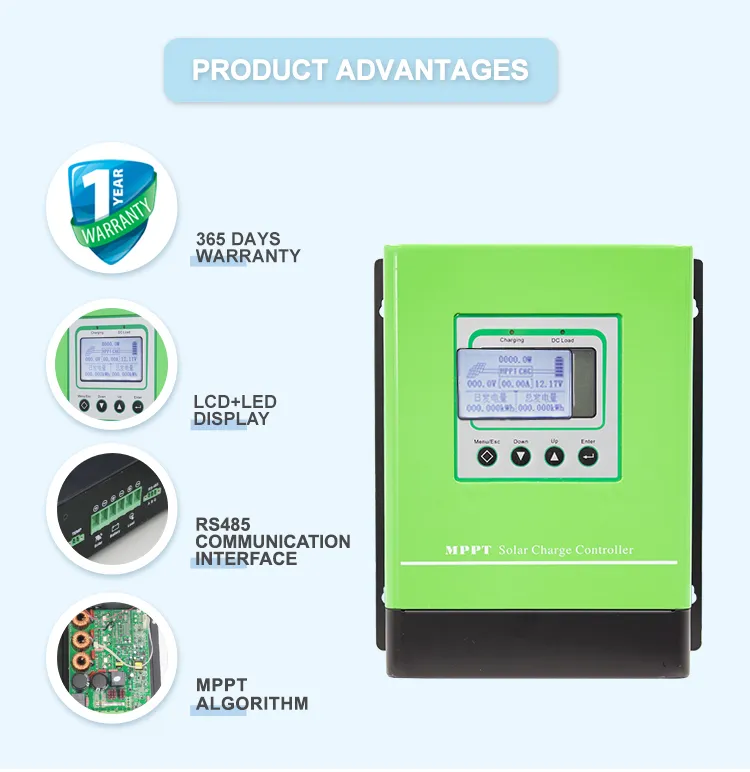

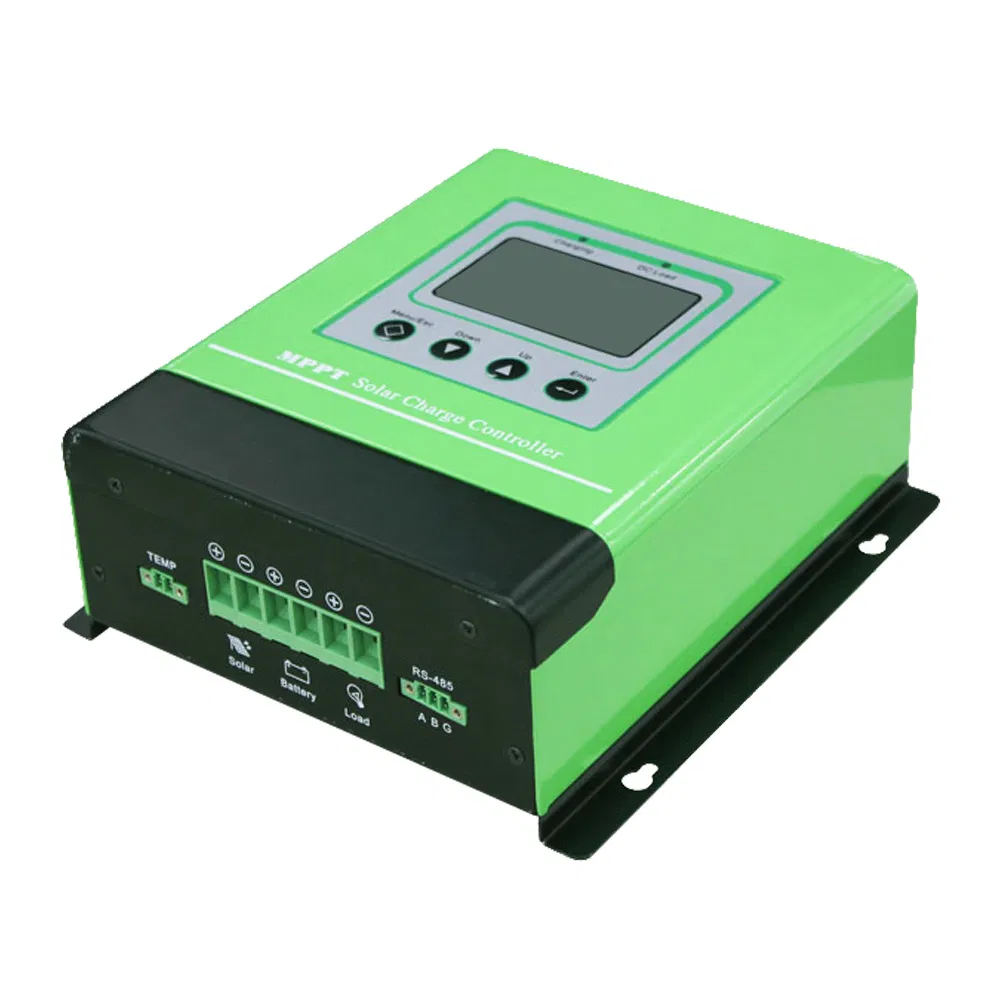

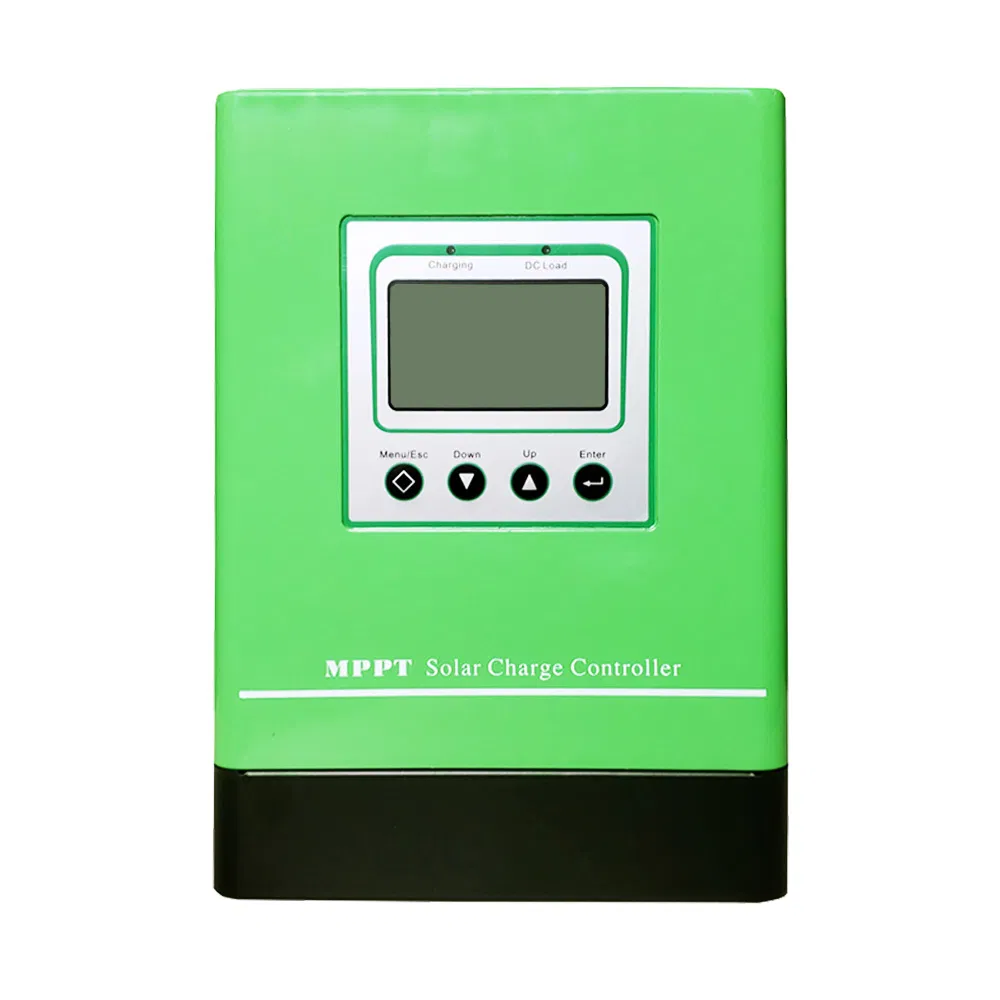

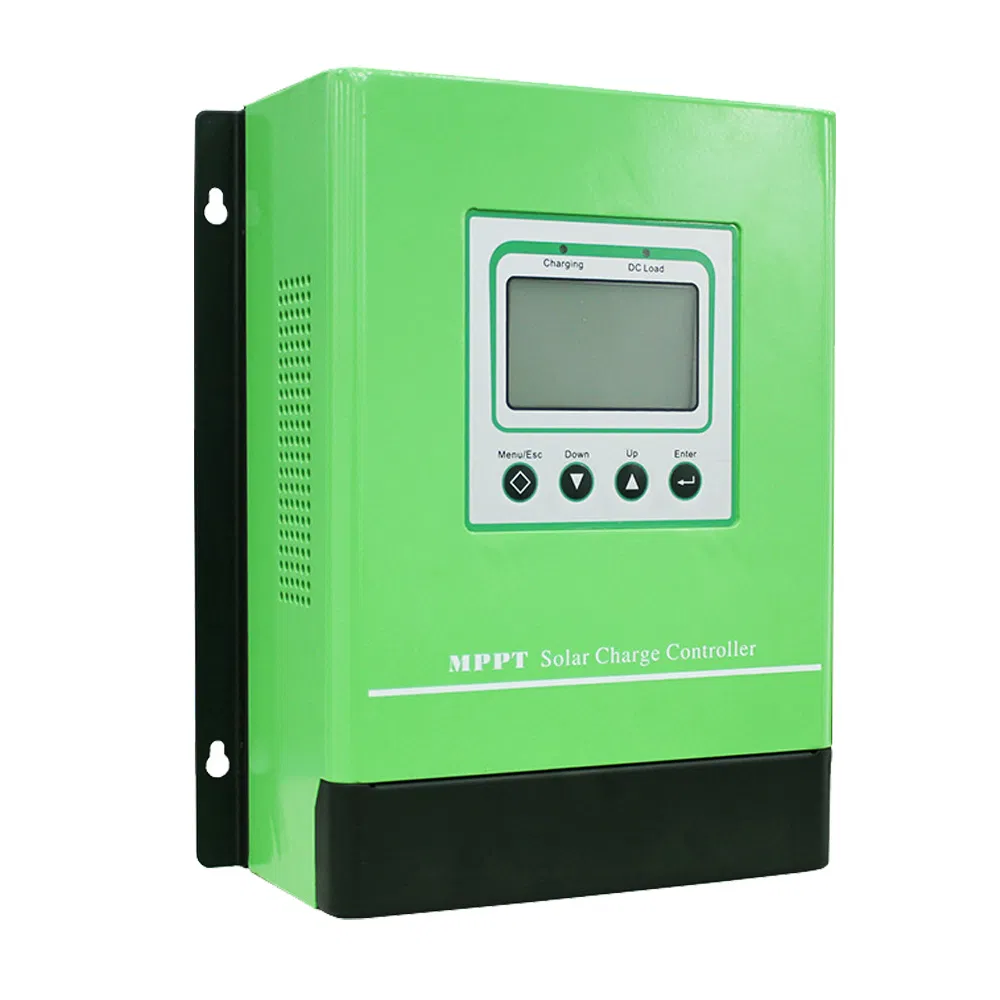

12V 24V 36V 48V MPPT Solar Charge Controller

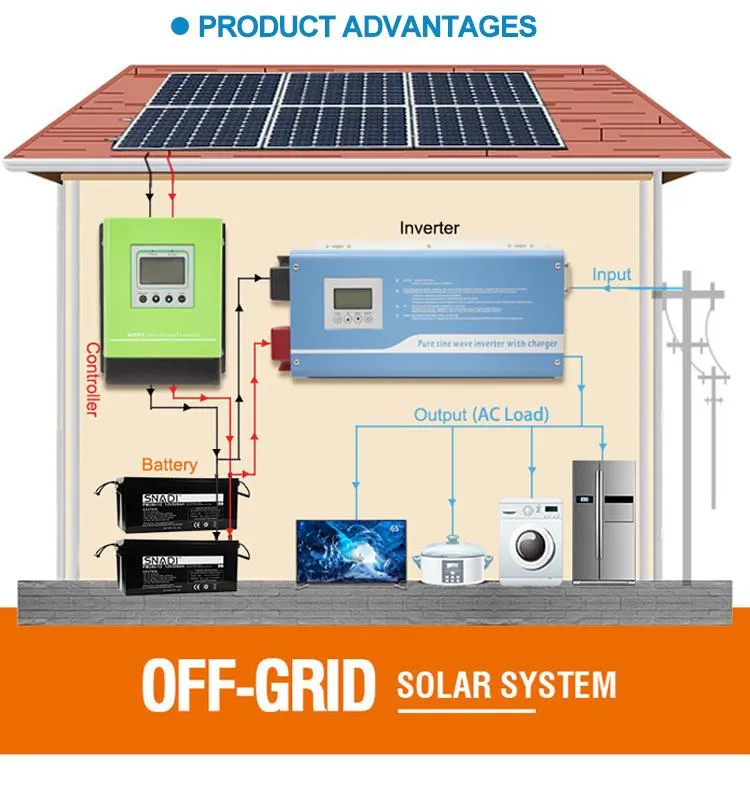

Experience efficient solar charging with our 48V MPPT Solar Charge Controller. Ideal for off-grid inverters, this controller ensures optimal performance for your home solar power system. Max. PV input 200VDC.
🚀
Main Features
- Excellent performance with MCU intelligent control technology
- Wide range of applicable loads with pure sine wave AC output
- Convenient 5VDC-USB output port and 12VDC output port
- Solar array and battery common-anode system input
- Charge by mains supply for flexible configuration (optional function)
- Overcharge and overdischarge protection for longer battery life

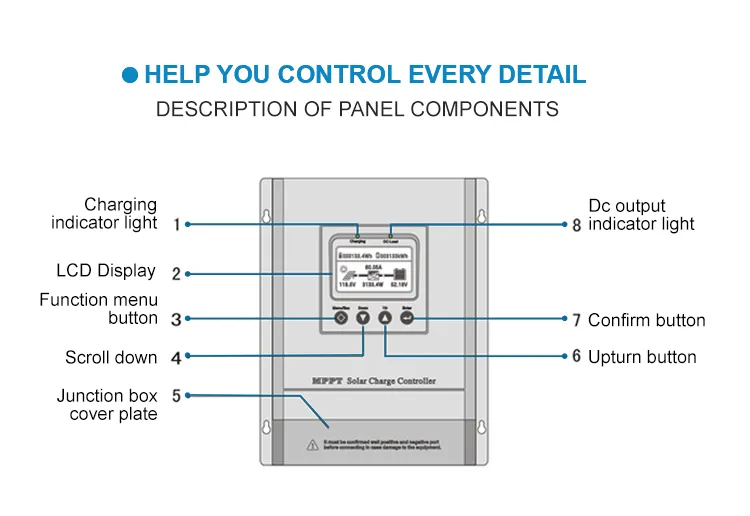

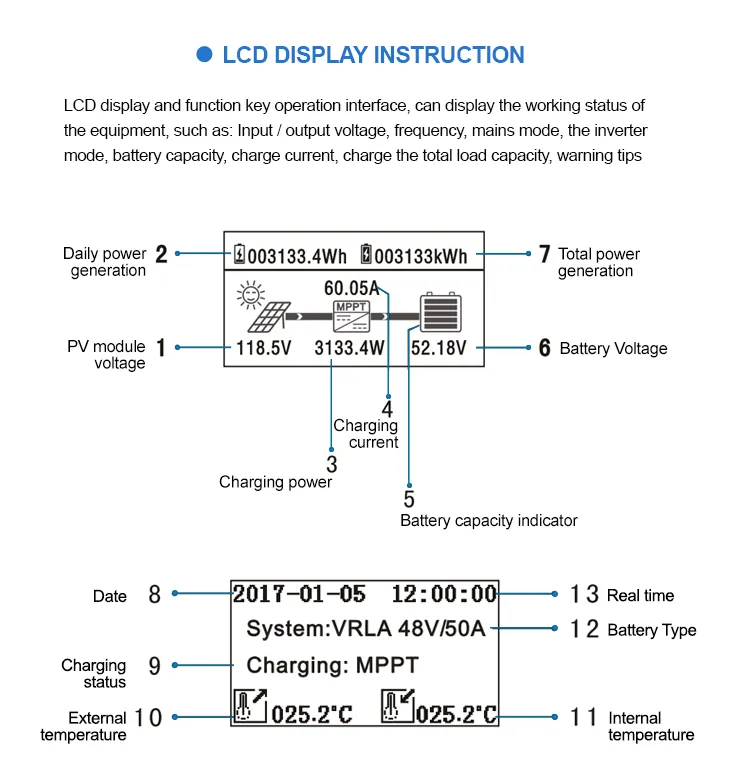

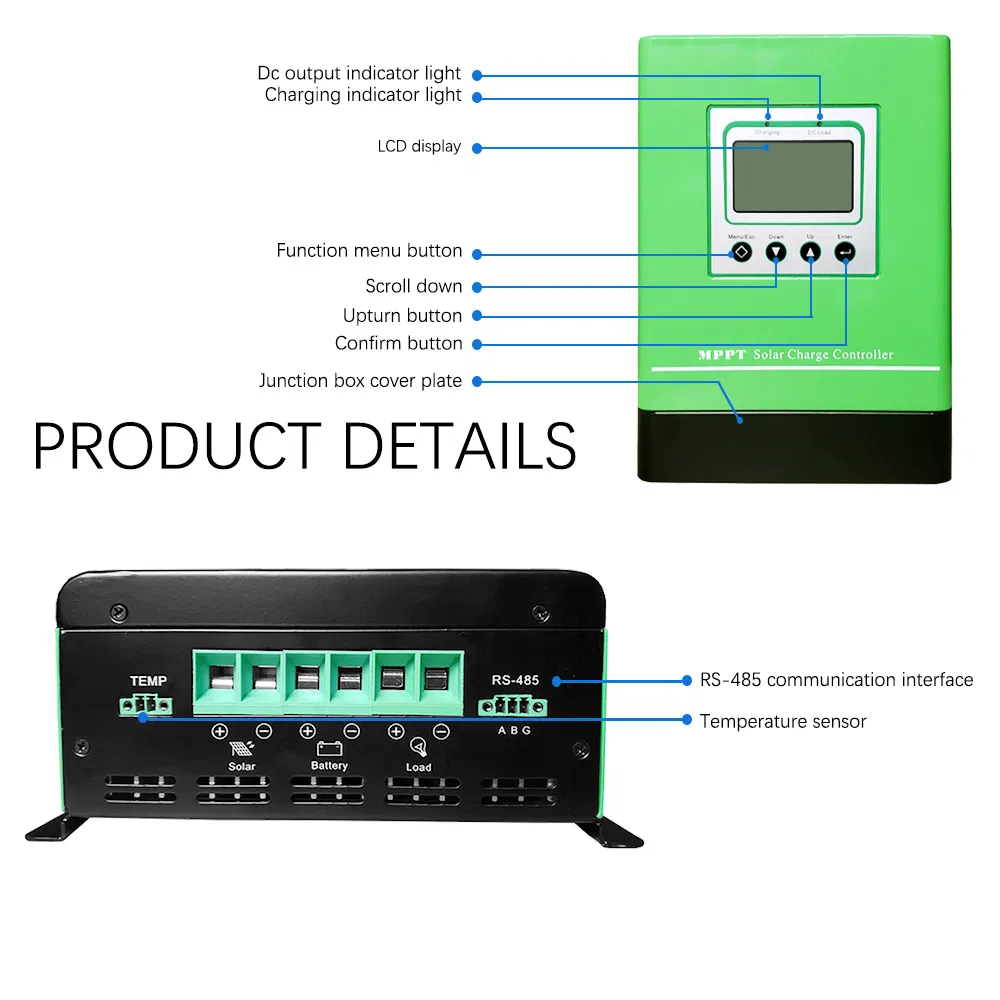

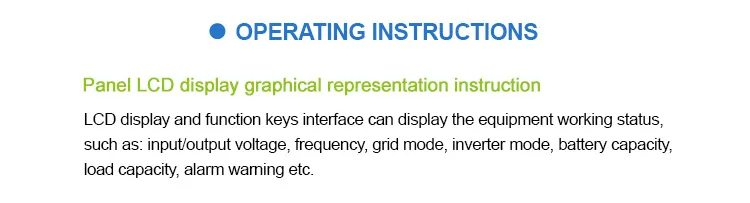

- Digital meter and LEDs for visualization of operation status
- Automatic protection and alarms including AC output overload protection, short circuit protection, etc.
📊
Product Parameters
| Model : CM- |
30A |
40A |
50A |
60A |
80A |
100A |
| Charging mode |
MPPT Automatic Maximum Power Point Tracking |
| Charge method |
Three Stages: Constant Current (MPPT), Balanced Charging, Floating Charge |
| System type |
12V/24V/48V |
Automatic Identification / Manual setting |
| Efficiency |
Machine efficiency |
≥96.5%-99% |
| PV Input |
Max Voltage |
DC150V (Standard) / 200V |
| Protection |
Safety types |
Short circuit, Temperature, High/Low Voltage, Overcharge |
| Physical |
Weight (kg) |
3 |
4.5 |
5 |
5.5 |
8.5 |
10 |
❓
Frequently Asked Questions
What battery types does this MPPT controller support?
The controller supports a wide range of batteries including Lead-acid, Gel, Deep Cycle, AGM, and Lithium batteries. Custom battery settings are also available.
How does the MPPT technology benefit my solar system?
Maximum Power Point Tracking (MPPT) ensures that the controller extracts the maximum possible power from your solar panels at all times, achieving efficiencies between 96.5% and 99%.
Is the system voltage automatic?
Yes, the controller features automatic identification for 12V, 24V, and 48V systems, though manual settings can also be applied for specific requirements.
What is the maximum PV input voltage supported?
This series supports a maximum solar panel input voltage of up to 150VDC or 200VDC (depending on specific configuration), allowing for versatile panel string designs.
What kind of protection does the controller provide?
It includes comprehensive protection: input high/low voltage protection, short circuit protection, over-temperature protection (90°C), and automatic power reduction when internal heat exceeds 85°C.
Does the unit come with a warranty?
Yes, we provide a 12-month quality warranty. During this period, replacement parts are provided free of charge for any quality issues.
