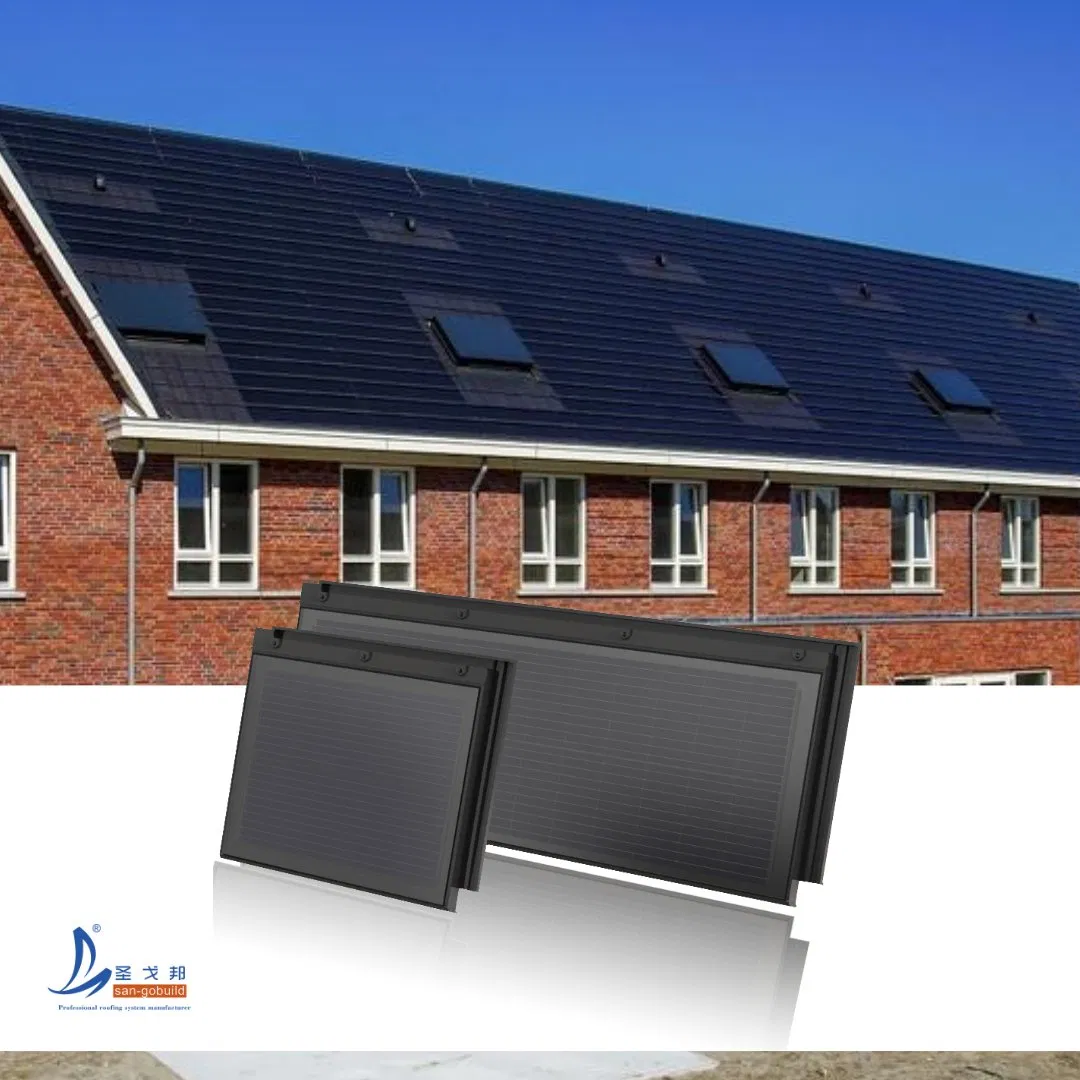

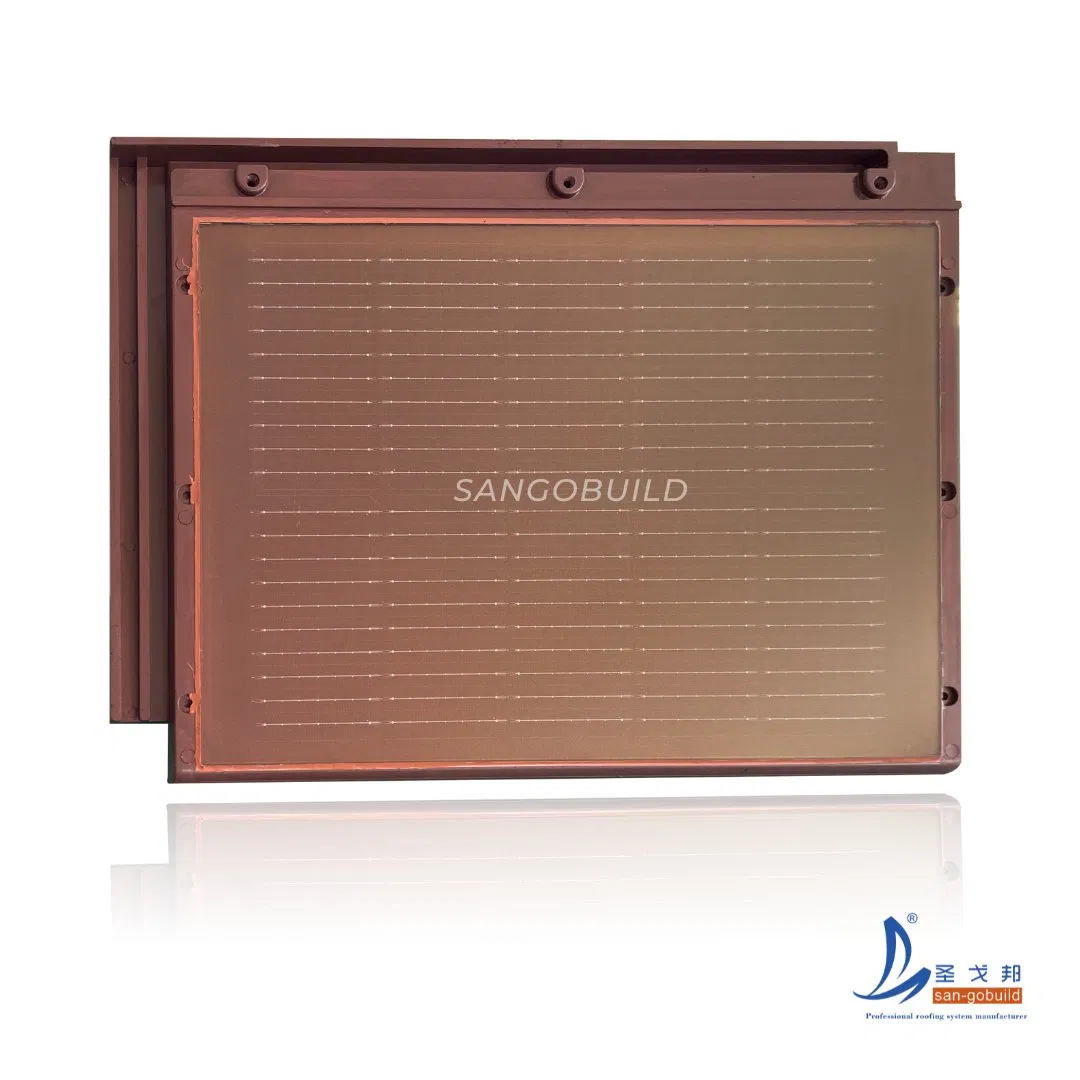

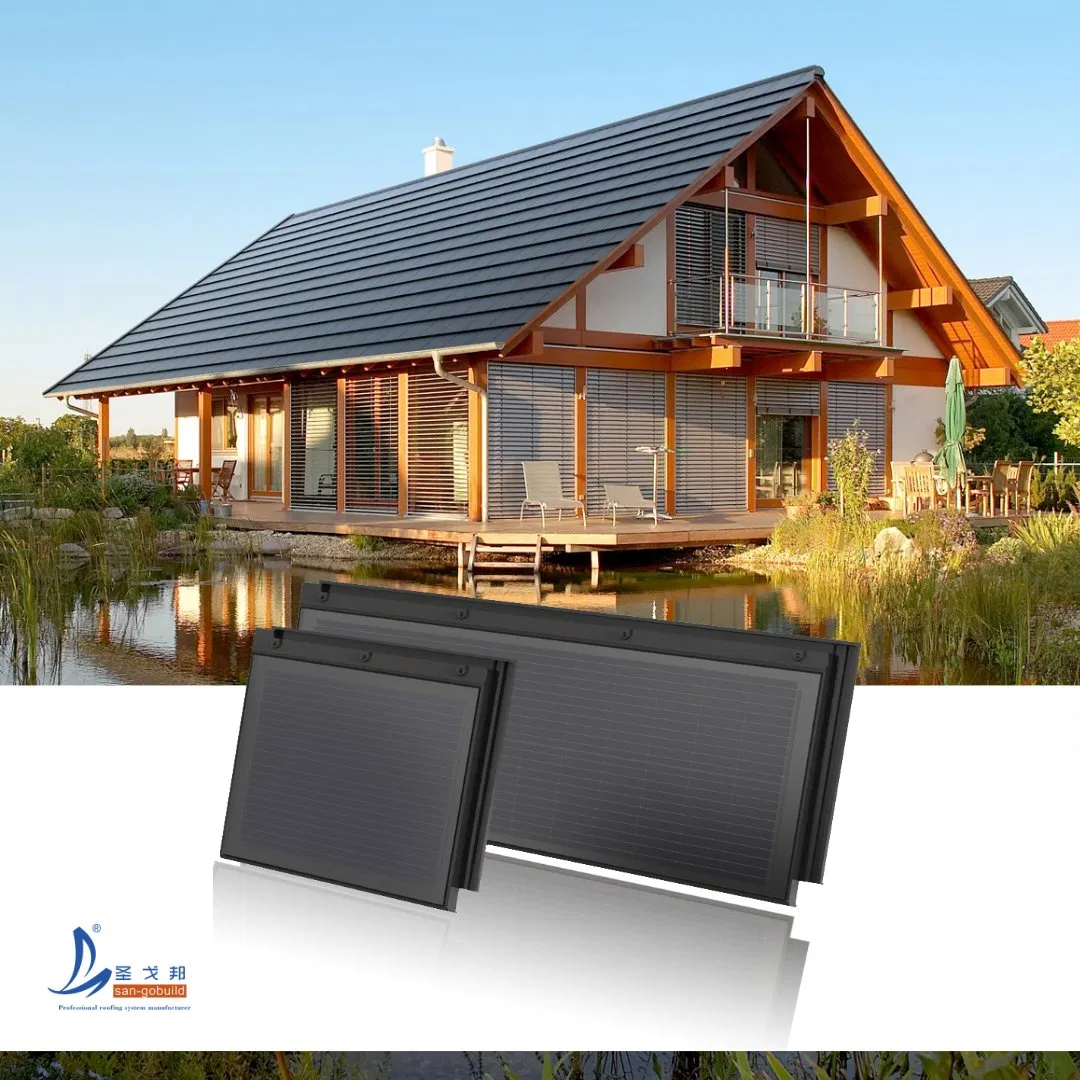

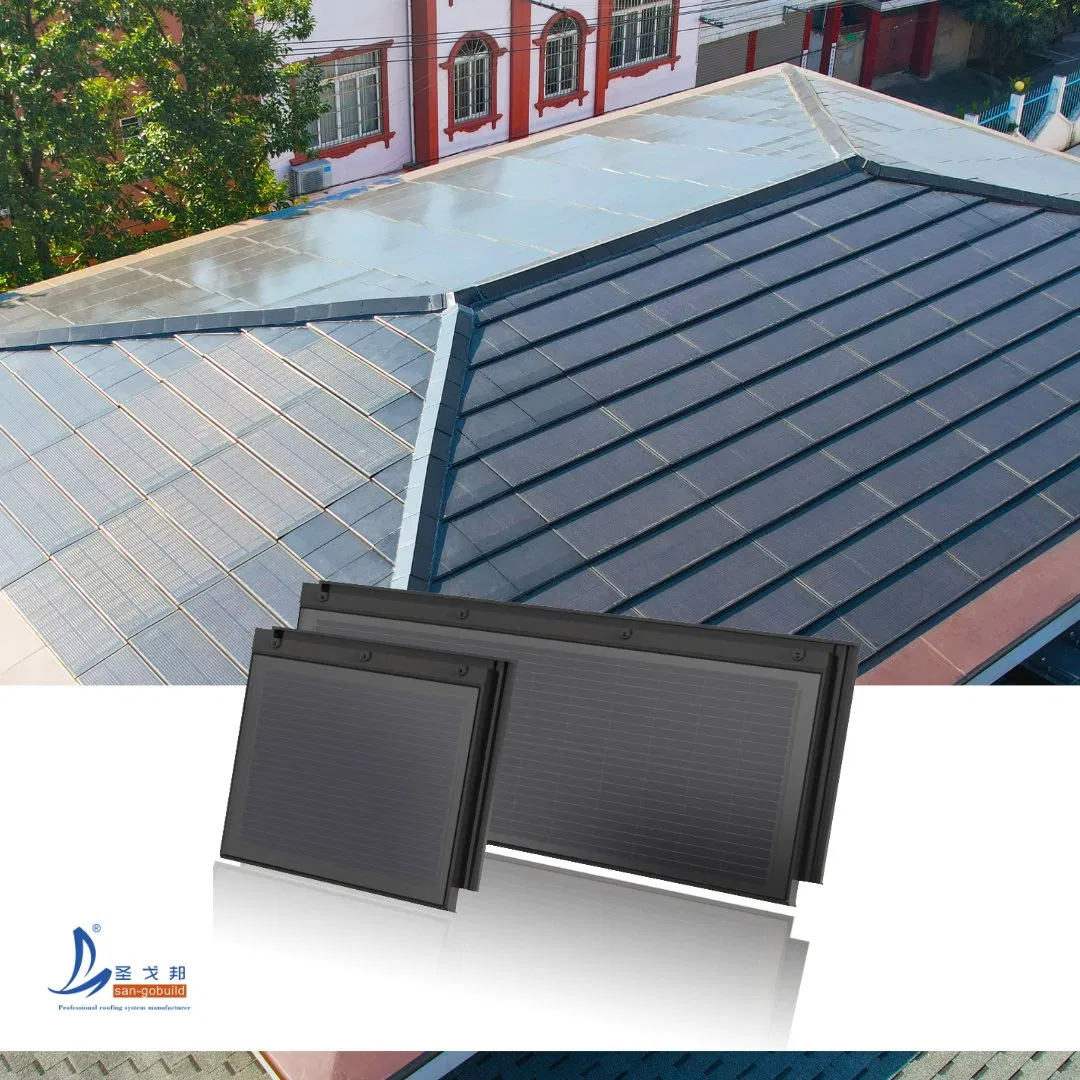

Wonergy Solardachziegel BIPV Solar Power Roof System Solar Roof Tile

📊 Specifications

PHYSICAL FEATURES
MODEL	JS87DG	TILE SIZE	1260*480 MM
TILE WEIGHT	16.5 KG	GLASS	TEMPERED/3.2MM
CELL SIZE	18291MM(512)	JUNCTION BOX	≥ IP67
CABLE	PV 4 MM2	CONNECTOR	MC4
ELECTRICAL PERFORMANCE (STC)
CELL TYPE	MONOCRYSTALLINE	CELL EFFICIENCY	23.10%
MAX POWER	90W/PC	MODULE EFFICIENCY	18.40%
VOLTAGE	13.7V	CURRENT	6.35A
OPEN-CIRCUIT VOLTAGE	16.2V	SHORT-CIRCUIT CURRENT	6.75A
RATING FEATURES
FIRE-PROOF CLASS	CLASS A	LOAD CLASS	2400 PA
WORKING TEMP	-40ºC ~ 85ºC	HAIL-RESISTANT	25MM / 23M/S

🌟 Key Benefits

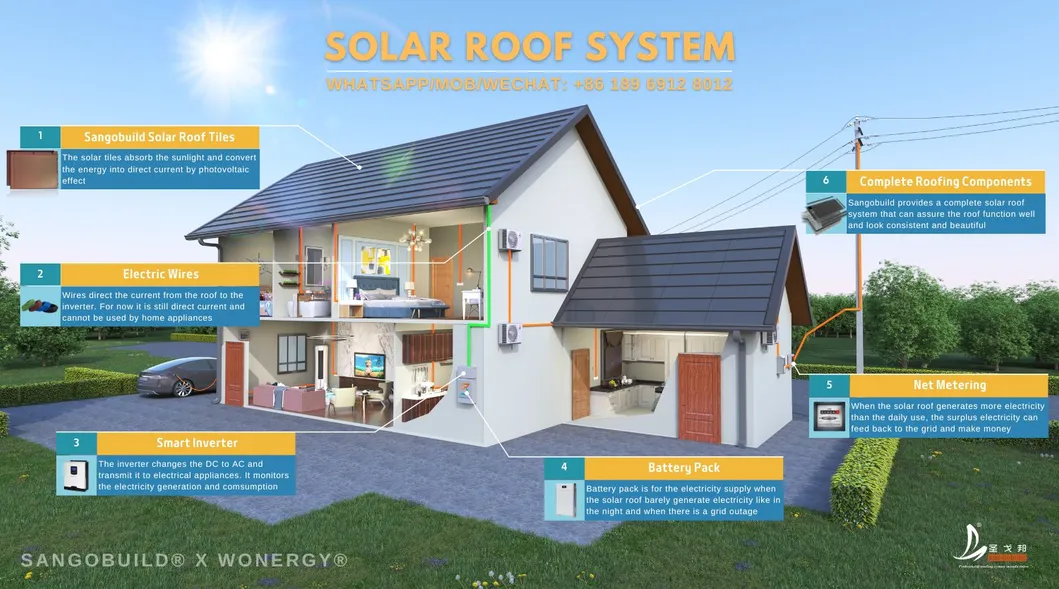

⚙️ How Solar Roof Works?

☀️

Sunlight hits the solar cells to generate power, converting it to DC electricity.

🔄

The inverter converts electricity into AC power for home appliances.

💰

Excess power can be sold back to the utility or stored in batteries for later use.

📱

Monitor your energy creation and savings via a mobile app.

⚖️ Solar Tile v.s. Solar Panel

Solar panels are well-known, but solar roof tiles offer a revolutionary integrated approach. While panels are mounted on top, tiles replace the roofing material itself. Key aspects for comparison include Installation, Aesthetics, Durability, and overall Lifecycle Cost.

✅ Is This Right For You?

🎨

PASSIONATE ABOUT DESIGN The solar cells are almost invisible from a distance, offering a neat, sleek look for homeowners who value aesthetics.

🏠

RENOVATING OR BUILDING NEW Save on material and labor costs by using one product for both roofing and power generation.

🏛️

HISTORICAL BUILDINGS Perfect for architecture-sensitive areas where standard panels are restricted, as it looks like a conventional roof.

🏆 Why Choose Our Solar Tiles?

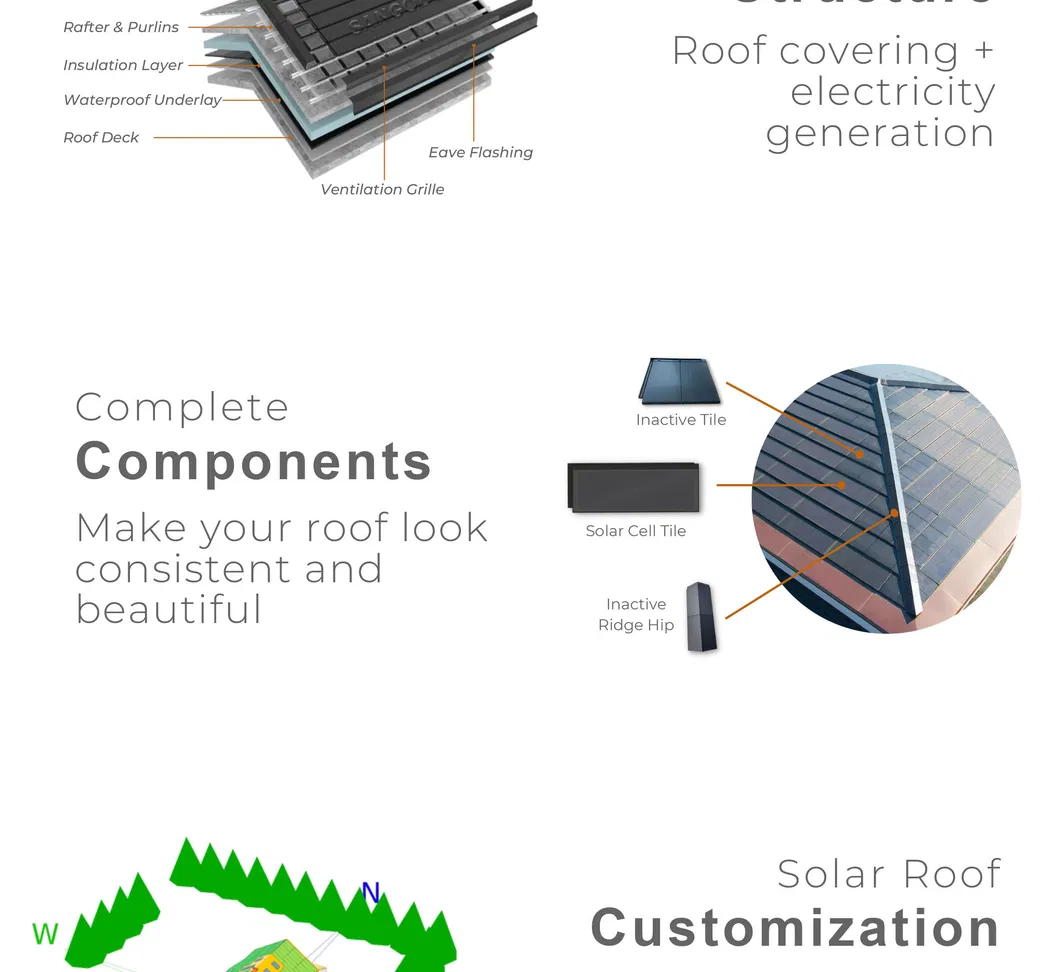

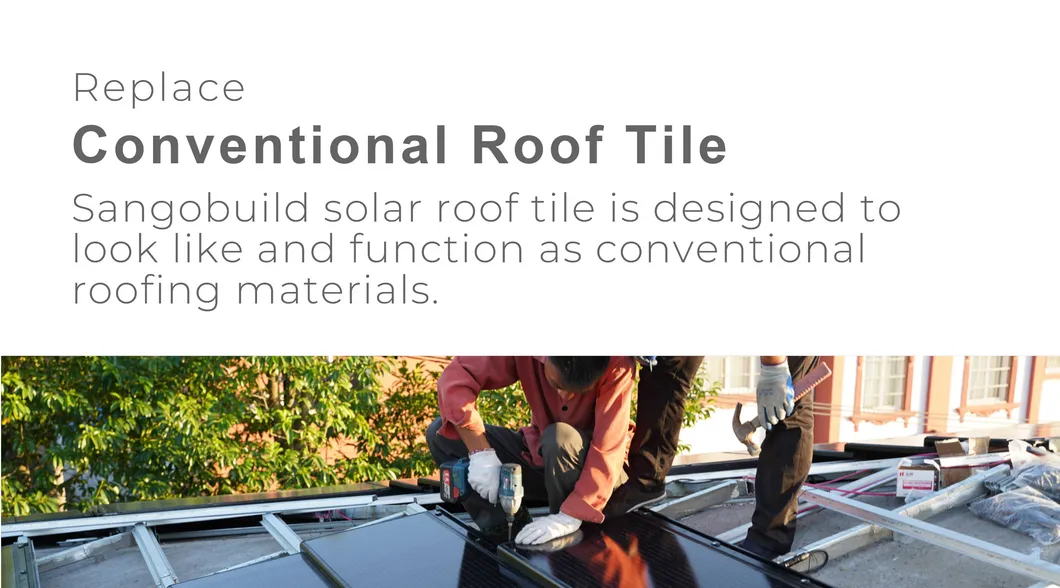

IT'S A PREMIUM ROOFING MATERIAL: It protects your house from rain, wind, and hail while generating power. No mounting racks are needed, preserving the structural beauty of your home.

🛡️ Class A Waterproofing: Superior protection.
🌬️ Wind & Hail Resistant: Built for extreme weather.
⏳ 60+ Years Lifespan: Long-term reliability.
👷 Industry Leadership: Technology leading since 2007.

Empower Your Roof Today!

❓ Frequently Asked Questions

What is the lifespan of solar roof tiles?

Our solar roof tiles are designed with high-quality monocrystalline silicon and tempered glass, offering a durable lifespan of more than 60 years.

Are solar tiles as waterproof as traditional roofing?

Yes, they are classified as Class A waterproofing materials. They function both as energy generators and as a primary roof cover to protect against heavy rain.

Can these tiles withstand extreme weather like hail?

Absolutely. Our solar tiles are hail-resistant (tested for 25mm hail at 23m/s) and wind-resistant, making them suitable for various climate conditions.

Do I need to install traditional tiles underneath?

No. Solar roof tiles are a Building-Integrated Photovoltaic (BIPV) solution. They replace traditional roofing materials entirely, saving you cost on double-layering.

How much power does each solar tile produce?

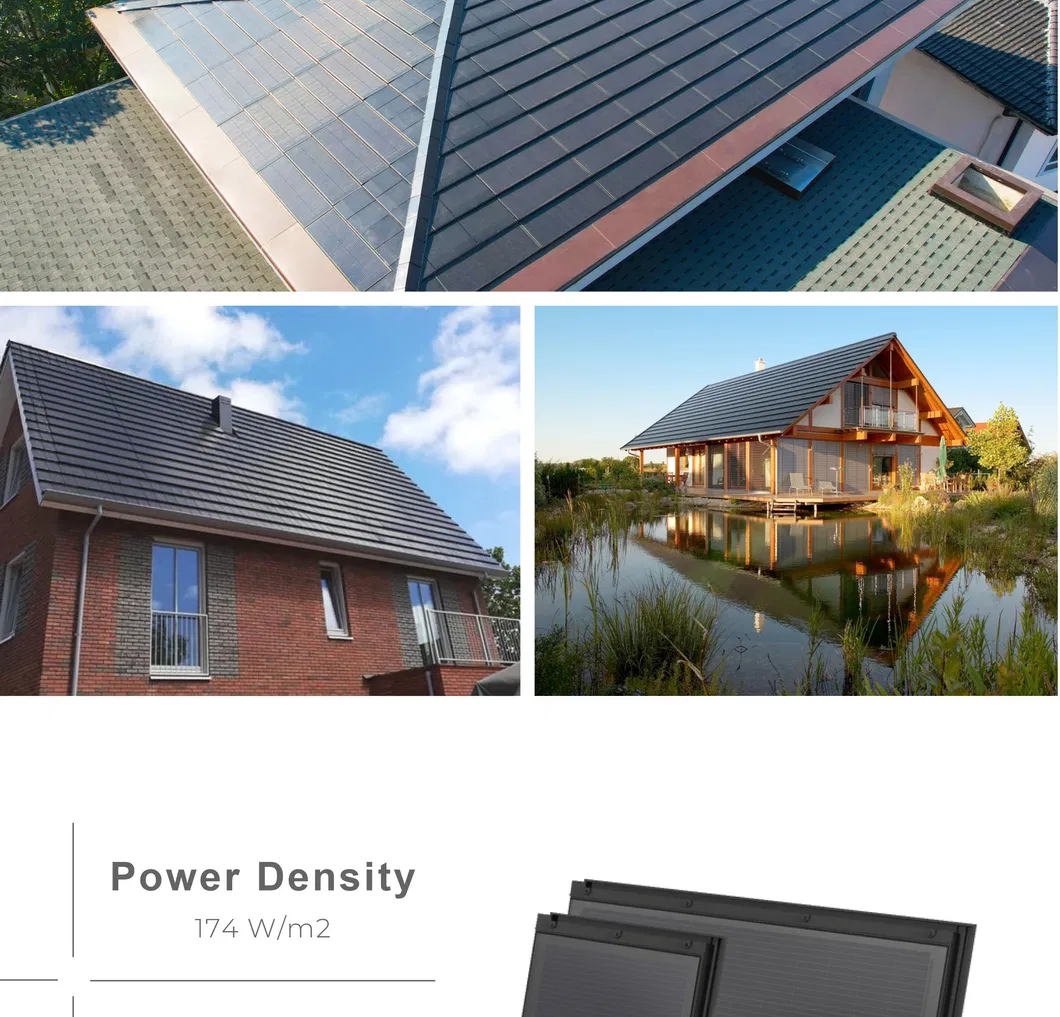

Each standard tile in this series has a maximum power output of 90W, with a high power density of approximately 180 W/M2.

Is it possible to monitor the energy production?

Yes, the system is compatible with mobile monitoring apps that show real-time electricity generation, home consumption, and accumulated savings.
