| Model NO. | JS35DG-5e 1/2 / JS87DG-12e 1/2 |
| Product Name | BIPV Roofing Tiles Solar Roof System |
| Raw Material | Tempered Glass, PVB/EVA/Pob, Solar Cell, Bottom Sup |
| Weight | 9kg / 16.5kg |
| Power Output | 35W / 87W |
| Max System Voltage | 1500V |
| Maximum Load | 5400PA / 2400PA |
| Warranty | 10 Years (Basic) / 30 Years (Power) |
| Certification | ISO, CE, IEC |

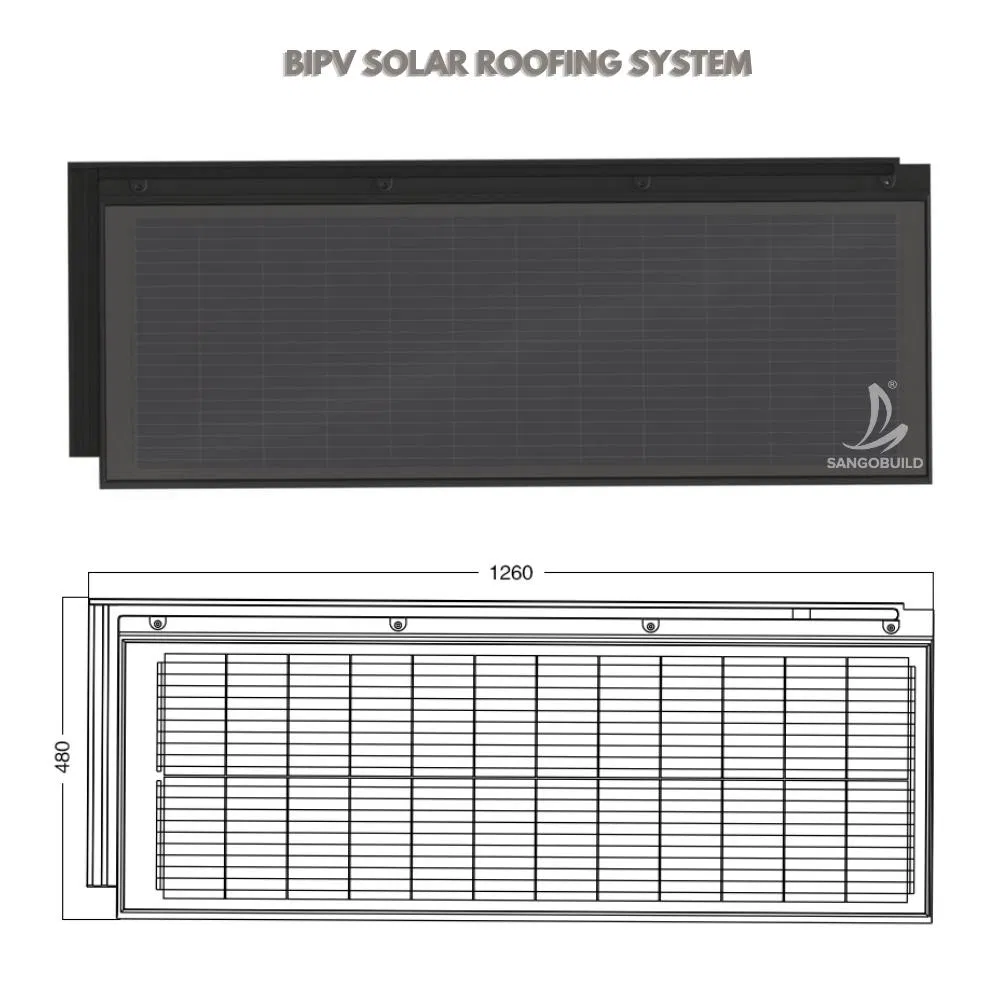

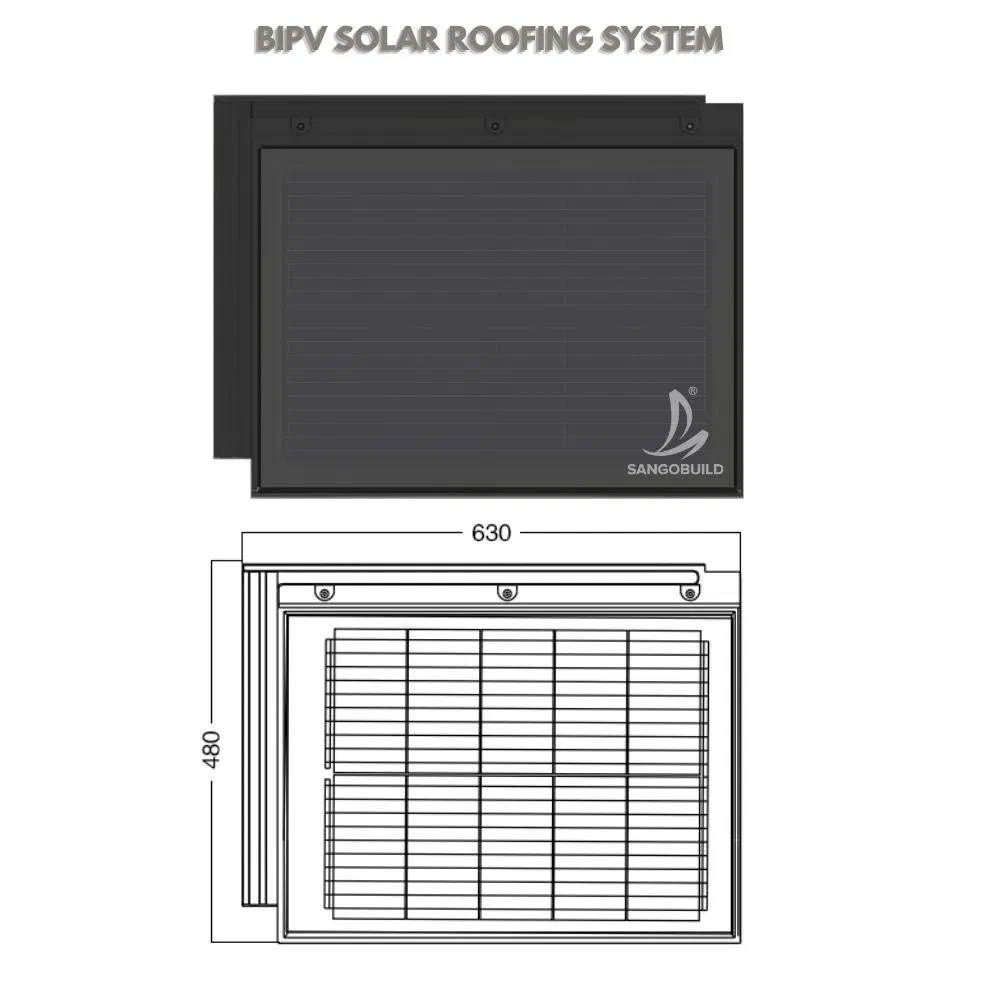

| Specification | 630mm*480mm / 1260mm*480mm |
| Origin | China |

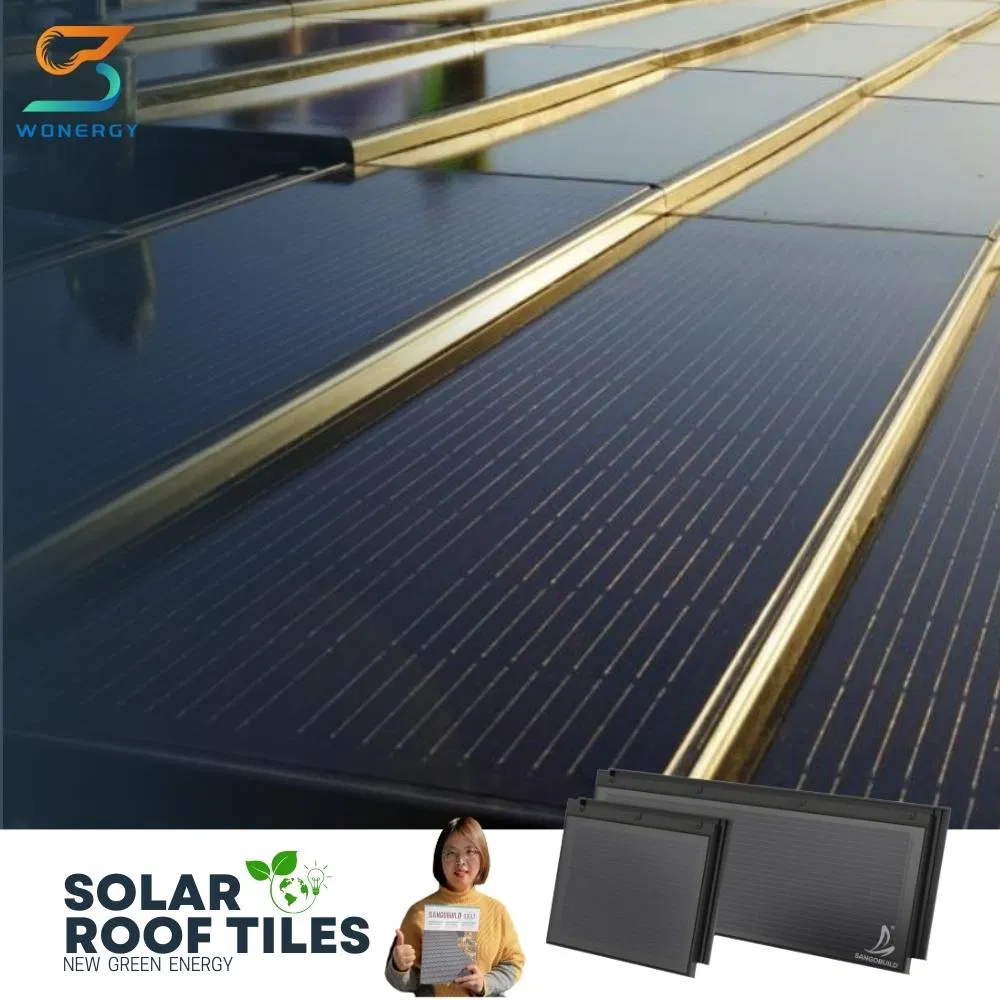

Innovative Design: This BIPV Roofing System integrates photovoltaic technology with green energy building materials. Wonergy® solar roof tiles function as a complete roof while generating clean electricity from the sun.
Unlike standard photovoltaic installations, these tiles look like modern roofing materials, requiring fewer parts and creating a smaller CO2 footprint. It is an affordable and accessible solar solution for modern architecture.
| STC Conditions: 1000W/m2, 25°C, AM1.5 | |

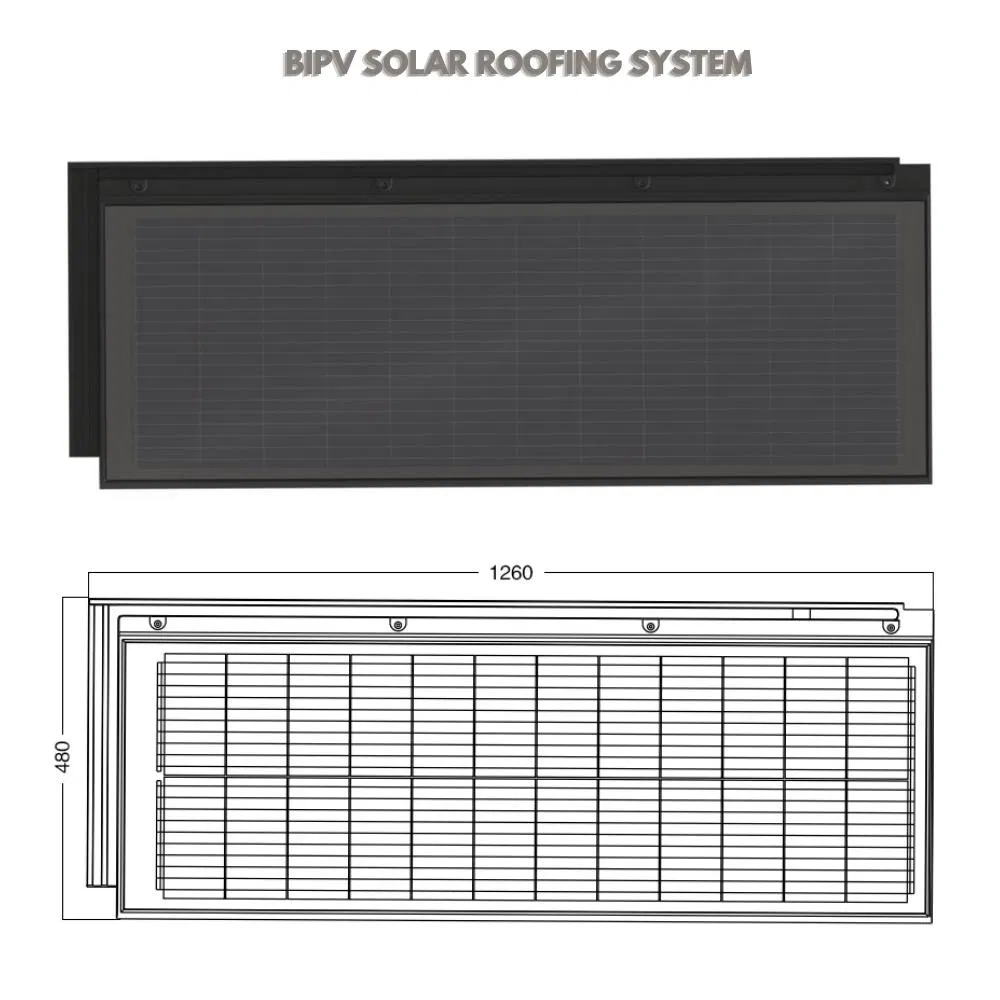

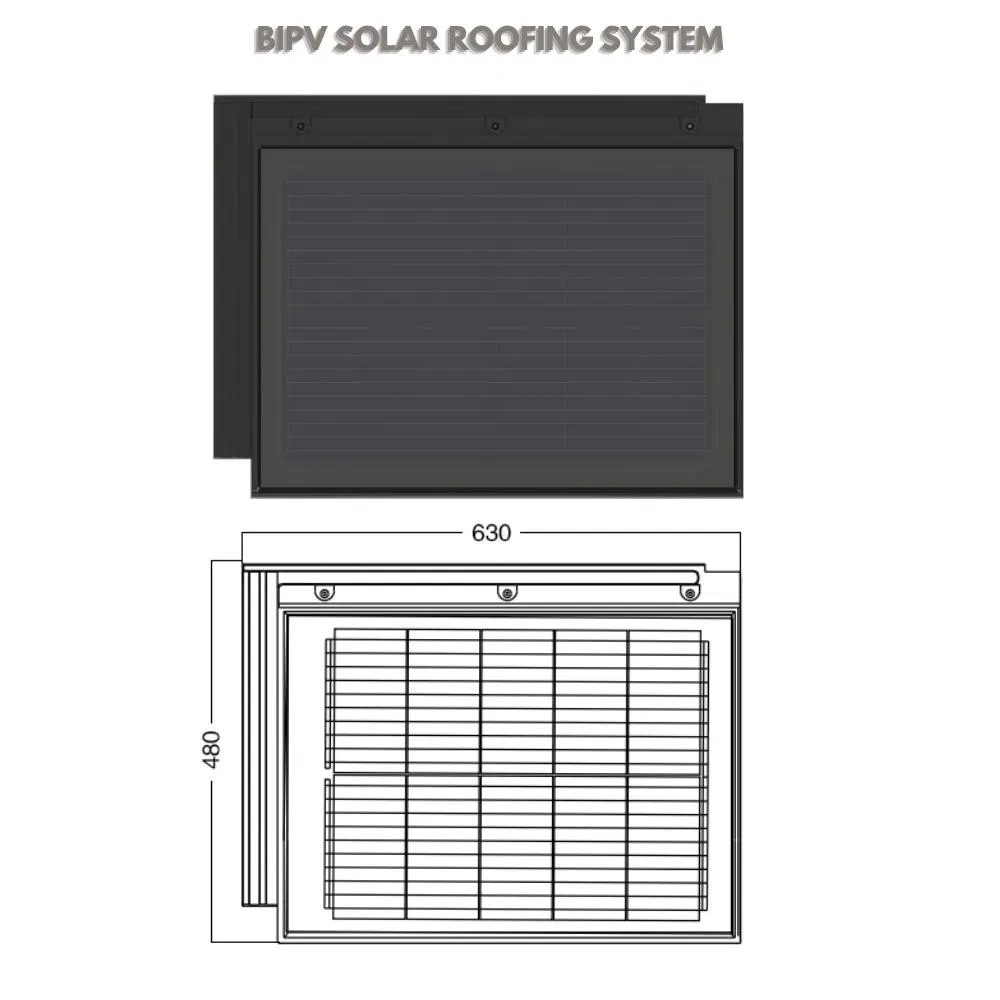

| Dimensions | 630mm*480mm / 1260mm*480mm |
| Conversion Efficiency | 15.9% / 18.4% |
| Voltage at Pmax | 5.7V / 13.7V |
| Current at Pmax | 6.14A / 6.35A |
| Fire Rating | Class A |
| Operating Temp | -40°C to +85°C |

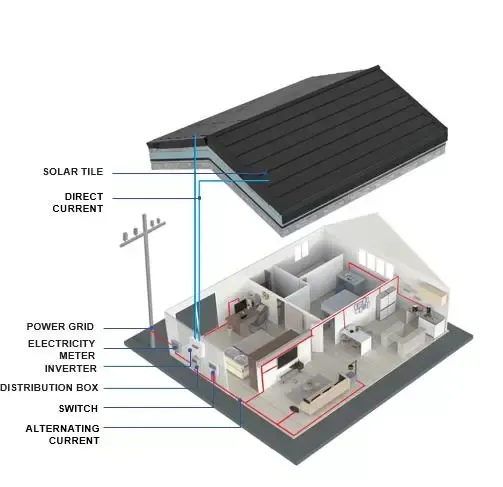

1. Multi-function: BIPV Solar Roof Tiles meet electricity demands while providing waterproof and wind-shielding functions as the building skin.
2. Aesthetics: Integrated nature appearance compared to unsightly standard solar panels mounted on racks.
3. Installation: Easier to install without bulky brackets, reducing building load and increasing safety.
