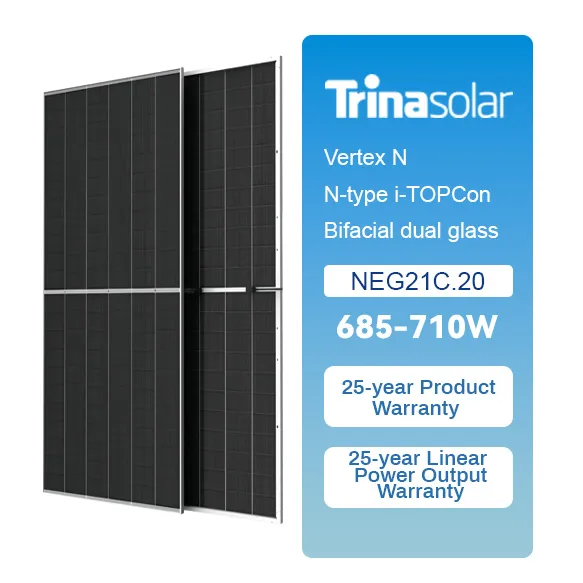

Trina Original 710W 705W 700W A Grade High Efficiency Panel Solar PV Module Monocrystalline for Commercial Use

Customization: Available
After-sales Service: Y
Warranty: 30years Power Warranty

Product Description

Basic Information

Model NO.TSM-NEG21C. 20 685-710
Number of Cells132 cells
ApplicationIndustrial
ConditionNew
CertificationISO, CE, IEC61215/61730
MaterialMonocrystalline Silicon
Solar CellsMonocrystalline, N Type
Module Dimensions2384*1303*33 mm
Weight38.3 Kg
Glass2.0mm, Heat Strengthened Glass
Frame33mm Anodized Aluminium Alloy
J-BoxIP 68 Rated

Profile Overview

Established in 2016, we are a professional and leading manufacturer of quality solar modules. Our production base is located in a major global photovoltaic industry hub. We have been certified by international standards for several years. Our business covers the R&D, production, and sales of PV modules for residential, commercial, and large-scale solar plants. We supply turn-key services and high-quality materials for global markets.

With 3 production lines and an annual capacity of 1.2GW, we ensure efficient production lead times. In 2022, the company achieved significant sales volume and is recognized as a top producer and exporter. We cooperate with world-famous brands to supply quality materials. Quality is our soul.

Our principles: Integrity, Win-Win, Innovation!

Product Description

1670W Ultra-high Power with 21.6% Efficiency

Based on the 210mm large-size silicon wafer and monocrystalline PERC cell, this series comes with innovative design features allowing high power output up to 670W. Excellent temperature coefficient and low irradiation performance bring greater power. With high-density encapsulation technology, efficiency can reach up to 21.6%.

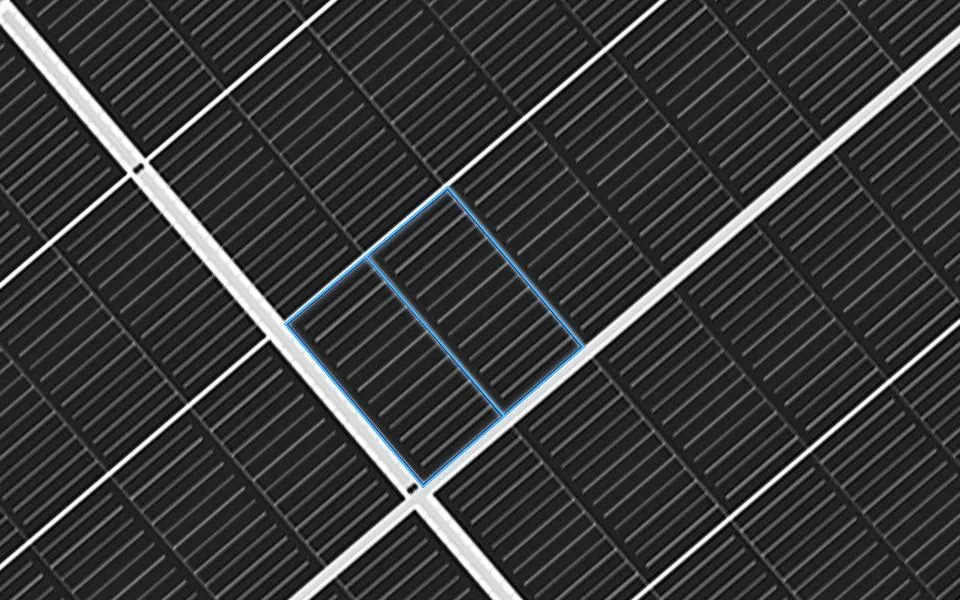

Product Detail

2Low-voltage, Higher String Power Output

Up to 28 modules can be interconnected into a single string. This achieves up to a 34% power increase per string, a 0.012-0.014 reduction in BOS, and a 1.2%-1.5% reduction in LCOE, ushering in a new era of 600W+ technology.

Electrical Data (STC)
Peak Power (Wp) 690 695 700 705 710
Max Power Voltage-VMPP (V) 40.140.340.540.740.9
Max Power Current-IMPP (A) 17.2317.2517.2917.3317.36
Module Efficiency (%) 22.222.422.522.722.9

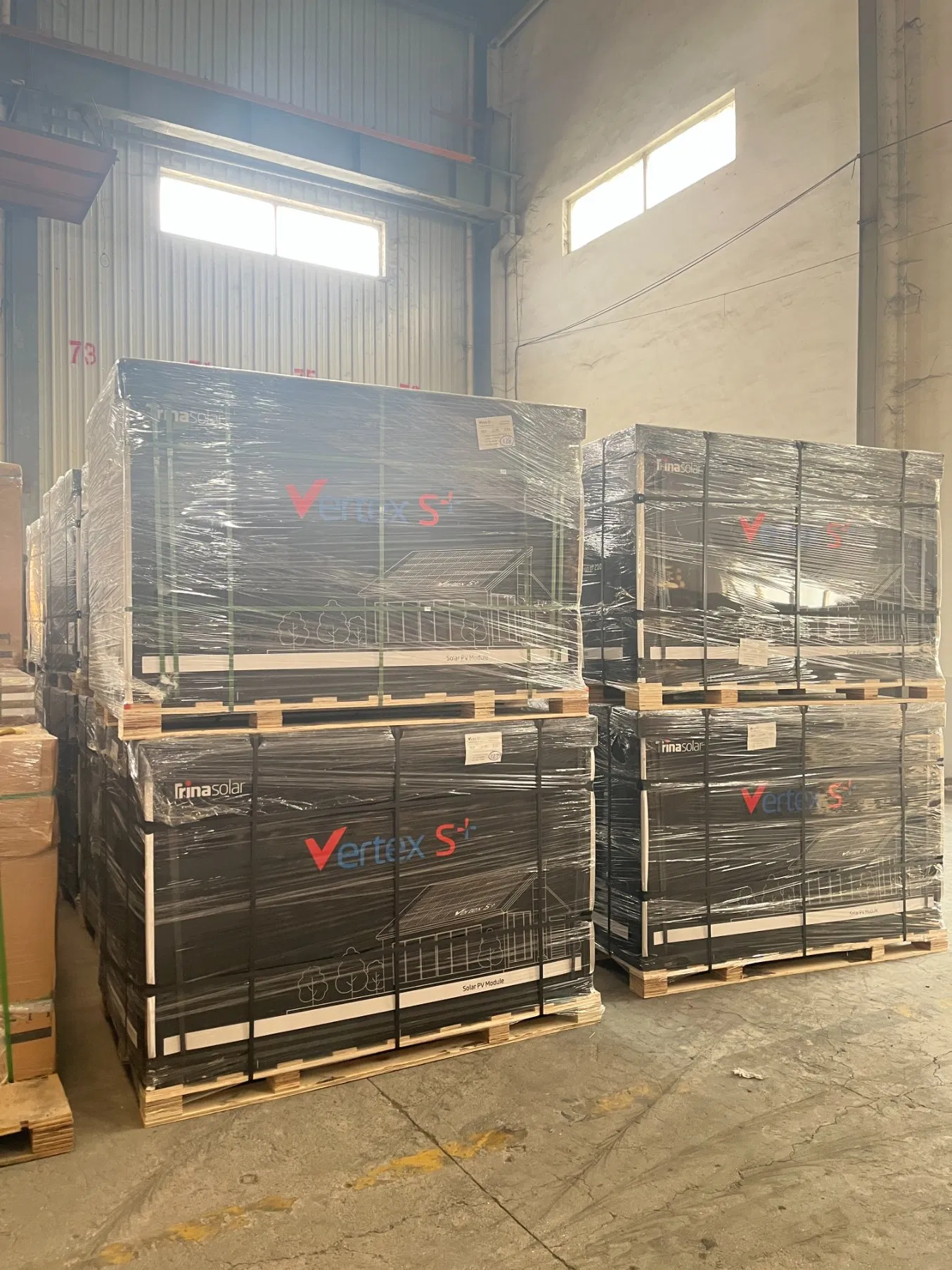

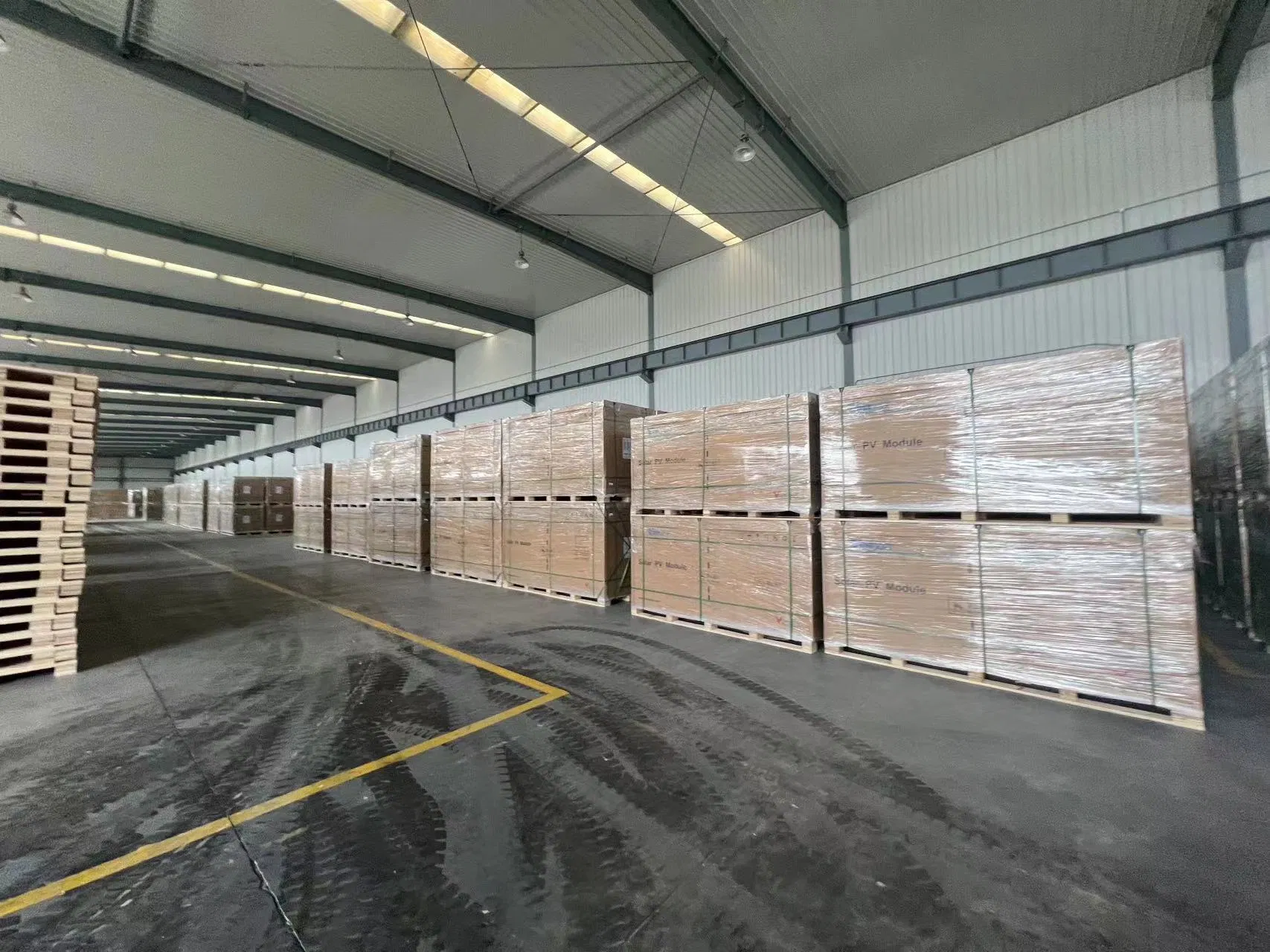

Packaging & Shipping

Package Size135.00cm * 110.00cm * 250.00cm
Package Gross Weight1300.000kg
Packaging MethodCarton Box and Pallet

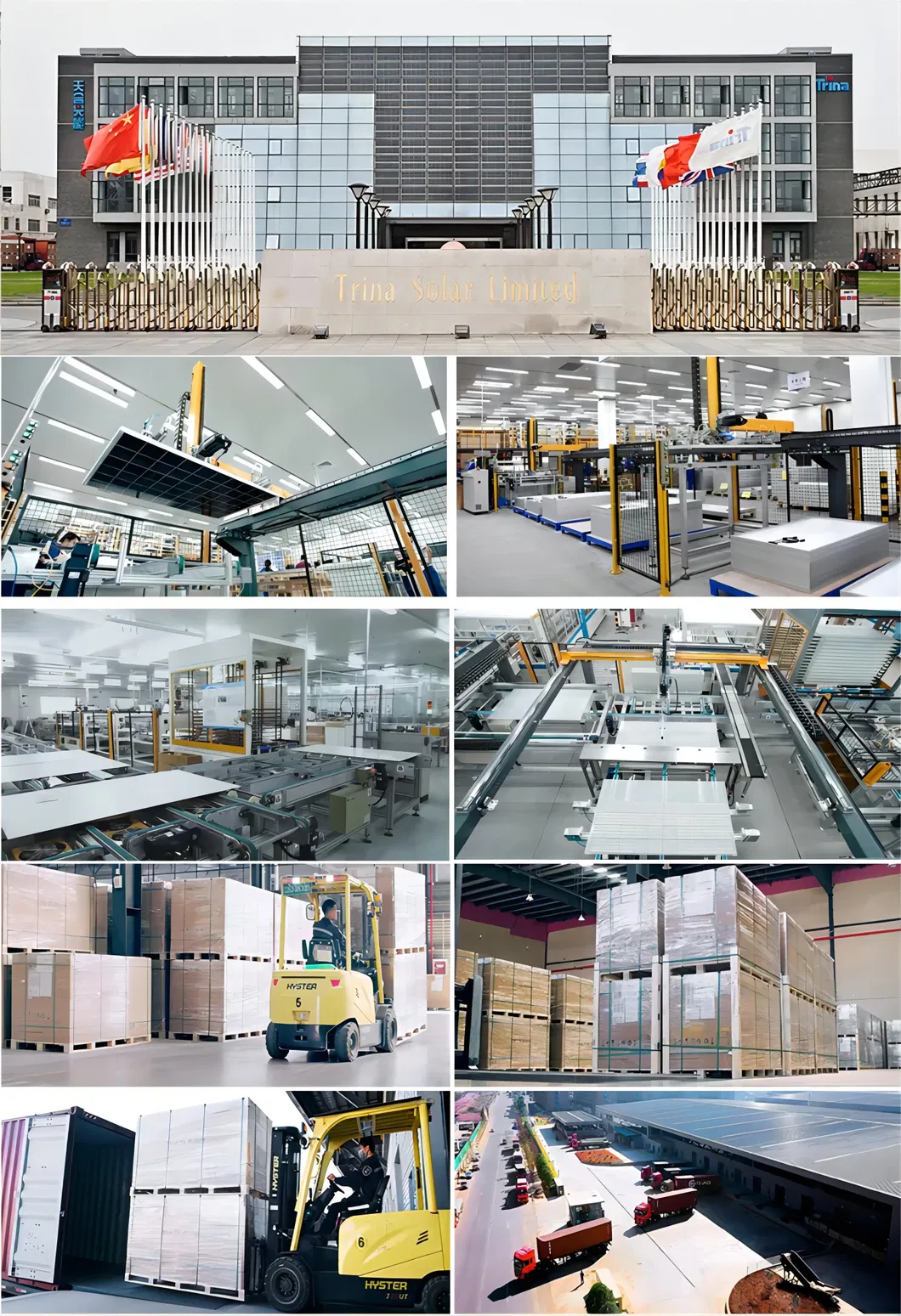

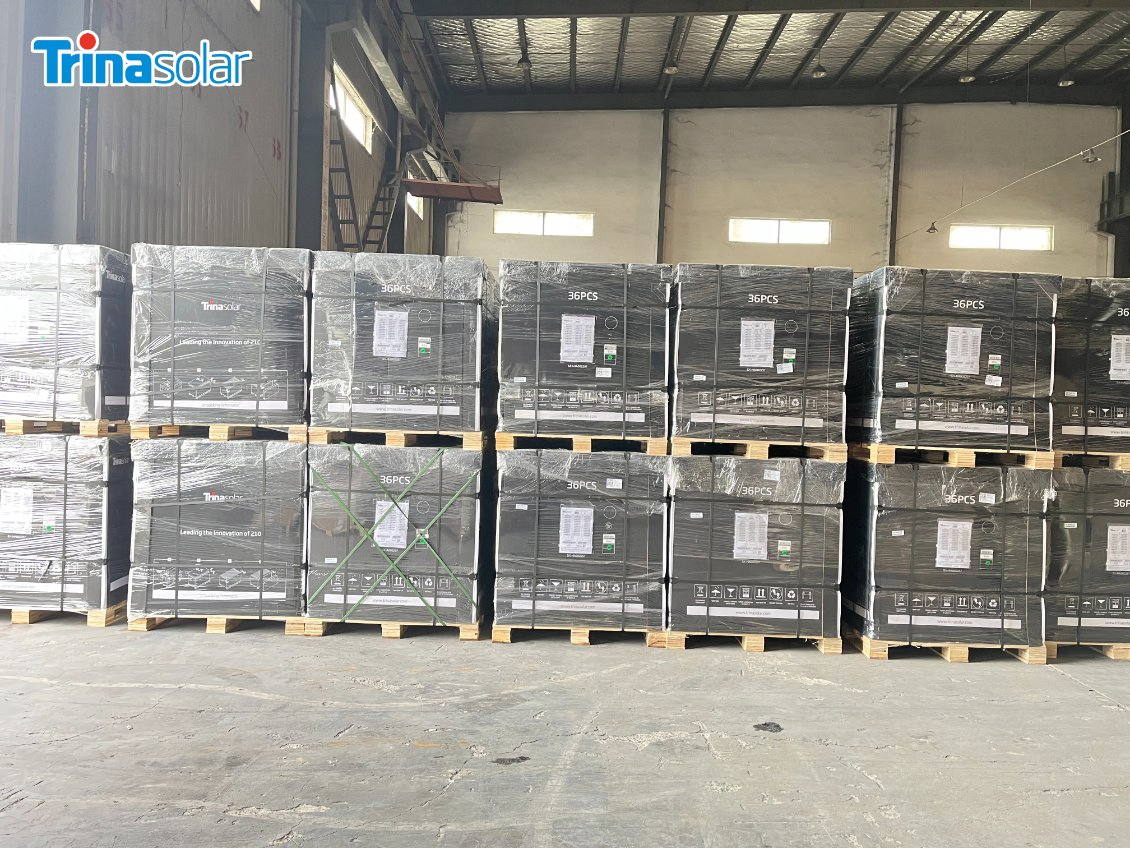

Packaging Detail

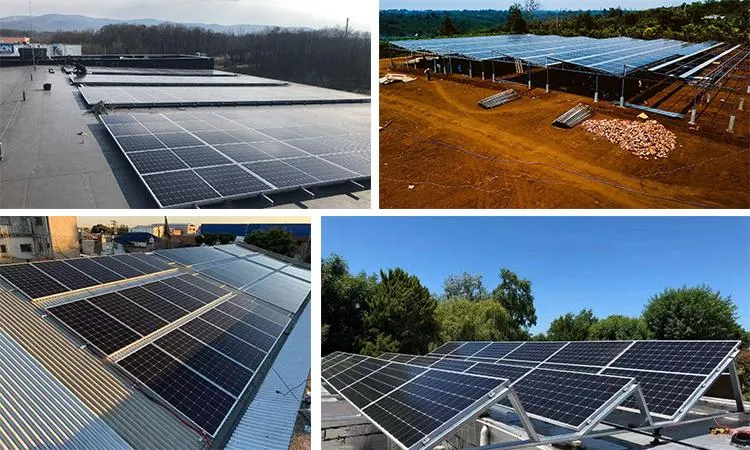

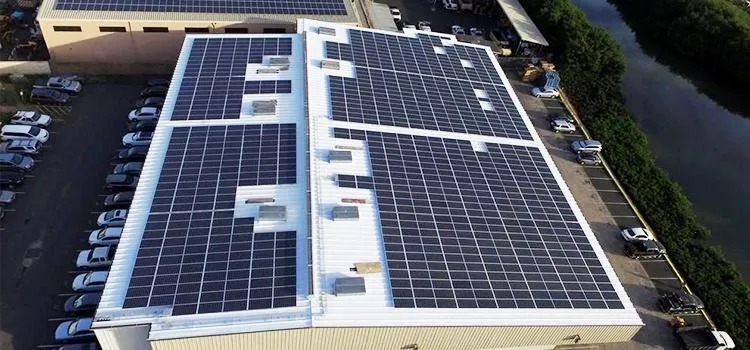

Successful Projects

Our Advantages

  • OEM/ODM Services: We provide specialized manufacturing for global customers across Europe, Asia, South America, and Africa.
  • Market Expertise: Sophisticated production and marketing services to help customers increase market share.
  • Long-term Partnership: We focus on building enduring relationships with our clients.
  • Comprehensive Service: Strong pre-sales and after-sales support to ensure customer satisfaction.

Frequently Asked Questions

Q: What is the maximum power output of these modules?
A: The modules offer ultra-high power output ranging from 685W to 710W, with specific models reaching up to 670W based on the 210mm wafer technology.
Q: What type of solar cells are used in the TSM-NEG21C series?
A: These modules utilize N-Type Monocrystalline silicon cells for high efficiency and better performance.
Q: What is the maximum efficiency of the panels?
A: The module efficiency can reach up to 22.9% for the 710W model under STC (Standard Test Conditions).
Q: Are the modules suitable for industrial applications?
A: Yes, these modules are designed for industrial use and are certified by ISO, CE, and IEC standards.
Q: What are the main benefits of the low-voltage design?
A: The low-voltage design allows for more modules per string, which reduces BOS (Balance of System) costs and LCOE (Levelized Cost of Energy).
Q: Do you offer customization options?
A: Yes, one of our key advantages is providing OEM and ODM services for global customers to meet specific market requirements.
