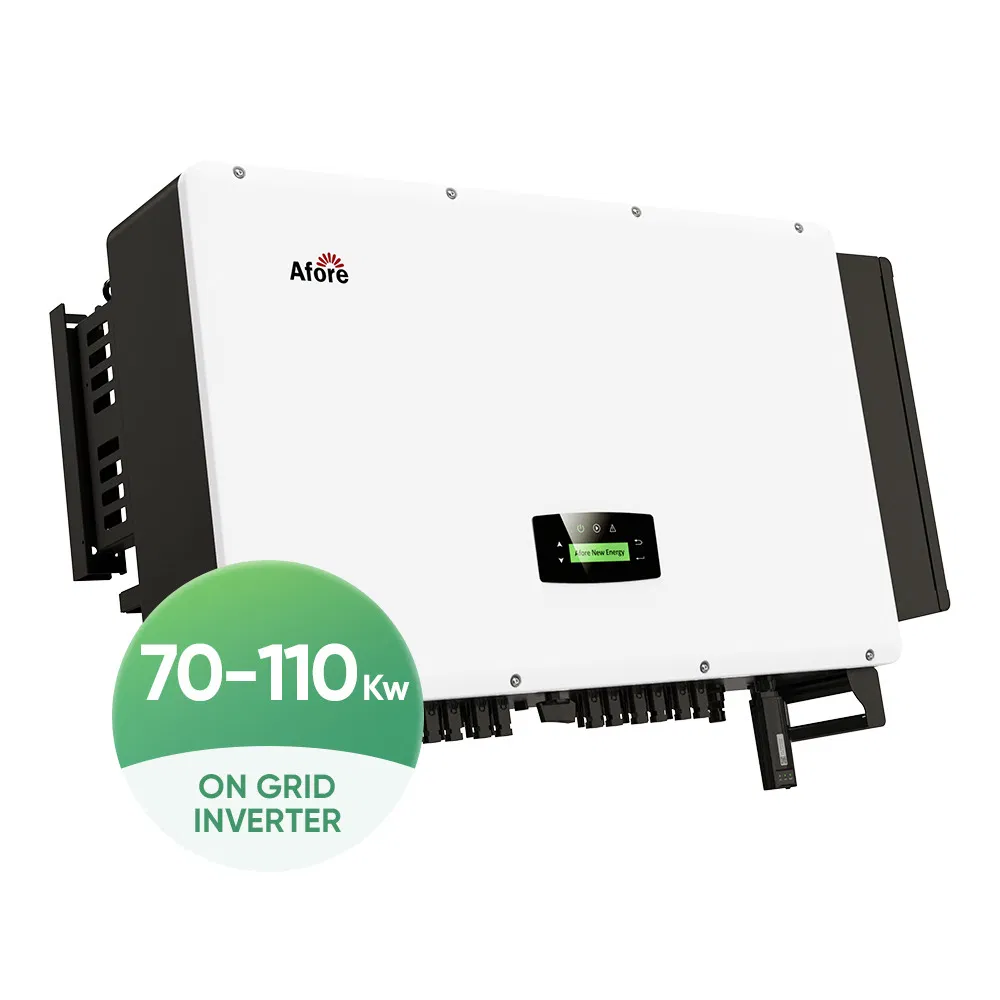

Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter
Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter
Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter
Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter
Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter
1 / 5
Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter
Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter
Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter
Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter
Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter

Afore Three Phase Solar On Grid Solar Inverter 80Kw 100Kw 100000 Watt 110Kw 3 Phase Pure Sine Wave String Inverter

Customization: Available
After-sales Service: 10 Years
Warranty: 10 Years
Send Inquiry

Product Description

📋 Basic Information
Model NO.
AF 3 Phase 70-110KW-ON
Nature of Source
Active Inverter
Phase
Three Phase
Output Power
70-110KW
Certification
SAA, CE, ROHS, ISO9001, CCC
Power Source
Solar Power
MPPT Voltage
200 - 1000 v
MPPT Inputs
6 /12
Protection
IP65
Interfaces
LCD, LED, RS485, CAN, Wi-Fi, GPRS, 4G
☀️ Product Overview

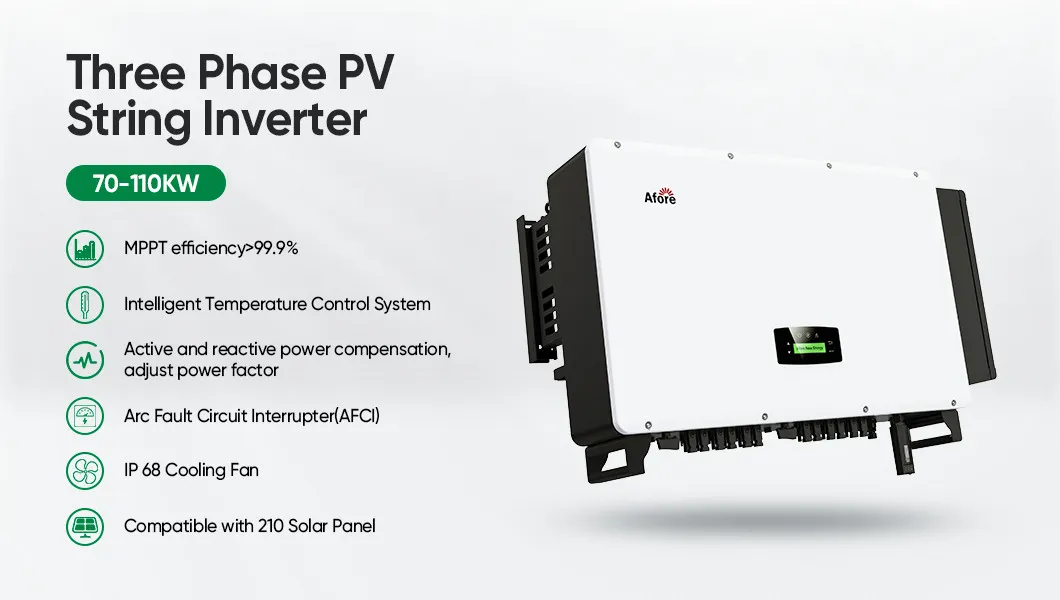

Solar On Grid Inverter

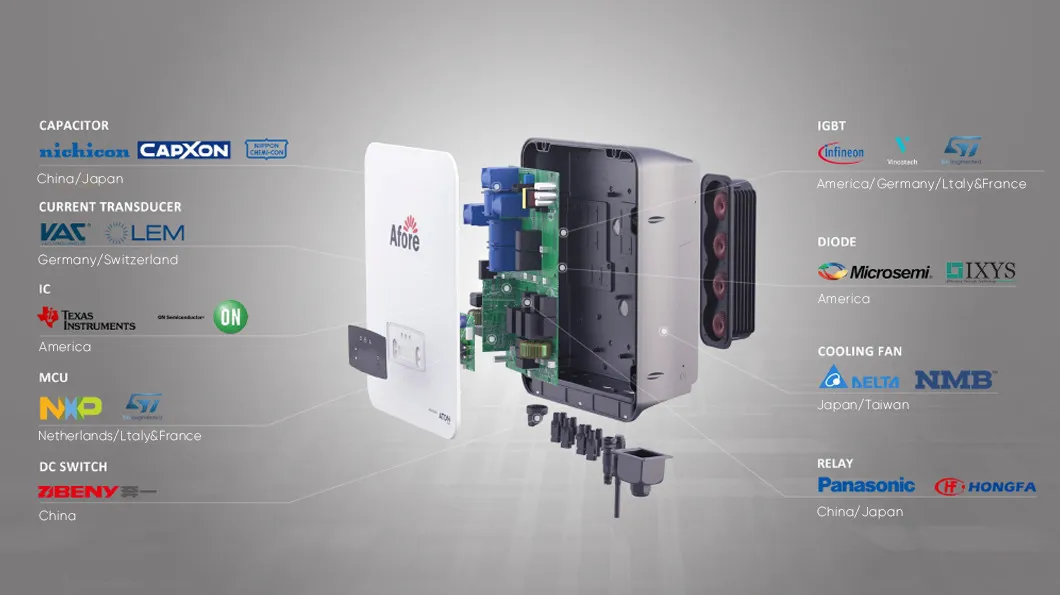

3 Phase String Inverter
⚙️ Technical Specifications
Module BNT070KTL BNT080KTL BNT090KTL BNT100KTL BNT110KTL
PV Input Data
Max. DC Power (W)105000120000135000150000165000
Max. DC Voltage (V)1100
MPPT Voltage Range (V)200 - 1000
Rated Input Voltage (V)620
AC Output Data
Nominal Output Power (W)700008000090000100000110000
Max. Output Power (VA)770008800099000110000110000
Nominal Grid Voltage (V)3P+N+PE / 230/400
Max. Efficiency99.00%
📊 System Diagram

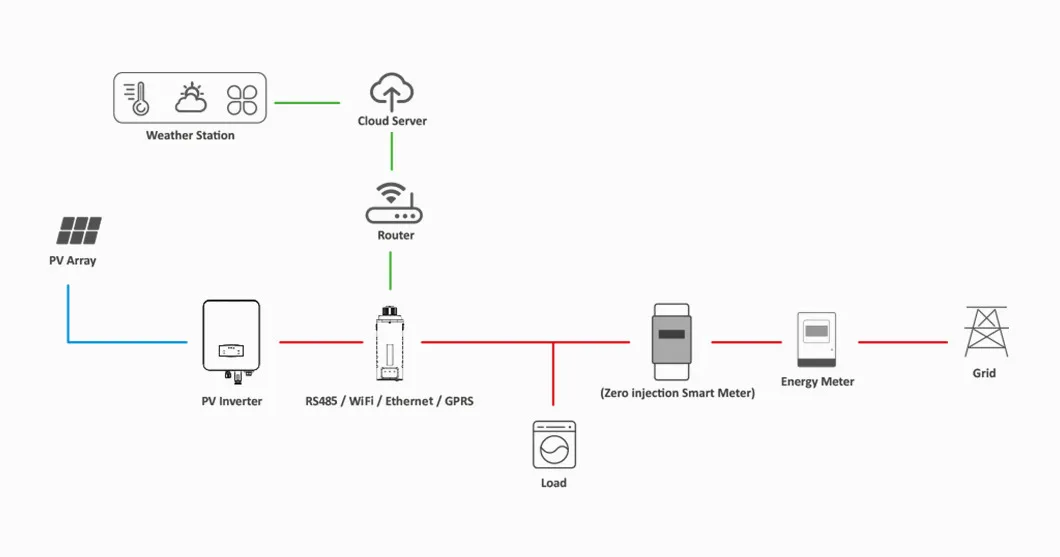

System Diagram 1

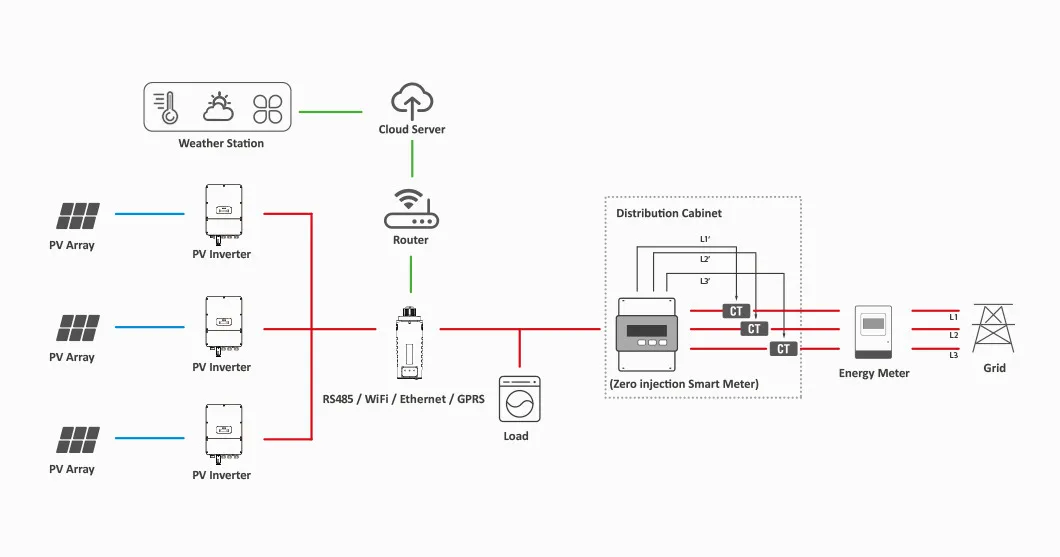

System Diagram 2
🏗️ Project Cases

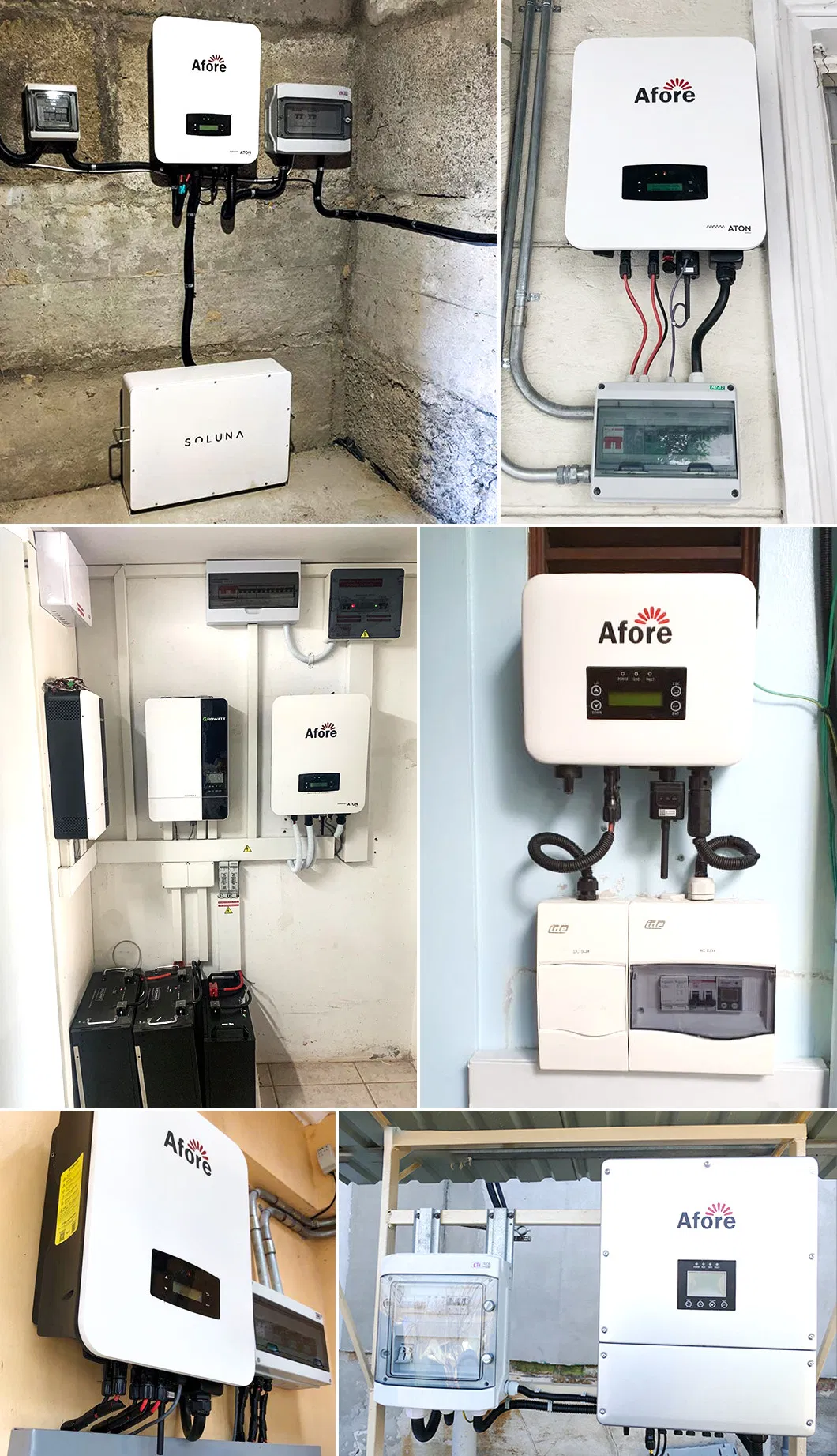

Solar Project Installation
📦 Pictures and Package
Product Packaging
💡 Complete System Configuration
Complete System Setup
❓ Frequently Asked Questions
1. What is the maximum efficiency of these string inverters?
The series boasts a maximum efficiency of up to 99.00%, ensuring minimal energy loss during the DC to AC conversion process.
2. Is the inverter suitable for outdoor installation?
Yes, the inverters are rated with IP65 protection degree, making them dust-tight and protected against water jets, suitable for various outdoor environments.
3. What monitoring options are available for this system?
The system supports multiple communication interfaces including RS485, WiFi, Wire Ethernet, and GPRS for real-time monitoring and data management.
4. What kind of safety protections are integrated?
Integrated protections include PV reverse polarity, insulation resistance detection, AC short circuit protection, over-current/voltage protection, anti-islanding, and Type II surge protection.
5. Does it support smart IV curve scanning?
Yes, the inverter includes a smart IV curve scanning feature to help diagnose and optimize the performance of the solar strings.
6. What is the MPPT voltage range for this series?
The MPPT voltage range is between 200V and 1000V, allowing for flexible string configuration and high performance even in varying light conditions.
