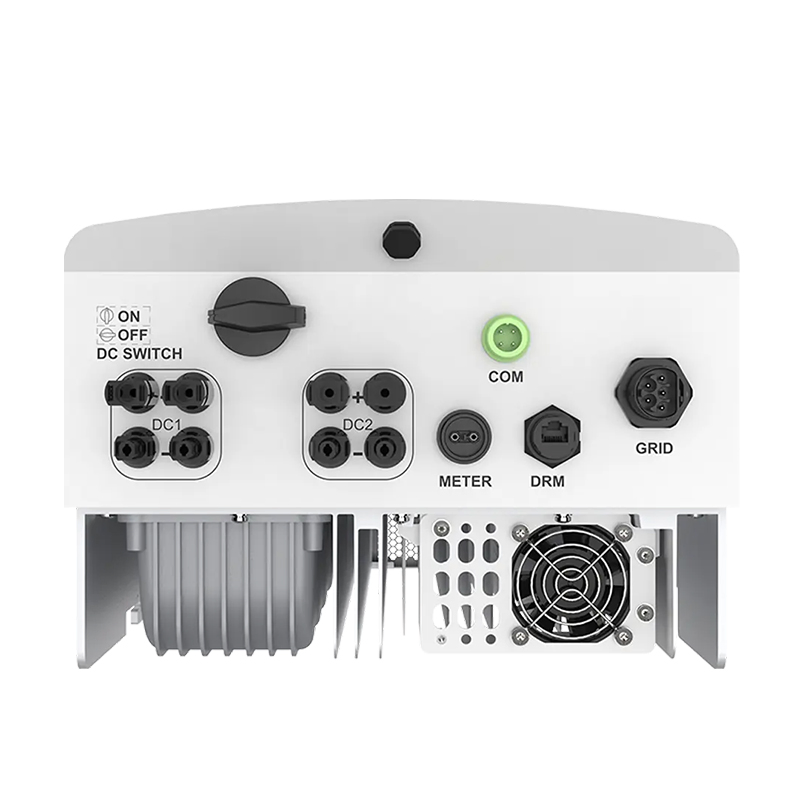

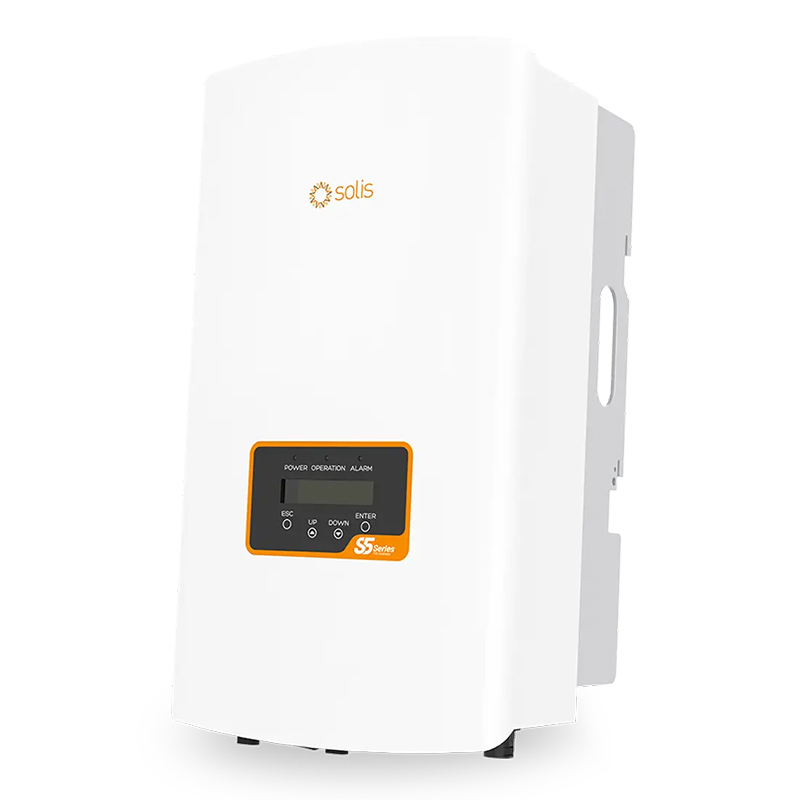

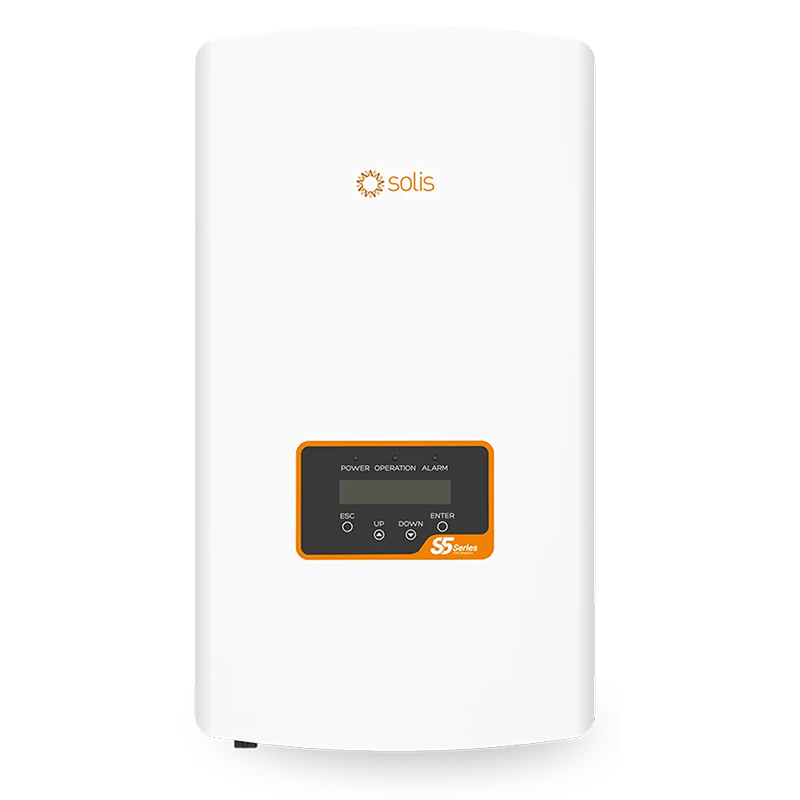

Solis S5-Gr3p10K Three Phase 10kw String Inverter on Grid Solar Inverter for Solar Power System
Solis S5-Gr3p10K Three Phase 10kw String Inverter on Grid Solar Inverter for Solar Power System
Solis S5-Gr3p10K Three Phase 10kw String Inverter on Grid Solar Inverter for Solar Power System
Solis S5-Gr3p10K Three Phase 10kw String Inverter on Grid Solar Inverter for Solar Power System
Solis S5-Gr3p10K Three Phase 10kw String Inverter on Grid Solar Inverter for Solar Power System
1 / 5
Solis S5-Gr3p10K Three Phase 10kw String Inverter on Grid Solar Inverter for Solar Power System
Solis S5-Gr3p10K Three Phase 10kw String Inverter on Grid Solar Inverter for Solar Power System
Solis S5-Gr3p10K Three Phase 10kw String Inverter on Grid Solar Inverter for Solar Power System
Solis S5-Gr3p10K Three Phase 10kw String Inverter on Grid Solar Inverter for Solar Power System
Solis S5-Gr3p10K Three Phase 10kw String Inverter on Grid Solar Inverter for Solar Power System

Solis S5-Gr3p10K Three Phase 10kw String Inverter on Grid Solar Inverter for Solar Power System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
S5-GR3P10K
Nature of Source
Active Inverter
Phase
Three Phase
Output Power
10kW
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Inverter Efficiency
98.3%-98.7%
Input Voltage
600V
Protection
IP66
Cooling
Intelligent Redundant Cooling
Display
LCD
Product Description

Solis S5-GR3P10K Three Phase 10kw String Inverter on Grid Solar Inverter for Solar Power System

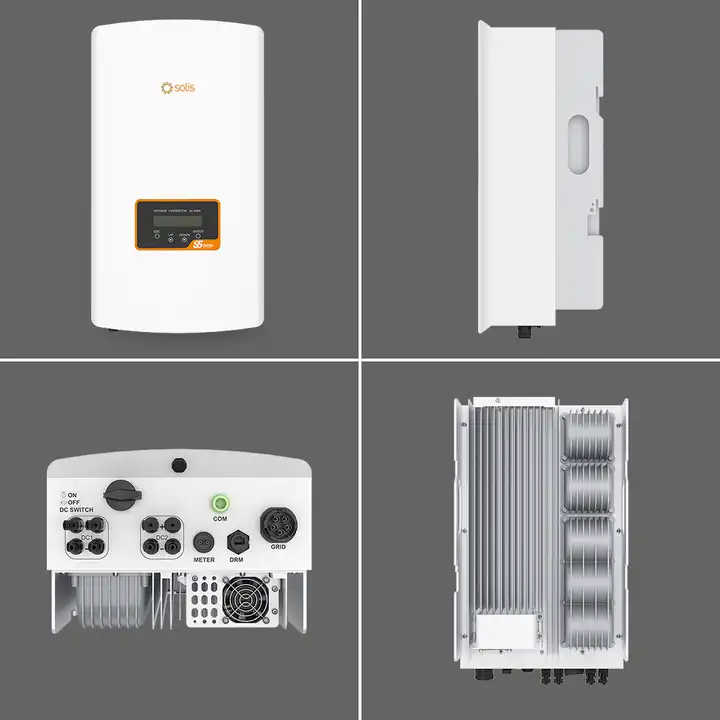

Solis S5-GR3P10K Solis Inverter Details
Technical Specification
Models 3K4K5K6K8K10K12K15K20K
Input DC
Max. PV power 4.5 kW6 kW7.5 kW9 kW12 kW15 kW18 kW22.5 kW30 kW
Max. input voltage 1100 V
Rated voltage 600 V
MPPT voltage range 160-1000 V
Output AC
Rated output power 3 kW4 kW5 kW6 kW8 kW10 kW12 kW15 kW20 kW
Max. output power 3.3 kW4.4 kW5.5 kW6.6 kW8.8 kW11 kW13.2 kW16.5 kW22 kW
Rated grid voltage 3/N/PE, 220 V / 380 V, 230 V / 400 V
Efficiency
Max. efficiency 98.3%98.5%98.6%98.7%
System Architecture

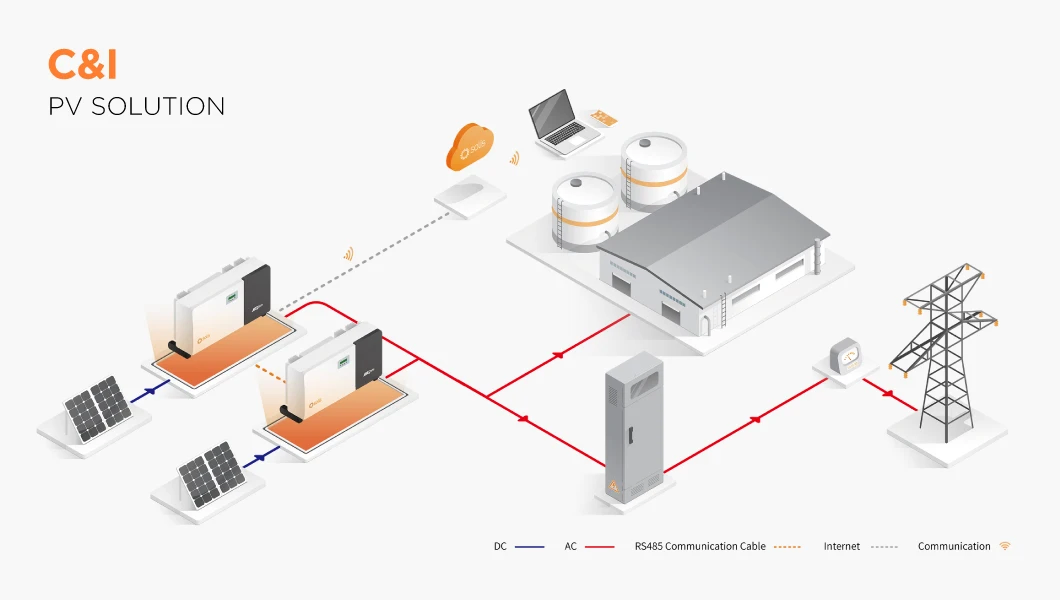

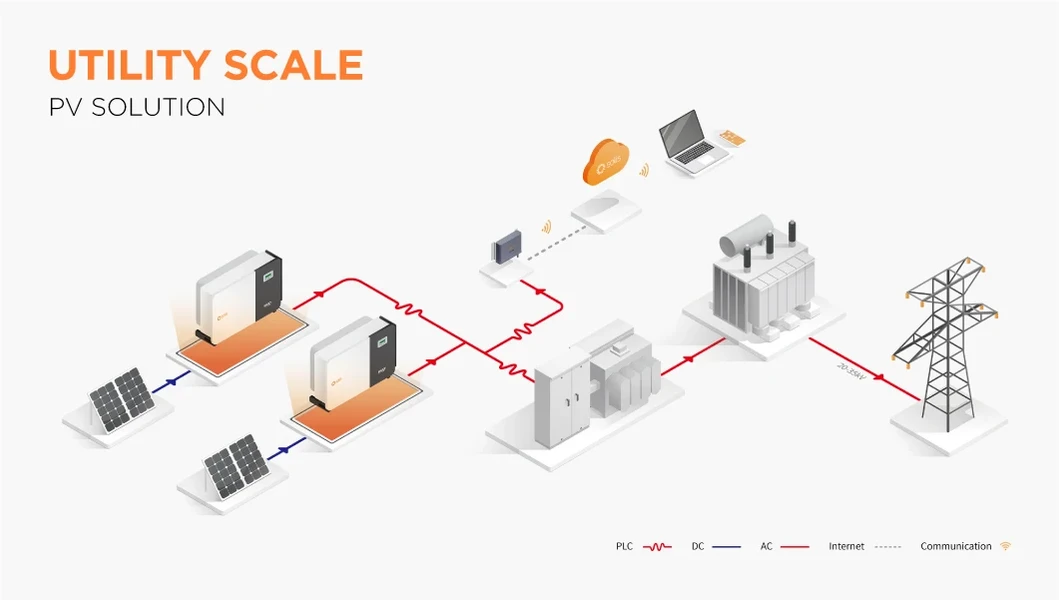

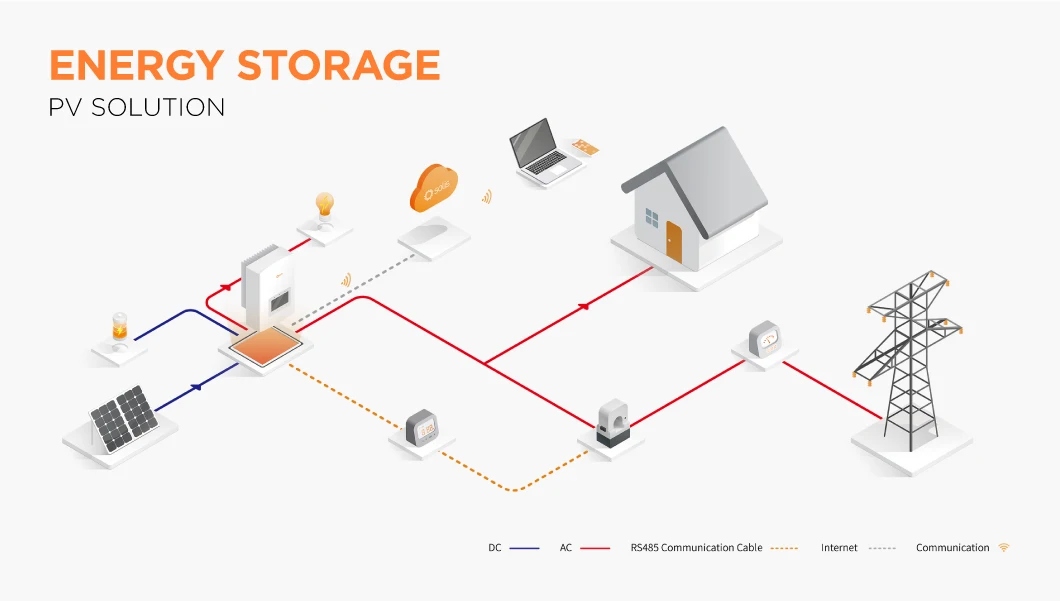

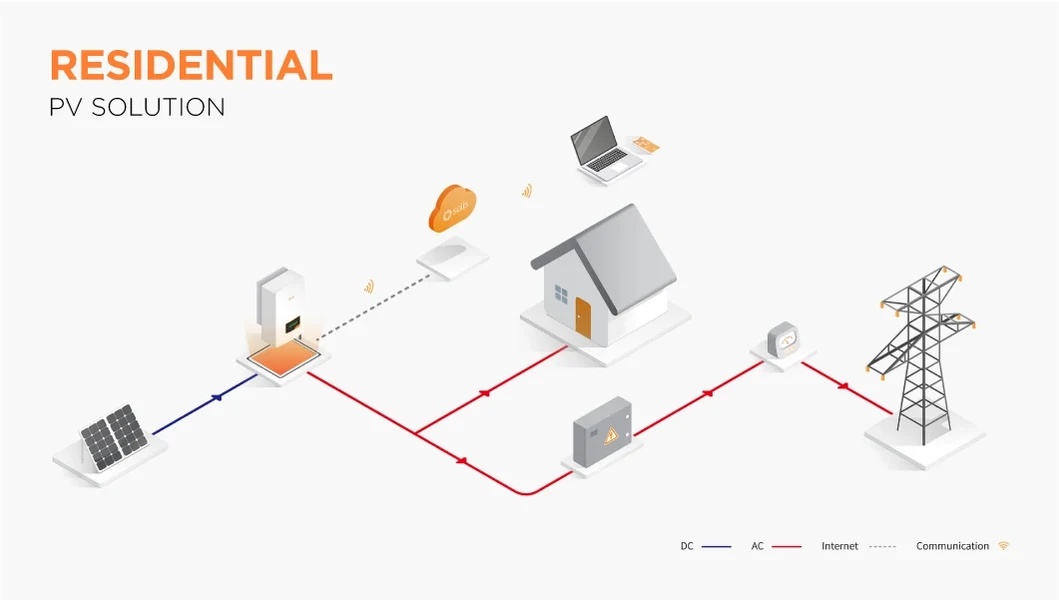

Architecture 1 Architecture 2 Architecture 3 Architecture 4
Project Cases & Packaging

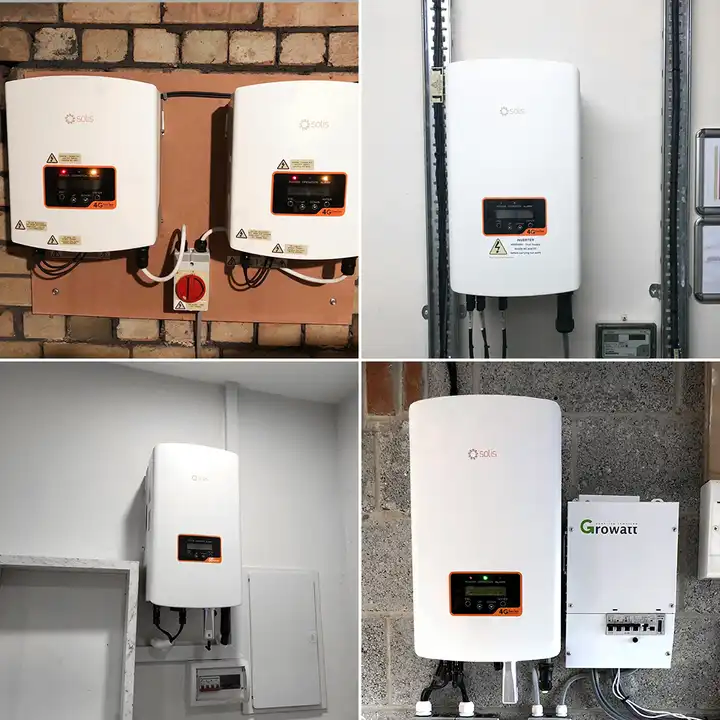

Project Case Product Packaging Product Logistics
Frequently Asked Questions
What is the maximum efficiency of the Solis S5-GR3P10K inverter?
The inverter achieves a maximum efficiency ranging from 98.3% to 98.7%, depending on the specific model and load conditions.
Does this inverter support outdoor installation?
Yes, the device is rated with IP66 ingress protection, making it highly resistant to dust and powerful water jets, suitable for outdoor environments.
What type of cooling system does the 10kW model use?
The 10kW model utilizes an intelligent redundant fan-cooling system to ensure optimal thermal management during high-power operation.
What are the available communication options for monitoring?
It comes standard with RS485 communication, and offers optional Wi-Fi and GPRS modules for remote monitoring via solar management platforms.
What safety protections are integrated into the system?
The inverter includes DC reverse-polarity protection, short circuit protection, output over-current protection, surge protection, anti-islanding protection, and integrated AFCI (DC arc-fault circuit protection).
What is the start-up voltage for this three-phase series?
The start-up voltage is 180V, allowing the system to begin generating power early in the morning and continue late into the afternoon.
