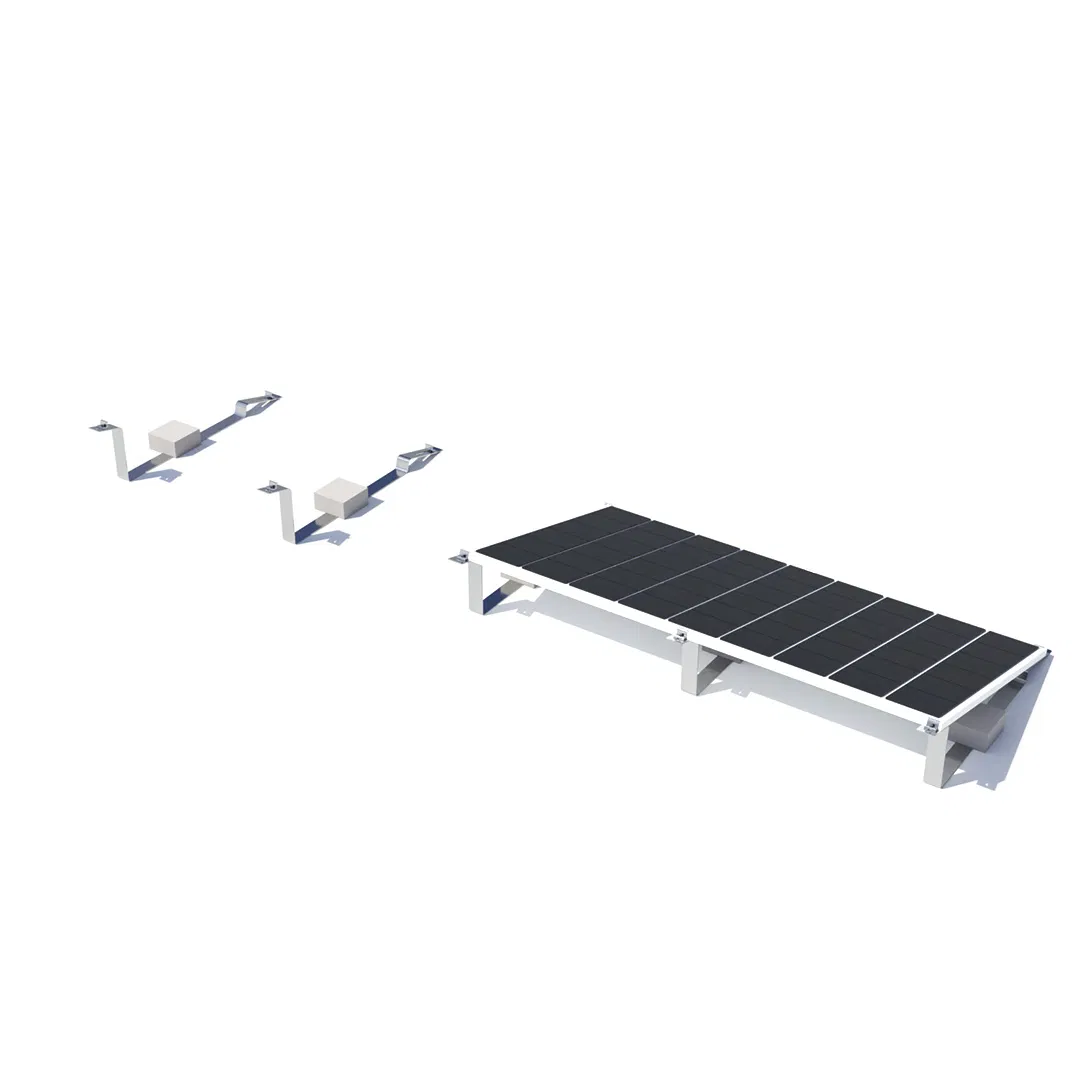

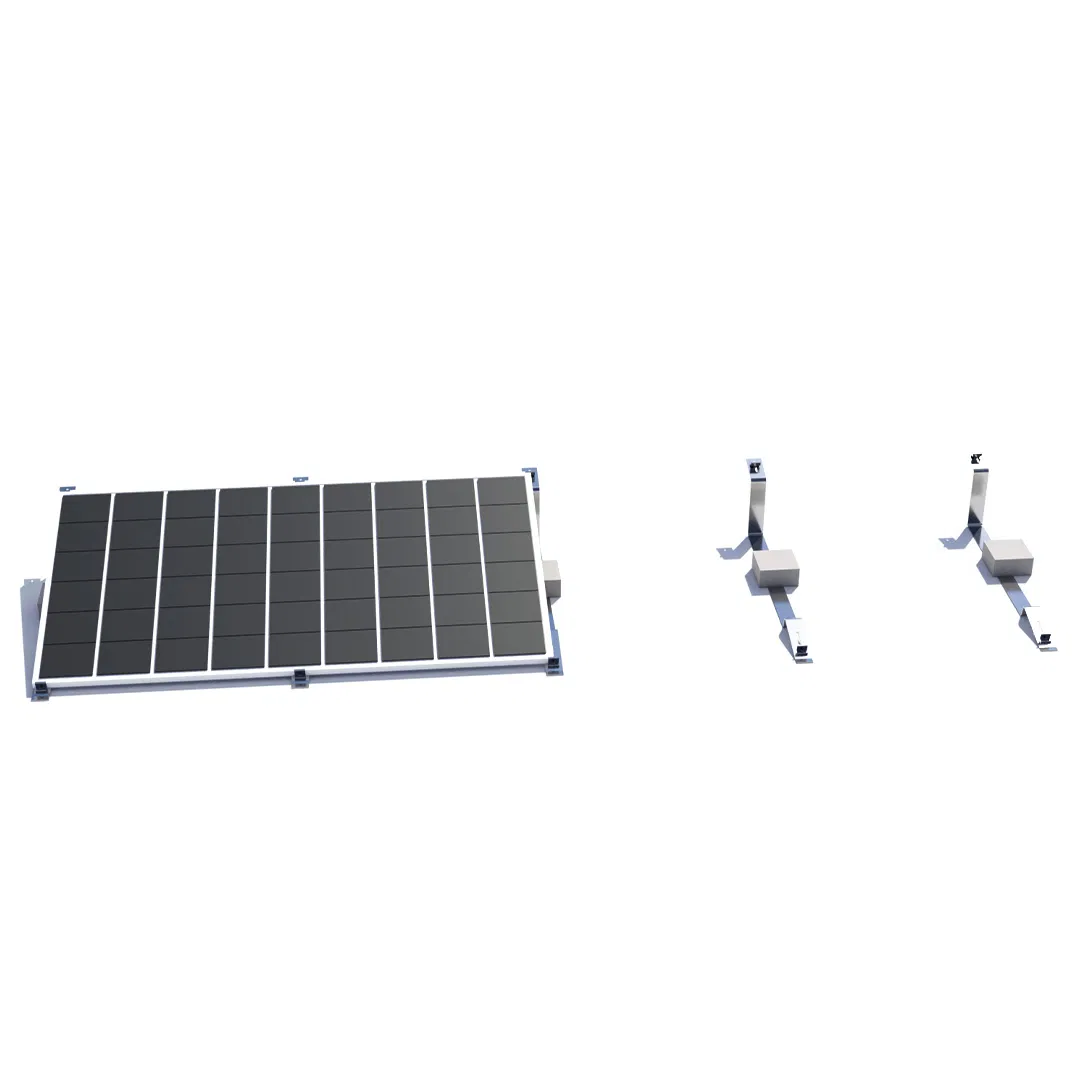

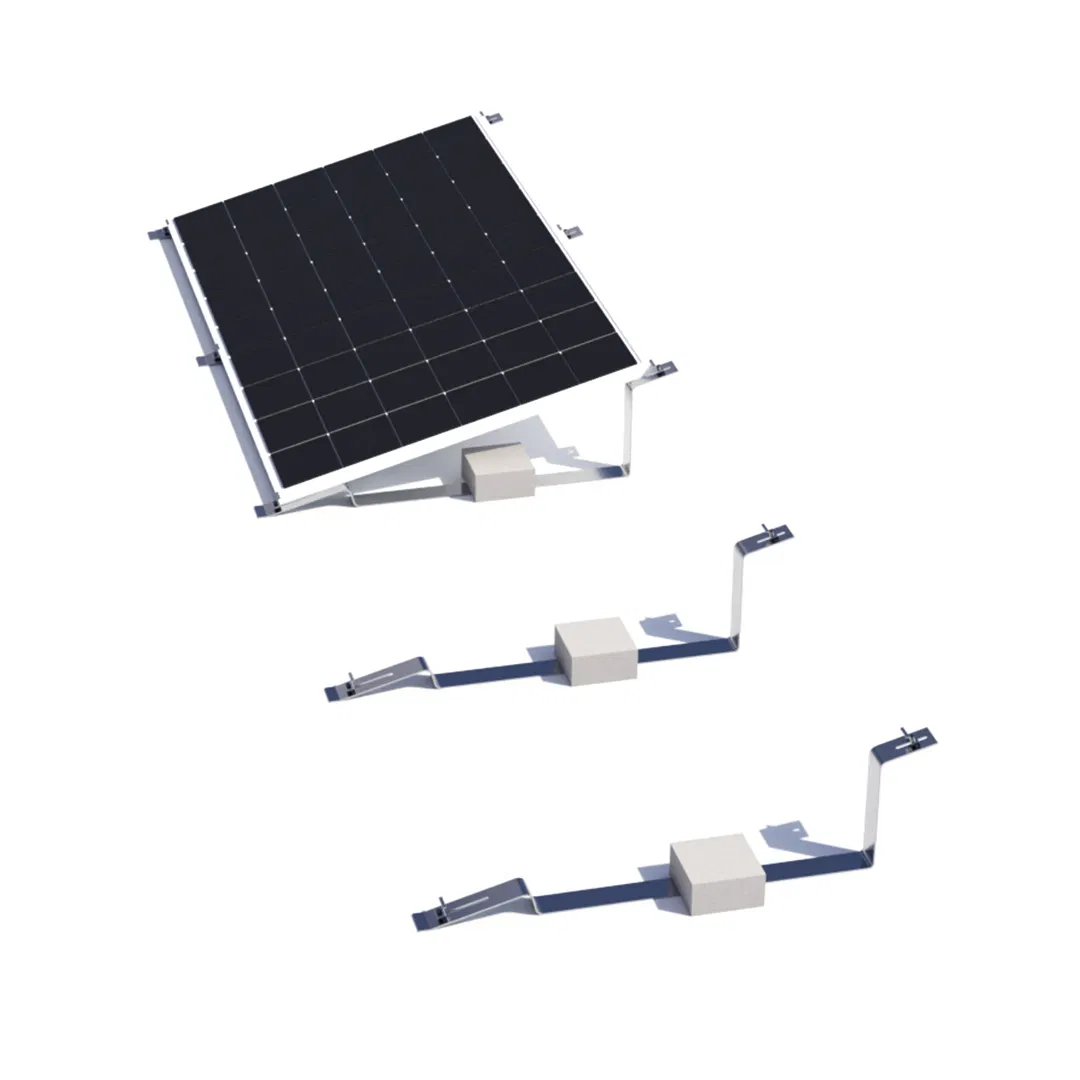

Roof Solar Panel Structure Tracking PV Concrete Ballast Flat Roof Solar Mounting System
Solar Roof Mounting System is an integrated solution specifically designed to install solar panels on various rooftops efficiently and stably. It provides a reliable support structure for making full use of rooftop space and realizing the conversion of solar energy into electrical energy. It is applicable to rooftops of various building types such as residential buildings, commercial buildings, and industrial factories, helping users easily start a clean and sustainable energy utilization mode, reducing reliance on traditional electricity, and contributing to energy conservation and emission reduction.

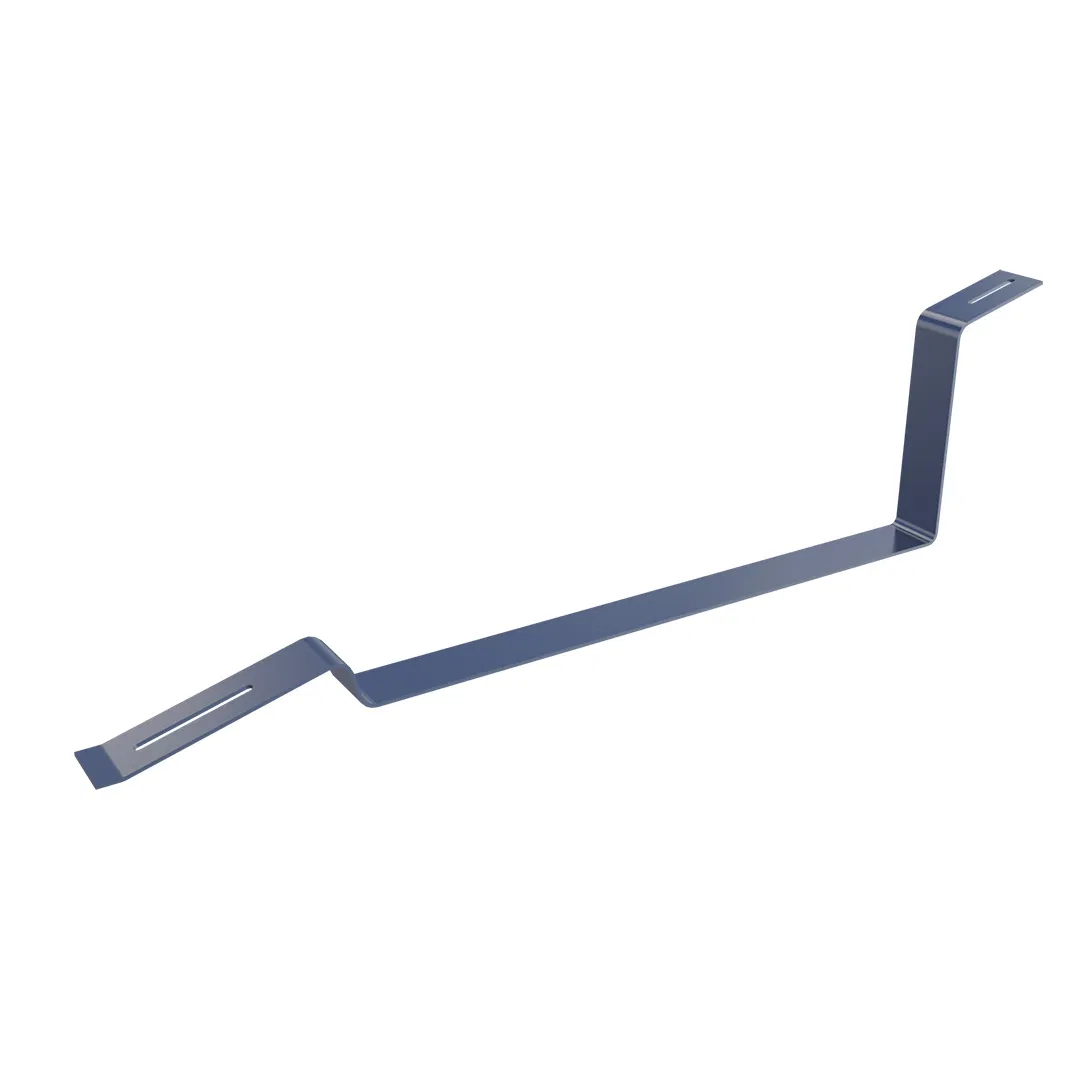

The main structure is made of high-strength aluminum alloy, which features light weight, corrosion resistance and high strength. It can effectively reduce the load-bearing pressure on the rooftop, and it is not easy to rust during long-term use in outdoor environments, ensuring the service life and stability of the system. The good plasticity of aluminum alloy materials enables the brackets to be processed into various complex shapes to meet different rooftop structures and installation requirements.

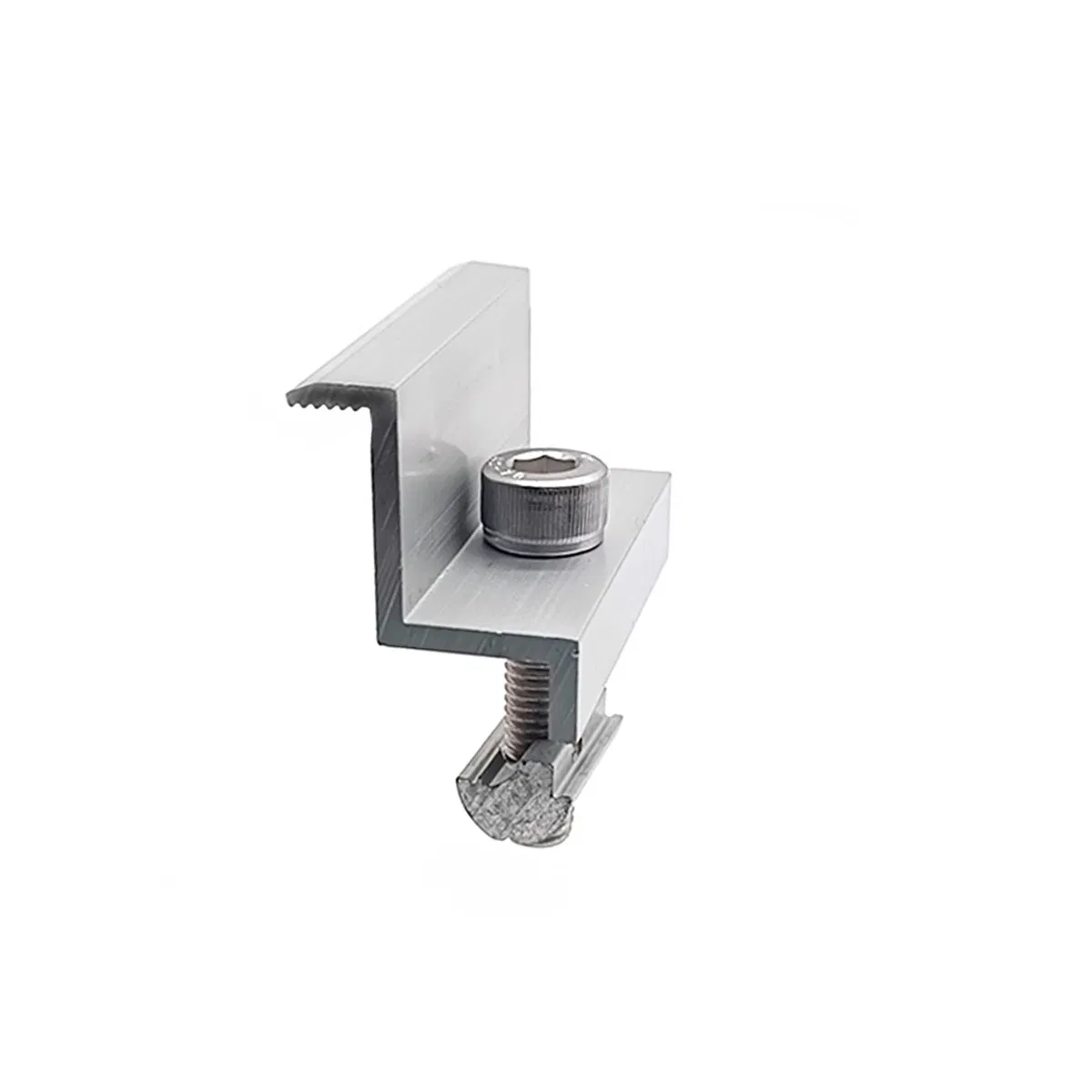

All kinds of connectors are made of high-quality stainless steel materials, with excellent corrosion resistance and mechanical properties. They can maintain firm connections under harsh climatic conditions, preventing the impact on the safety and reliability of the entire system caused by rusting or loosening of connectors. The high-precision processing technology of stainless steel connectors ensures the close fit between various components, making the installation process smoother and more accurate.
At the contact parts between the brackets and the rooftop as well as between the solar panels and the brackets, specially designed weather-resistant rubber pads are equipped. These rubber pads can not only play a role in cushioning and shock absorption, reducing damage to solar panels and rooftops caused by vibration, but also have good waterproof, sealing and weather-resistant properties, effectively preventing rainwater, dust and other impurities from entering the system, protecting the normal operation of the equipment.
| Model | Solar Panel Power Range (W) | Max Load Weight (kg) | Angle Adjustment Range (°) | Length (mm) | Width (mm) |
|---|---|---|---|---|---|
| SRM-01 | 100-300 | 50 | 0-60 | 1500 | 50 |
| SRM-02 | 300-500 | 80 | 10-70 | 2000 | 60 |
| SRM-03 | 500-800 | 120 | 20-80 | 2500 | 80 |
| SRM-04 | 800-1000 | 150 | 30-90 | 3000 | 100 |
Residential Rooftops, Commercial Building Rooftops, Industrial Factory Rooftops and so on.
