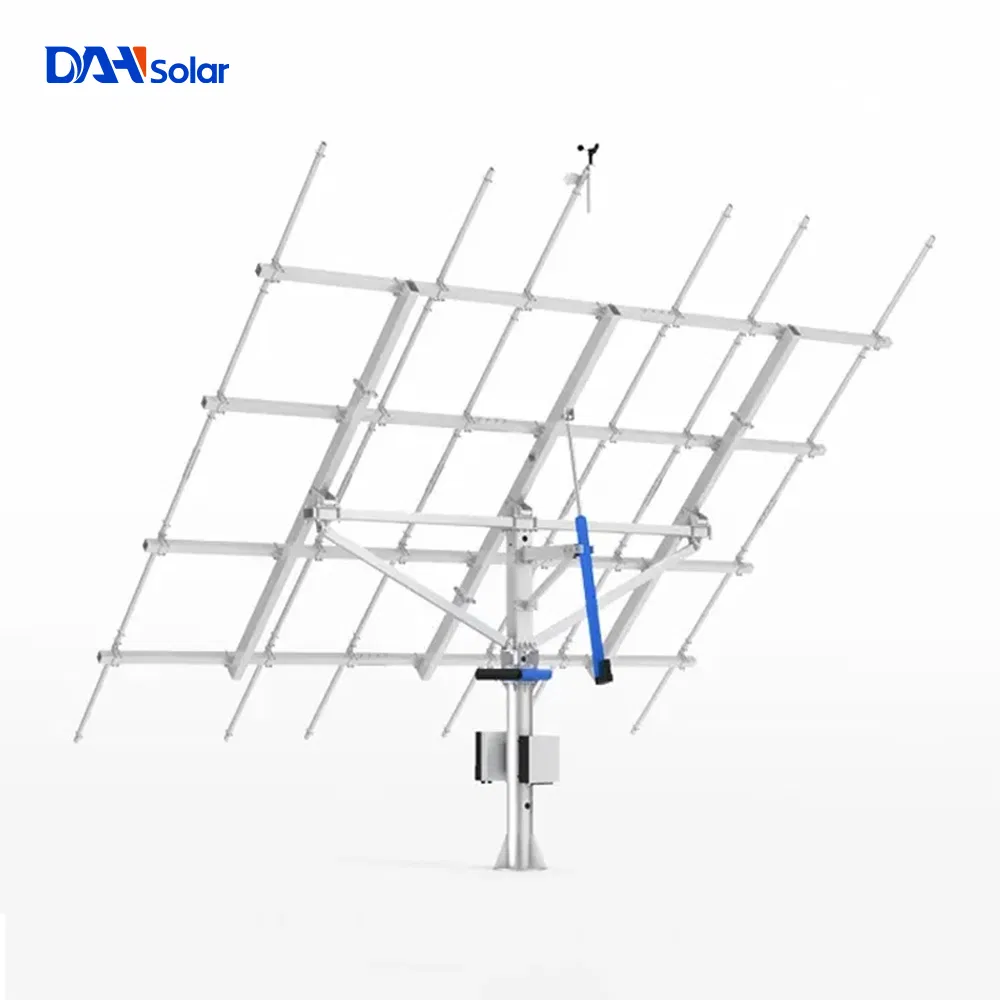

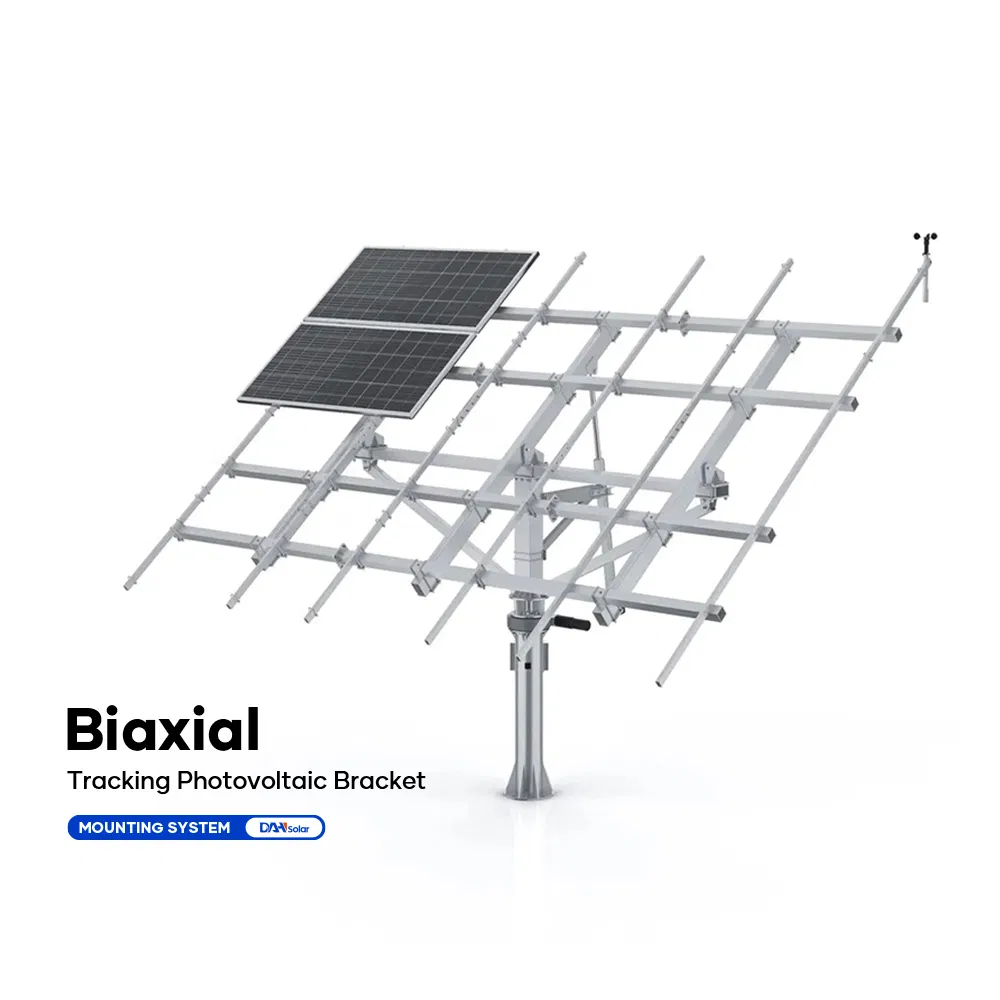

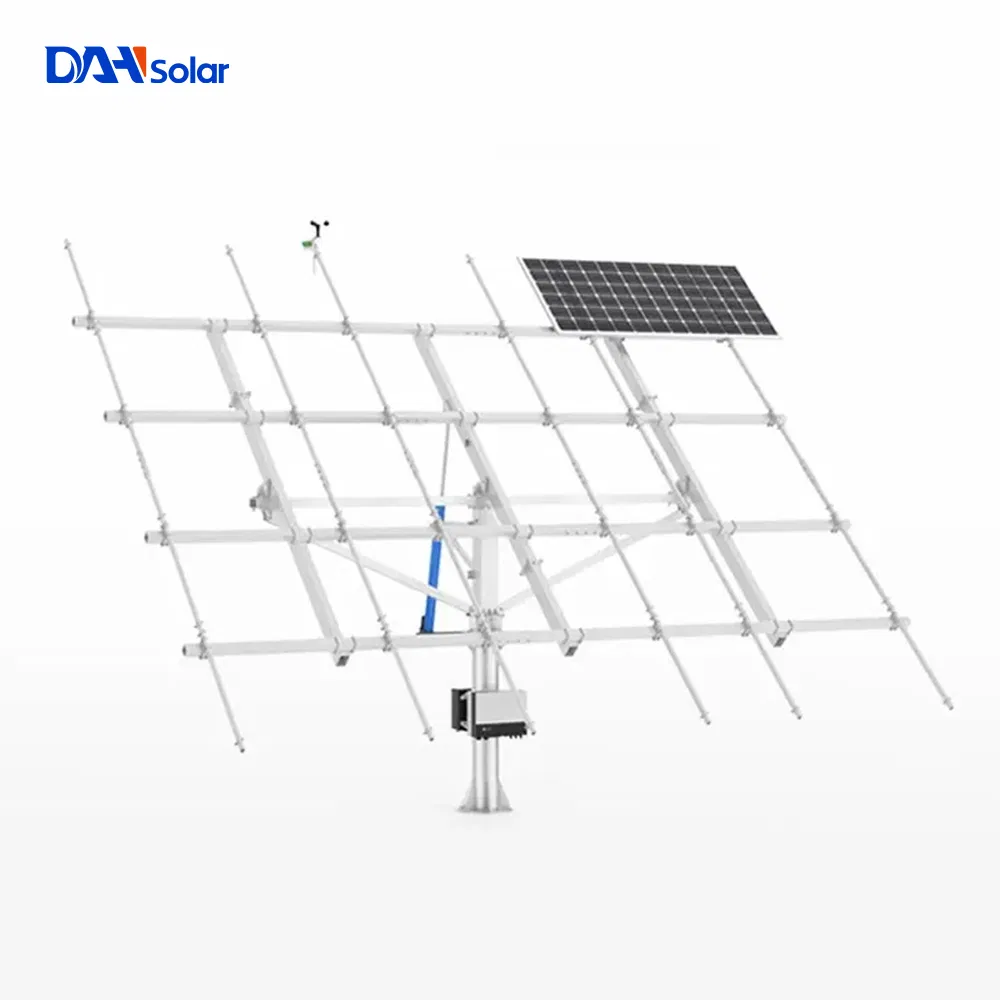

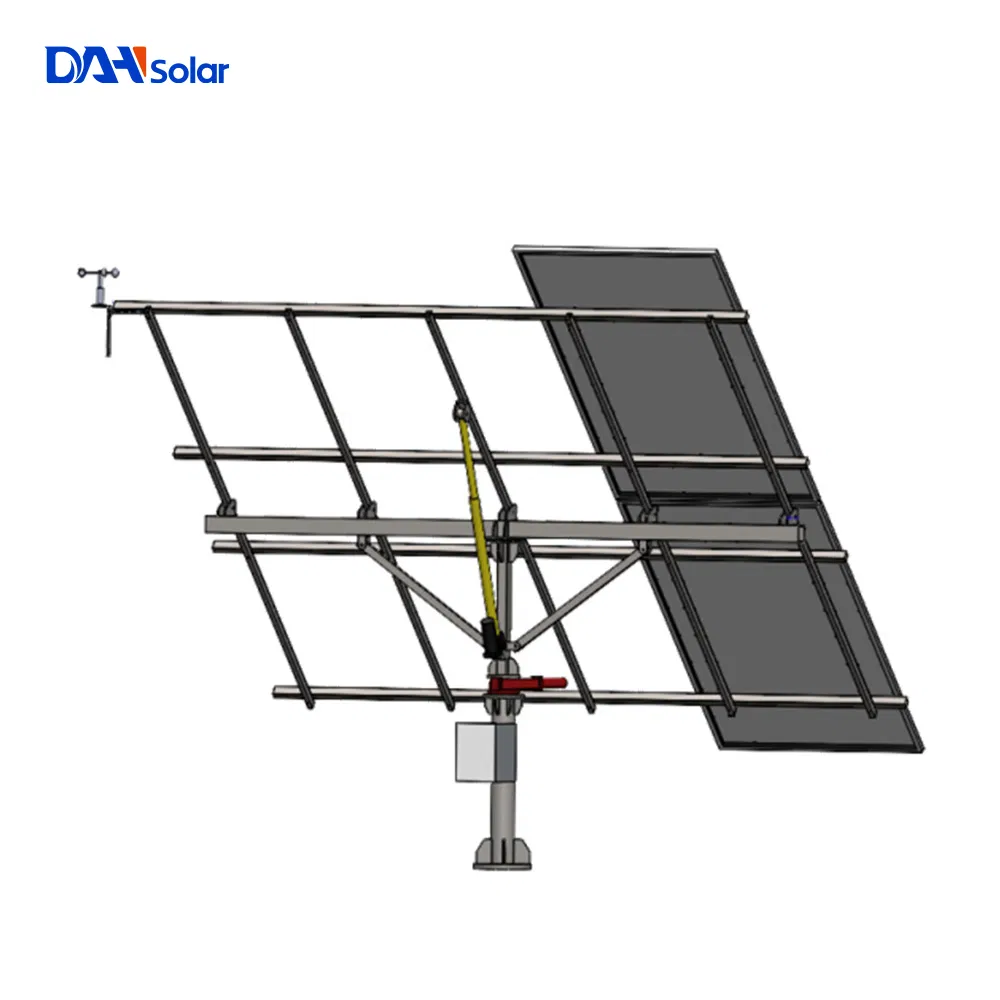

Dual axis solar tracking system has two axis tracking the azimuth angle and elevation angle of the sun. The control system can control the driving system track the sun according to the longitude, latitude and local time data downloaded by GPS device, keeps solar panels at best angle for receiving sunlight, so that it can makes full use of sunlight, promote the power generation capacity by 25%-40%, reduces your LCOE and bring more revenue for investors.
| Control mode |
Time + GPS |
| Average tracking accuracy |
0.1°- 2.0°(adjustable) |
| Gear motor |
24V/1.5A |
| Output torque |
5000 N·M |
| Tracking power consumption |
<0.02kwh/day |
| Azimuth angle tracking range |
±45° |
| Elevation angle tracking range |
45° |
| Max. wind resistance (Horizontal) |
40m/s (standard 30m/s) |
| Material |
Galvanized steel / Superdyma |
| Working temperature |
-40ºC - +75ºC |
| System guarantee |
3 years |
Frequently Asked Questions
How does a dual-axis solar tracker increase efficiency?

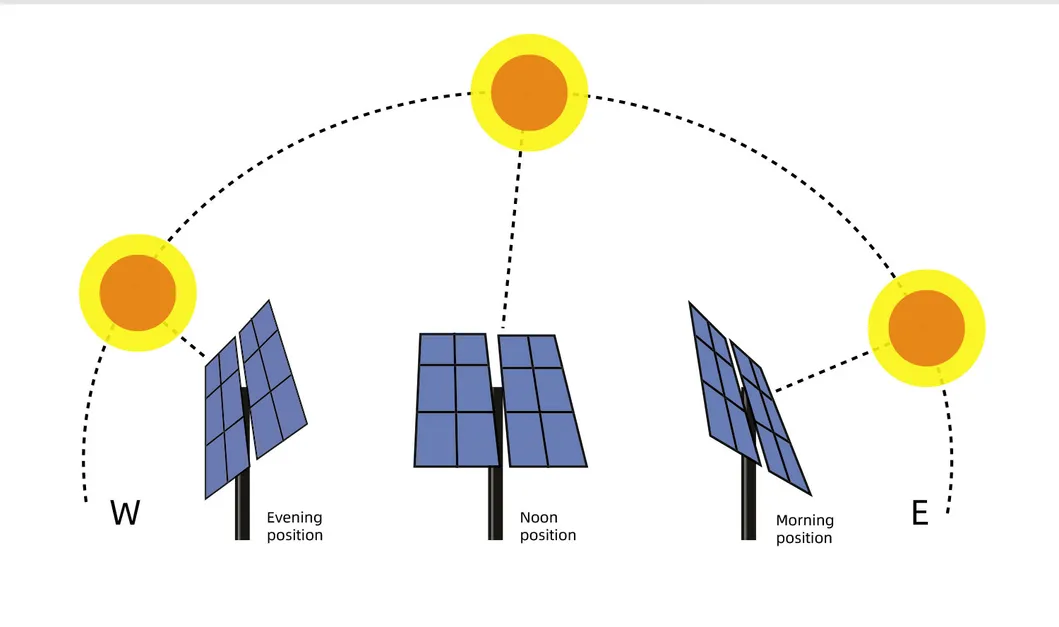

By simultaneously tracking both the azimuth and elevation angles of the sun, the system ensures solar panels are always at the optimal angle, increasing power generation by 25% to 40% compared to fixed mounts.
What control technology is used for tracking?
The system utilizes a high-precision Time + GPS control mode, which calculates the sun's position based on longitude, latitude, and local time for accurate movement.
What is the wind resistance capability of the tracker?
The system is designed with a standard horizontal wind resistance of 30m/s, and can be reinforced to withstand up to 40m/s in specific configurations.
Is the system durable for extreme weather?
Yes, the structure is made of Galvanized Steel or Superdyma and is designed to operate reliably in temperatures ranging from -40℃ to +75℃.
What is the average power consumption of the tracking motor?
The tracking system is highly energy-efficient, consuming less than 0.02kwh per day, ensuring that the energy gained from tracking far exceeds the energy used.
What is the tracking accuracy of the unit?
The system offers an average tracking accuracy of 0.1° to 2.0°, which is adjustable based on specific project requirements and environmental conditions.
