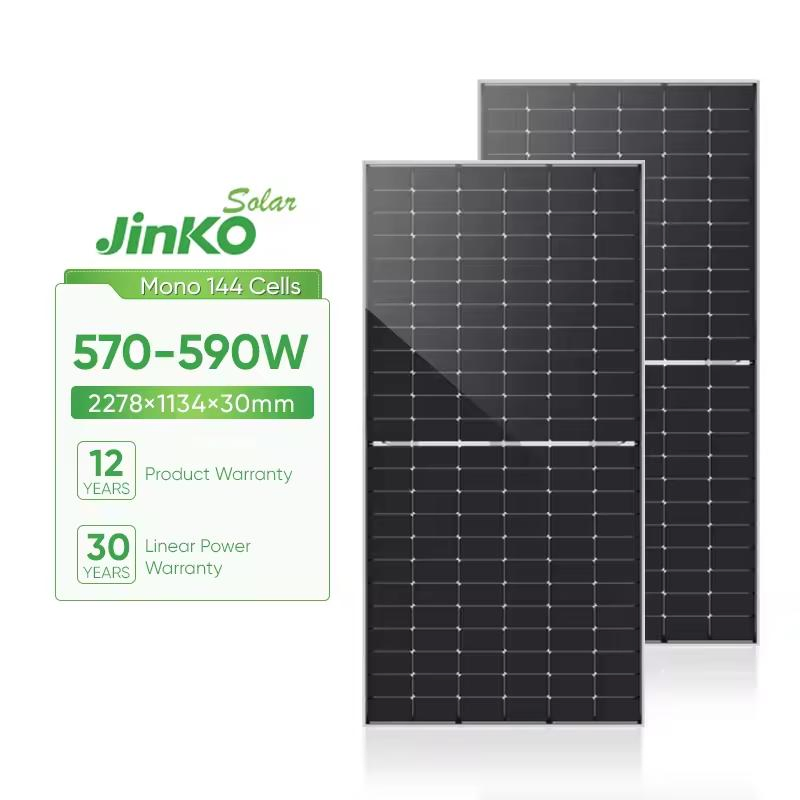

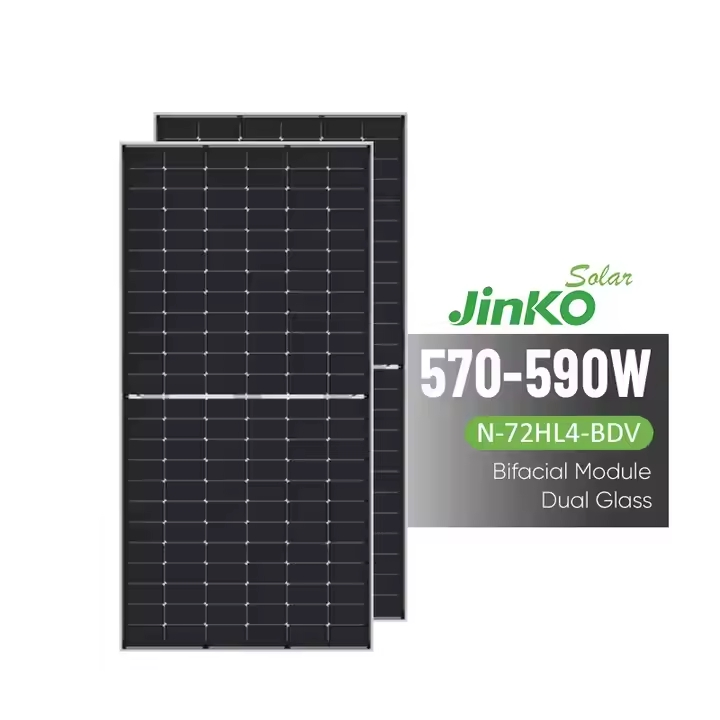

Jinko Tiger Neo N-Type Jkm585-72hl4-Bdv 585W 590W 595W Bifacial Solar Panel Price Topcon Dual Glass Solares Paneles

1 / 5

Jinko Tiger Neo N-Type Jkm585-72hl4-Bdv 585W 590W 595W Bifacial Solar Panel Price Topcon Dual Glass Solares Paneles

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Number of Cells

144 cells

Application

Solar System

Certification

EST, ISO, CB, CE

Material

Monocrystalline Silicon

Weight

31 Kg

Junction Box

IP68 Rated

Frame

Anodized Aluminium Alloy

Output Cables

TUV 1*4.0mm2

Dimensions

2278*1134*30mm

Capacity

1,000,000 watt Per Day

Technical Data (STC)

Module Type	JKM575N-72HL4-BDV	JKM580N-72HL4-BDV	JKM585N-72HL4-BDV	JKM590N-72HL4-BDV
Maximum Power (Pmax)	575Wp	580Wp	585Wp	590Wp
Maximum Power Voltage (Vmp)	43.73V	43.88V	44.02V	44.17V
Maximum Power Current (Imp)	13.15A	13.22A	13.29A	13.36A
Open-circuit Voltage (Voc)	52.30V	52.50V	51.70V	52.90V
Short-circuit Current (Isc)	13.89A	13.95A	14.01A	14.07A
Module Efficiency (%)	22.26%	22.45%	22.65%	22.84%
Operating Parameters
Operating Temperature	-40ºC~+85ºC
Maximum System Voltage	1500VDC (IEC)
Power Tolerance	0~+3%
Pmax Temp Coefficient	-0.29%/ºC

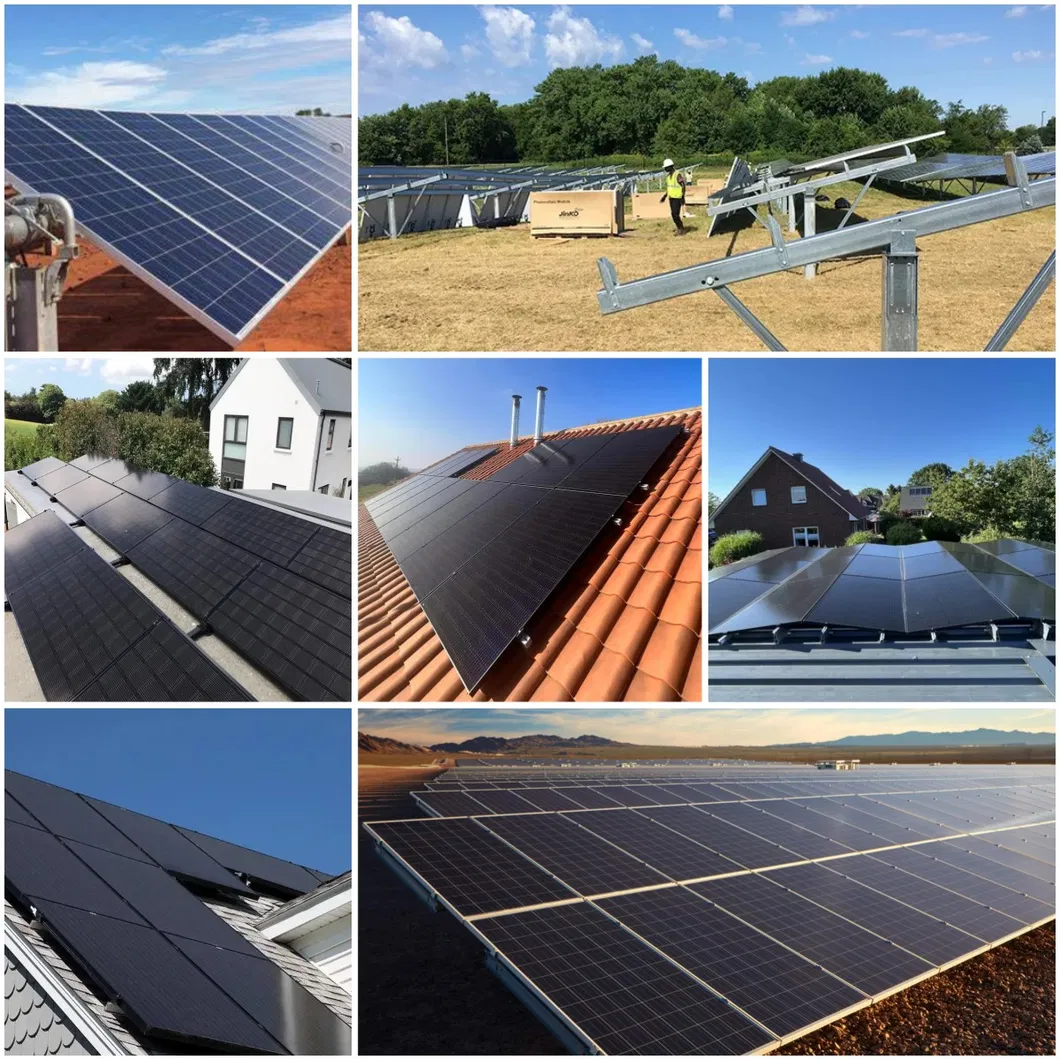

Product Gallery

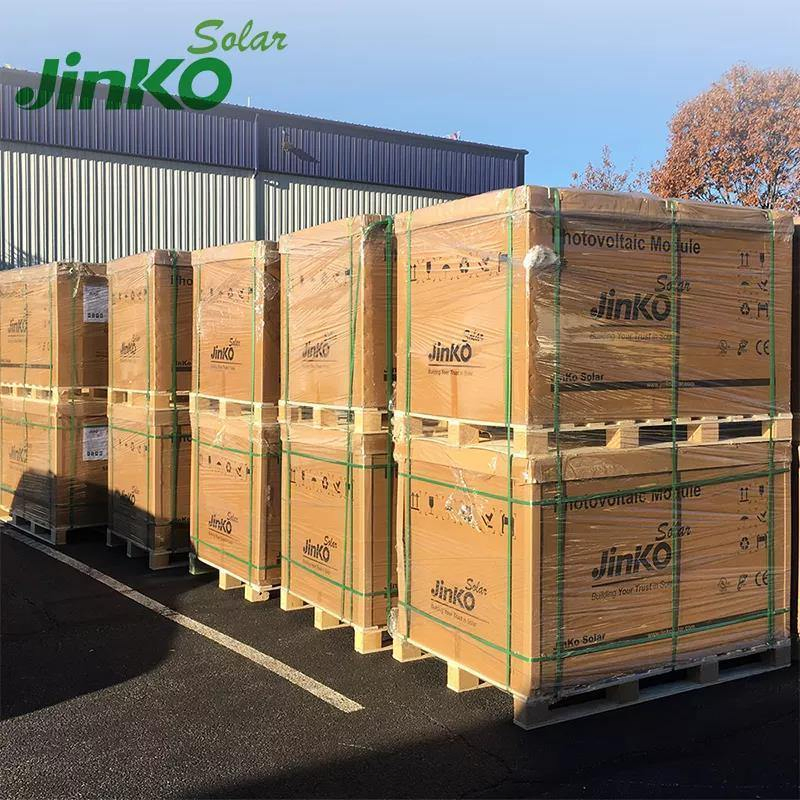

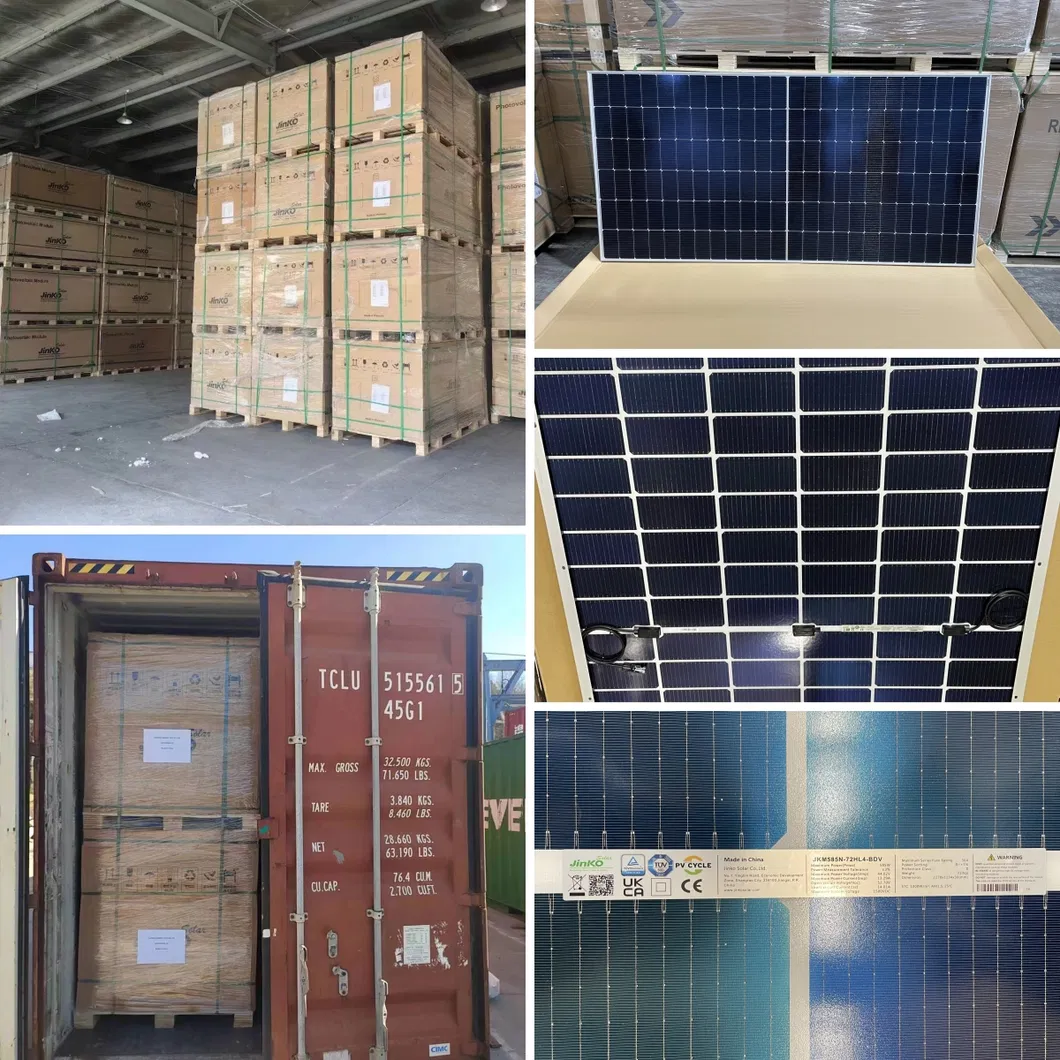

Packaging & Logistics

Package Size

227.80cm * 113.40cm * 3.00cm

Gross Weight

31.000kg

Pallet Quantity

36 PCS / Pallet

Container Loading

720 PCS / 40'HQ

Frequently Asked Questions

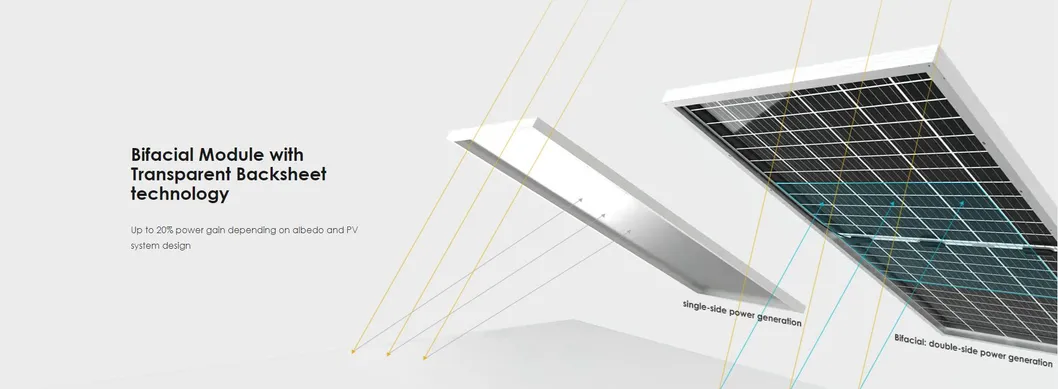

Q1: What are the main benefits of N-type Bifacial technology?

A: N-type technology offers lower LID (Light Induced Degradation) and better performance in low-light conditions, while the bifacial design allows for additional energy generation from the rear side.

Q2: What is the efficiency of these solar panels?

A: These modules feature a high efficiency rating ranging from 22.26% to 22.84%, depending on the specific model and wattage.

Q3: How durable are the panels against extreme weather?

A: Built with an anodized aluminum alloy frame and 2.0mm anti-reflection coating glass, they are designed to operate between -40ºC and +85ºC with an IP68 rated junction box for moisture protection.

Q4: What are the electrical connection details?

A: The panels use TUV 1x4.0mm2 output cables and are rated for a maximum system voltage of 1500VDC.

Q5: How are the panels packaged for international shipping?

A: They are securely packed with 36 pieces per pallet, ensuring stability during transport. A standard 40'HQ container can hold up to 720 pieces.

Q6: Do these panels come with certifications?

A: Yes, they meet major international standards including EST, ISO, CB, and CE certifications.
