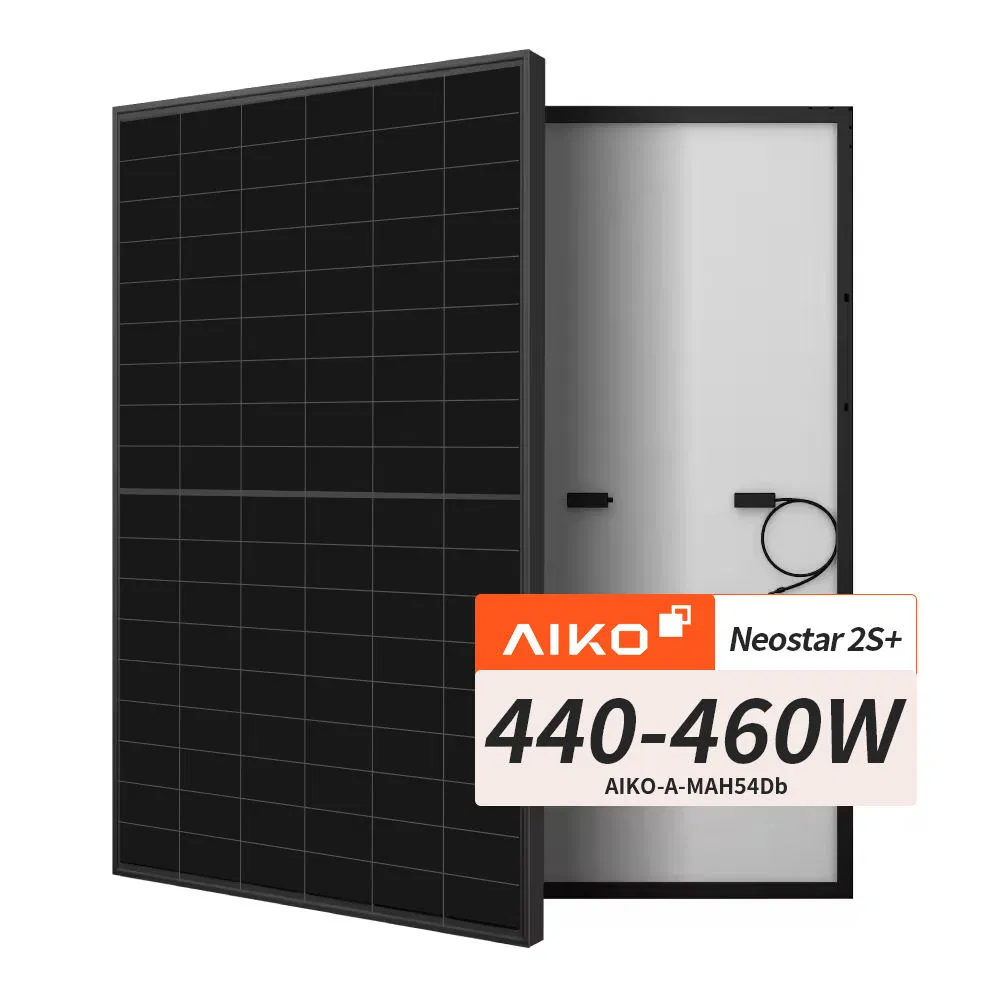

Aiko Solar Neostar 2s+ Dual-Glass Module 440W 445W 450W 455W 460W N Type ABC Bifacial Full Black Solar Panels

Customization: Available
After-sales Service: Yes
Warranty: 25 Years

Product Description

Basic Info.

Model NO.
AIKO-A440-460-MAH54Db
Number of Cells
144PCS
Application
Residential, Industrial, Commercial
Condition
New
Certification
CE, TUV
Material
Monocrystalline Silicon
Solar Cell
a-Grade
Junction Box
IP 68 Rated
Glass
3.2mm Tempered Low Iron
Type
Half Cut Cell
Weight
24.5kg
Panel Efficiency
19.92%

Product Details

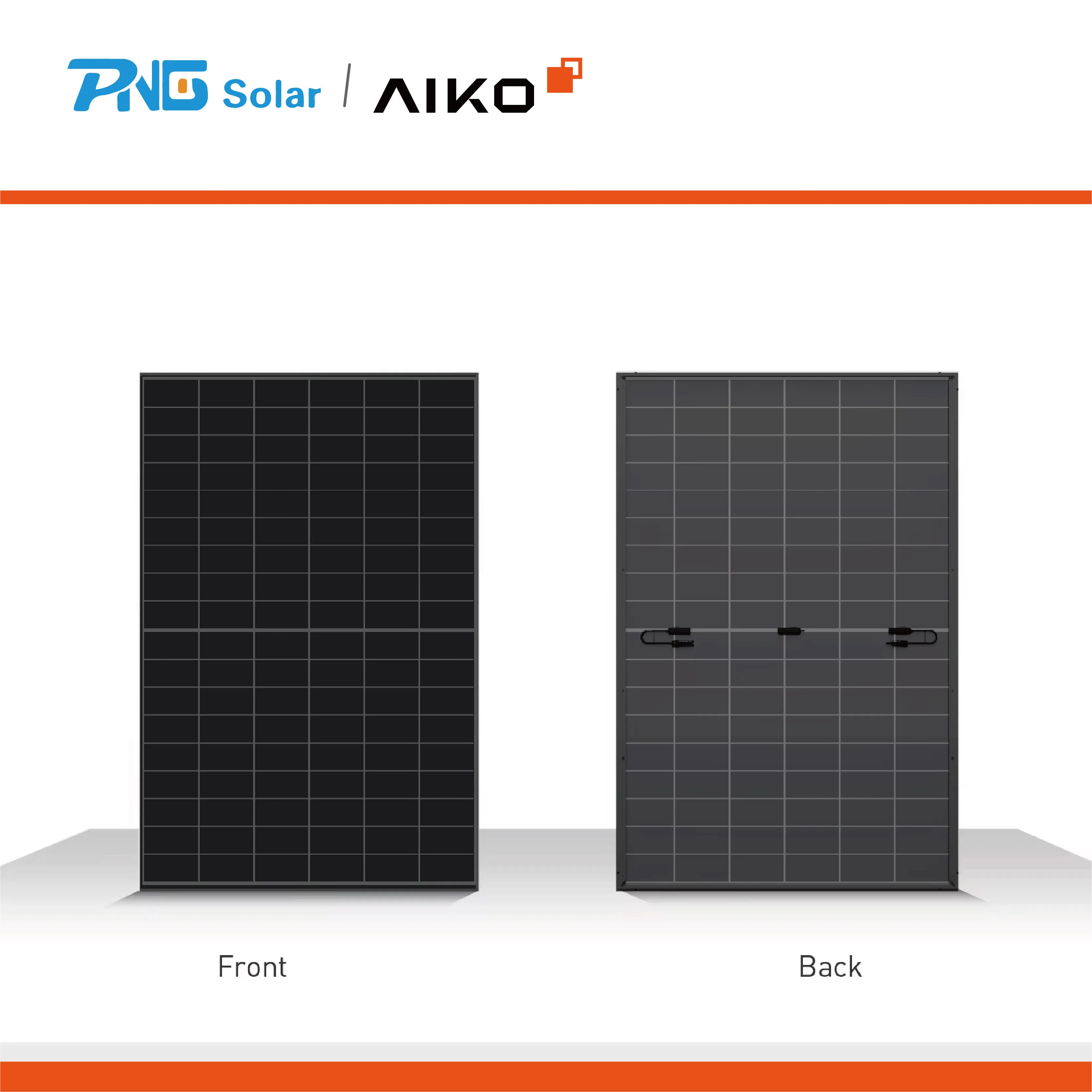

Aiko Solar Neostar 2s+ Panel Aiko Solar Neostar 2s+ Details

Mechanical Specifications

MECHANICAL DATA
Module Dimensions1757*1134*30mm
Weight24.5kg
GlassDual glass, 2.0 + 2.0mm coated semi tempered glass
FrameBlack Anodized aluminum
Junction-BoxIP68, 3 bypass diodes
PV ConnectorMC4-Evo2
Cables4mm², 12AWG, 1200mm
Cell TypeN-Type ABC, 108cells(6*9*2)

Electrical Characteristics

STC PERFORMANCE (Power Tolerance 0~+5W)
Model 440W 445W 450W 455W 460W
Max. Power (Pmax) 440W445W450W455W460W
Open Circuit Voltage (Voc) 40.61V40.71V40.81V40.93V41.06V
Short Circuit Current (Isc) 13.85A13.95A14.05A14.15A14.25A
Max. Power Voltage (Vmp) 33.60V33.70V33.80V33.90V34.00V
Module Efficiency 22.1%22.3%22.6%22.8%23.1%

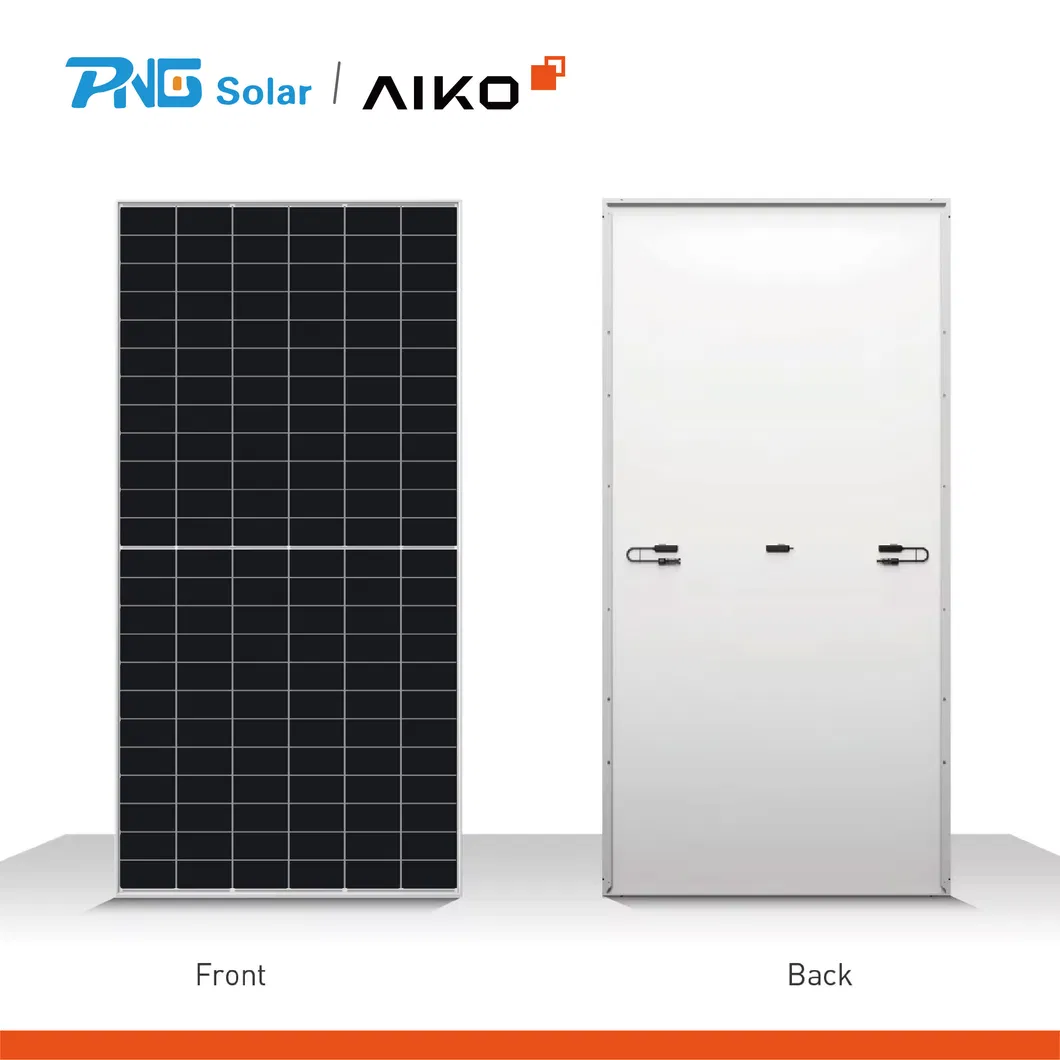

Aiko Solar ABC Technology

A Grade Premium Material

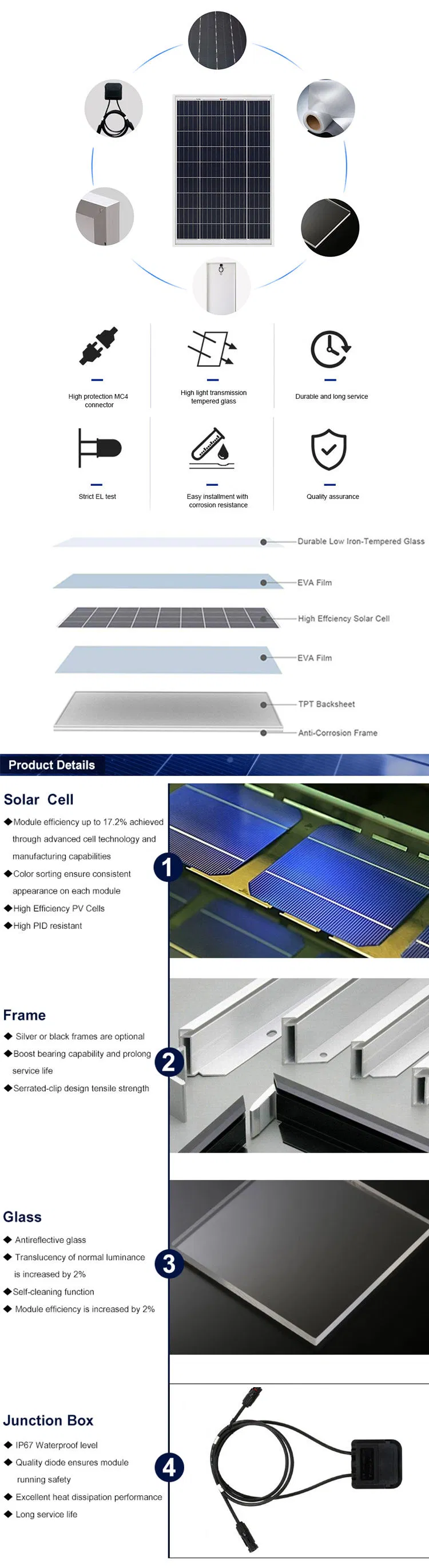

Material Details Cell Structure

Project Cases & Installation

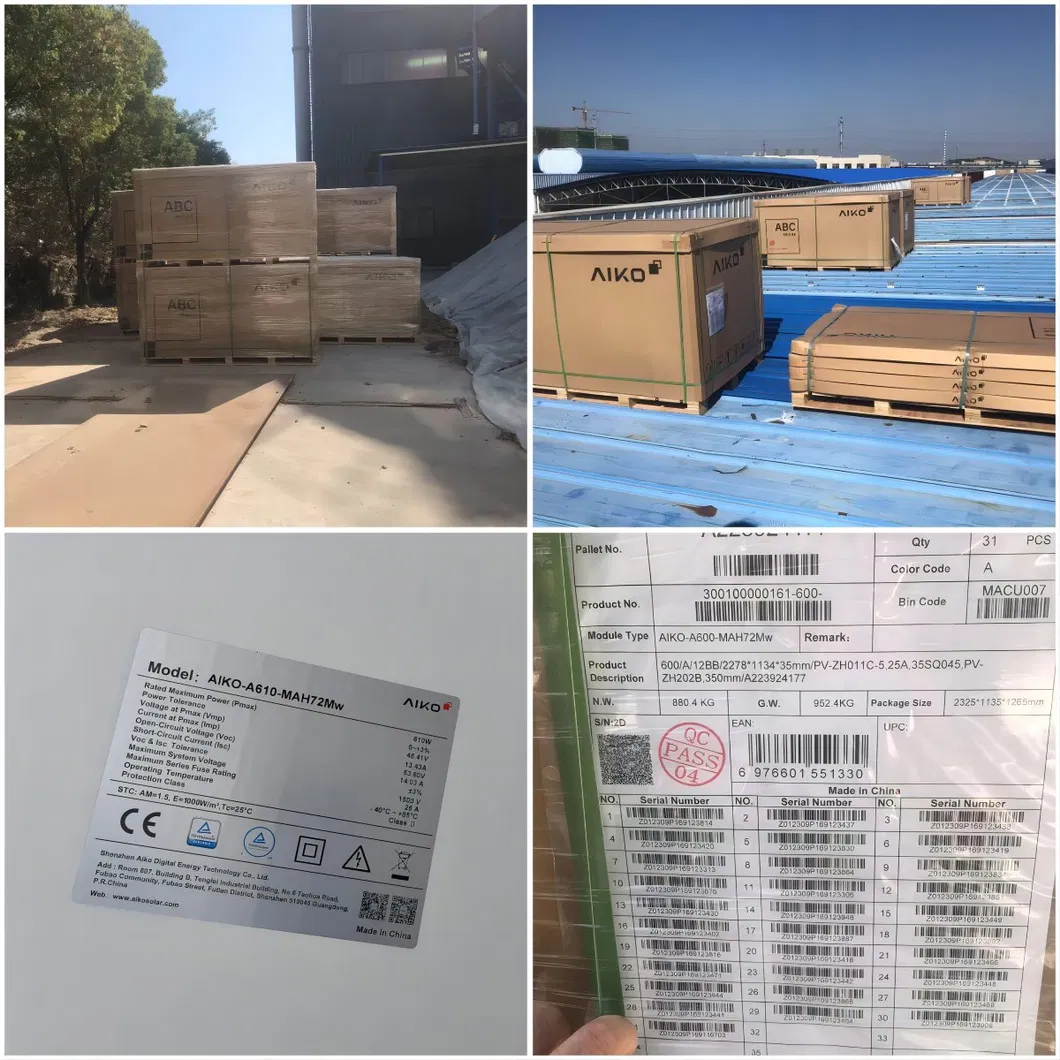

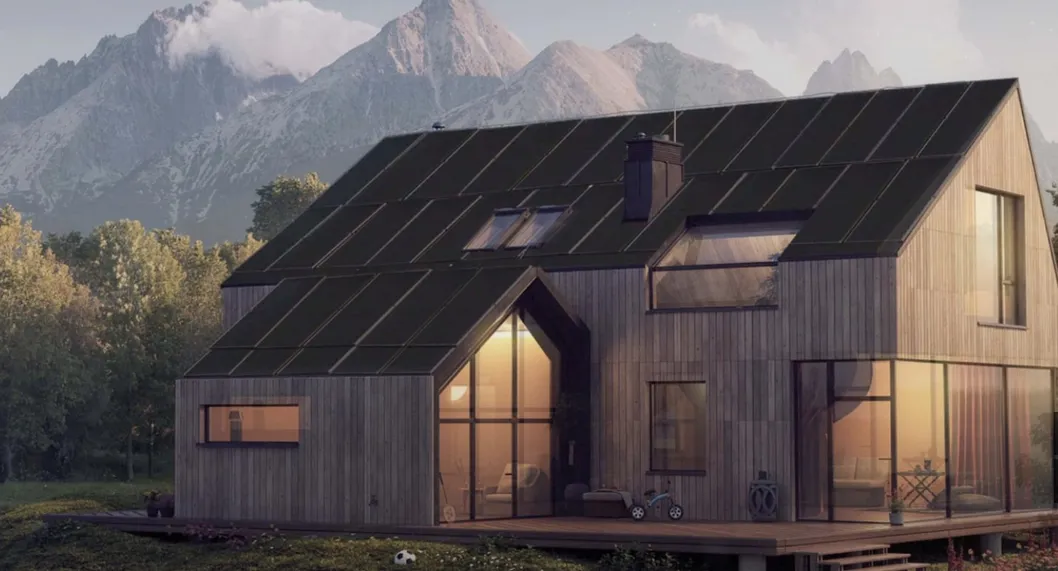

Installation Case 1 Installation Case 2 Installation Case 3

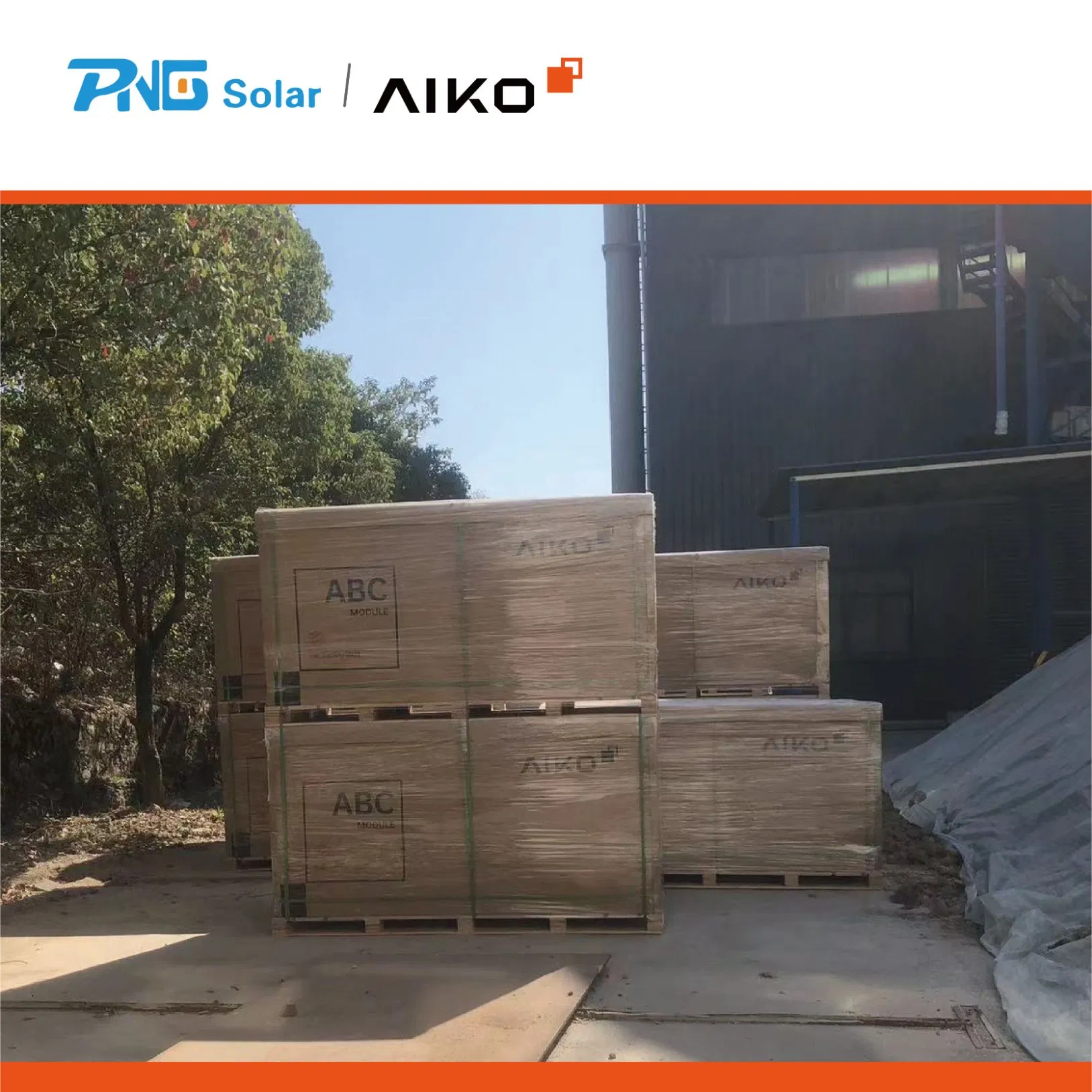

Packaging & Logistics

Packaging Process 1 Packaging Process 2
Delivery 1 Delivery 2

Frequently Asked Questions

What are the available payment terms for orders?
We accept various payment methods including TT (Telegraphic Transfer), Letter of Credit (L/C), PayPal, and Western Union to ensure a smooth transaction process.
Is it possible to receive a sample before placing a bulk order?
Yes, samples are available. The sample fee will be fully returned to you when you place your next official bulk order.
Do you support OEM and custom logo printing?
Absolutely. We provide OEM services and can print your own logo on the modules according to your requirements.
What is the efficiency range of the Aiko Neostar 2s+ series?
The module efficiency of this series ranges from 22.1% up to a high of 23.1%, depending on the specific wattage model (440W-460W).
What are the packaging details for international shipping?
Standard packaging is 36 pcs per pallet. A 40'HQ container can accommodate approximately 936 pcs. We also offer customized wooden box packing for orders smaller than a full pallet.
What makes your N-Type ABC cells superior?
Our N-Type ABC (All Back Contact) technology ensures higher efficiency, better temperature coefficients, and a more aesthetic full-black appearance by moving all contacts to the rear of the cell.
