Product Description

MAX 100-125KTL3-X LV Inverter
Basic Info.
Model NO.
MAX 100-125KTL3-X LV
Nature of Source Flow
Active Inverter
Phase
Three
Output Power
>1000W
Certification
CE, ISO9001, CCC, TUV, VDE
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Application
Grid-Tied Solar System
Specification
970/640/345mm
Production Capacity
50000PCS/Month
Product Description
Datasheet MAX 100KTL3-X LV MAX 110KTL3-X LV MAX 120KTL3-X LV MAX 125KTL3-X LV
Input data (DC)
Max. DC voltage1100V
Start Voltage195V
Nominal voltage600V
MPP voltage range180-1000V
No. of MPP trackers10
PV strings per tracker2
Max. input current32A
Output data (AC)
AC nominal power100000W110000W120000W125000W
Max. AC apparent power110000VA121000VA132000VA137500VA
Nominal AC voltage400V/380V, (340-440VAC)
Max. output current158.8A @400V174.6A@400V190.5A @400V198.5A@400V
THDi<3%
Efficiency
Max.efficiency98.80%
European efficiency98.40%98.50%
General data
Dimensions (W / H / D)970/640/345mm
Weight84kg
Protection degreeIP66
Operating temp.-30C~ +60C
Warranty5 years / 10 years Optional

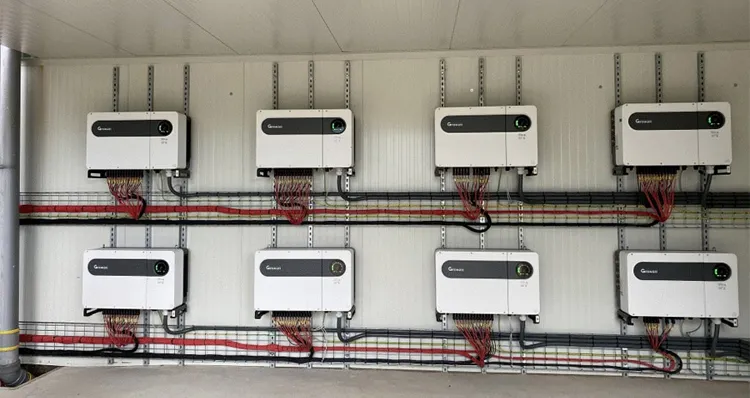

Inverter Feature 1

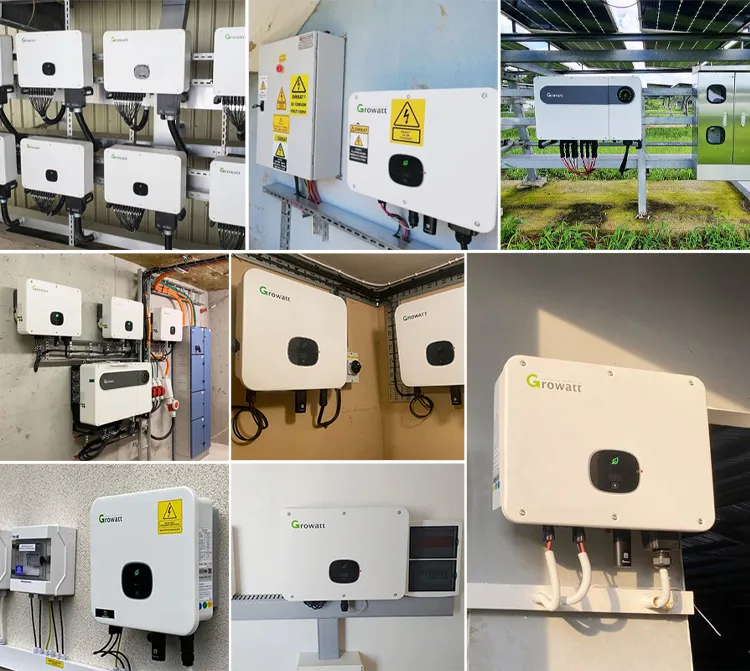

Inverter Feature 2

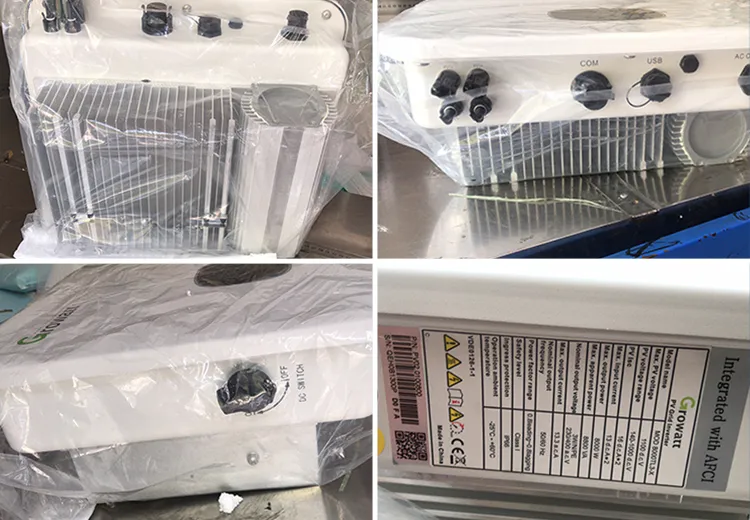

Inverter Feature 3
Frequently Asked Questions
What is the maximum efficiency of the MAX 100-125KTL3-X LV series?
The inverter series features a high maximum efficiency of up to 98.80%, ensuring optimal energy conversion for large-scale solar systems.
How many MPP trackers does this inverter have?
It is equipped with 10 independent MPP trackers, each supporting 2 PV strings, allowing for flexible system design and maximized yield even in complex shading conditions.
Is the inverter suitable for harsh outdoor environments?
Yes, the inverter has an IP66 protection degree, making it highly resistant to dust and high-pressure water jets, suitable for various outdoor installations.
What monitoring interfaces are supported?
The system supports multiple communication interfaces including RS485 and USB as standard, with options for WiFi, GPRS, RF, and LAN for remote monitoring via app.
Does this inverter support wide voltage ranges?
Yes, it has a wide MPP voltage range of 180V to 1000V and a maximum DC voltage of 1100V, providing compatibility with various solar module configurations.
What is the standard warranty period?
The standard warranty is 5 years, with an optional extension available for up to 10 years for long-term project security.
