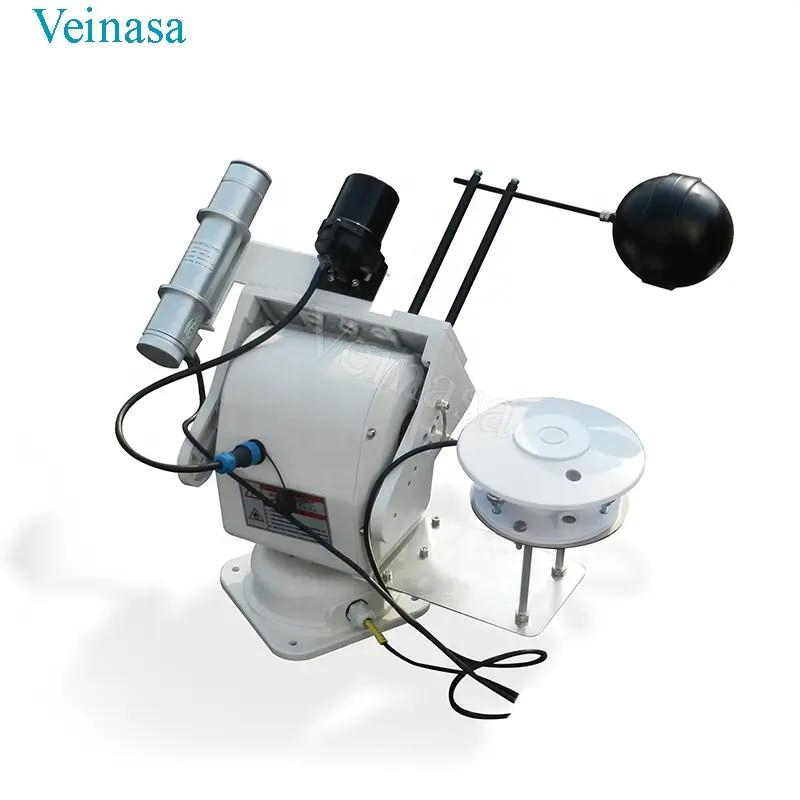

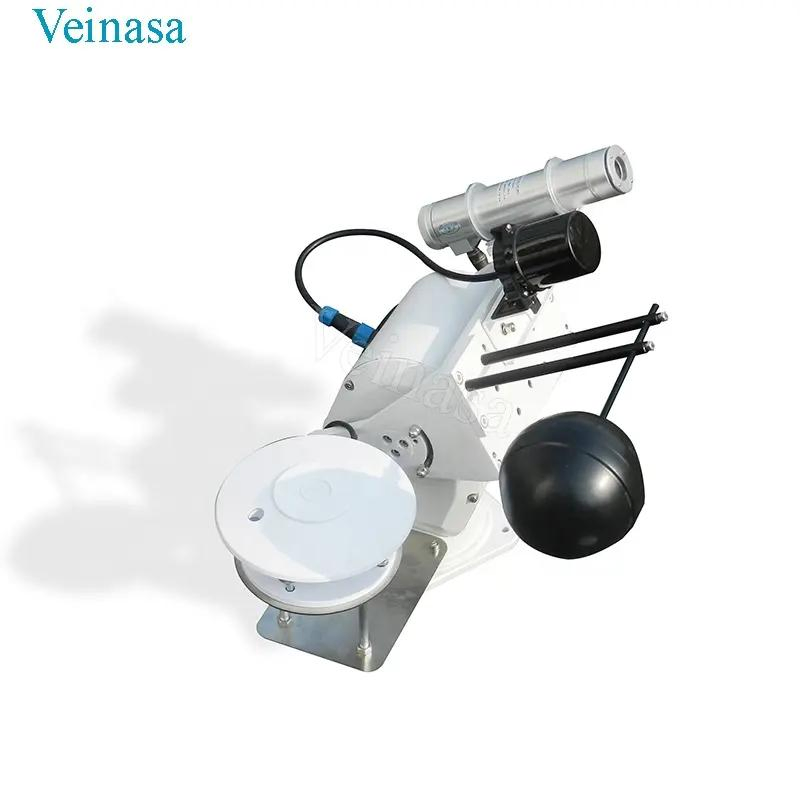

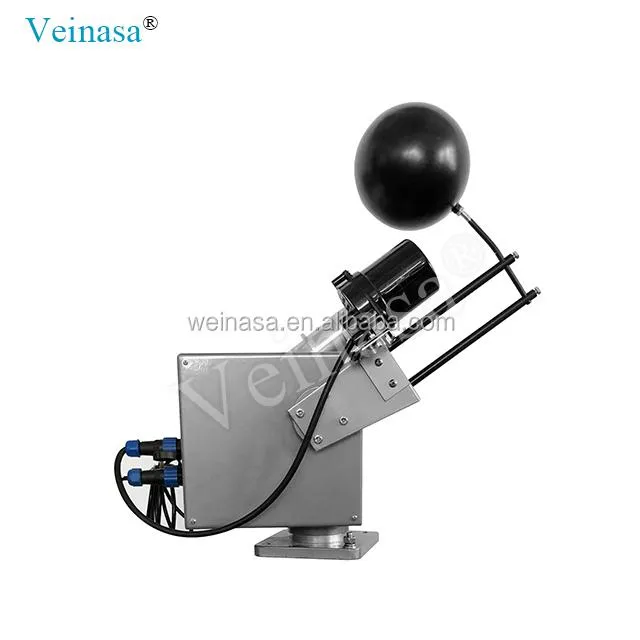

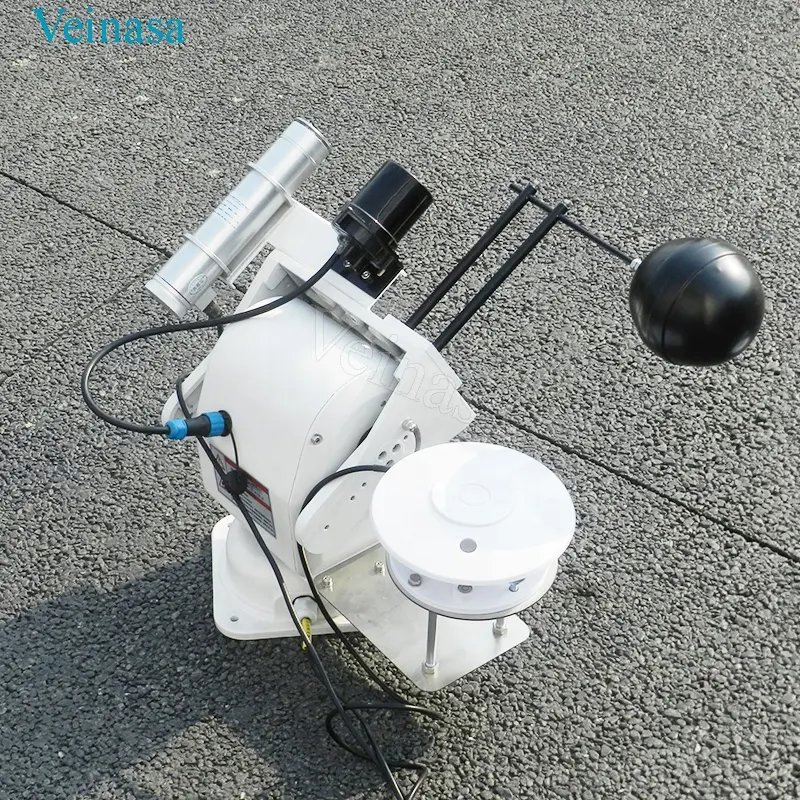

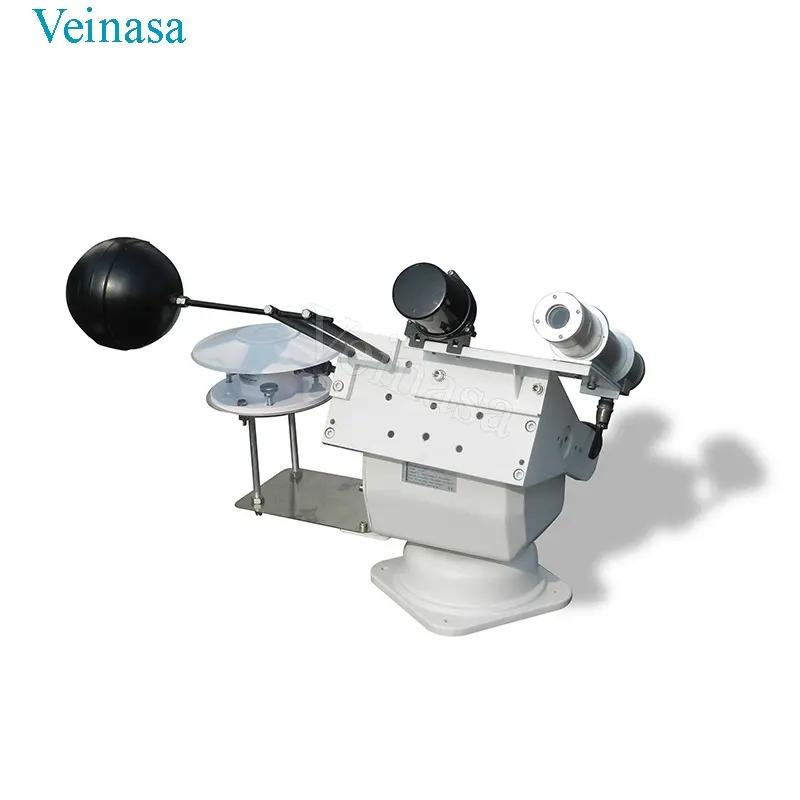

GPS Photovoltaic Mounting System Solar Radiation Meter Solar Tracking System With Data Logger can be used as a primary standard direct radiation meter. Suitable for all kinds of harsh environments. Fast response and accurate automatic tracking. The tracking modes of the Solar Tracking System are sensor tracking and sun tracking. Sensor tracking mode is a real-time sampling by photoelectric converter, computer analysis and comparison of changes in solar light intensity, thus driving the mechanical mechanism to achieve solar tracking mode. Direct radiation tracking is more accurate. The direct radiometer is a first-class standard radiometer for measuring the radiation perpendicular to the sun's surface. It conforms to the international standards of ISO9060.
| Automatic Tracking Parameters |
| Tracking Accuracy | 0.5 degree |
| Load | 10kg |
| Working Temperature | -40°C to +50°C |
| Power Supply | DC12V |
| Technical Indicators of Direct Radiation Tables |
| Spectral Range | 300~3000nm |
| Measuring Range | 0~2000W/m2 |
| Sensitivity | 7~14μV/W.m-2 |
| Time Constant | Less than 15S (99%) |
| Open Angle | 4 degrees |
| Annual Stability | ± 1% |
| Internal Resistance | About 80 ohms |
| Product Weight | 5Kg |
?
Frequently Asked Questions
What is the tracking accuracy of the GZY01A system?
The system provides high-precision solar tracking with an accuracy of 0.5 degrees, ensuring optimal radiation measurement.
What standards does the solar radiation meter comply with?
It conforms to the international standards of ISO9060 for solar energy, hemispherical solar radiation meters, and direct solar meters.
Can the system operate in extreme temperatures?
Yes, the system is designed to work in harsh environments with a temperature range of -40°C to +50°C.
What are the tracking modes available?
The system features dual tracking modes: sensor tracking (real-time sampling) and sun tracking (computer analysis) for maximum reliability.
What is the spectral range of the measurement?
The device covers a wide spectral range from 300nm to 3000nm, suitable for comprehensive solar radiation detection.
What signal outputs are supported?
The standard output is 0 ~ 20mV, but it can be configured to output 4 to 20mA with a standard current transmitter.
