100W Chinese Solar Roof Tiles System BIPV Roof Solar Panel Tiles for Cost Save

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Tile Size

1260*480 mm

Cell Size

182*91mm

Power Density

174 W/M2

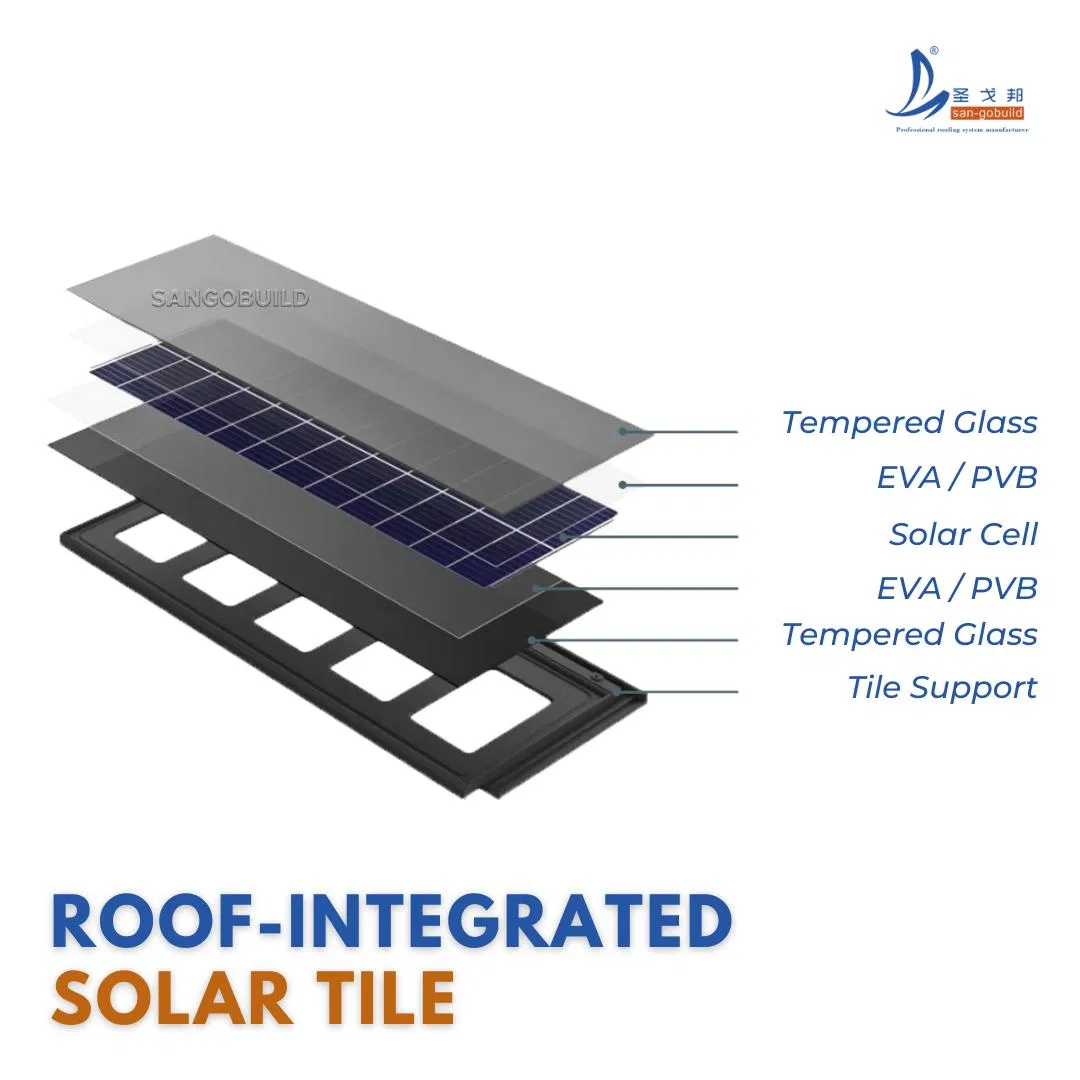

Glass

Tempered/3.2mm

Junction Box

IP67

Cable

PV 4 mm2

Warranty

25 Years

Number of Cells

36PCS

Certifications

ISO, CE, IEC, CGC, MCS

After-Sales

Replace and Refund

Technical Specifications

PHYSICAL & ELECTRICAL FEATURES
Model	JS87DG	Tile Weight	16.5 KG
Cell Type	Monocrystalline	Cell Efficiency	23.10%
Max Power	87W/PC	Module Efficiency	18.40%
Voltage	13.7V	Current	6.35A
Open-Circuit Voltage	16.2V	Short-Circuit Current	6.75A
Working Temp	-40ºC ~ 85ºC	Fire-Proof Class	Class A

Key Benefits

It's a Roofing Tile!

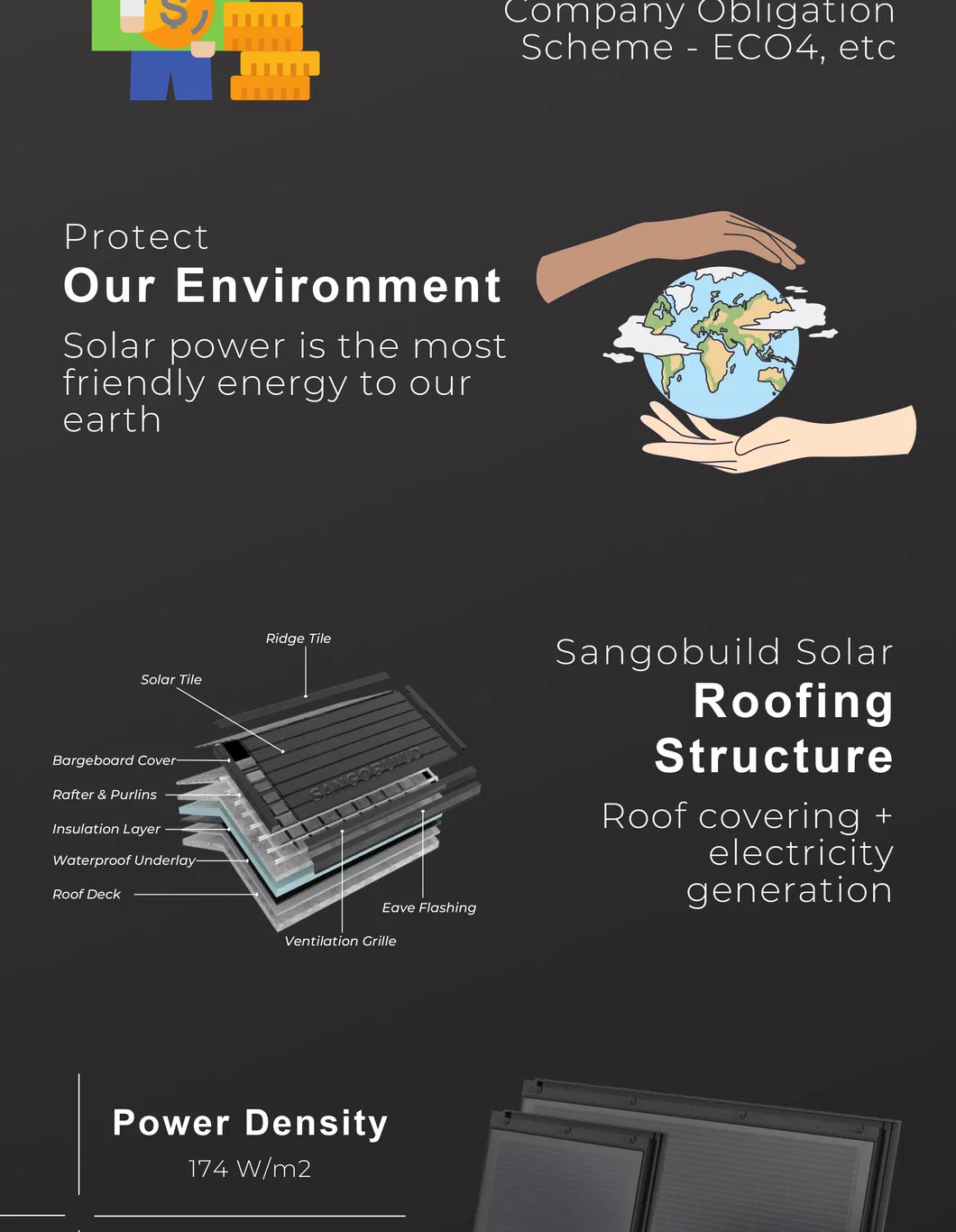

Our Solar Panel is a dual-purpose construction material. It functions as a standard roof tile to protect your house from rain, wind, and hail while simultaneously generating clean electricity. This integration saves on total roofing costs and maintains the aesthetic beauty of your home without bulky mounting racks.

Excellent Product Features

✓ High efficient whole roof covering
✓ Class A waterproofing & Hail Resistant
✓ Wind Resistant design
✓ More than 60 years lifespan
✓ Aesthetically Appealing integration

Product Presentation

Frequently Asked Questions

Can these tiles completely replace traditional roofing materials?

Yes, these solar roof tiles are designed as building-integrated photovoltaics (BIPV), meaning they serve as both the primary roofing cover for protection and a power generation system.

How durable are the solar tiles against extreme weather?

The tiles are highly durable, featuring Class A fireproofing and resistance to hail (25mm at 23m/s) and strong winds. They are designed for a lifespan of over 60 years.

What is the power output of a single tile?

Each tile has a maximum power output of 87W, with a cell efficiency of 23.10% using high-quality monocrystalline cells.

What kind of warranty is provided?

The product comes with a 25-year warranty, ensuring long-term reliability and performance for your solar investment.

Are the tiles compatible with standard electrical connectors?

Yes, they use standard MC4 connectors and PV 4 mm2 cables with an IP67 rated junction box for safe and easy installation.

Do I need to install separate mounting racks?

No, unlike traditional solar panels, these tiles are installed directly as the roof surface, eliminating the need for mounting racks and preserving the home's aesthetics.
