Ran Solar
1 / 5

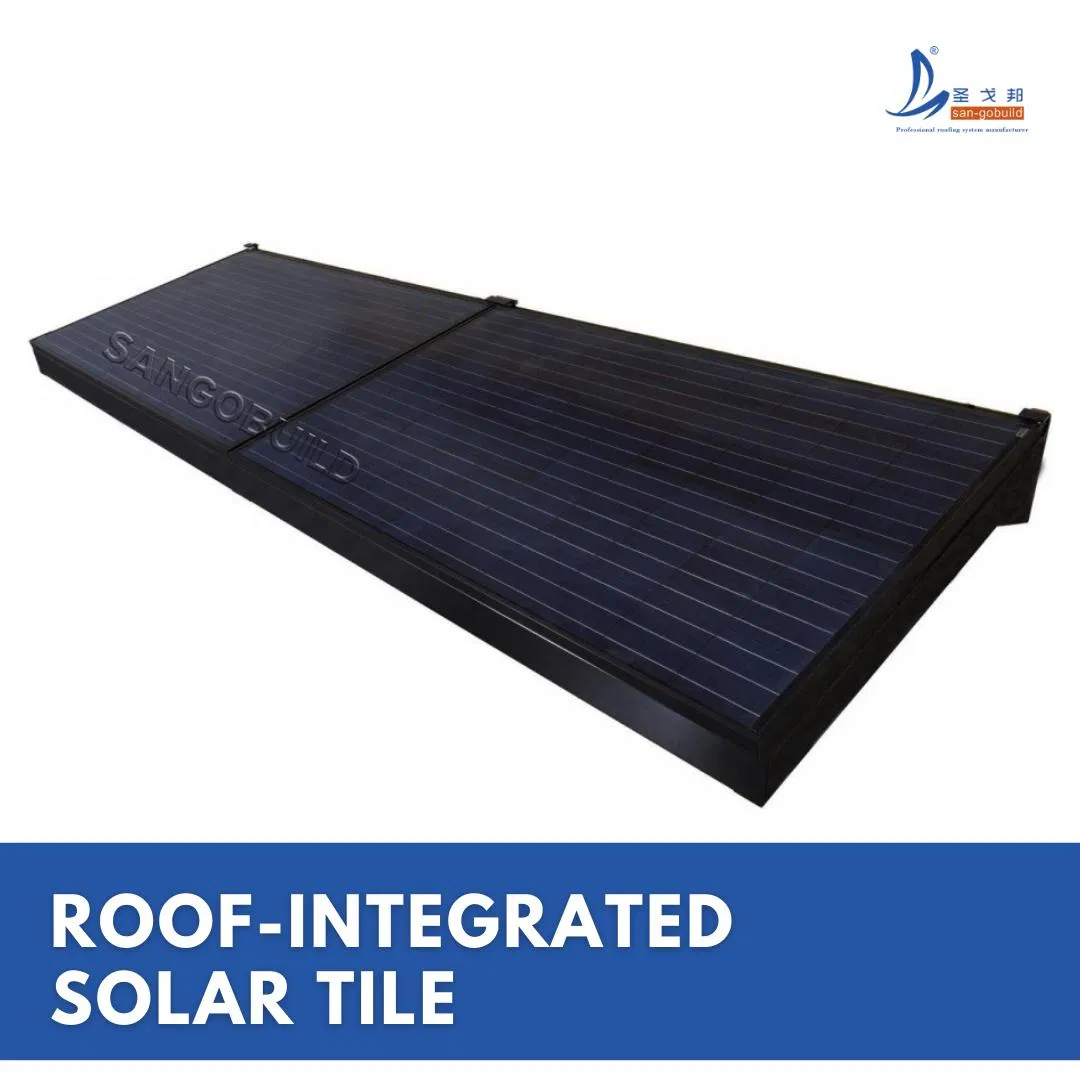

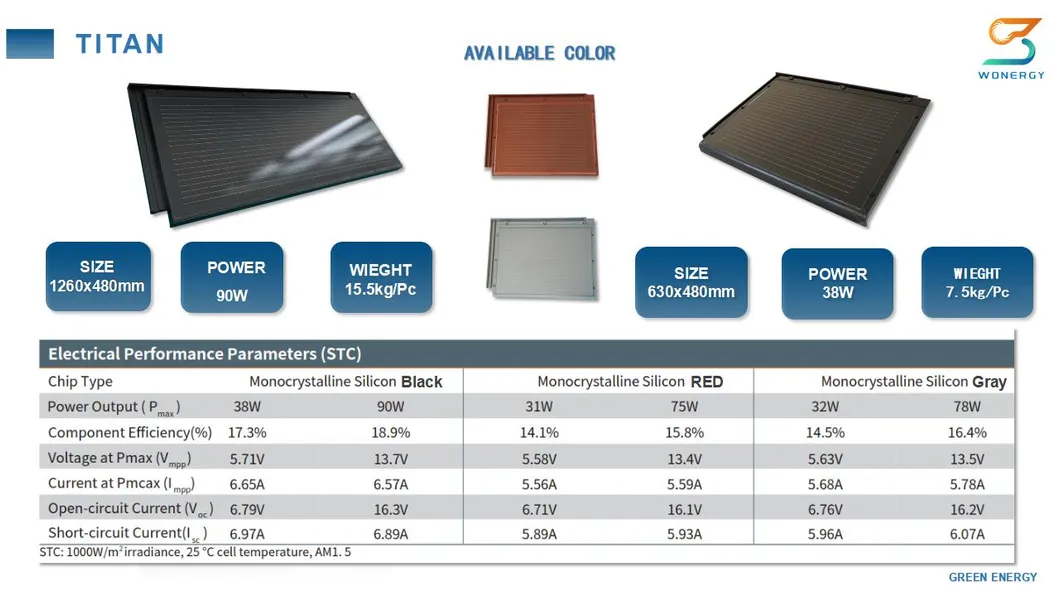

| Model NO. | Solar Tile |

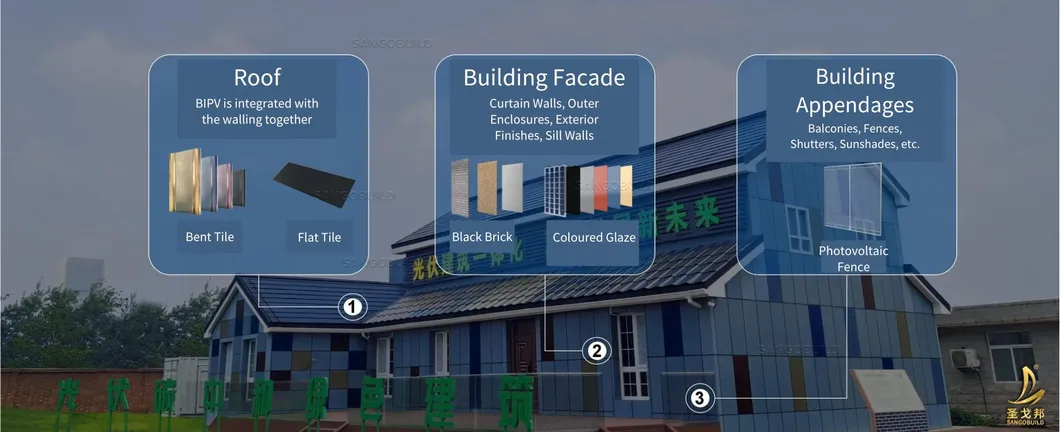

| Application | Roof, Curtain Wall, Floor Tile, Hand Rail, Solar Roof |
| Panel Weight | 9kg / 16.5kg |
| Tempered Glass | Low-Ferrous Toughened Safety Tempered Glass / 3.2mm |
| Battery Size | 182*91mm (2*5) / 182*91mm (2*12) |
| Junction Box | IP67 |
| Chip Type | Monocrystalline Silicon |
| Power Output | 90W |
| Component Efficiency | 18.4% |
| Warranty | 10 years Product Warranty, 30 years Power Warranty |
| Production Capacity | 3,000,000 watts Per Month |
| Size | 1360mm / 630mm | Panel Efficiency | 10.1% - 10.4% |
| Solar Cell | Mono 36 Cell 158.75*158.75mm | Frame | Anodized Aluminium Alloy |

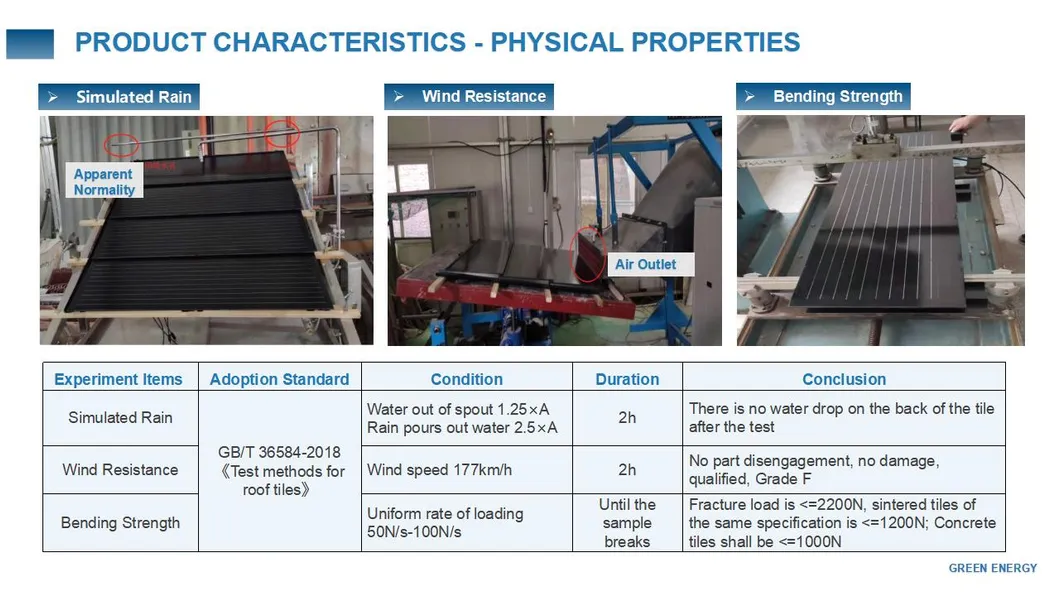

| Load Class | 2400Pa | Anti-hail Rating | Φ25mm / 23m/s |
| Fire-proof | Class A | Operating Temp | -40°C to +85°C |

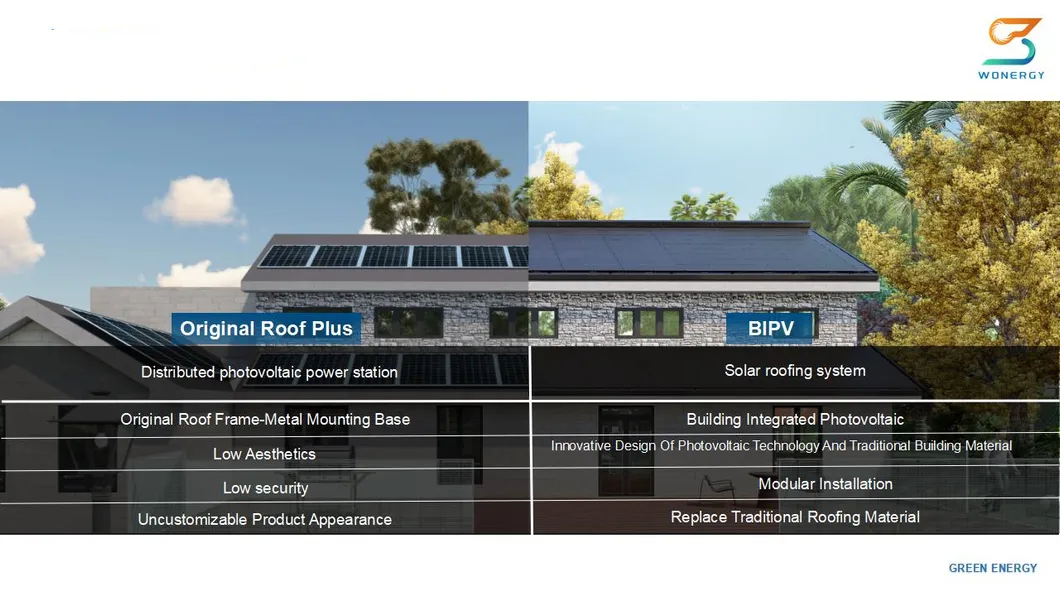

| Feature | BAPV (Applied) | BIPV (Integrated) |
| Installation | Fitting to existing surfaces | Replaces traditional materials |
| Appearance | Poor integrity, messy roof | Beautiful, simple and elegant |
| Lifespan | 25 Years | 50+ Years |

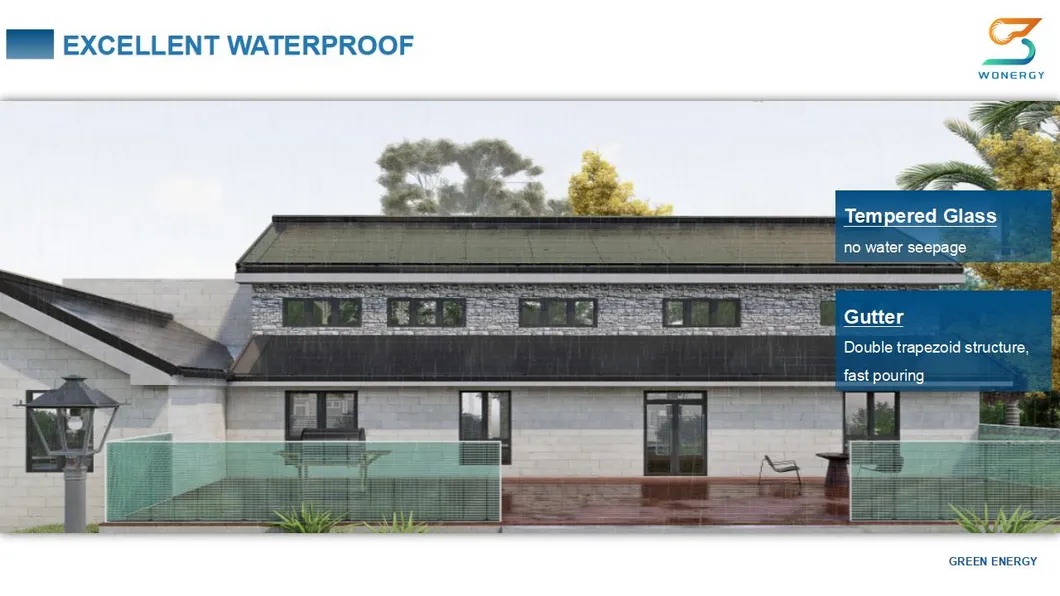

| Waterproof | Higher leakage risk | Premium resistance |
1. Easy Installation: Standardized and modular design.

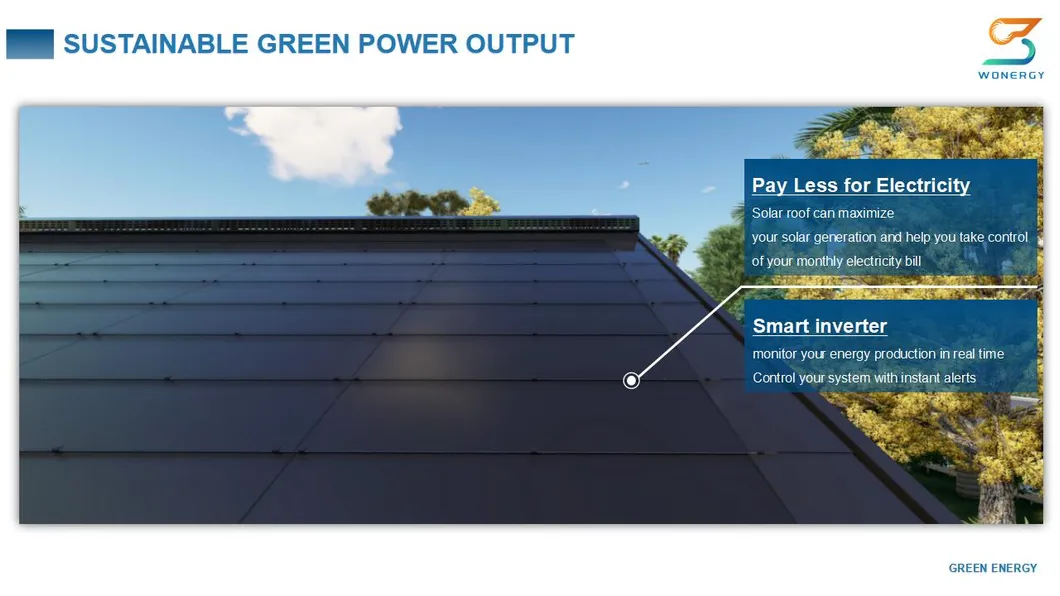

2. Cost Savings: Maximize solar generation to control electricity bills.
3. Advanced Safety: Real-time energy production monitoring with smart inverters.

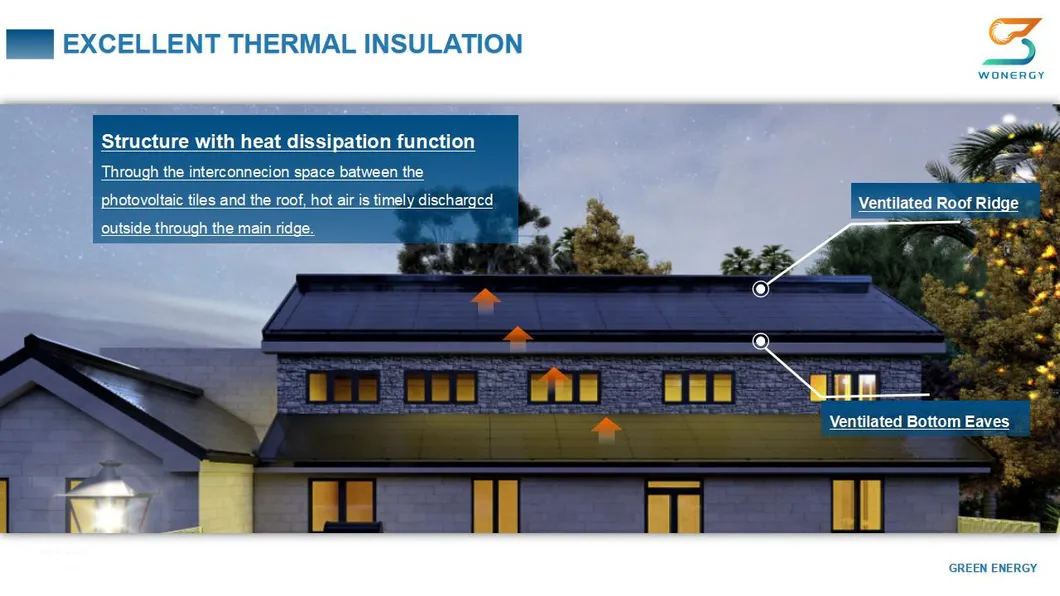

4. Heat Dissipation: Unique structure allows hot air to discharge through the ridge.

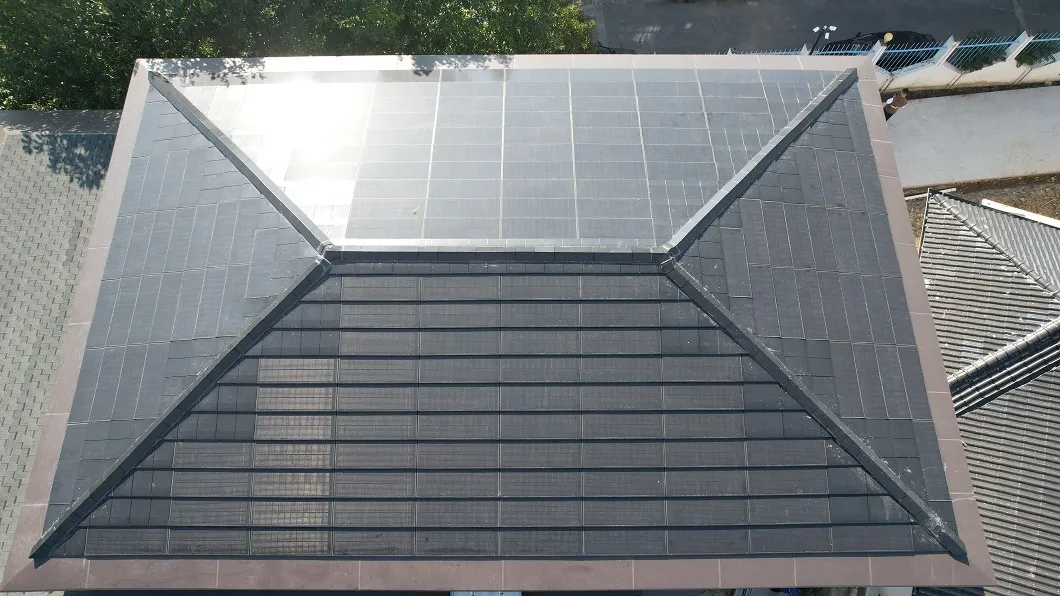

Our solar modules and BIPV solutions have obtained comprehensive international certifications:
