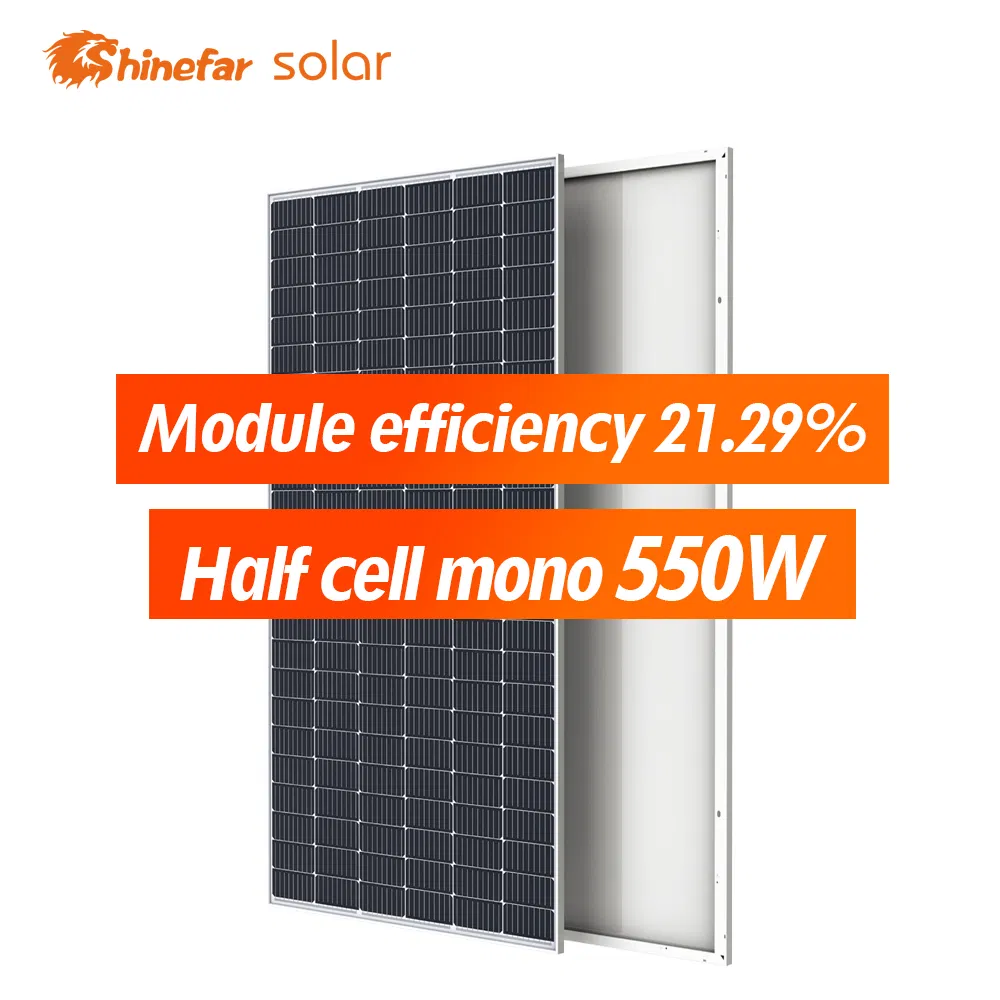

We specialize in manufacturing PERC, N-type TOPCon, and HJT solar panel. Specializing in research and development of solar panel, on/off grid system and hybrid solar system. We devote ourselves to provide excellent one-stop solar solution.

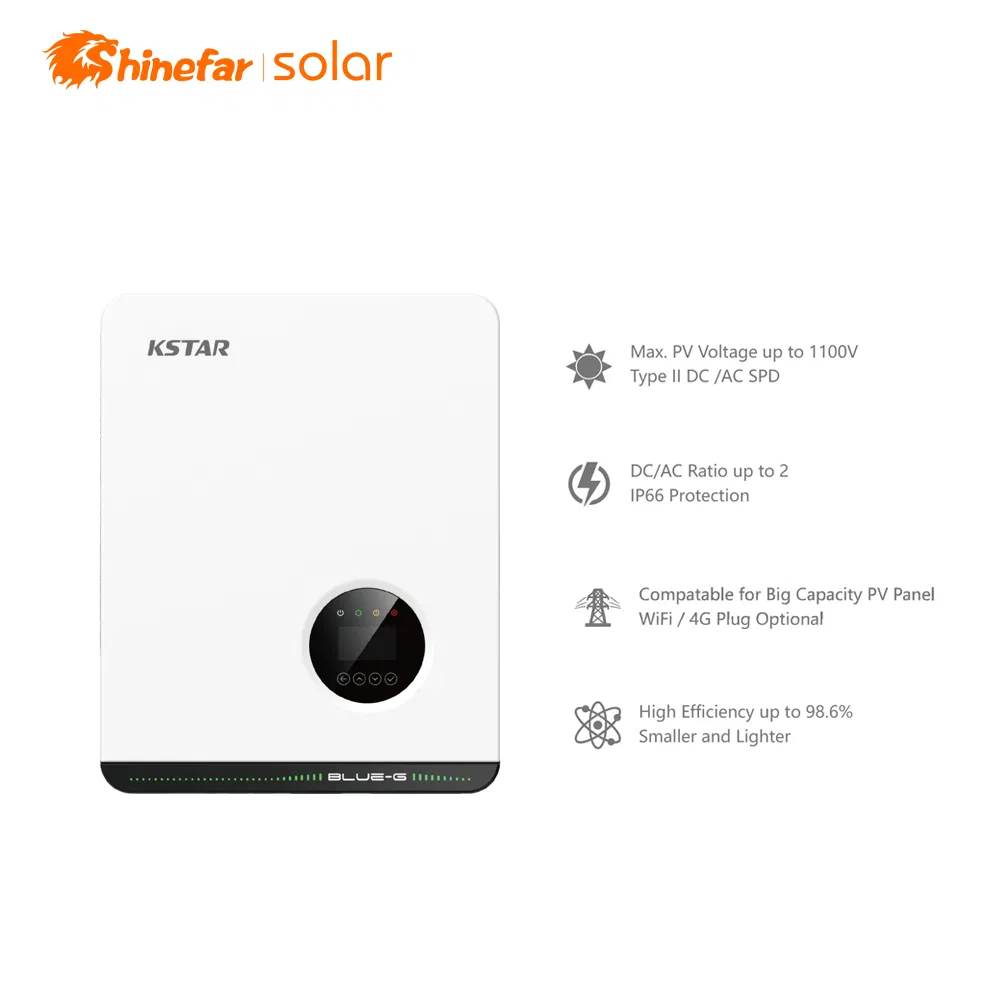

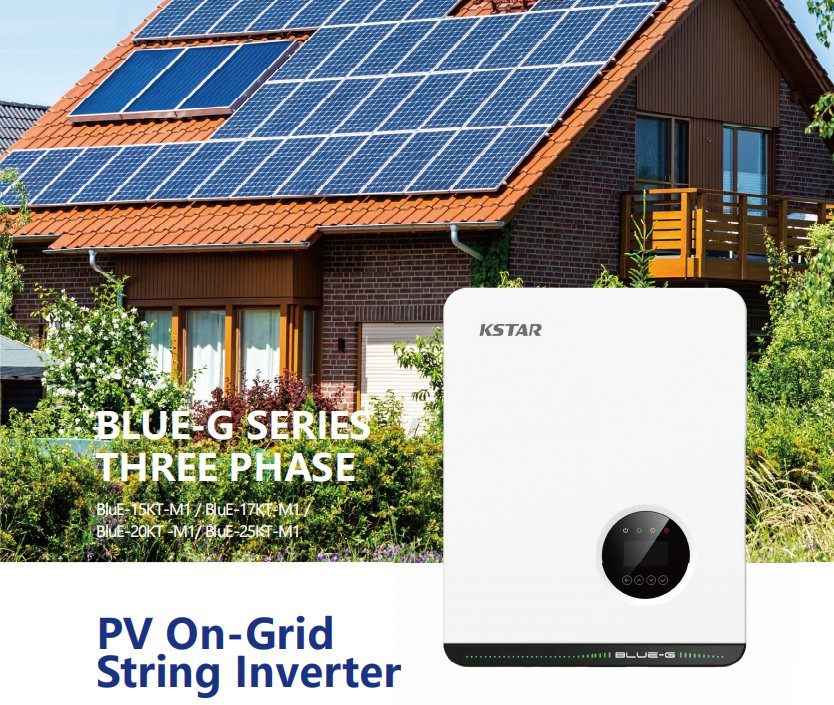

| MODEL | BluE-15KT-M1 | BluE-17KT-M1 | BluE-20KT-M1 | BluE-25KT-M1 |
|---|---|---|---|---|
| Input(DC) | ||||
| Max. DC Voltage | 1100V | 1100V | 1100V | 1100V |
| Nominal Voltage | 620V | 620V | 620V | 620V |
| Start Voltage | 250V | 250V | 250V | 250V |
| MPPT Voltage Range | 140 V~1,000 V | 140 V~1,000 V | 140 V~1,000 V | 140 V~1,000 V |
| Number of MPPT | 2 | 2 | 2 | 2 |
| Max. Current Per MPPT | 30A/15A | 30A/15A | 30A/15A | 30A/15A |
| Output(AC) | ||||
| Nominal AC Power | 15000W | 17000W | 20000W | 25000W |
| Max. Apparent Power | 16500VA | 18700VA | 22000VA | 27500VA |
| Nominal AC Voltage | 400V 3L+N | |||
| Max. Output Current | 23.9A | 27.1A | 31.9A | 39.9A |
| Efficiency | ||||
| Max. Efficiency | 98.6% | 98.6% | 98.6% | 98.6% |
| Euro Efficiency | 98.2% | 98.3% | 98.3% | 98.3% |
With a solid global presence, products have been shipping to Europe, Latin America, North Africa, and Southeast Asia. To better serve our international customers, seven overseas branches and service centers have been established in Germany, Spain, Poland, Finland, Thailand, Brazil, and the UK.

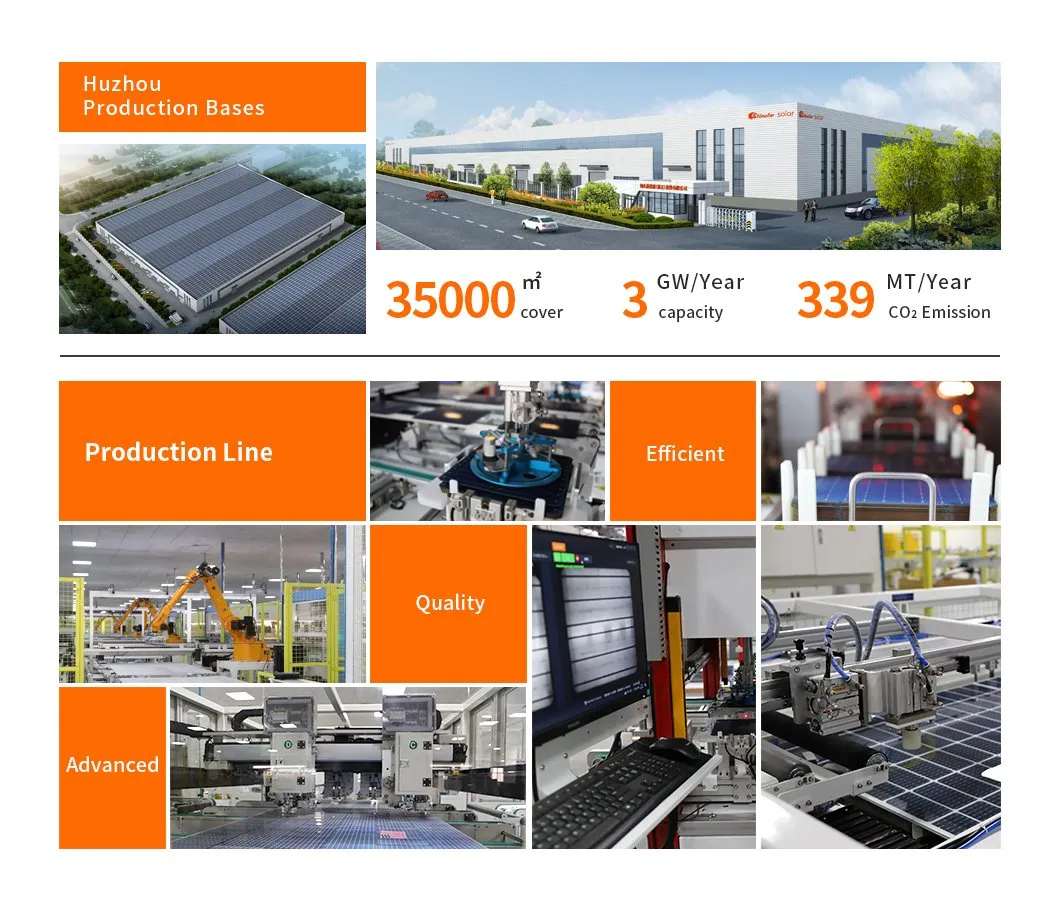

Advanced production facilities span over 35000m² in Huzhou, Zhejiang with an annual production capacity of 3GW. The factory currently has 3 fully automated production lines, ensuring each panel passes five quality tests.
1. Standard Packaging: 31 pcs/pallet or 37 pcs/pallet.
2. Special Packaging: 1 pcs/carton or 2 pcs/carton for bespoke requirements.

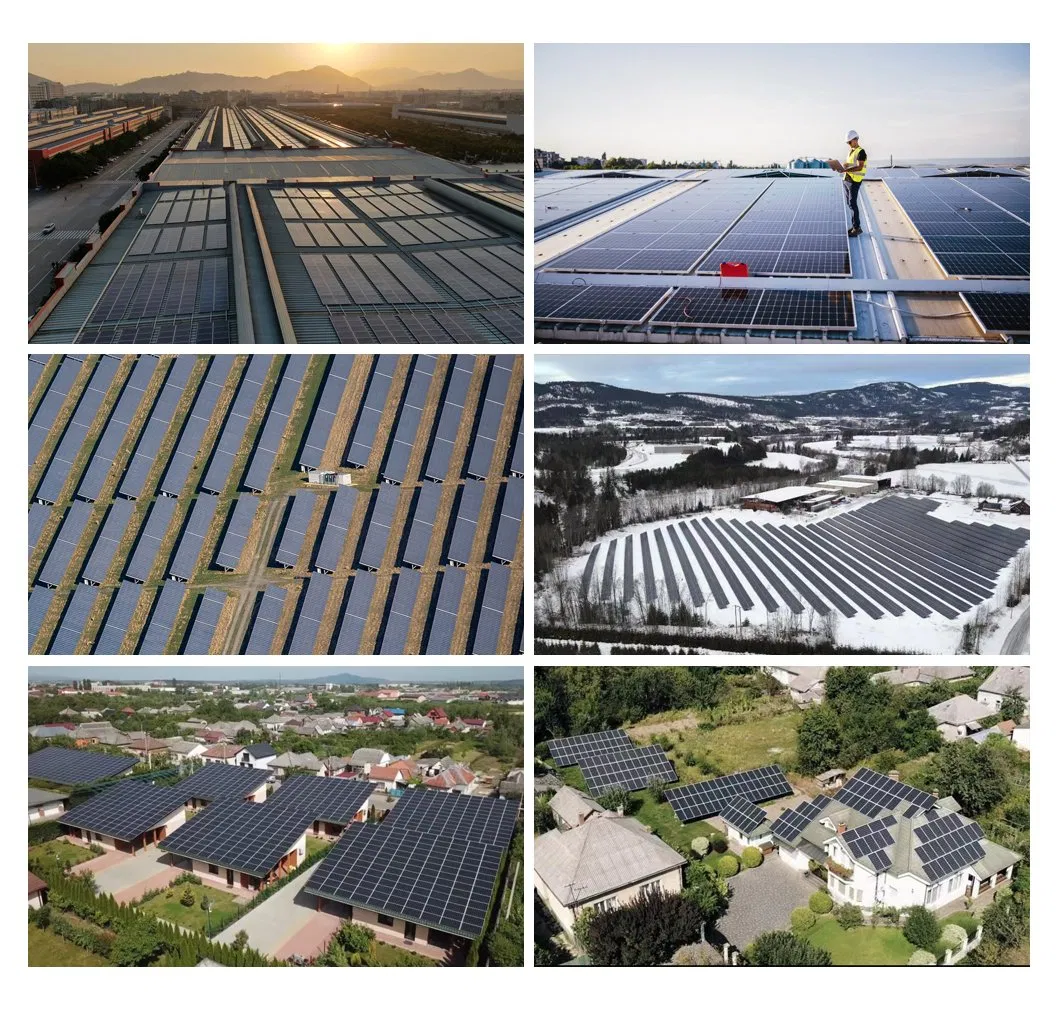

Global presence extends to Brazil, Morocco, Ukraine, Vietnam, and beyond. Footprints in these diverse regions underscore the commitment to sustainable energy solutions.
ISO 9001; ISO 14001; ISO 18001; TUV; CE; ROHS; IEC; PID; DEWA; CB; RETIE; INMETRO; Ammonia 62716; Salt Mist Corrosion 61710; SGS-CPVT.
