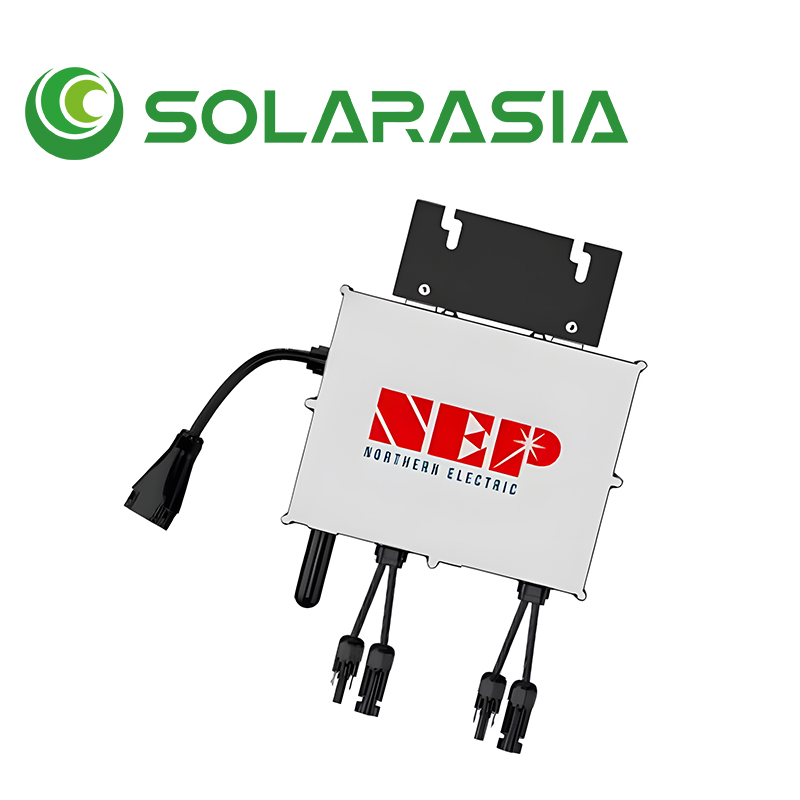

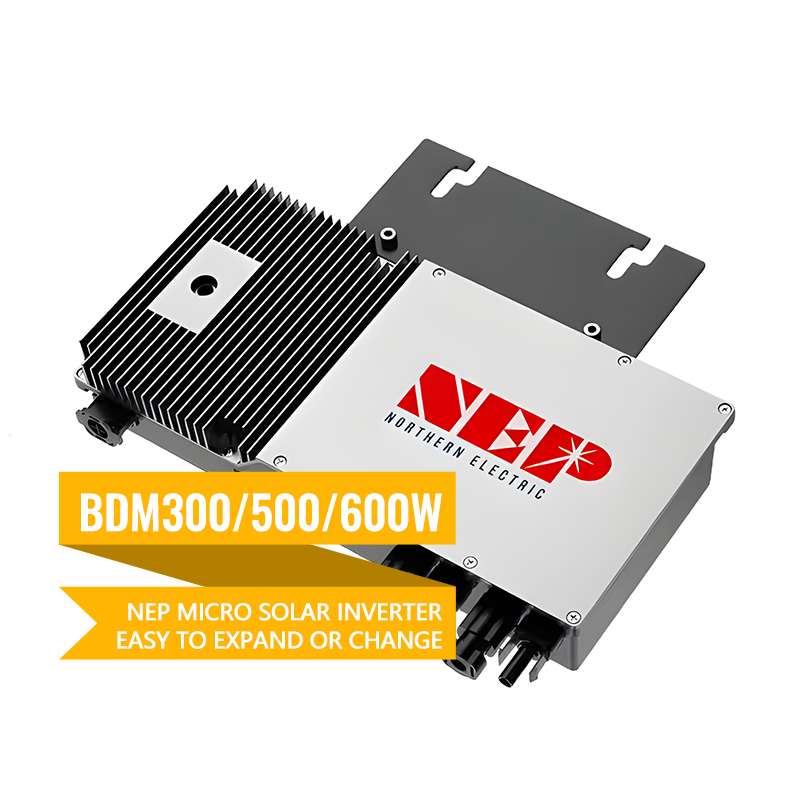

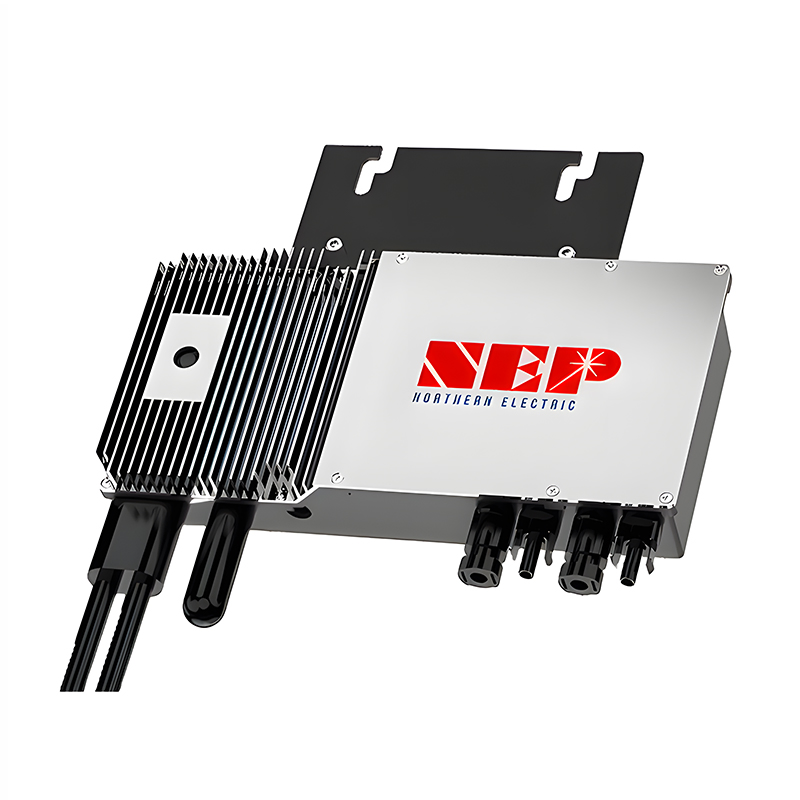

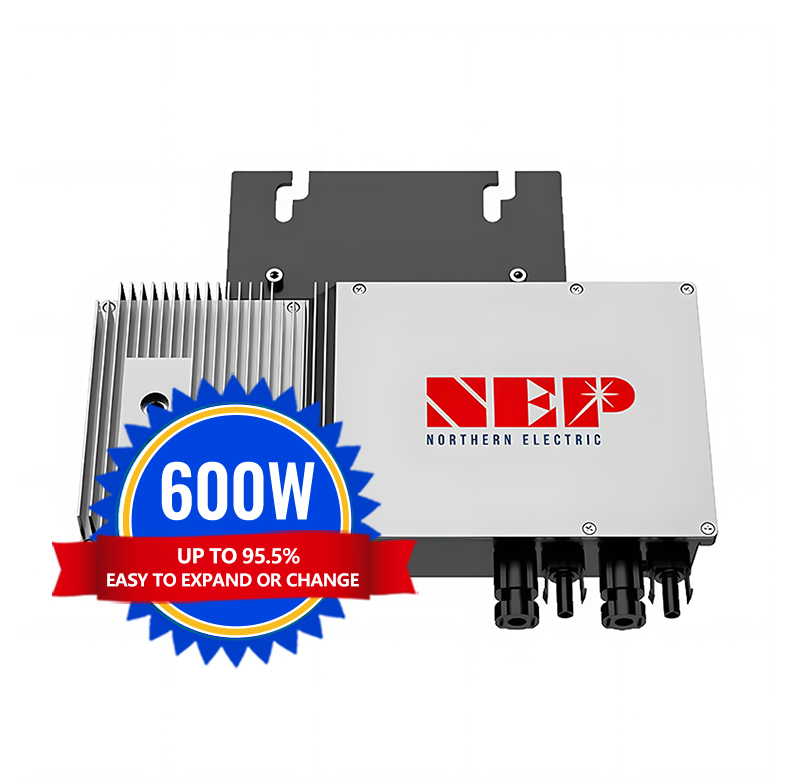

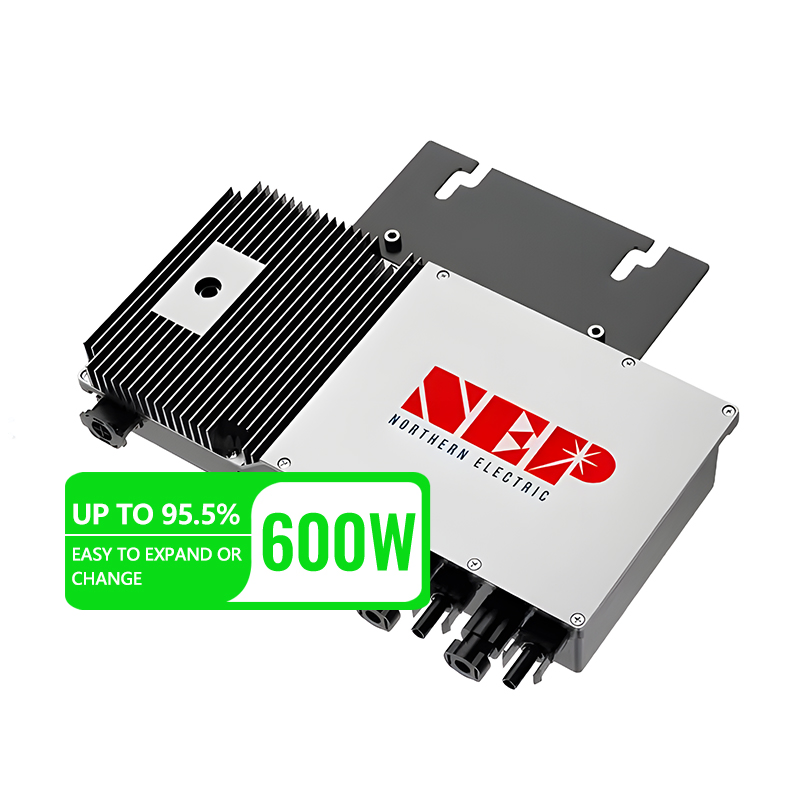

Top Sale Nep Solar Micro on Grid Inverter 120V 220V 300W 600W 800W 500W Mini Inverters for Us Market

1 / 5

Top Sale Nep Solar Micro on Grid Inverter 120V 220V 300W 600W 800W 500W Mini Inverters for Us Market

Customization:	Available
After-sales Service:	Yes
Warranty:	10years

Send Inquiry

Product Description

Basic Information

Model NO.

NEP inverter

Nature of Source Flow

Passive inverter

Phase

Single

Certification

CE, TUV

Type

DC/AC Inverters

Power Source

Solar Power

Nature of Wave String

Sine Wave Inverter

MPPT Voltage Range

22-55 VDC

Startup Voltage

24 VDC

Rated Output Voltage

230 VAC

MPPT Efficiency

>99.5%

DC Connector Type

QC4

Origin

China

HS Code

8541402000

Product Overview

Technical Specifications

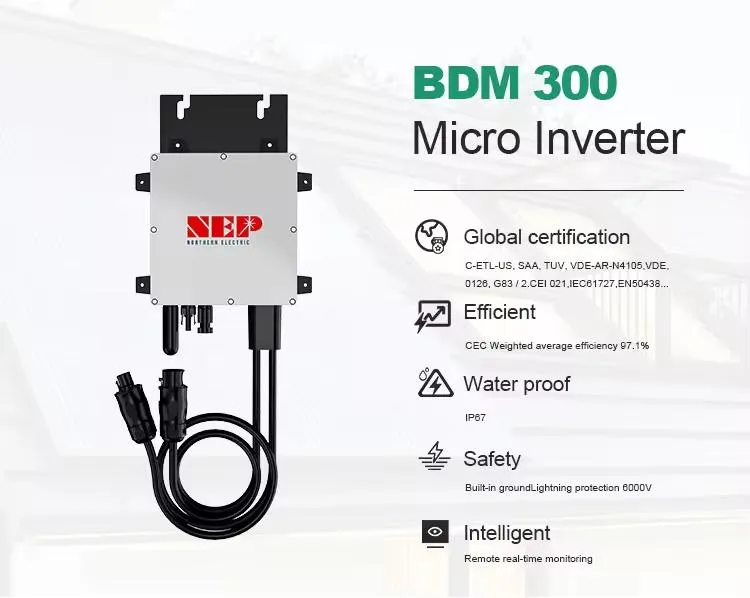

Parameters	BDM300	BDM500	BDM600	BDM800
Recommended Max PV Power	450W	750W	450W*2	600W*2
Max DC Input Current	14A	15.5A	14A*2	17A*2
MPPT Tracking Accuracy	>99.5%
MPPT Tracking Range	22-55V	35-55V	22-55V	22-55V
Rated AC Output Power	300W	500W	500W	800W
Nominal Power Grid Voltage	240V / 208V / 230V
Protection Degree	NEMA-6 / IP-66 / IP-67
Ambient Temperature	-40°C to +65°C (-10° to +149°F)
Weight	1.5kg	4.0kg	2.9kg	2.9kg

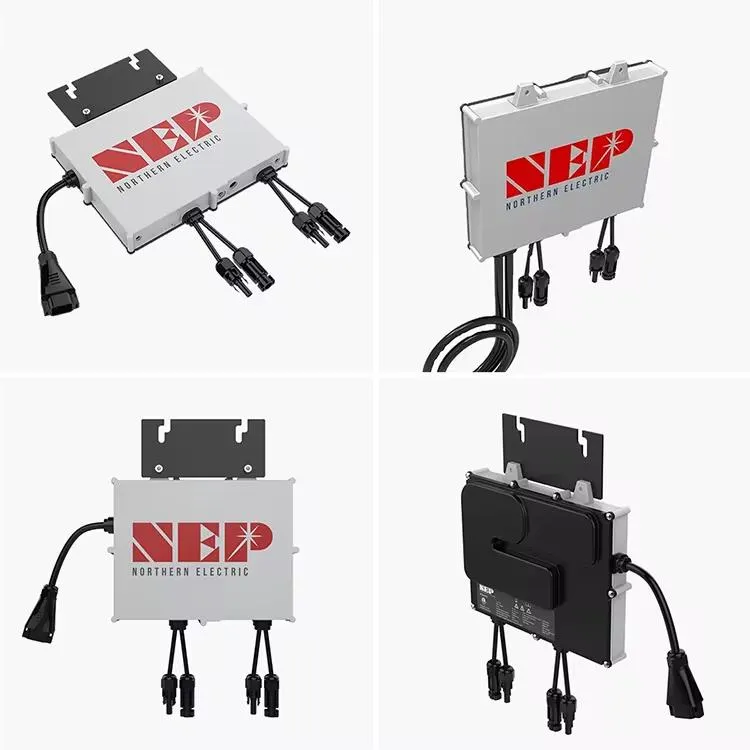

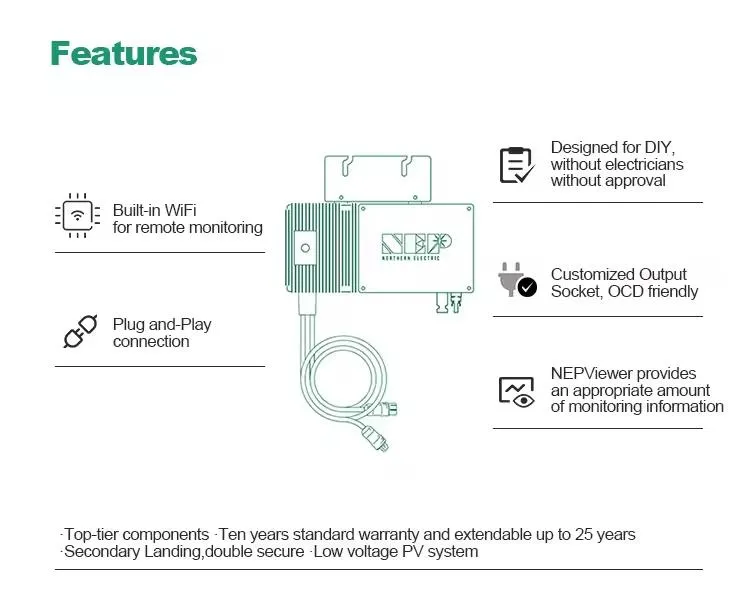

Product Details & Features

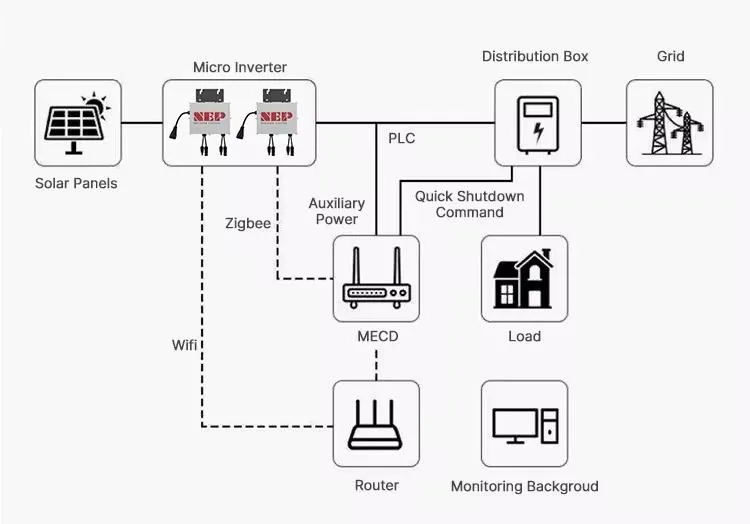

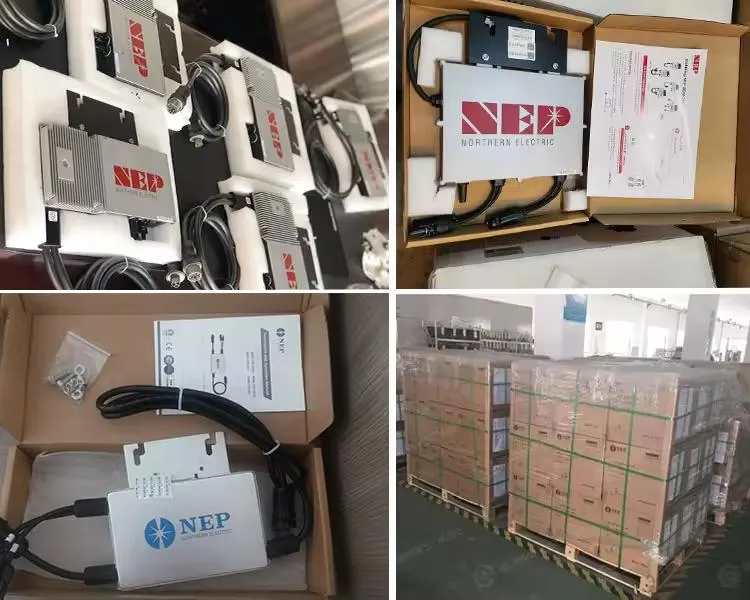

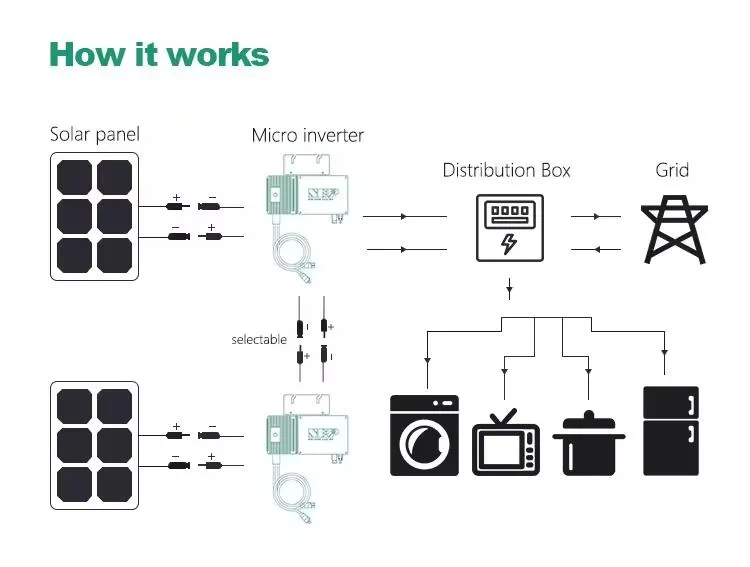

Packaging & Working Principle

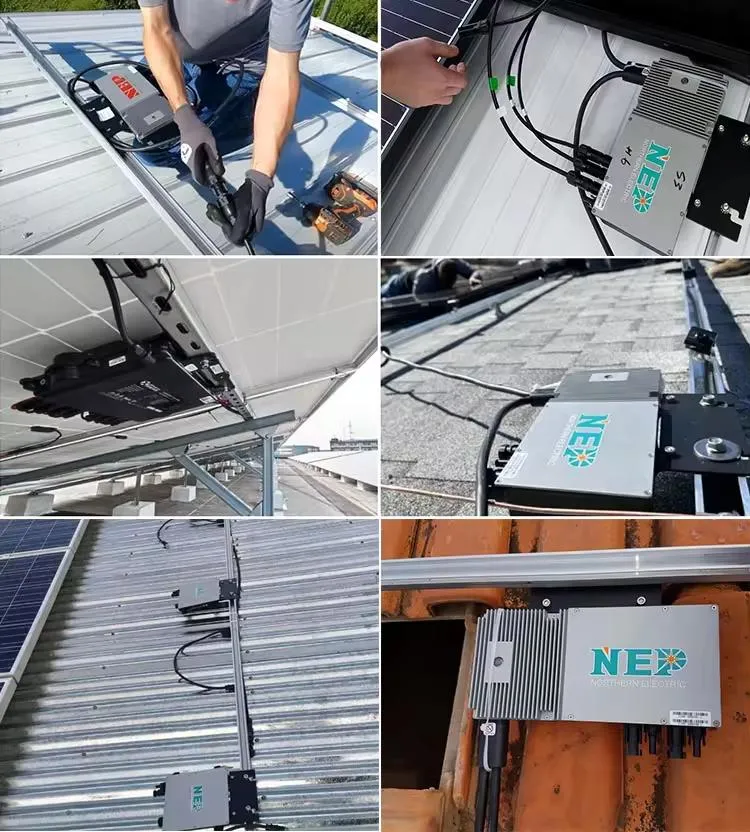

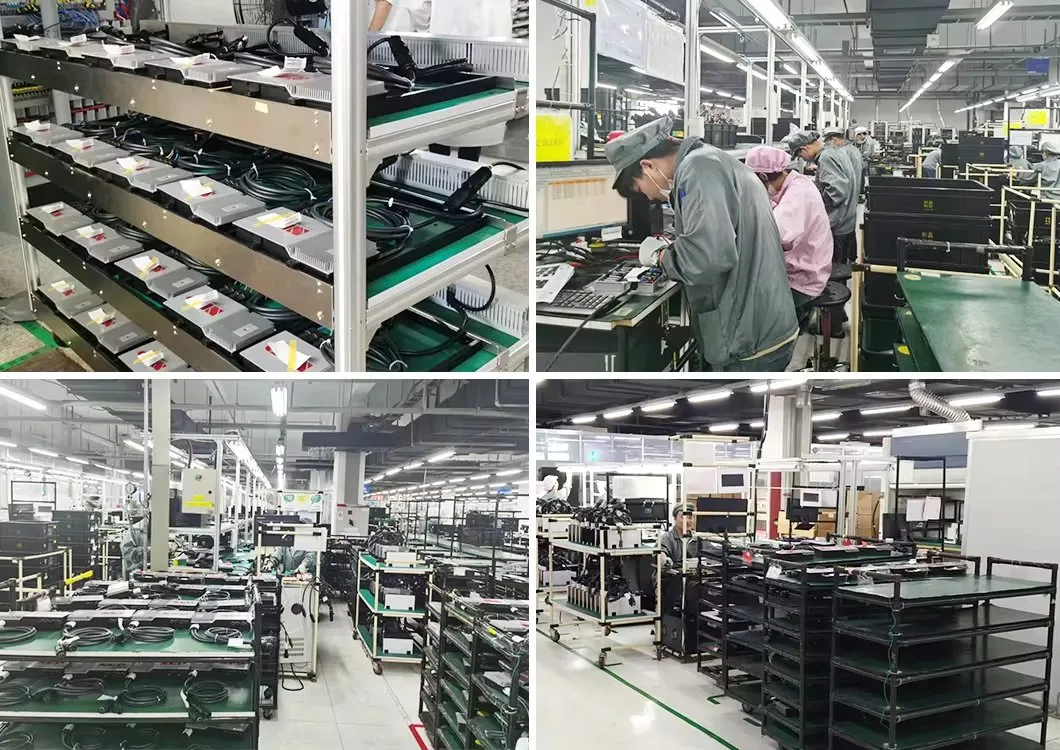

Success Cases & Factory Gallery

Frequently Asked Questions

How to choose the right system?

Please inform us about the type of energy storage system required, the capacity of the PV project installation, the installation scenario, and the arrangement of components.

How about the delivery time?

Delivery time ranges from 7 to 20 days for bulk orders.

What is the warranty for the solar system?

Solar panels carry a 25-year warranty. On-grid and hybrid inverters are warranted for 5 years, while off-grid inverters typically have a 2-year warranty.

How can I get better technical support?

Our professional engineer team provides support based on your requirements. We offer 24-hour online service to resolve issues promptly.

What is the MPPT tracking efficiency of these inverters?

The system features high-precision MPPT tracking with an accuracy of greater than 99.5%.

Are these inverters suitable for outdoor installation?

Yes, they are designed with high protection degrees including NEMA-6, IP-66, and IP-67 ratings, making them highly resistant to dust and water.
