Product Description

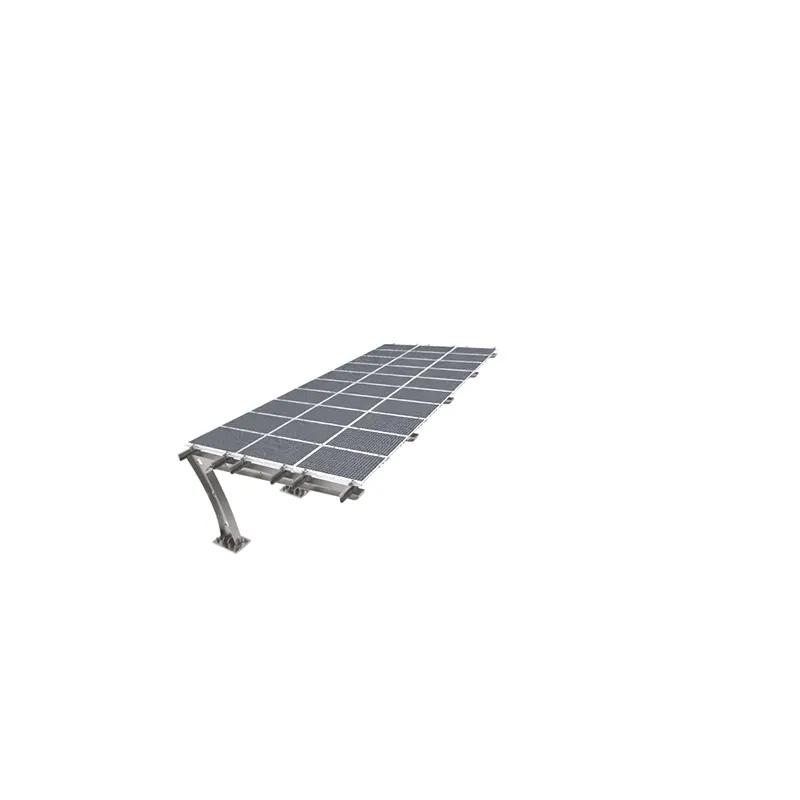

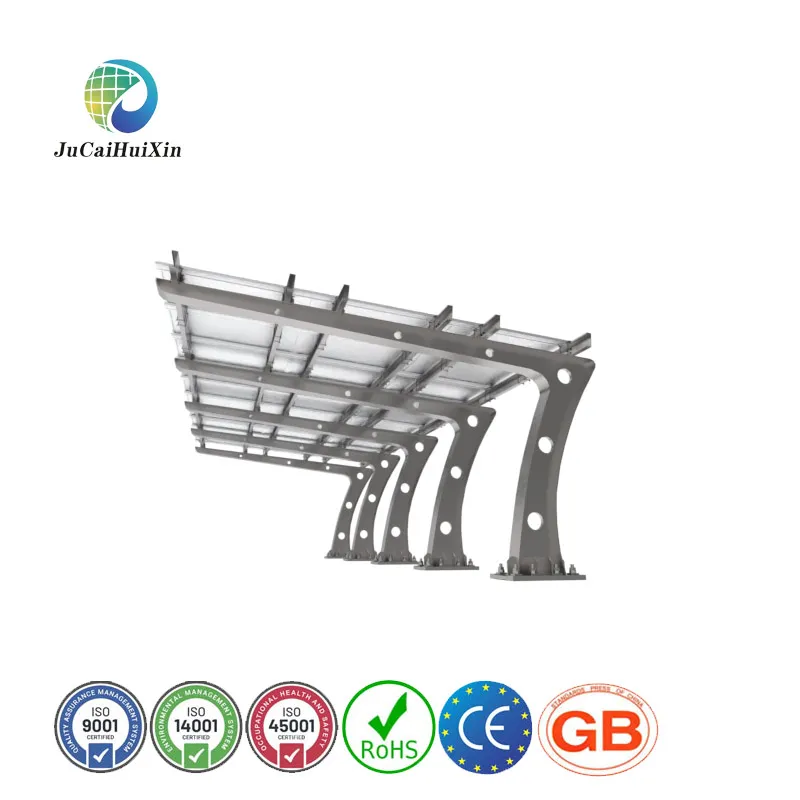

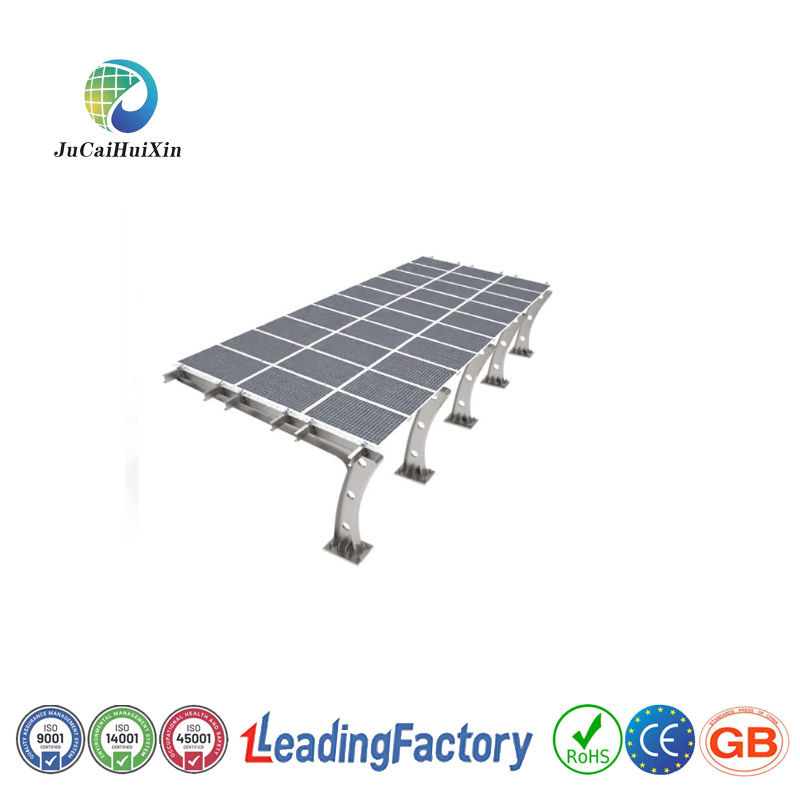

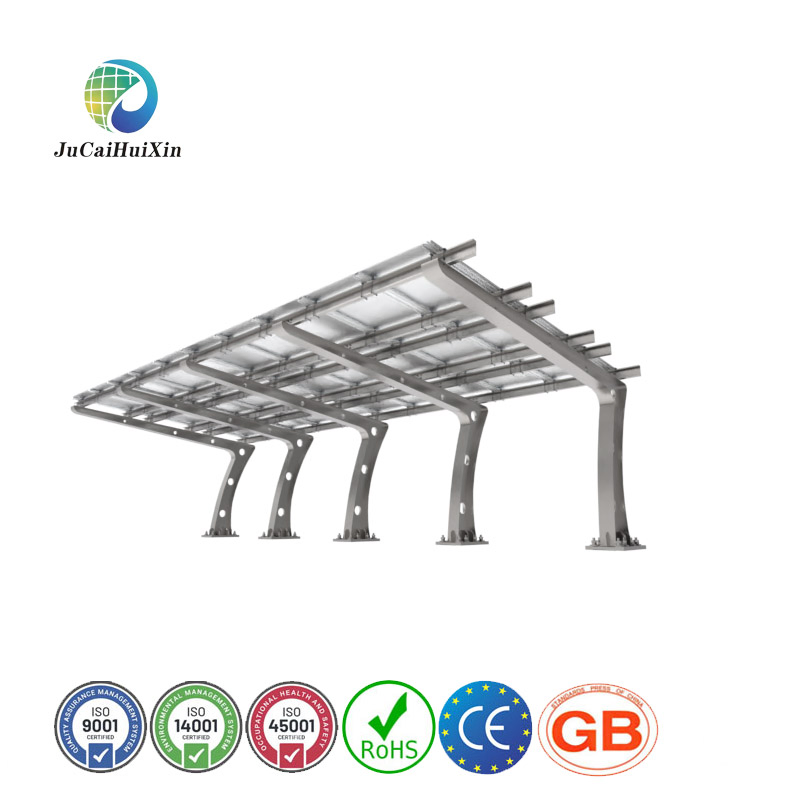

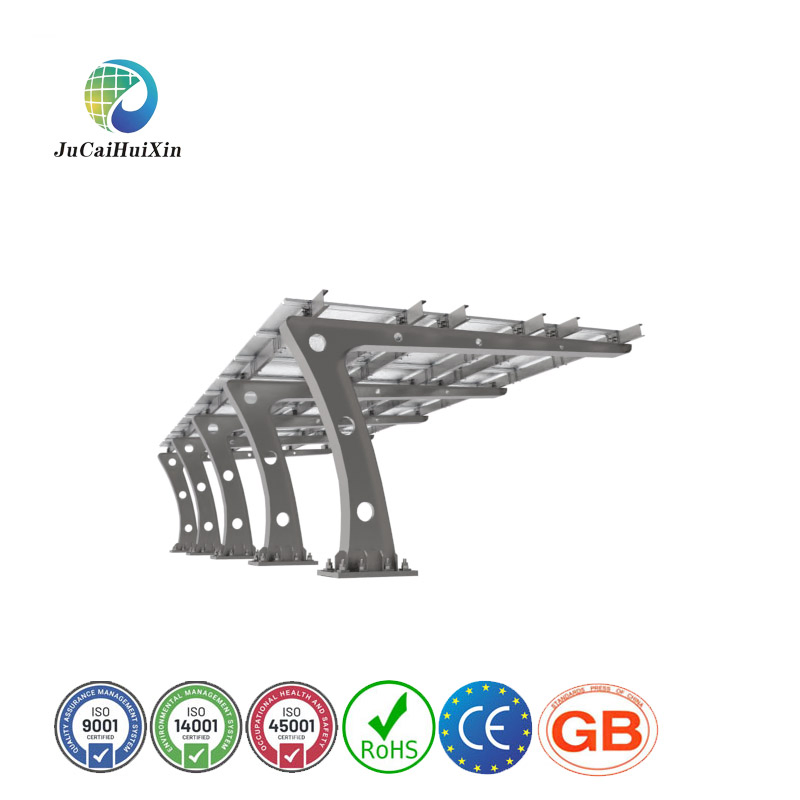

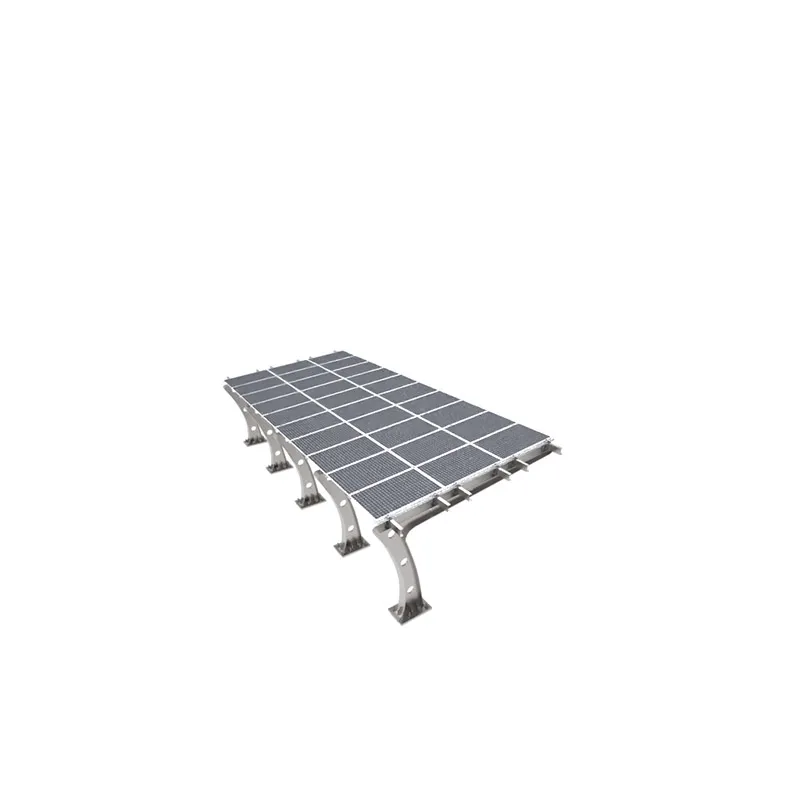

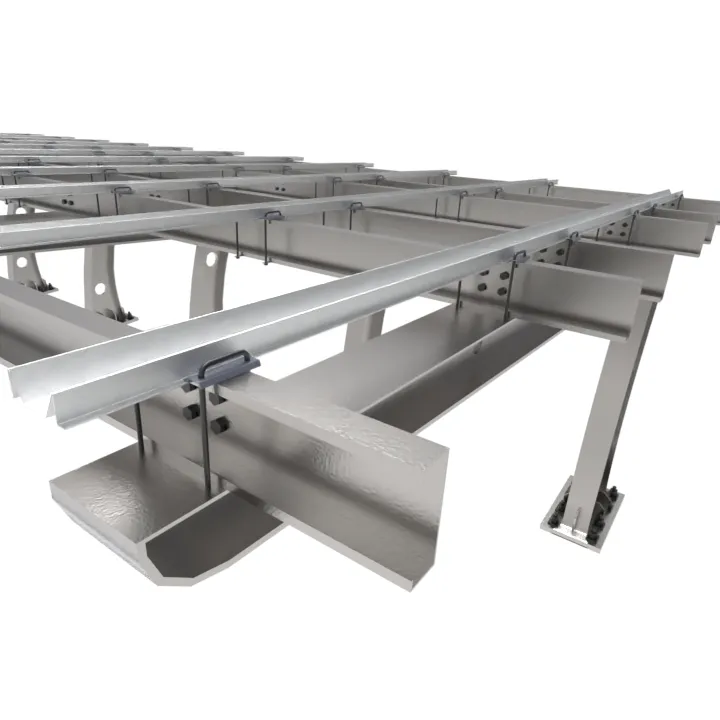

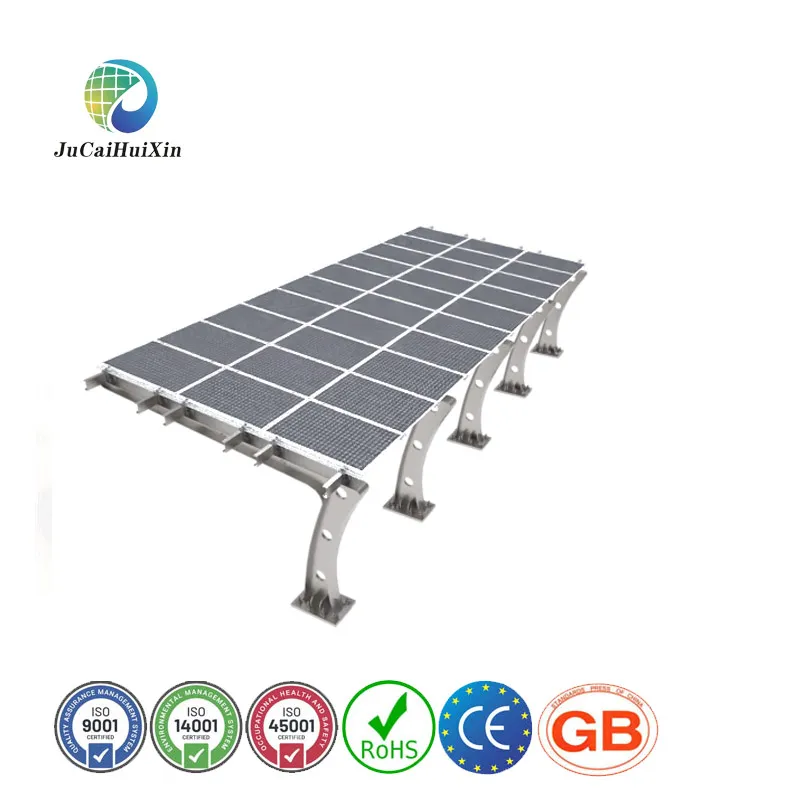

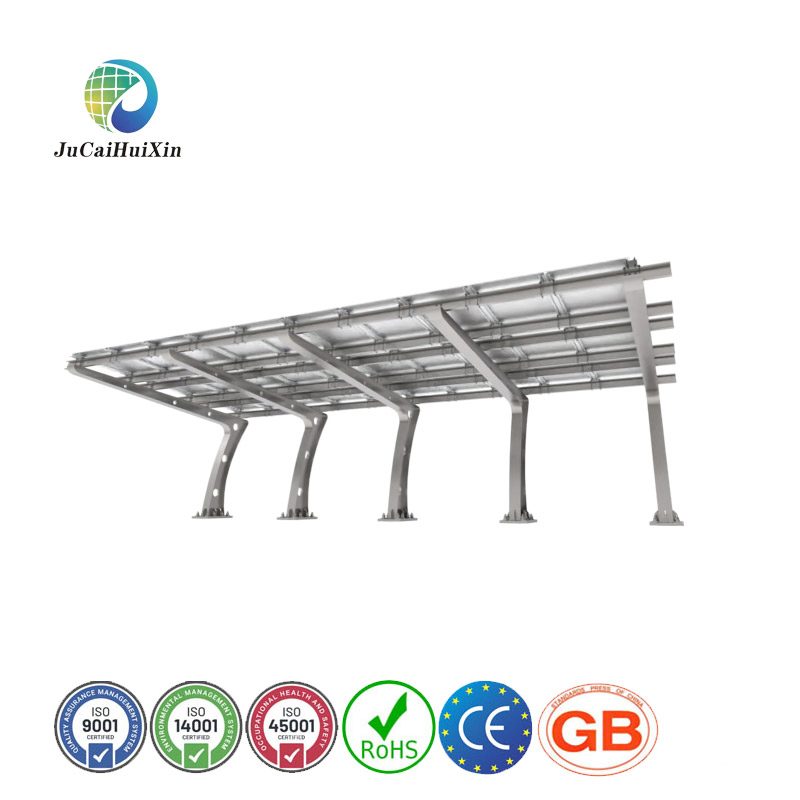

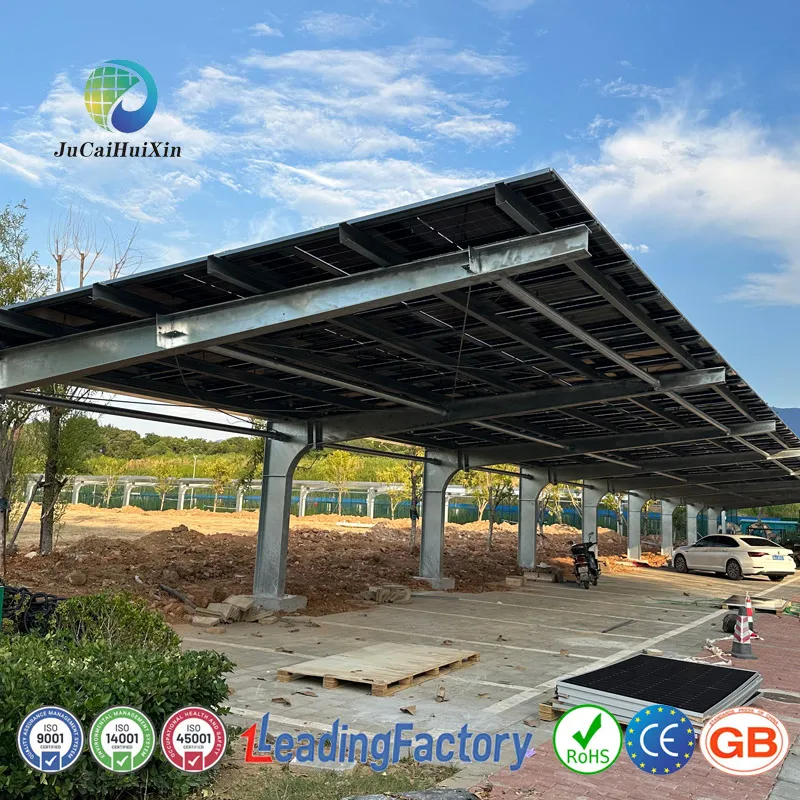

Steel/aluminum black solar carport system, specially designed for home scenes, adopts 6063-T5/Q235B high-strength aluminum alloy/steel frame and modular structure, which combines power generation, sun shading, and vehicle protection functions. The top of the carport is equipped with single/double-sided photovoltaic modules, which can meet the daily electricity generation needs of households and electric vehicle charging. The black matte coating enhances the modern aesthetic texture, suitable for residential scenes such as villas and courtyards.
| Applicable Components | Single crystal/double-sided components, 30-40mm |
| Single Span Size | Width 3-6m, Height 2.2-3.5m (Customizable) |
| Warranty | 25 year structural, 5-year power warranty |
| Max Wind Speed | 60m/s |
| Snow Load | 1.4kn/m2 |
| Service Life | 20~25 Years |
Key Features & Advantages
🚀 Efficiency & Space: Supports double-sided power generation components, utilizing ground reflection light to increase power generation efficiency by 15%.
🏠 Property Value: Solar installations can add 4-6% to the value of a property while demonstrating carbon neutrality.
🛡️ All-Weather Protection: Resistant to rain, snow, and hail; can withstand wind up to level 12 (60m/s).
Frequently Asked Questions
Q1: How long does installation take? Do we need a professional team?
A: Installation of a standard 4-car carport takes 2-3 days, with full technical guidance provided. Professional teams are required for basic construction, and user participation is allowed for main assembly.
Q2: Is the black coating prone to fading?
A: Adopting RAL 9005 electrostatic spraying process, with a UV aging resistance test of over 5000 hours and a 10-year warranty.
Q3: Can it be compatible with different brands of photovoltaic panels?

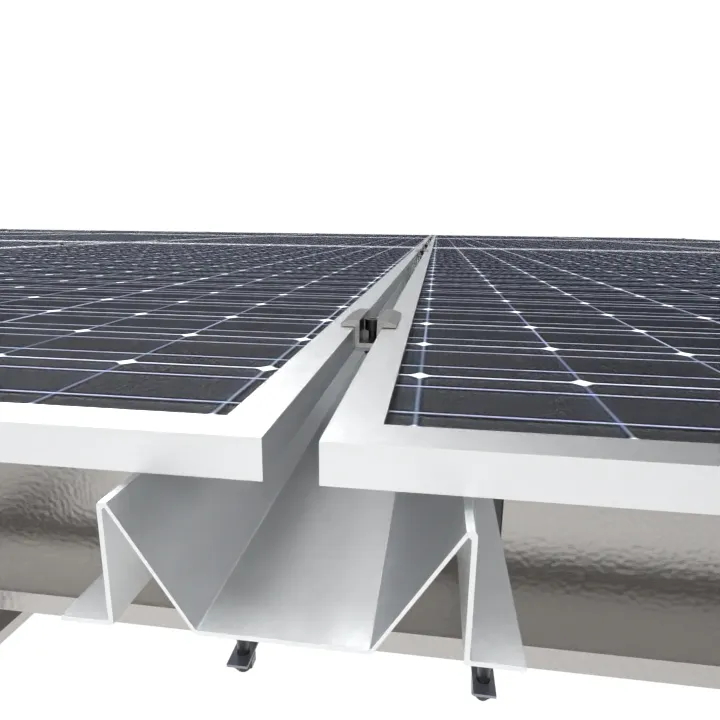

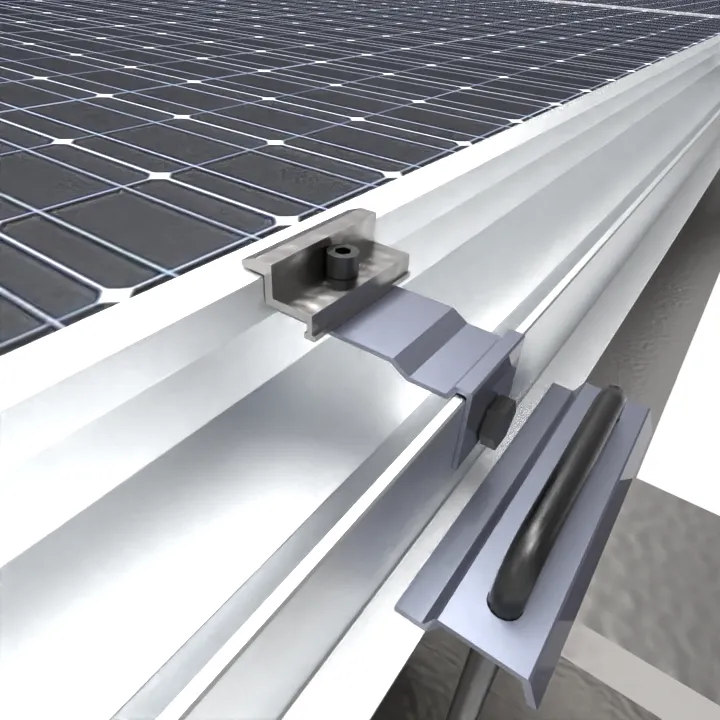

A: Yes, it supports mainstream size components (up to 2384 × 1303mm), and the fixture can be adjusted to fit various brands.
Q4: How does it protect against extreme weather?
A: The structural design is ISO wind resistance certified to withstand typhoons and hail. The tempered glass on panels has impact strength ≥ 50J.
Q5: Does it support intelligent monitoring?
A: An optional IoT module is available for real-time viewing of power generation data and fault alarms via mobile app.
Q6: What is the lifespan of the solar carport system?
A: The system is designed with aviation-grade materials and corrosion resistance, providing a service life of up to 25 years.
