| Model | SUN-M60G3-EU-Q0 | SUN-M80G3-EU-Q0 | SUN-M100G3-EU-Q0 |
|---|---|---|---|
| Input Data (DC) | |||
| Recommended Input Power (STC) | 210-420W (2 Pieces) | 210-500W (2 Pieces) | 210-600W (2 Pieces) |
| Max Input DC Voltage | 60V | ||
| MPPT Voltage Range | 25-55V | ||
| Full Load DC Voltage Range | 24.5-55V | 33-55V | 40-55V |
| Max DC Short Circuit Current | 2×19.5A | ||
| Output Data (AC) | |||
| Rated Output Power | 600W | 800W | 1000W |
| Rated Output Current | 2.6A | 3.5A | 4.4A |
| Nominal Voltage / Range | 230V / 0.85Un-1.1Un | ||
| Power Factor | >0.99 | ||

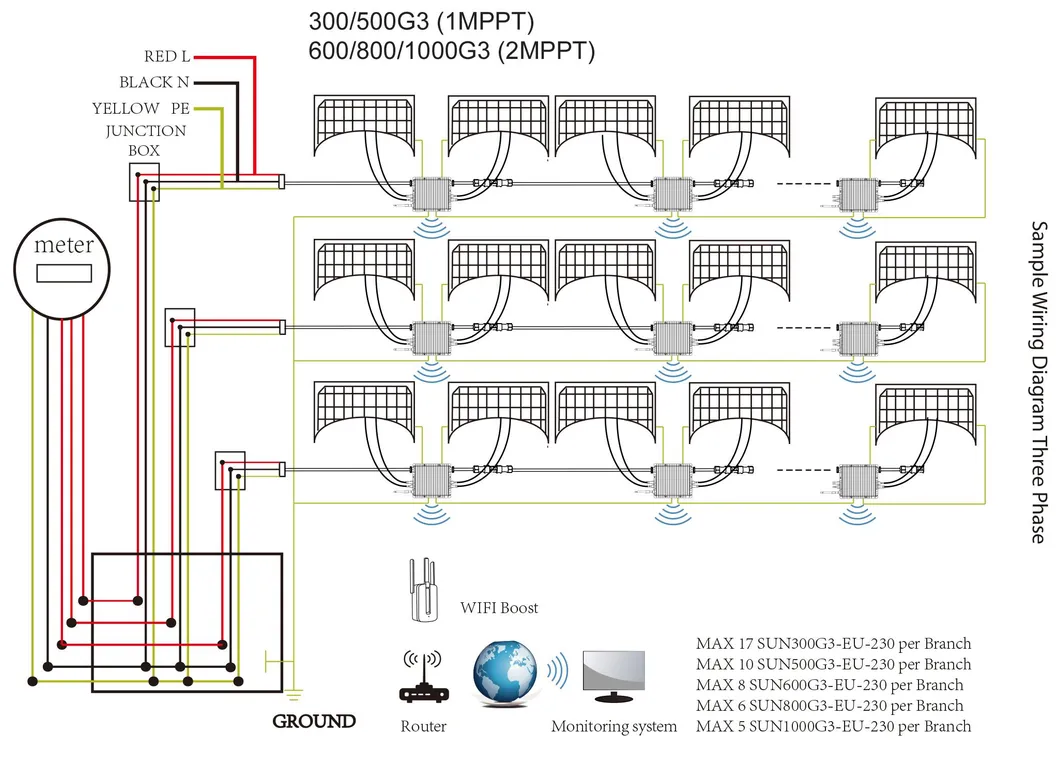

| Max Units per Branch | 8 | 6 | 5 |
| Efficiency & Physical | |||
| Peak Inverter Efficiency | 96.5% | ||
| Enclosure Rating | IP67 | ||
| Communication | WIFI | ||
| Warranty | 10 Years | ||
