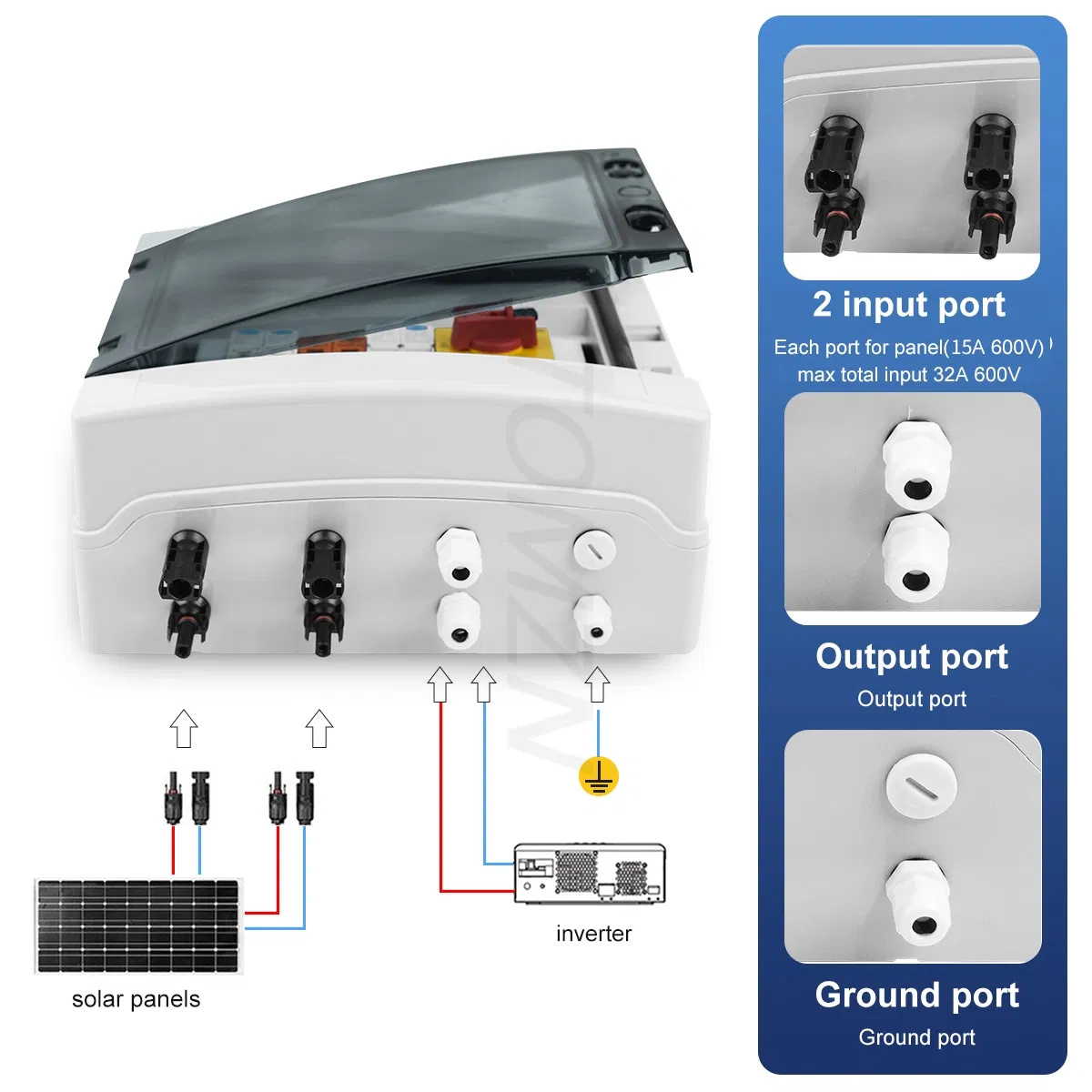

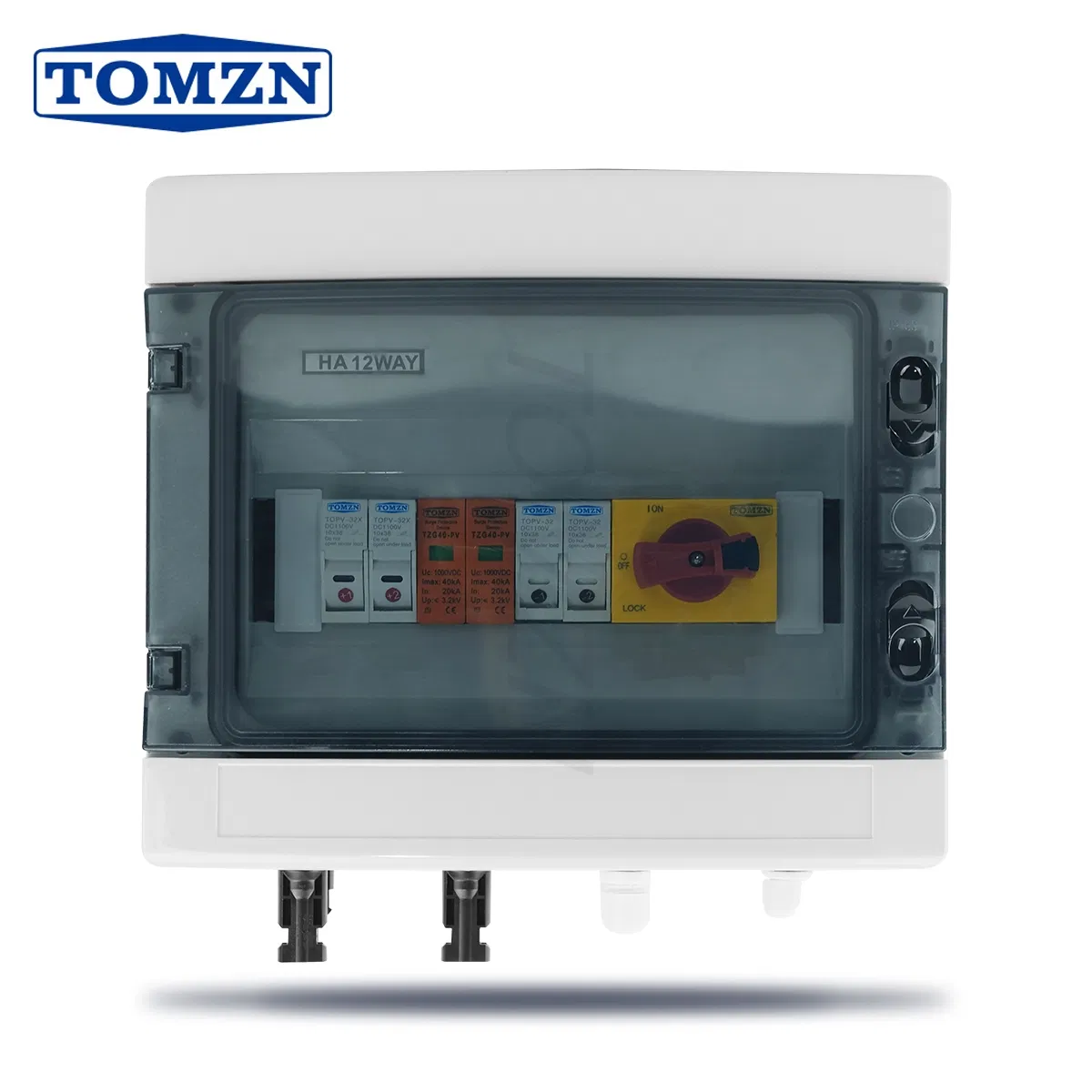

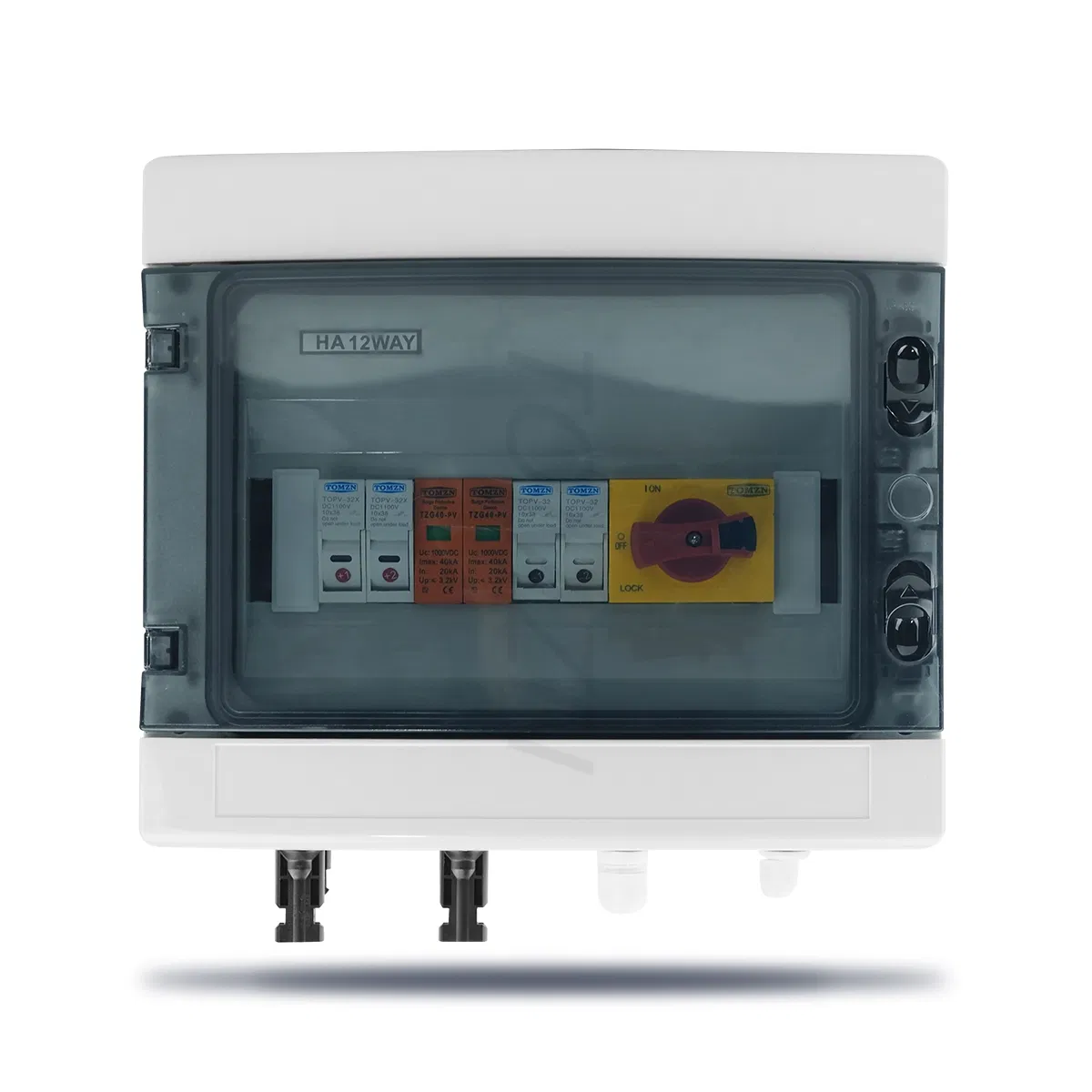

Tomzn Solar Photovoltaic PV Combiner Box 2 Input 1 out 12ways
Tomzn Solar Photovoltaic PV Combiner Box 2 Input 1 out 12ways
Tomzn Solar Photovoltaic PV Combiner Box 2 Input 1 out 12ways
Tomzn Solar Photovoltaic PV Combiner Box 2 Input 1 out 12ways
Tomzn Solar Photovoltaic PV Combiner Box 2 Input 1 out 12ways
1 / 5
Tomzn Solar Photovoltaic PV Combiner Box 2 Input 1 out 12ways
Tomzn Solar Photovoltaic PV Combiner Box 2 Input 1 out 12ways
Tomzn Solar Photovoltaic PV Combiner Box 2 Input 1 out 12ways
Tomzn Solar Photovoltaic PV Combiner Box 2 Input 1 out 12ways
Tomzn Solar Photovoltaic PV Combiner Box 2 Input 1 out 12ways

Tomzn Solar Photovoltaic PV Combiner Box 2 Input 1 out 12ways

Customization: Available
Type: Distribution Metering Box
Certification: CE
Send Inquiry

Product Description

Basic Information
Model NO.
12-2-1-1000V
Operation Voltage
Low Voltage (DC 1000V)
Protection Grade
IP65
Brand
Tomzn
Fuse Protection
1100V Holder with 15A Fuse
Surge Protection
2P DC 1000V SPD
Isolator Switch
2P DC 1200V Isolator
Main Functions
Waterproof & Lightning Protection
Rated Current
32A
Package
Carton
Specifications
2.8kg / 19800cm3
Product Description

Introducing the high-performance DC 1000V PV Combiner Box, meticulously engineered to elevate your solar energy solutions. Built to withstand the elements, the robust IP65 rating ensures maximum protection against dust and water ingress.

This advanced system includes a reliable 1100V Fuse Holder, equipped with a durable 15A fuse for optimal safety and performance, alongside a precise 2P DC 1200V Isolator, designed for seamless control and secure disconnection at your fingertips. Complementing the setup is a highly effective 2P DC 1000V SPD, safeguarding your equipment against unexpected surges and spikes.

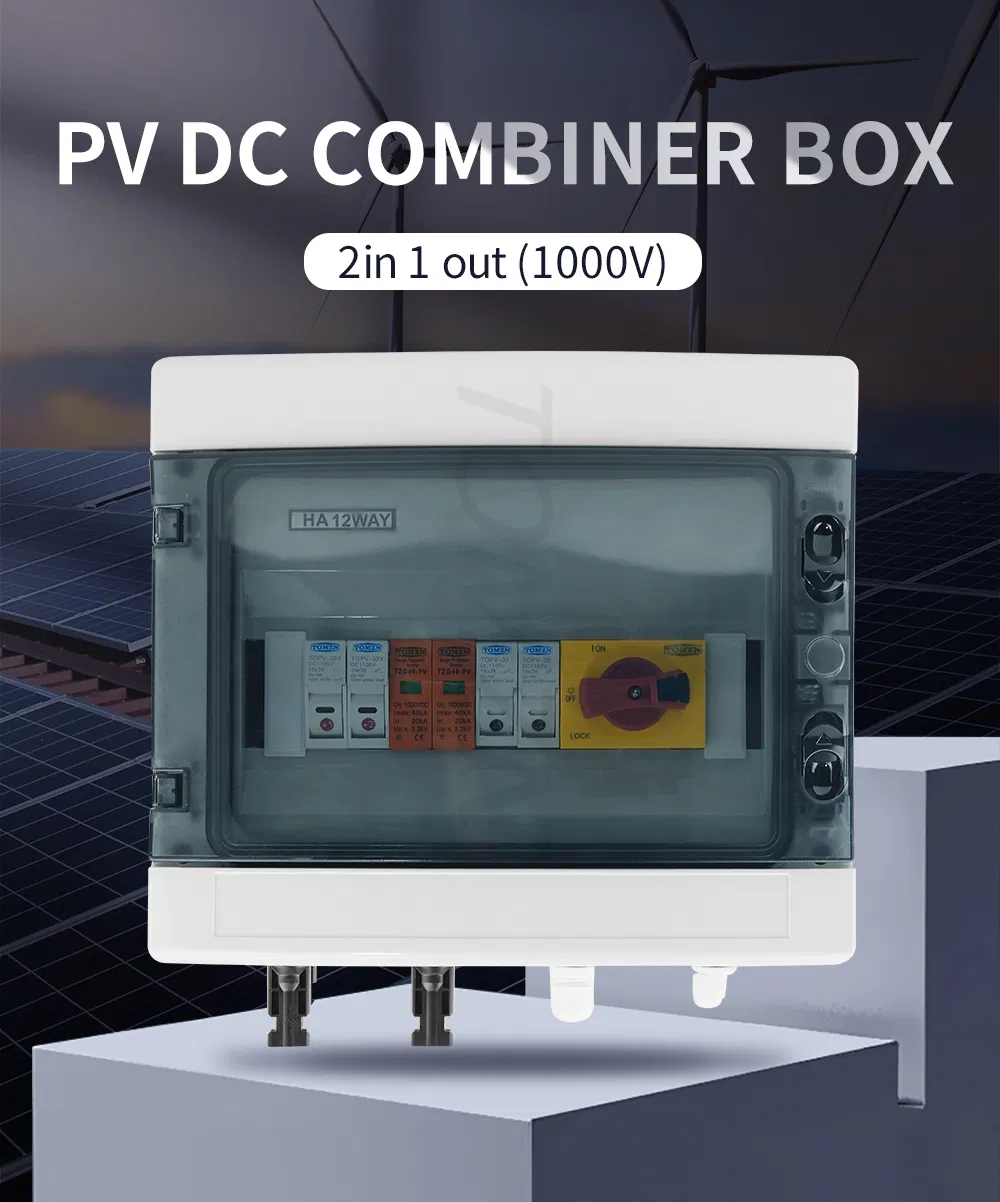

PV Combiner Box Detail 1
PV Combiner Box Detail 2

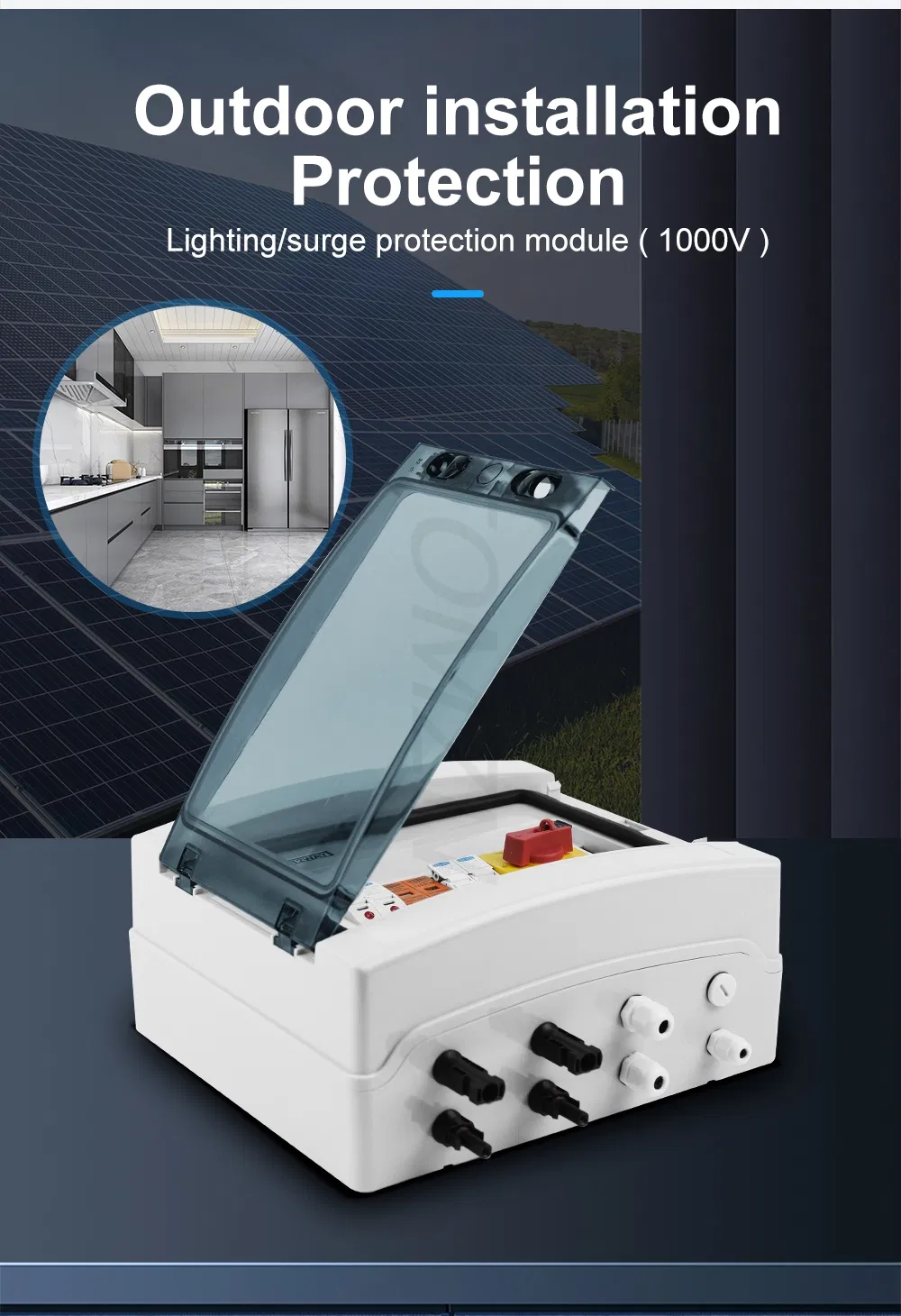

PV Combiner Box Detail 3
PV Combiner Box Detail 4

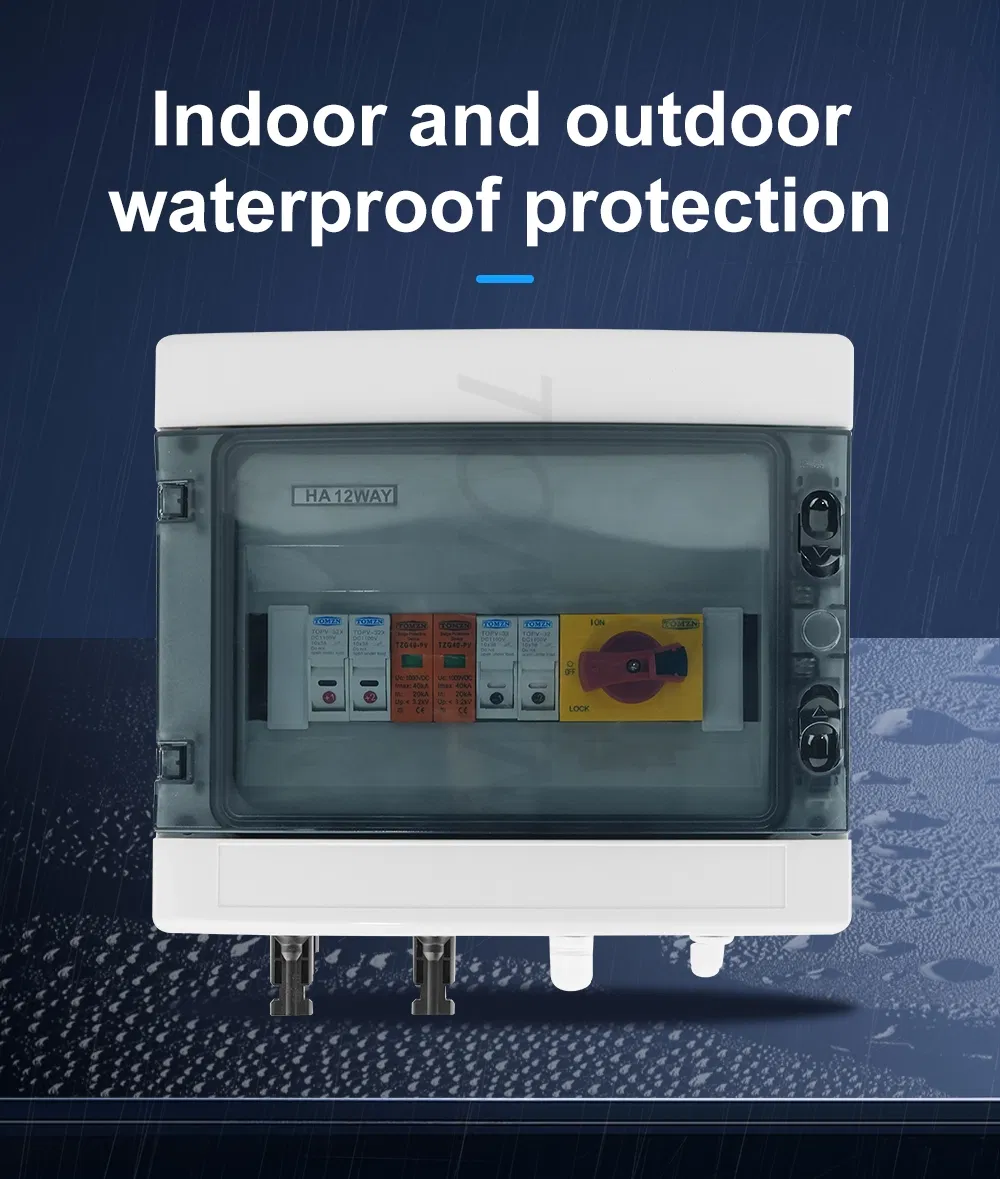

PV Combiner Box Detail 5
PV Combiner Box Detail 6

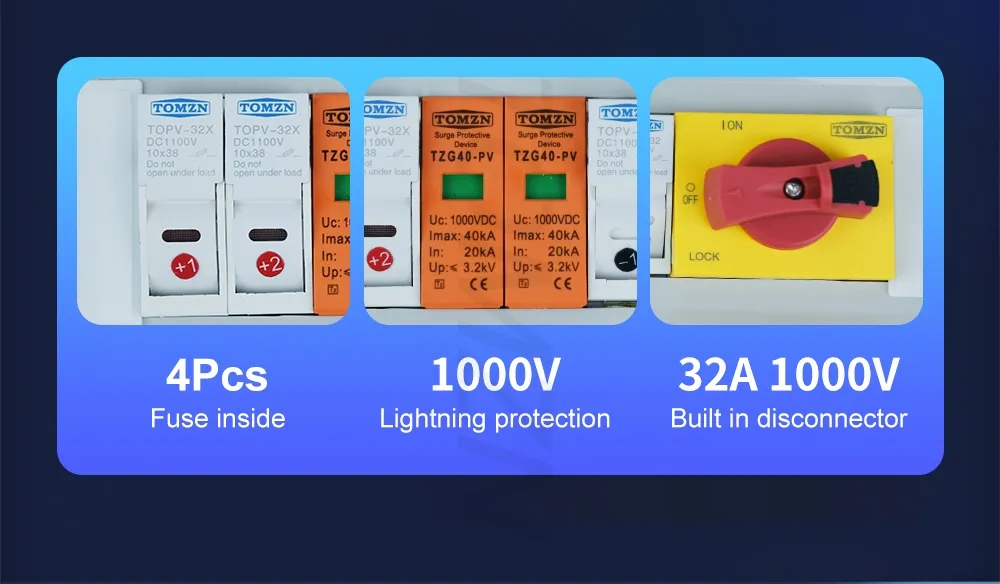

PV Combiner Box Detail 7

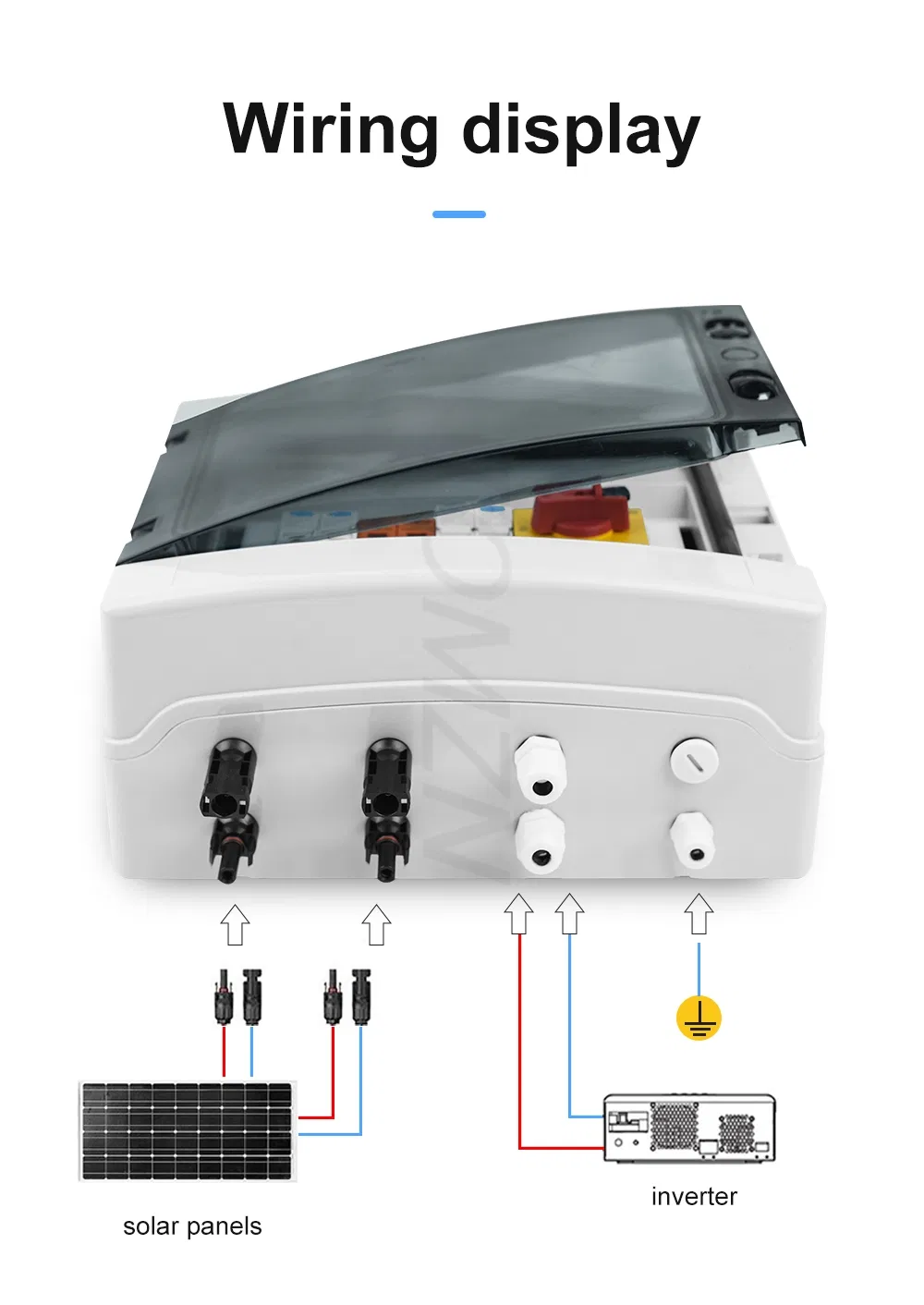

PV Combiner Box Detail 8

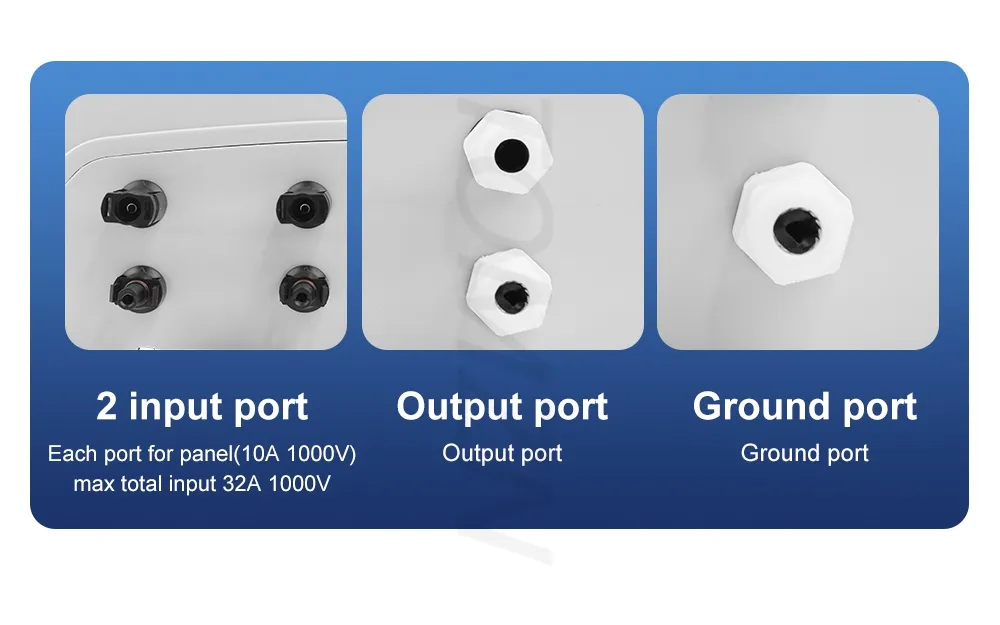

PV Combiner Box Detail 9

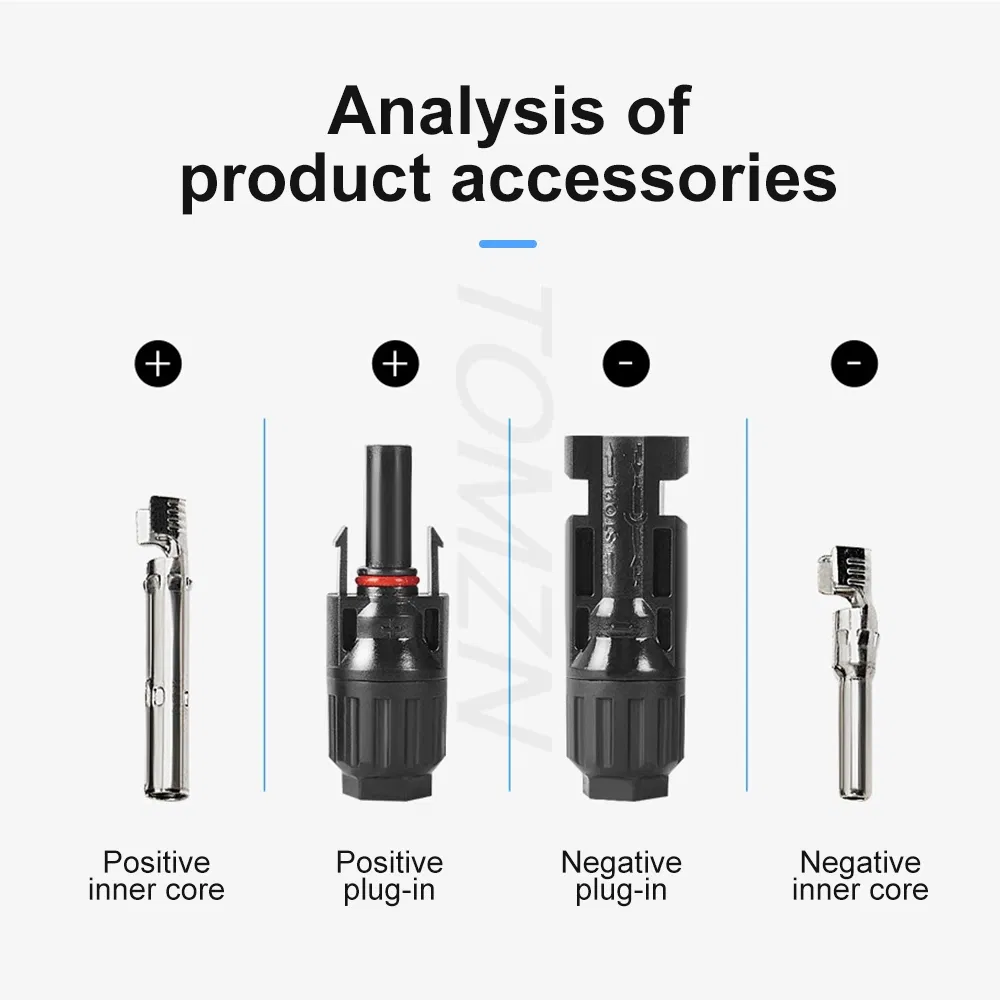

PV Combiner Box Detail 10

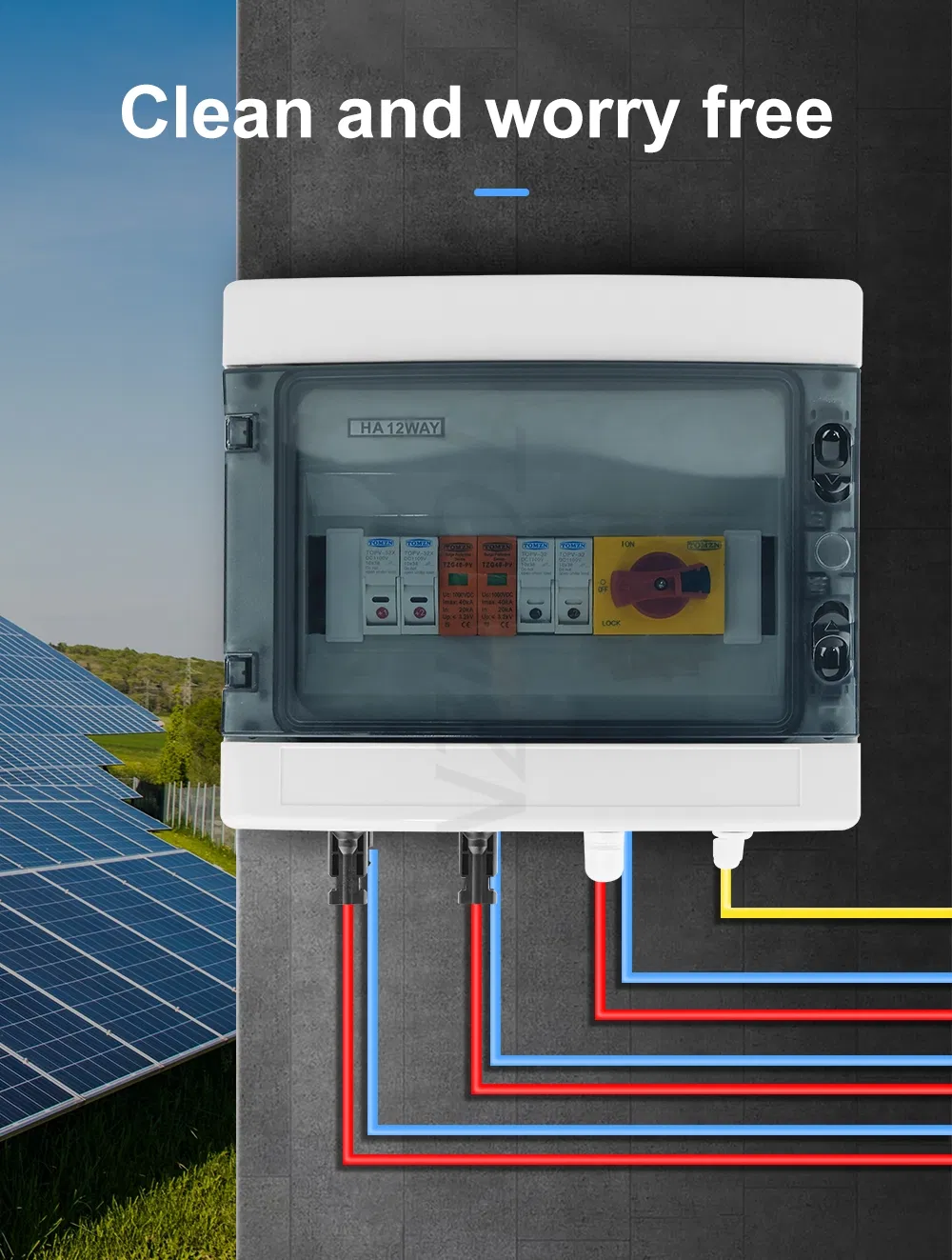

PV Combiner Box Detail 11

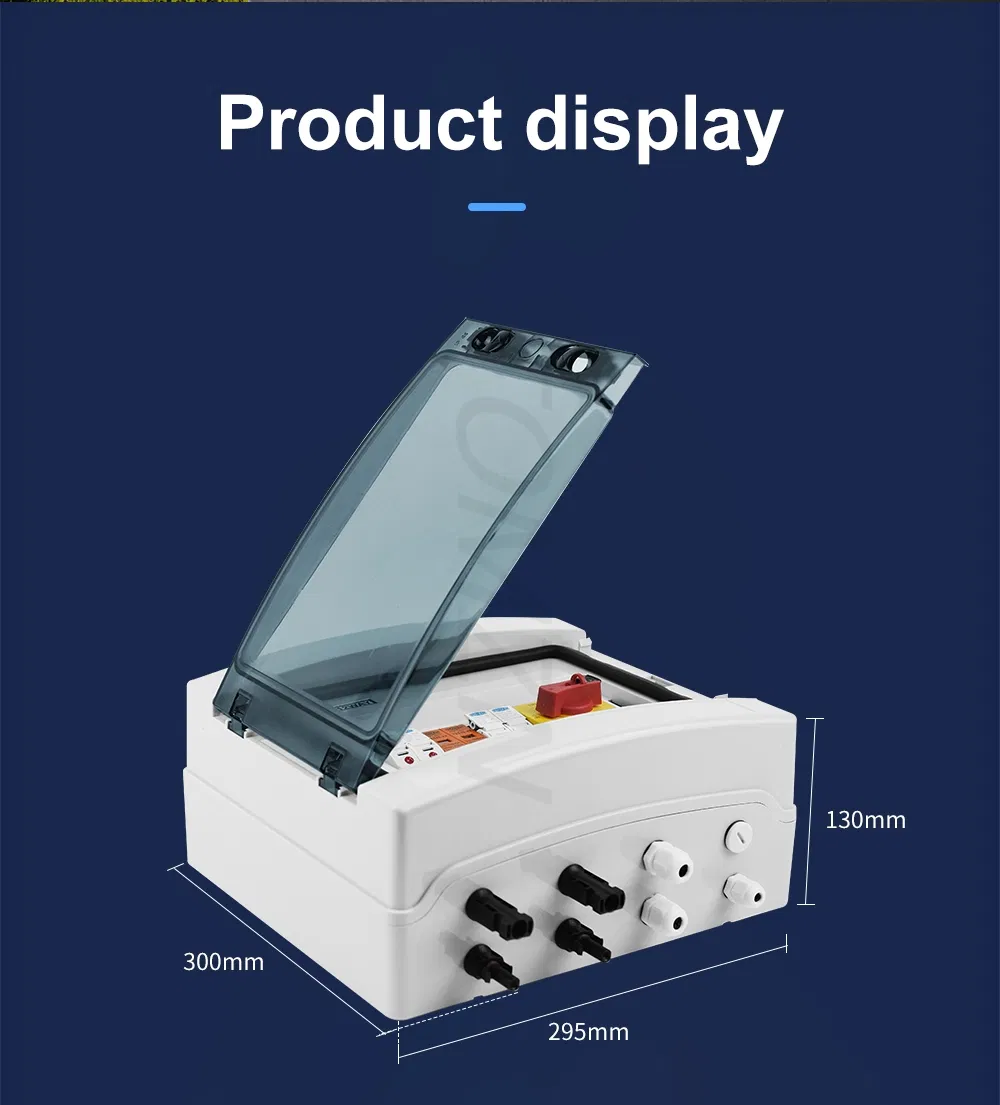

PV Combiner Box Detail 12

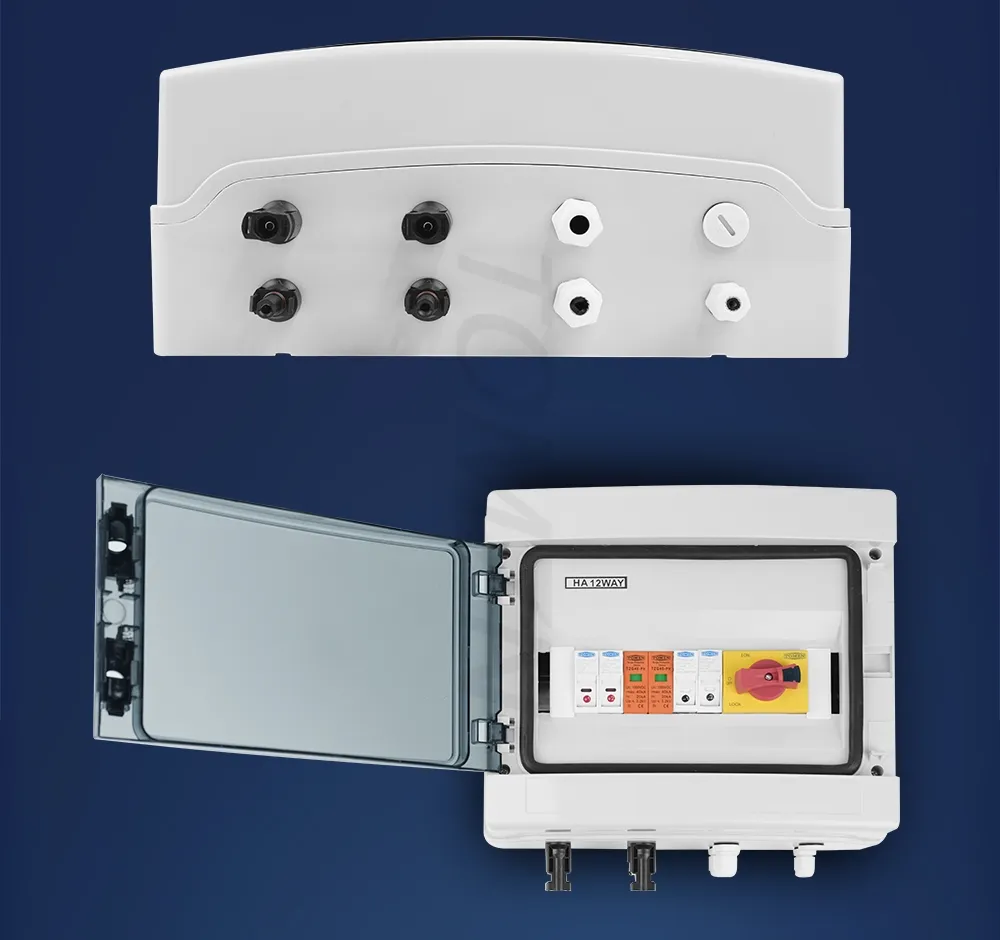

PV Combiner Box Detail 13

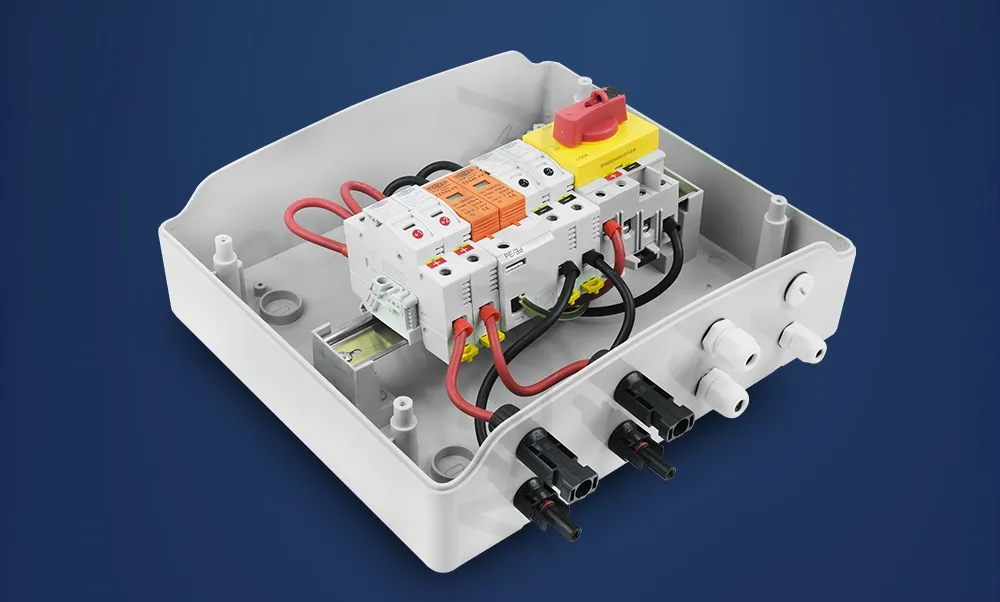

PV Combiner Box Detail 14

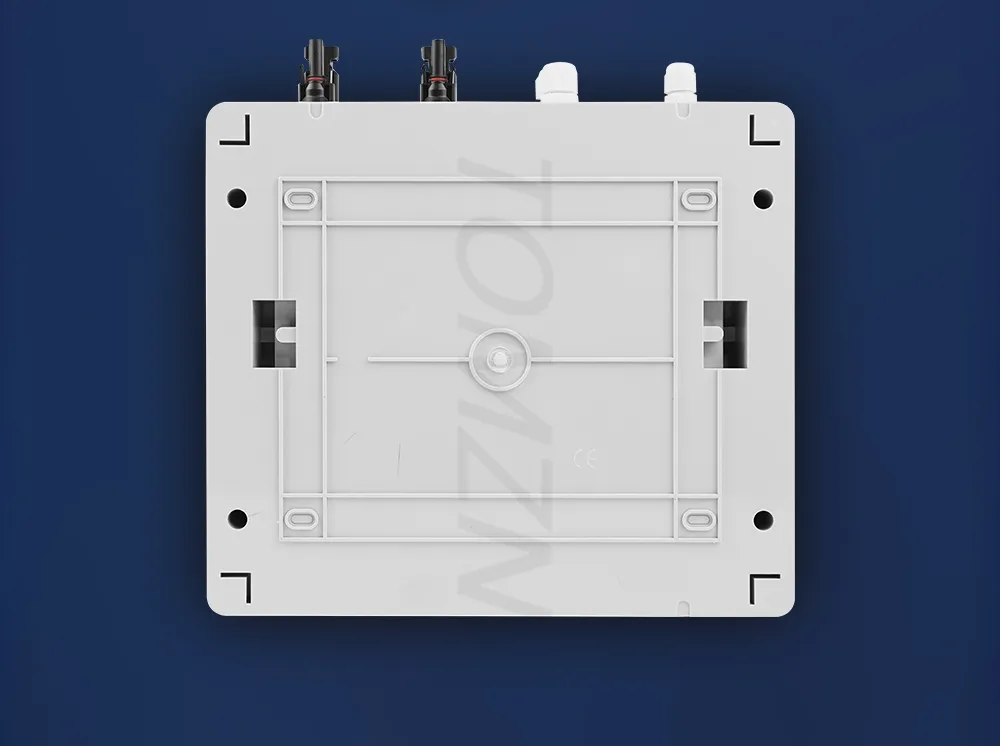

PV Combiner Box Detail 15
Frequently Asked Questions
What is the protection rating of this combiner box?
This PV combiner box features an IP65 protection grade, making it waterproof and dustproof, suitable for demanding outdoor environments.
What voltage and current does this system support?
The system is designed for DC 1000V operation with a rated current of 32A.
Does it include lightning protection?
Yes, it includes a 2P DC 1000V Surge Protective Device (SPD) specifically designed for lightning and surge protection.
What components are pre-installed in the box?

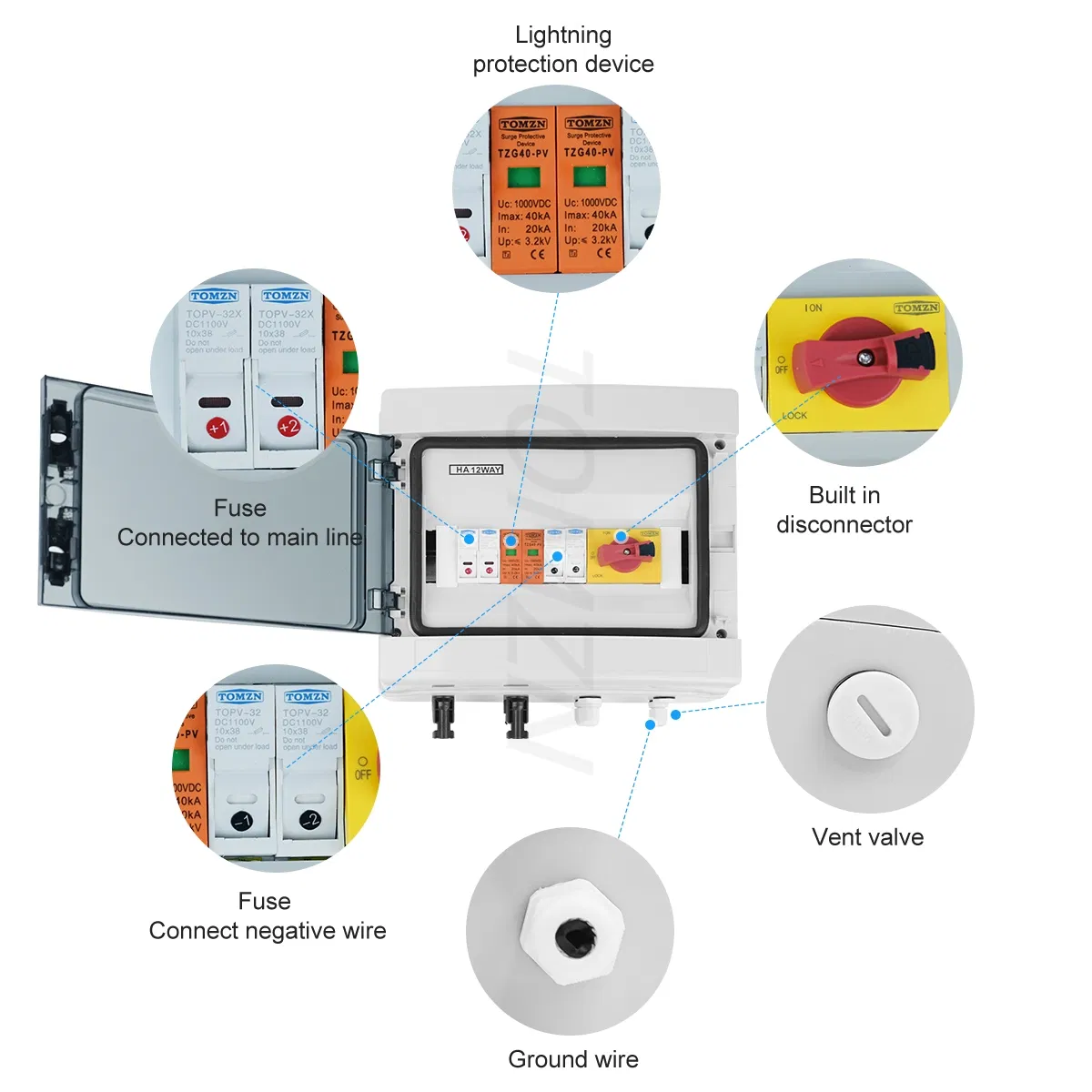

The box comes equipped with an 1100V Fuse Holder (including a 15A fuse), a 2P DC 1000V SPD, and a 2P DC 1200V Isolator switch.
Is the fuse replaceable?
Yes, the 1100V fuse holder is designed for easy maintenance, allowing the 15A fuse to be replaced if necessary.
What is the weight and size for shipping?
The product weighs approximately 2.8kg with a specification volume of 19800cm3, typically shipped in a protective carton.
