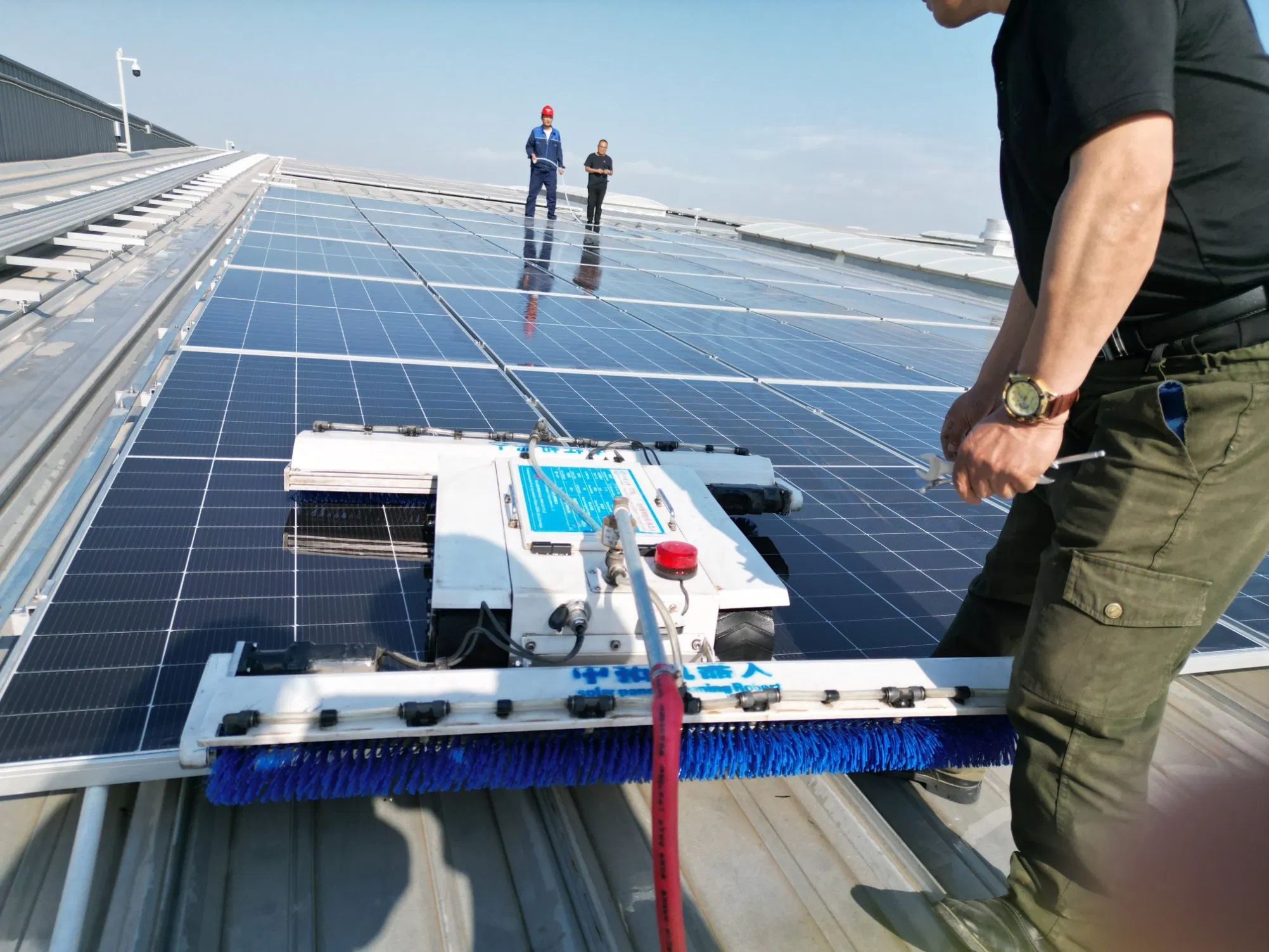

Water/ Dry Washing Dual Used Solar Panel Cleaning Robot for Photovoltaic Plants

1 / 5

Water/ Dry Washing Dual Used Solar Panel Cleaning Robot for Photovoltaic Plants

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Information

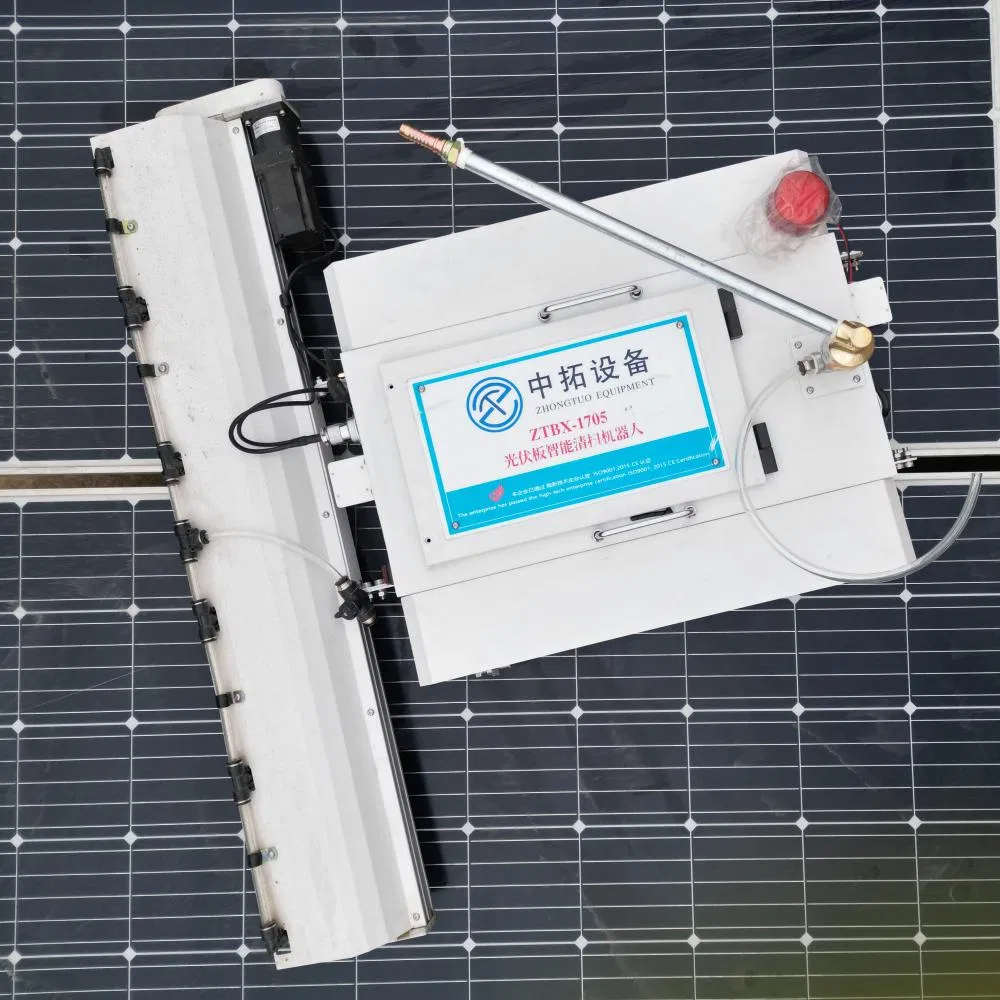

Model NO.	ZTBX
Clean Type	High Pressure Cleaning
Cleaning Process	Cold Water Cleaning
Control	PLC
Fuel	Electric
Principle	Electronic Cleaning
Style	Crawler Style
Endurance	6 Hours
Cleaning Type	Dry, Water
Working Angle	15°-30°
Cleaning Speed	2.5 Hours Per Megawatt
Package Size	150.00cm * 40.00cm * 40.00cm
Package Gross Weight	27.000kg

🤖 Product Description

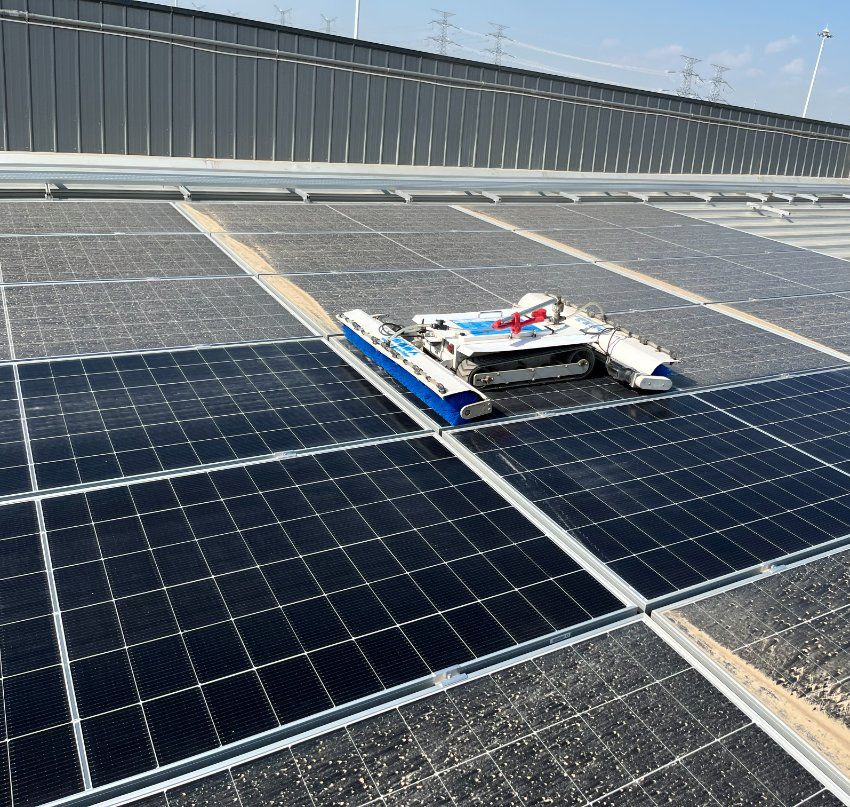

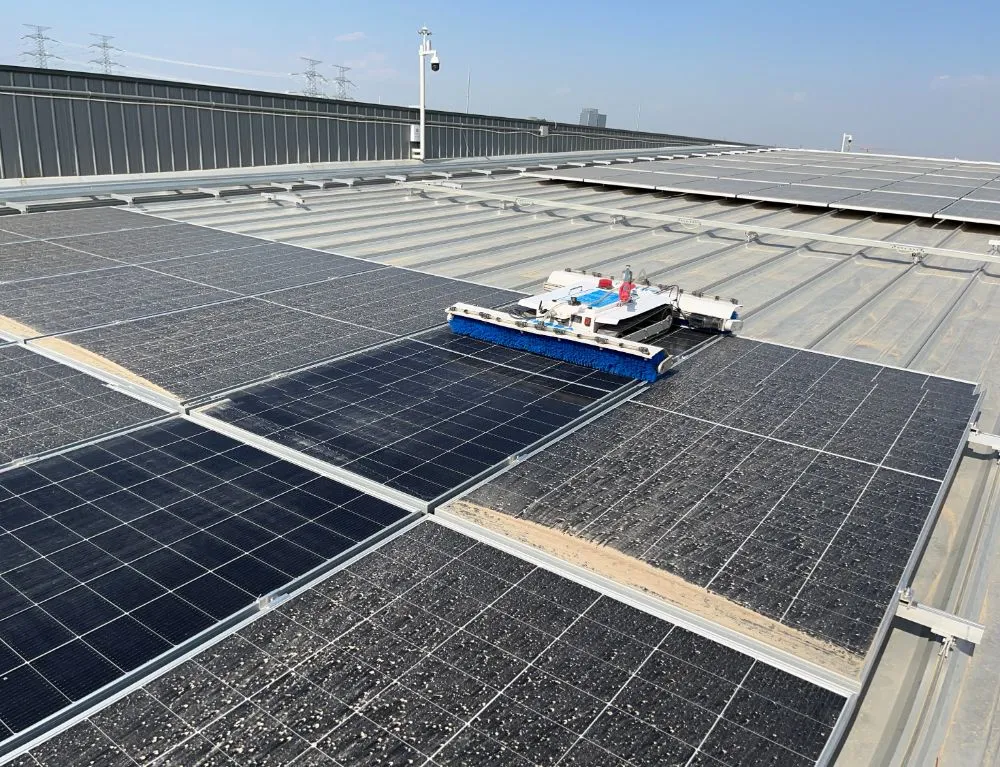

The fully automatic solar panel cleaning robot mainly consists of the robot body, data transmission system, positioning system, power system and battery, operation APP, and cloud platform monitoring system. It can achieve unmanned and fully automatic cleaning work. It is commonly used for cleaning photovoltaic panels in power generation industries such as power plants, complementary agriculture and solar energy, cement plants, and aluminum production.

⚙️ Technical Parameters

Operating Voltage	24V
Idle Speed	250 rpm
Travel Speed	22m/min
Cleaning Width	1100mm
Endurance	6 hours
Power Supply Mode	Lithium battery (24V)*2
Max Water Consumption	20L/min
Operating Temp Range	-20-50ºC
Brush Wire Material	New nylon yarn
Equipment Weight	29kg (excluding battery)
Outline Dimension	12001000350mm

🔍 Product Details

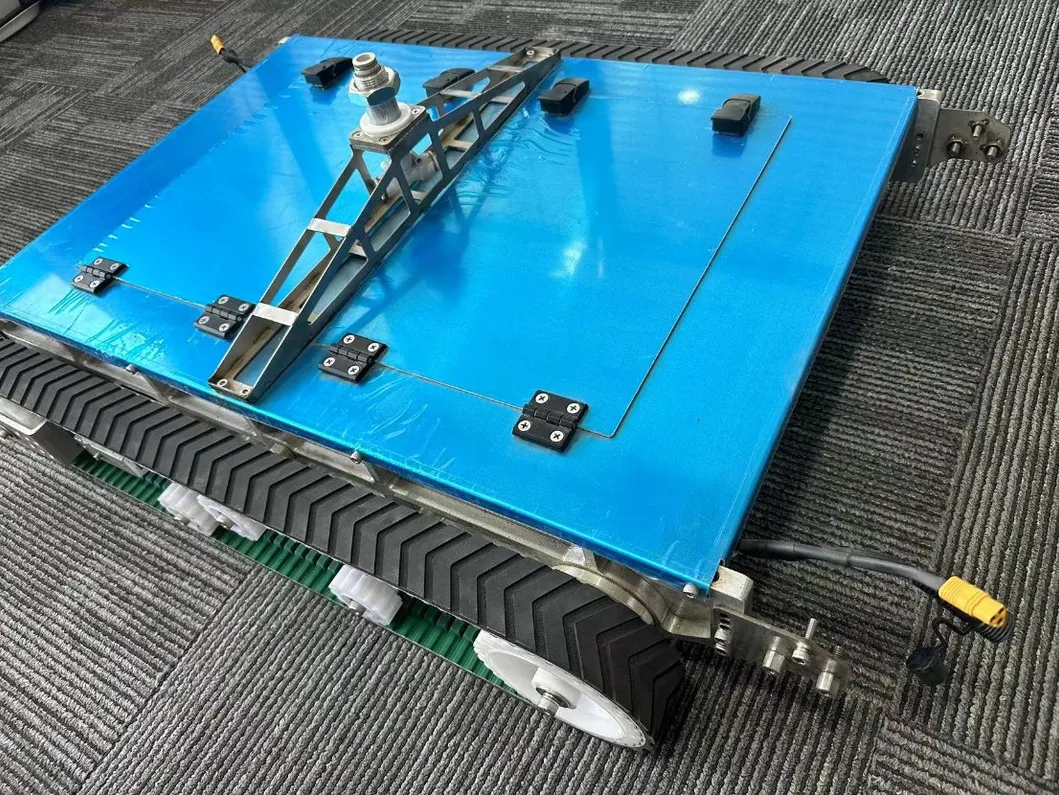

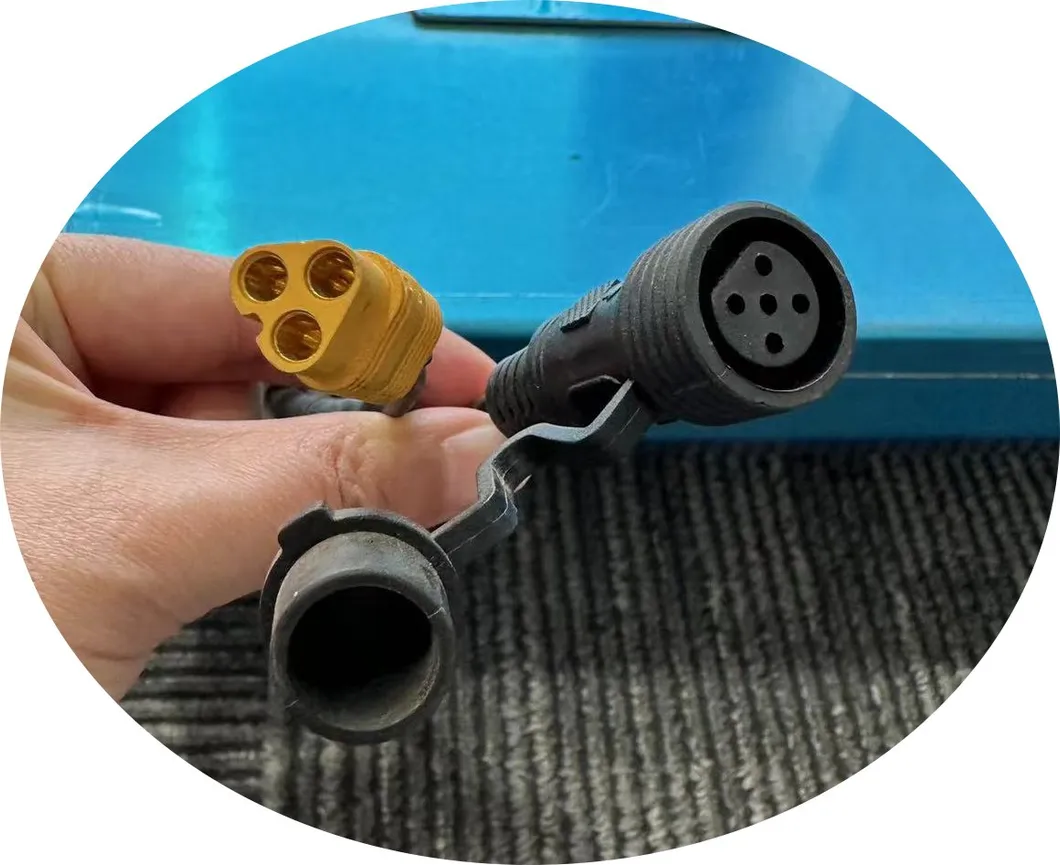

Aviation Aluminum Alloy Body: Built with 6063 aviation aluminum alloy. Lightweight and high strength, designed to protect your solar panels without causing damage. The surface is protected with a blue film coating from the factory.

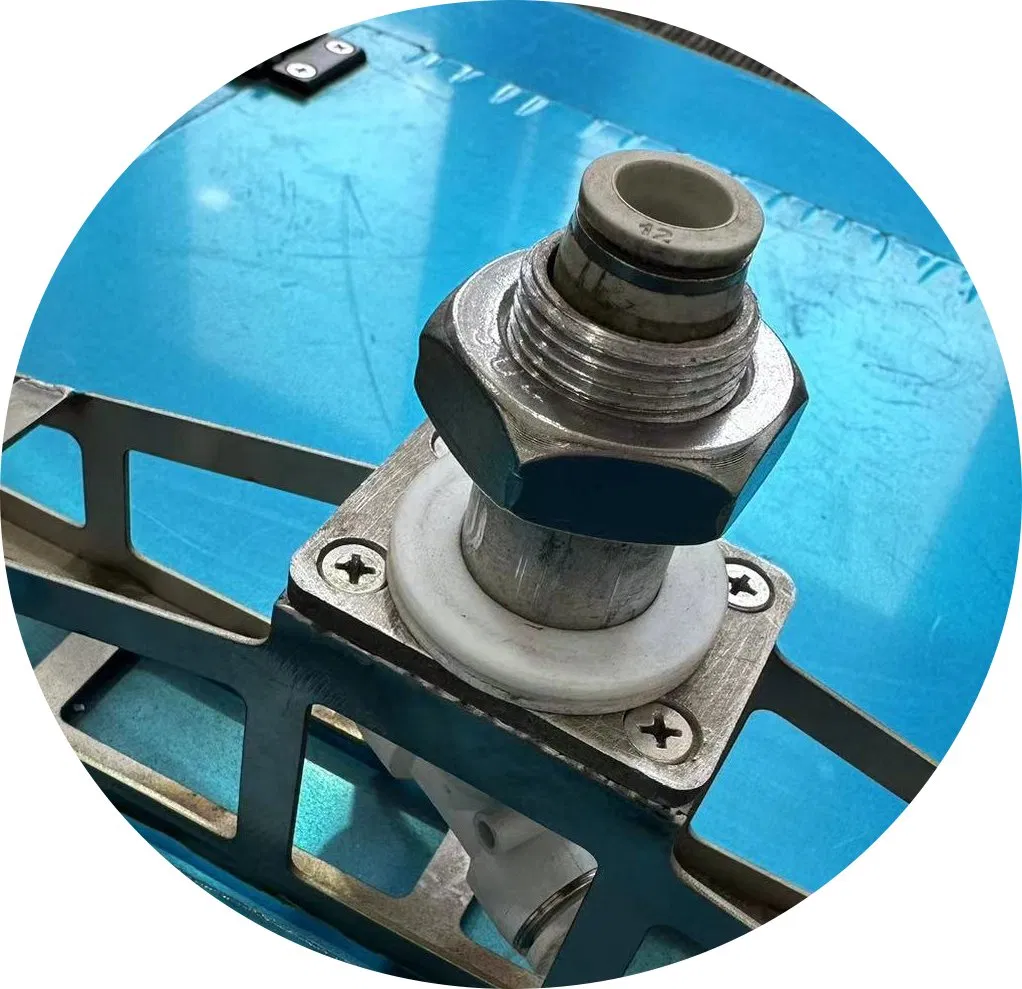

Intelligent Power System: Equipped with Intelligent PLC control and DC geared motors. Powered by a 24V 26AH large capacity maintenance-free lithium battery, ensuring stable and long-term operation.

✨ Main Features & Advantages

✓ Fully intelligent, automated, unattended sweeping

✓ High cleaning efficiency (up to 1.2MW per day)

✓ Extremely small turning radius, no dead ends

✓ High level of waterproof, dustproof and anti-fogging

✓ Mobile APP or computer remote real-time monitoring

✓ Supports customization and highly scalable

🛡️ Intelligent Anti-fall System

Equipped with 4 high-precision sensors. The robot automatically stops when reaching the edge of the panel, triggering a detection light. Simple remote operation allows reversing to avoid falling risks.

🏞️ Application Scenes

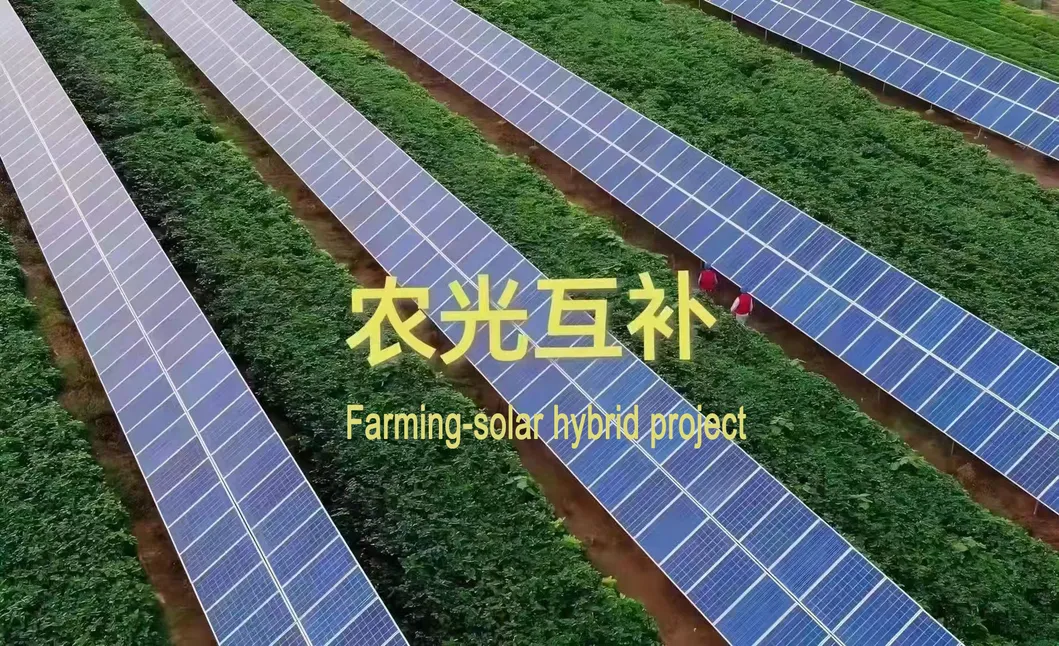

Farming-Solar Hybrid

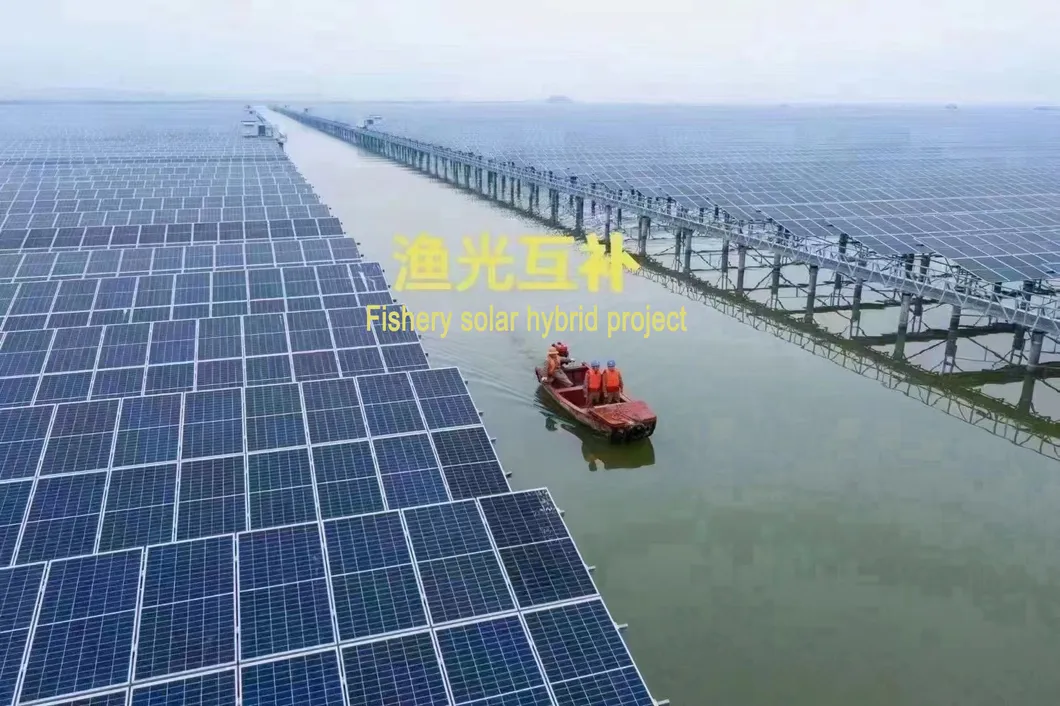

Fishery-Solar Hybrid

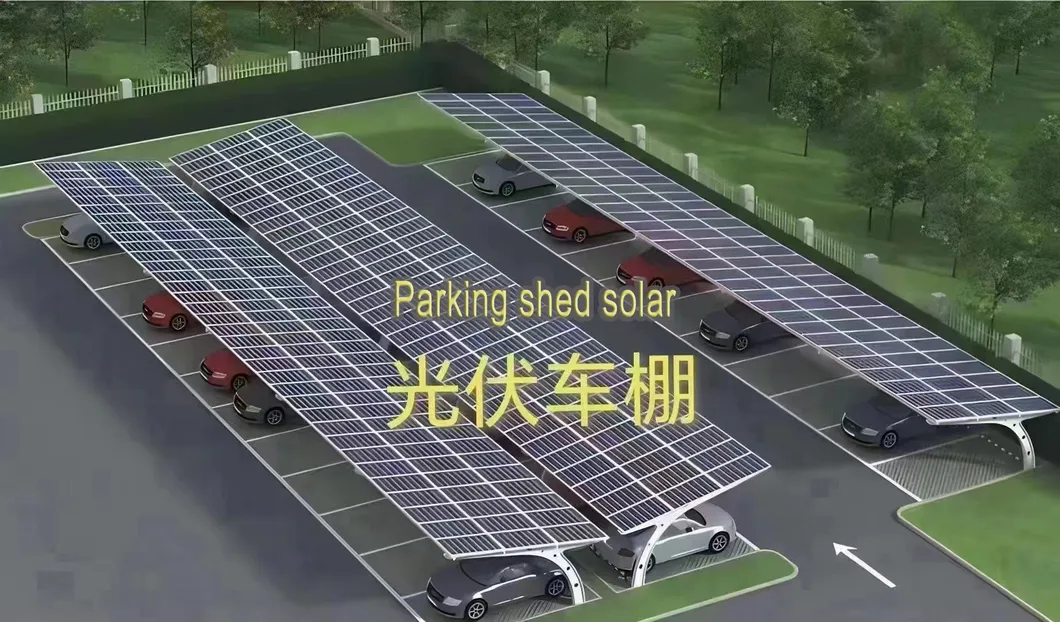

Parking Shed Solar

📦 Packaging & Delivery

Packing List: Main unit, remote control, two lithium batteries (24/26Ah), two 24v 3A battery chargers, a lithium-ion battery backpack, and spare tool accessories.

📜 Certifications

❓ Frequently Asked Questions

Will the robot hit walls or obstacles during operation?

Under normal circumstances, this will not happen. Manual operations are controlled by users, while the fully automatic system uses induction sensors to prevent collisions.

Can it work on rainy days after rooftop installation?

Fully automatic equipment can operate on rainy days. However, human-operated cleaning is not recommended during rain to ensure personnel safety from lightning or slipping.

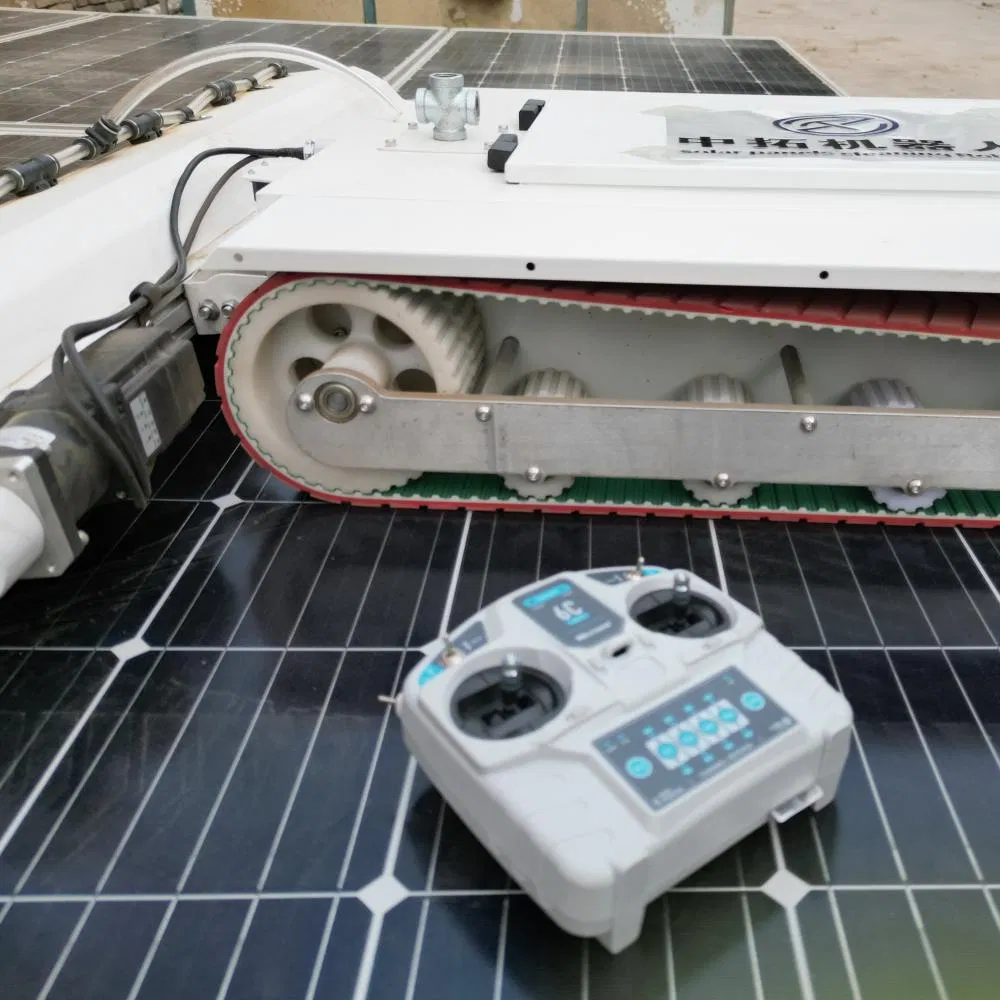

Why use crawler tracks for the chassis?

Crawler tracks provide higher cleaning friction, better stability on all terrains, and ensure a superior cleaning effect across the photovoltaic panels.

What are the main advantages over traditional methods?

The equipment is more efficient, durable, and reliable. It significantly reduces labor intensity and increases power generation efficiency by recovering up to 40% of losses caused by dirt.

How can I tell if the panels need cleaning?

Most photovoltaic systems monitor power generation. A noticeable drop in electricity production usually indicates that the panels are dirty or covered by debris.

Is the cleaning brush safe for the solar panels?

Yes, the robot is equipped with 1100mm long soft nylon brushes specifically designed to clean effectively without causing any damage to the panel surface.
