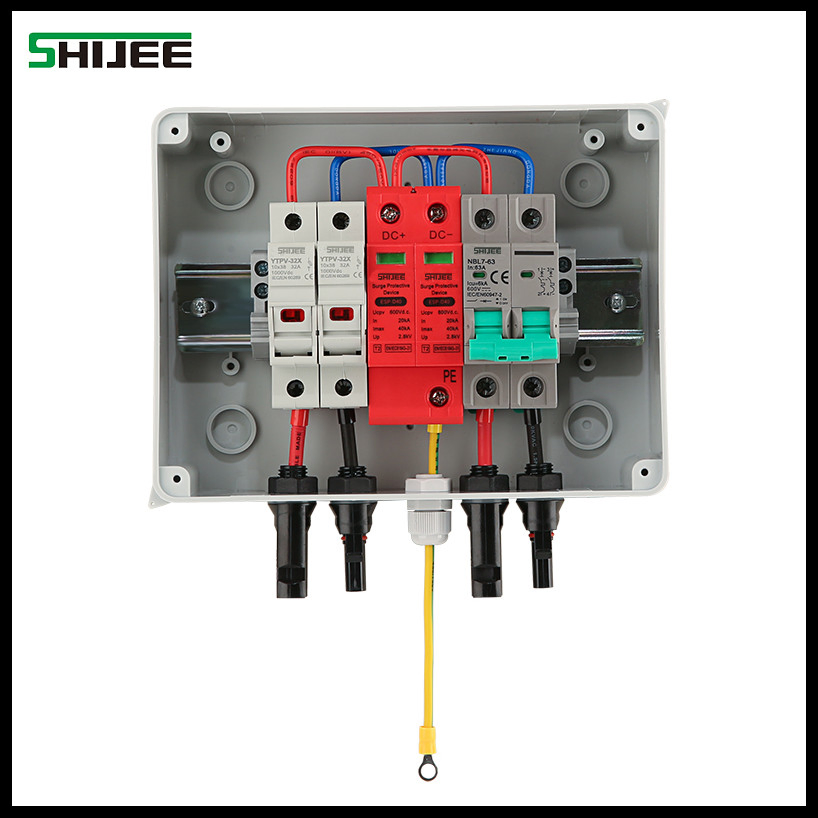

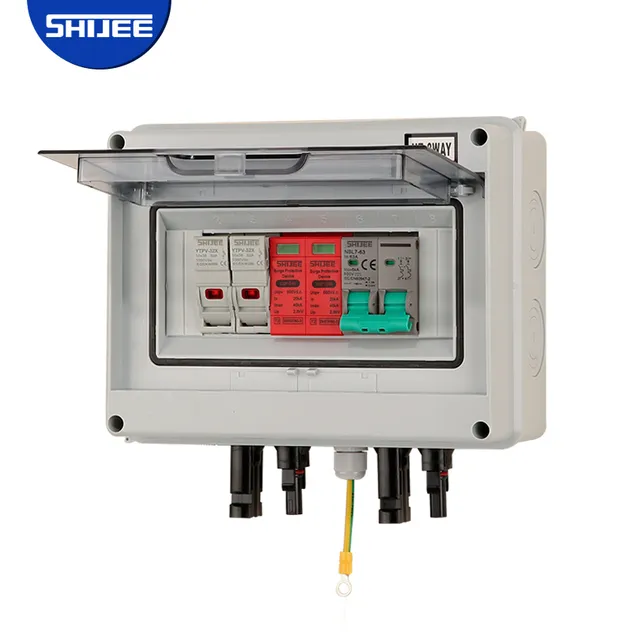

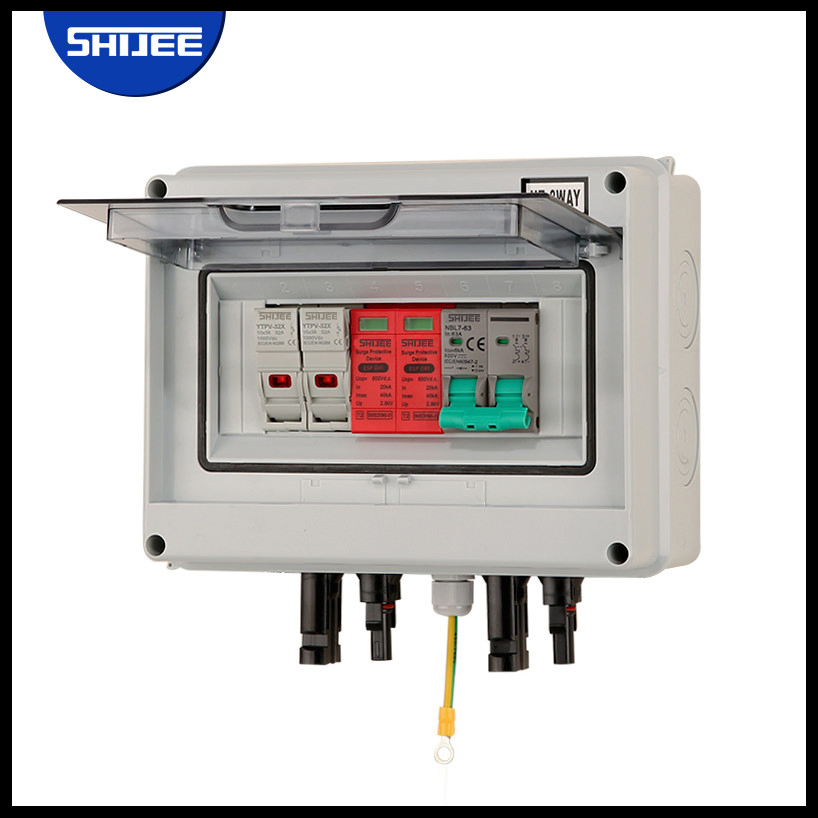

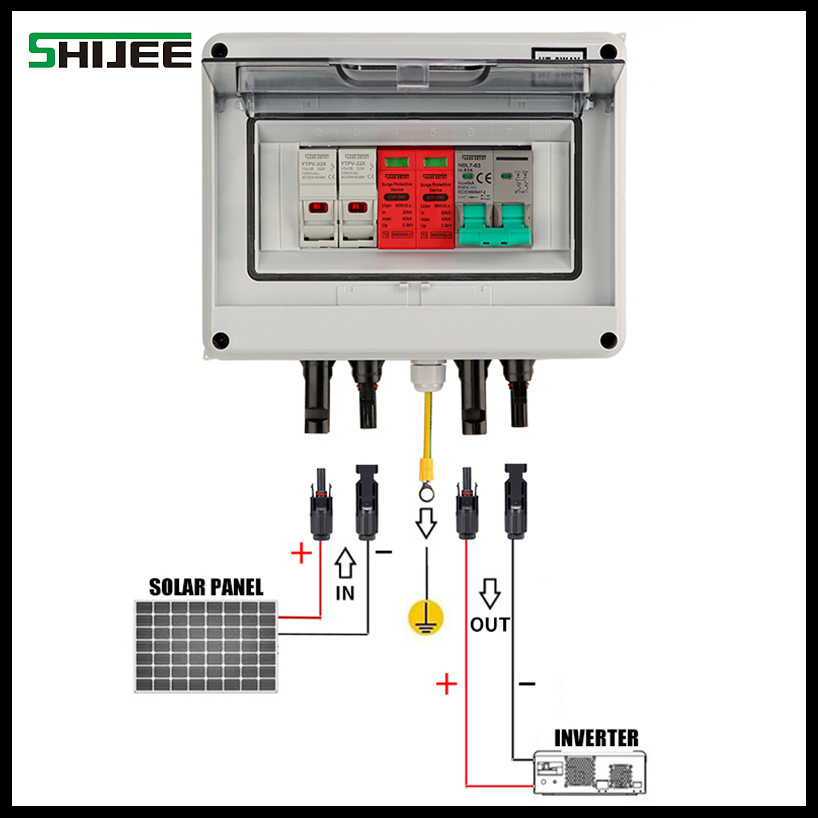

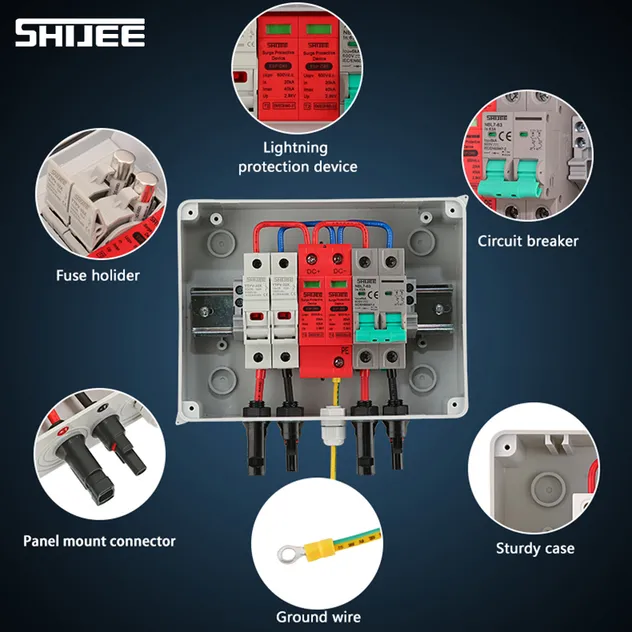

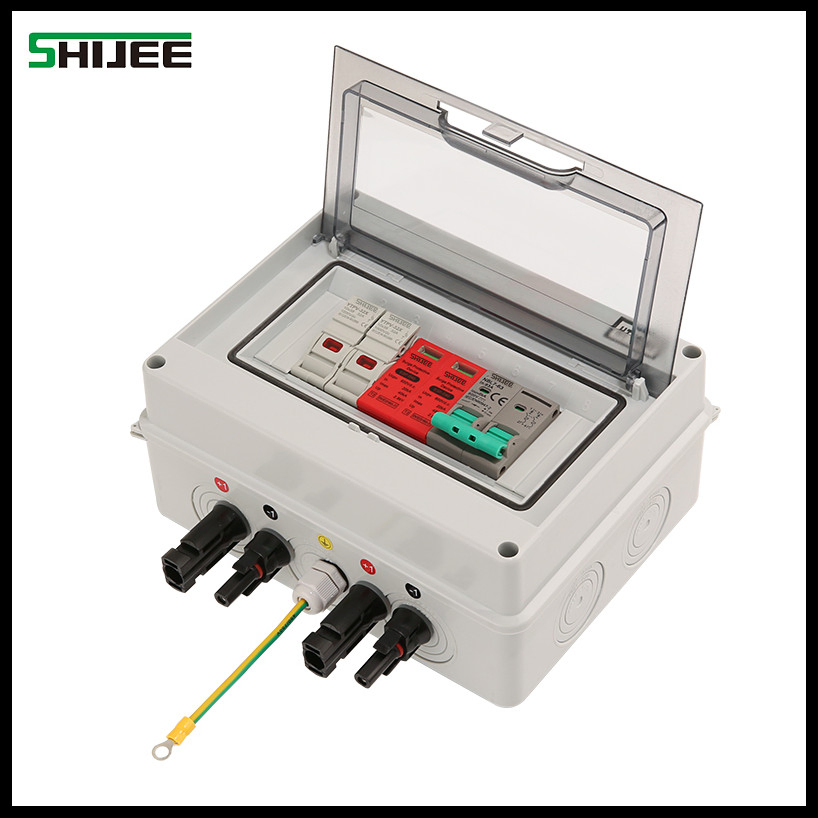

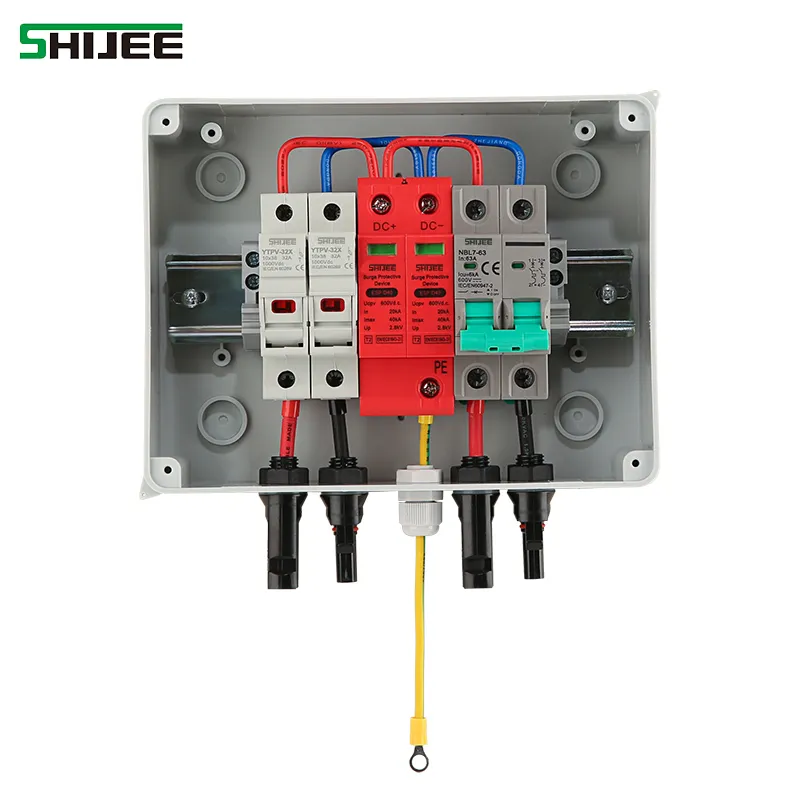

This 1-in-1-out PV combiner box is engineered for safe, efficient, and reliable solar system interconnection, supporting up to 600V DC. Designed with an IP65 weatherproof enclosure, it offers robust protection against dust, moisture, and harsh outdoor conditions, making it ideal for rooftop, ground-mounted, or industrial PV installations. Each unit integrates a 15A PV input and a 63A circuit breaker, ensuring precise overcurrent protection and simplified system maintenance.

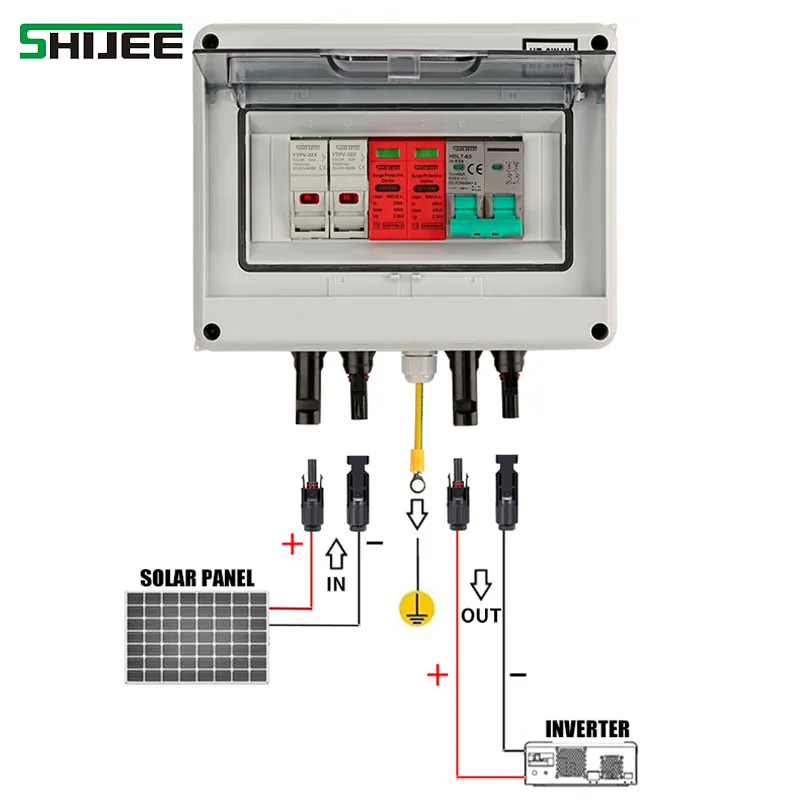

Compact yet highly functional, this junction box streamlines wiring, reduces installation time, and enhances overall system safety. The integrated circuit breaker enables easy disconnection for servicing while maintaining compliance with electrical safety standards. Built for durability and long-term performance in demanding environments, it provides a dependable, ready-to-deploy solution for residential, commercial, and utility-scale solar power systems.
| Product Name | 1-in-1-out 600V DC Solar PV Combiner Junction Box |
| Rated Voltage (DC) | 600 V |
| Input Current Rating | 15 A |
| Circuit Breaker Rating | 63 A (DC MCB / DC Disconnector) |
| Protection Level | IP65 (Dust-tight & Water-jet protected) |
| Enclosure Material | UV-resistant engineering plastic (PC/ABS) |
| Terminal Type | Screw terminals or pluggable connectors |
| Operating Temp. | -25°C to +60°C |
| Cable Entry | PG glands for 4–12 mm² cables |
| Certifications | CE, TUV, IEC 60947-3, IEC 62109 |

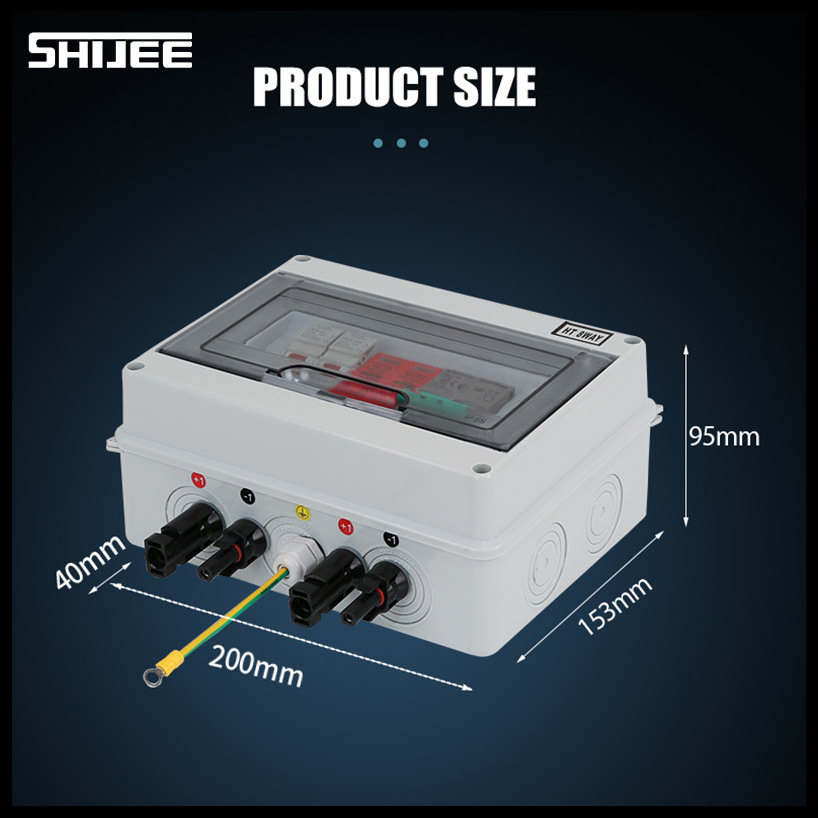

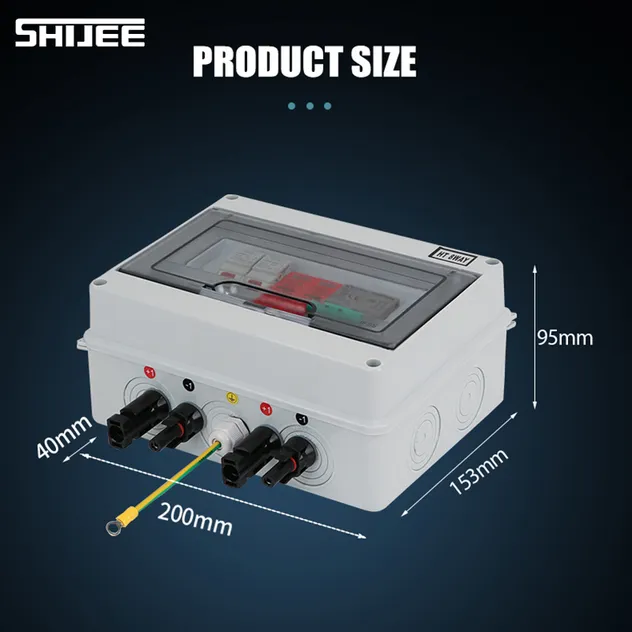

| Dimensions | Approx. 200×150×80 mm |
| Key Features | Weatherproof, compact design, reliable DC protection |
