| Model NO. | GD-PV05 |
| Certification | ISO9001:2000, VDE, CCC |
| Operation Voltage | Low Voltage (1000V) |
| Application | Industrial, Solar PV System |
| Protection Grade | IP66 / IP65 |
| Installation | Wall Mounting Type |
| Structure | Plug-Push Module |
| Capacity | 50,000 PCS/Year |

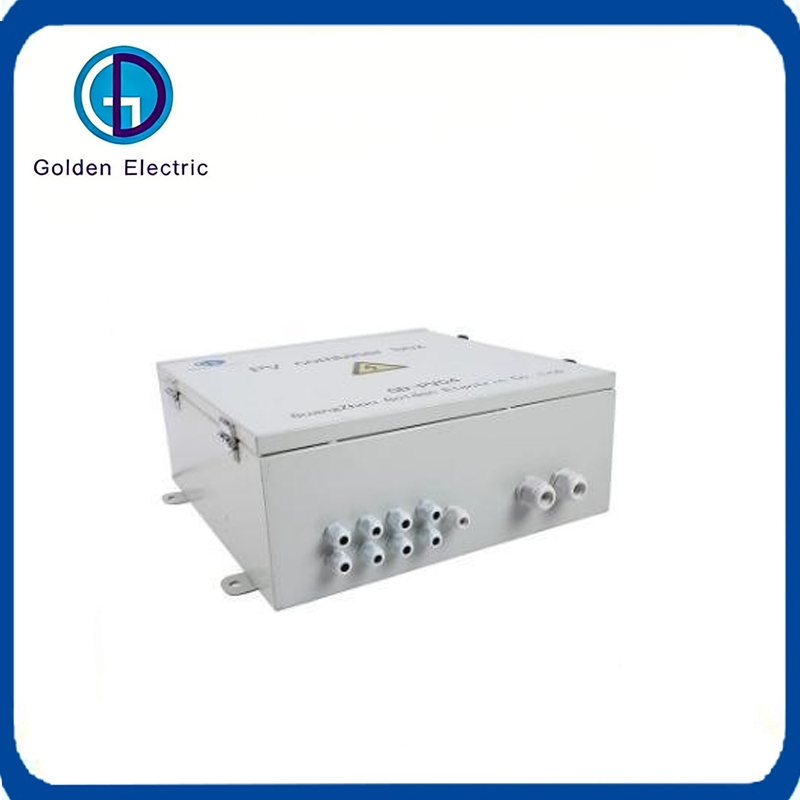

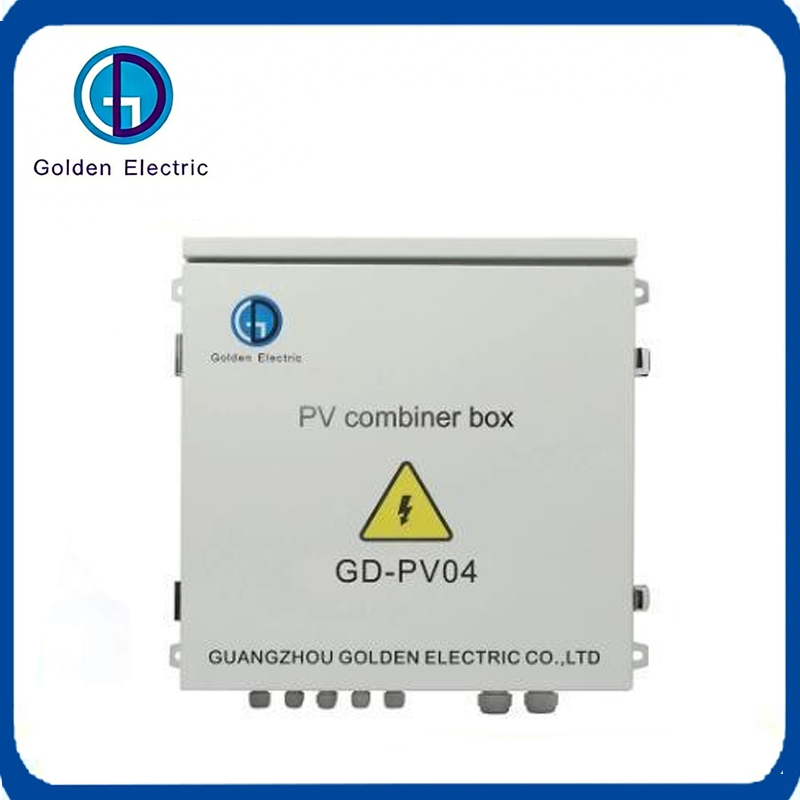

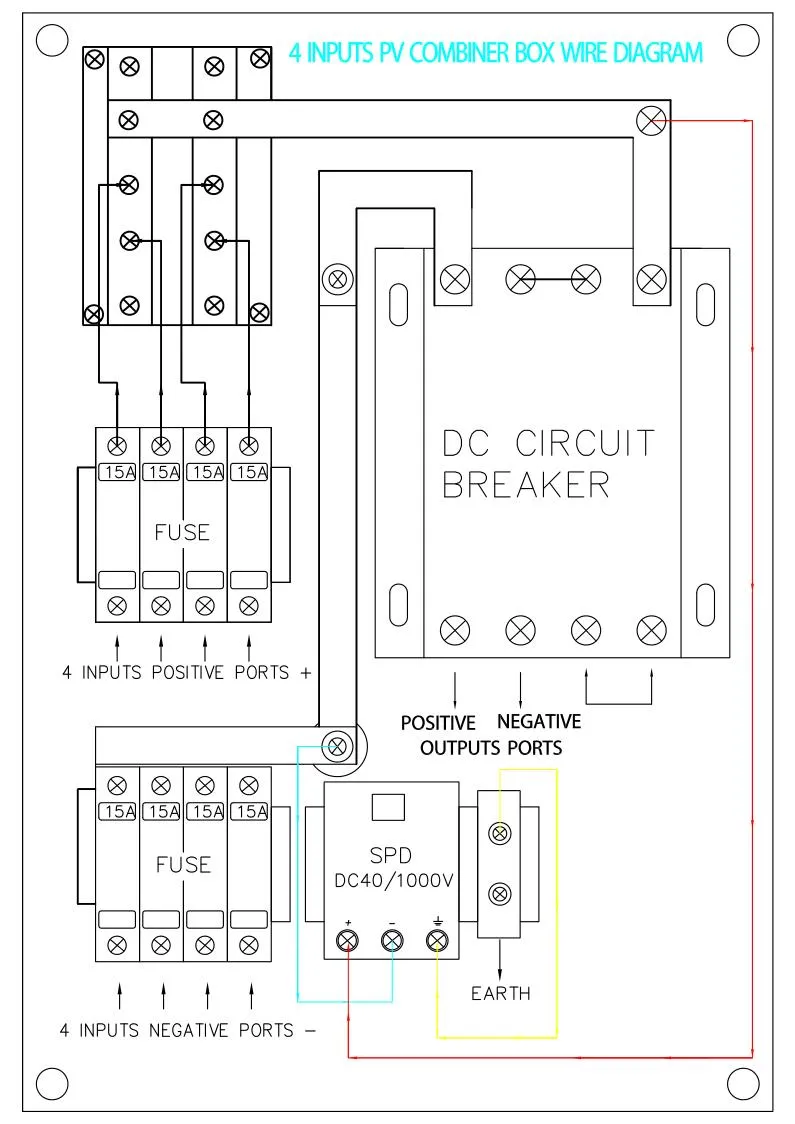

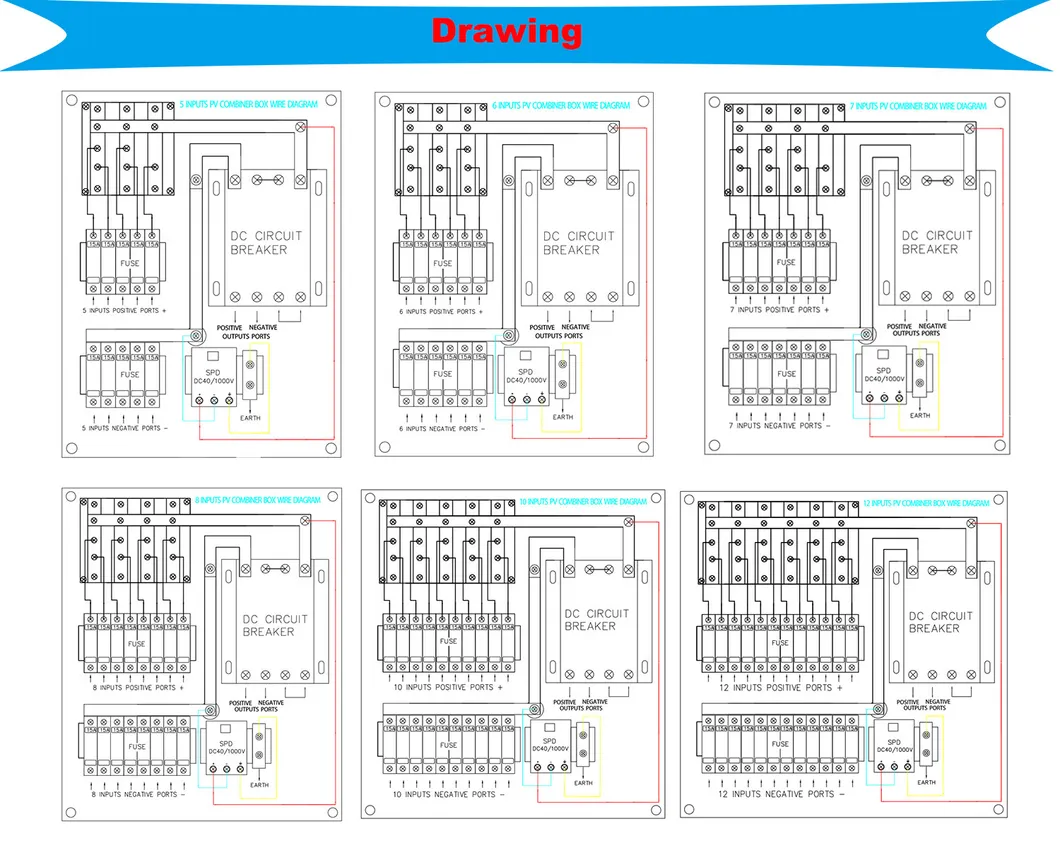

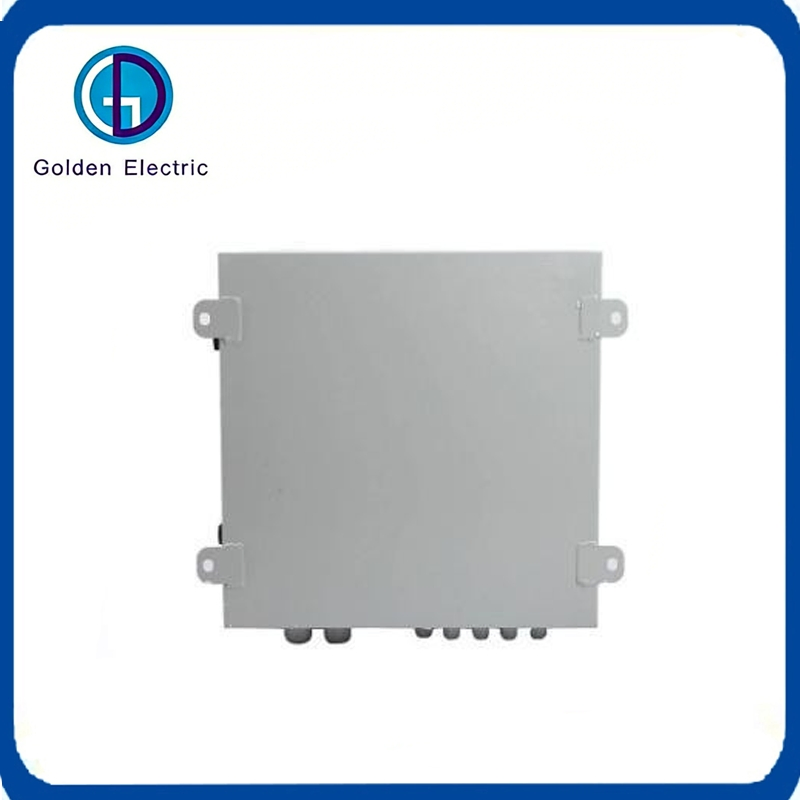

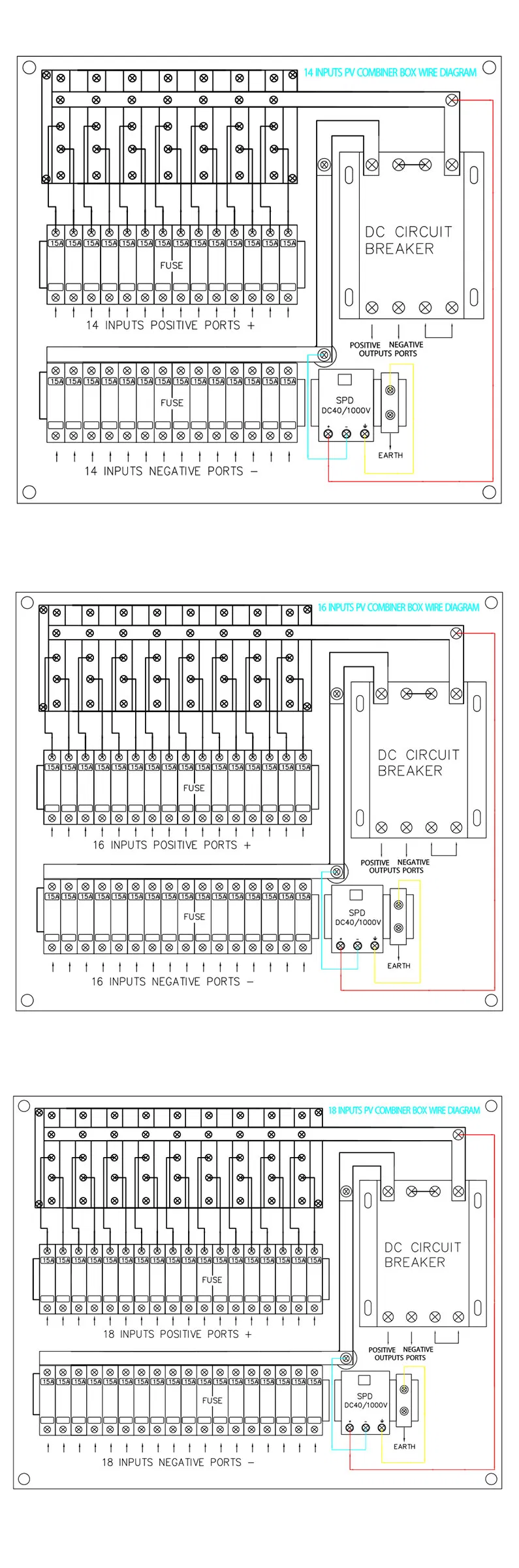

The GD-PV4/1 PV Combiner Box is designed to synthesize the DC input of 4 PV components into 1 output. Each channel is equipped with a high-reliability fuse, while the output side features professional lightning protection and a circuit breaker. This system significantly simplifies the input wiring of DC power distribution cabinets and inverters.
Our combiner boxes provide comprehensive lightning protection, short circuit protection, and grounding protection. Available in both intelligent and non-intelligent versions, the intelligent boxes include monitoring units to detect input current per string, internal temperature, lightning status, and circuit breaker status.
| Electrical Specifications | |
|---|---|
| Max DC Voltage | 1000V |
| Max Input Current (per string) | 15A |
| Max Output Switch Current | 20A/32A |
| Lightning Protection | |
| Nominal Discharge Current | 20kA |
| Max Discharge Current | 40kA |
| Protection Level (Up) | 3.8kV |
| System Environment | |
| Operating Temperature | -25ºC to +55ºC |
| Box Material | Cold Rolled Steel / Metal |
| Relative Humidity | 0-95% (No condensation) |

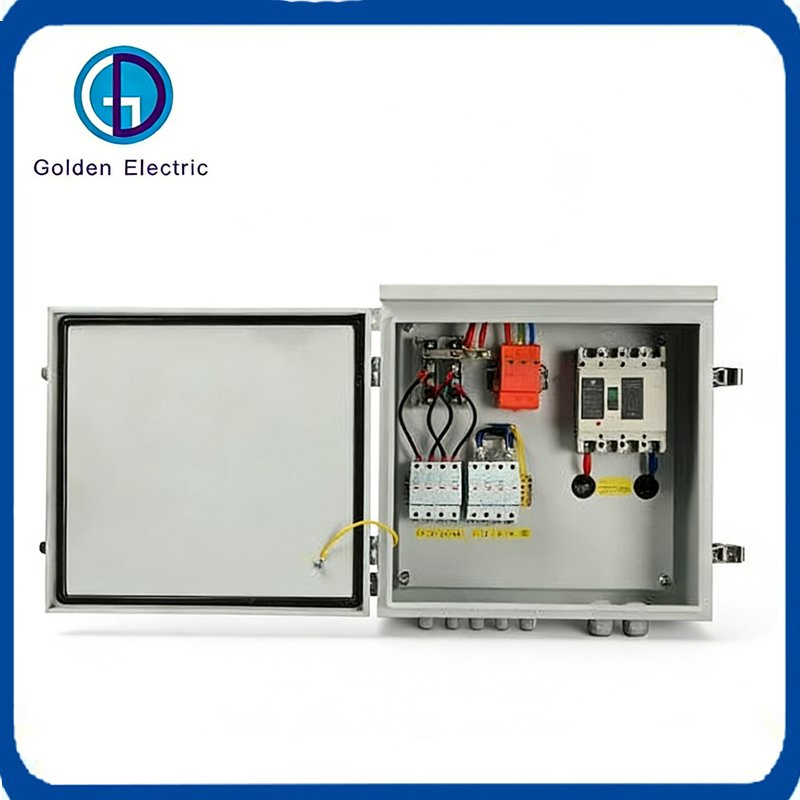

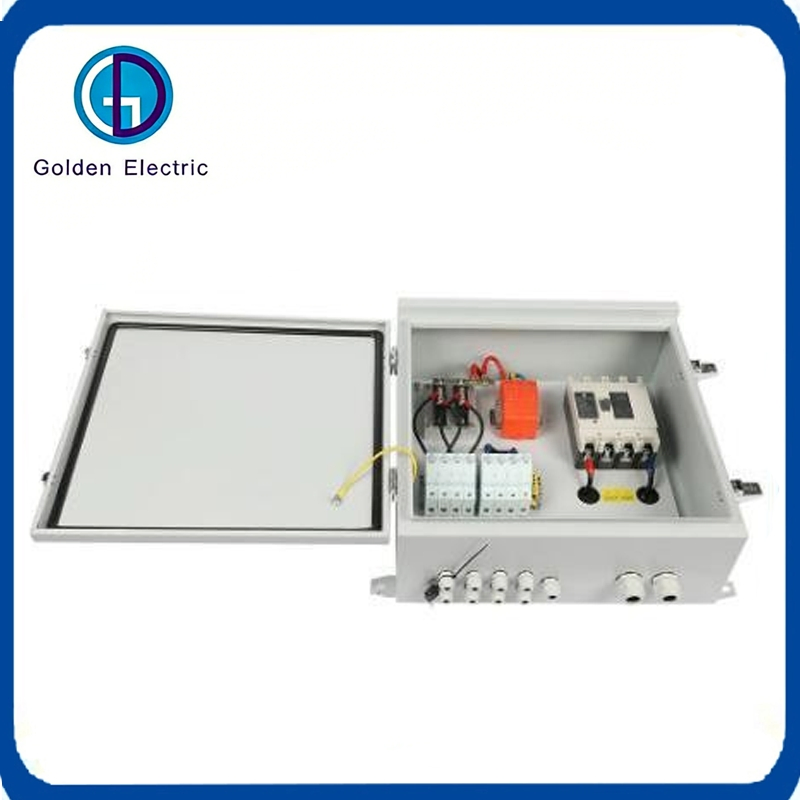

High Reliability: Equipped with DC fuses, surge protection devices, and DC circuit breakers or load isolation switches.
Strong Adaptability: IP65 waterproof and anti-ultraviolet design. Suitable for wide temperature ranges and harsh outdoor conditions.
