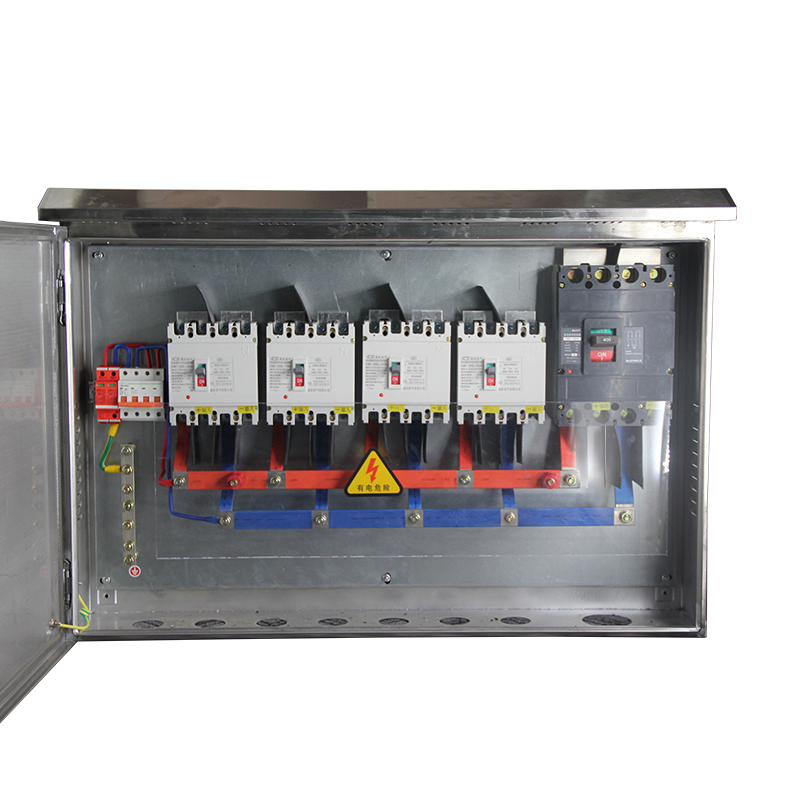

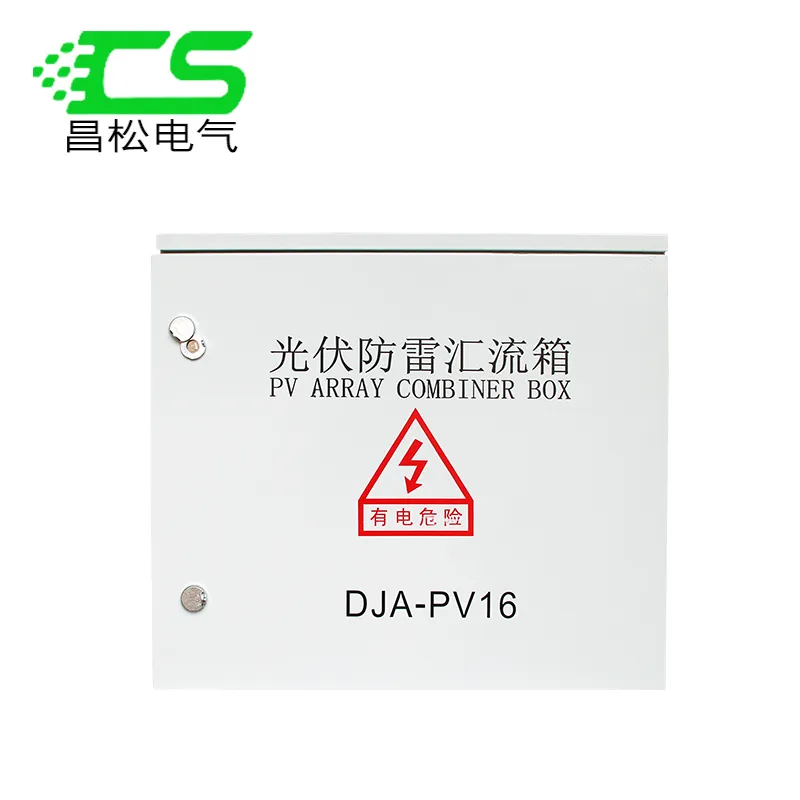

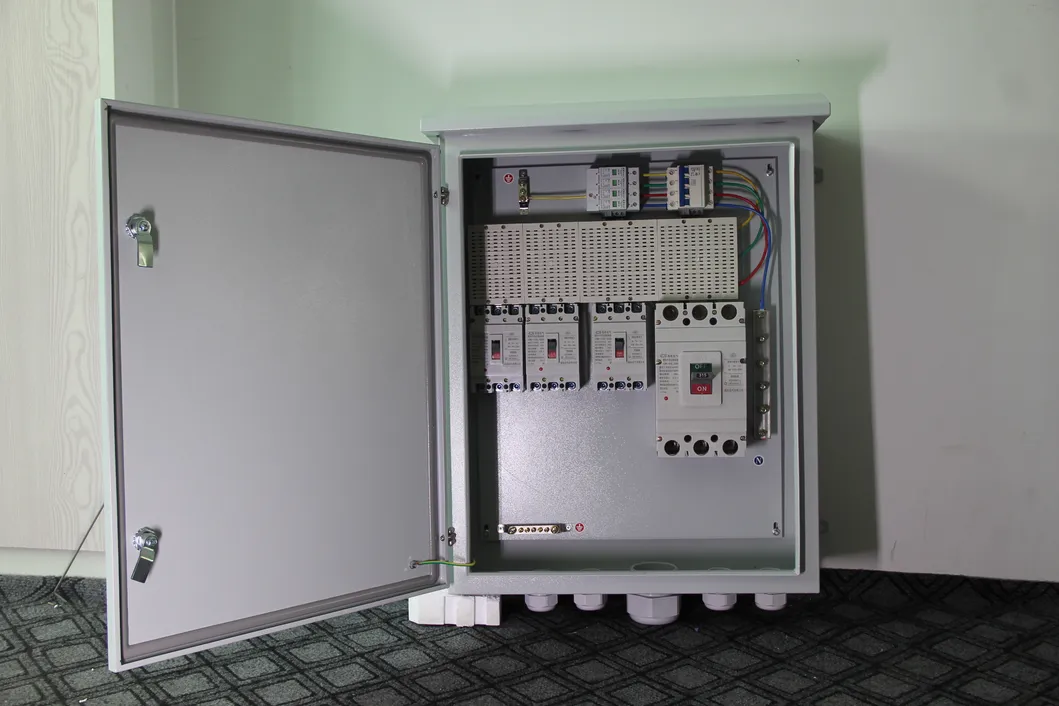

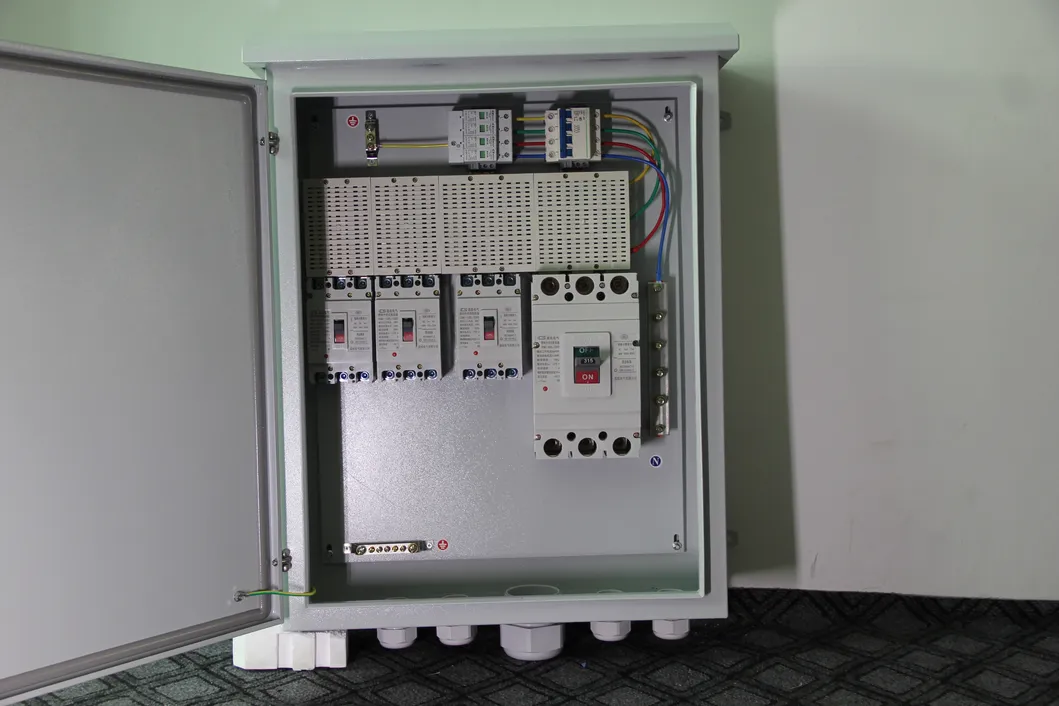

For large-scale PV grid-connected power generation systems, adding a DC busbar device between PV modules and inverters is essential to reduce wiring complexity and enhance maintenance reliability. This lightning protection combiner box is designed to provide a complete power generation solution, allowing multiple series-connected PV modules to access a centralized system safely.

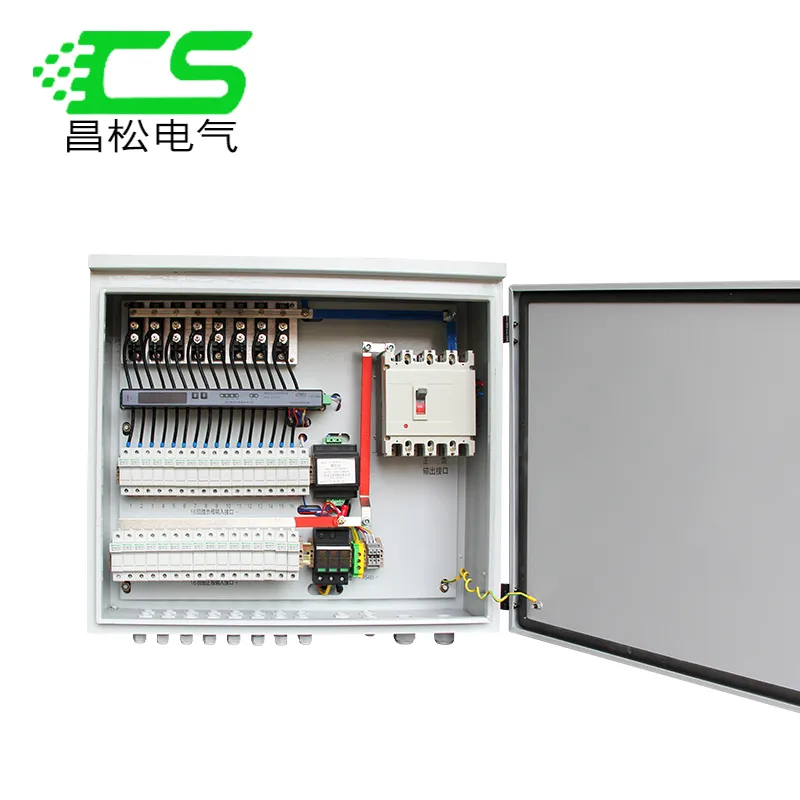

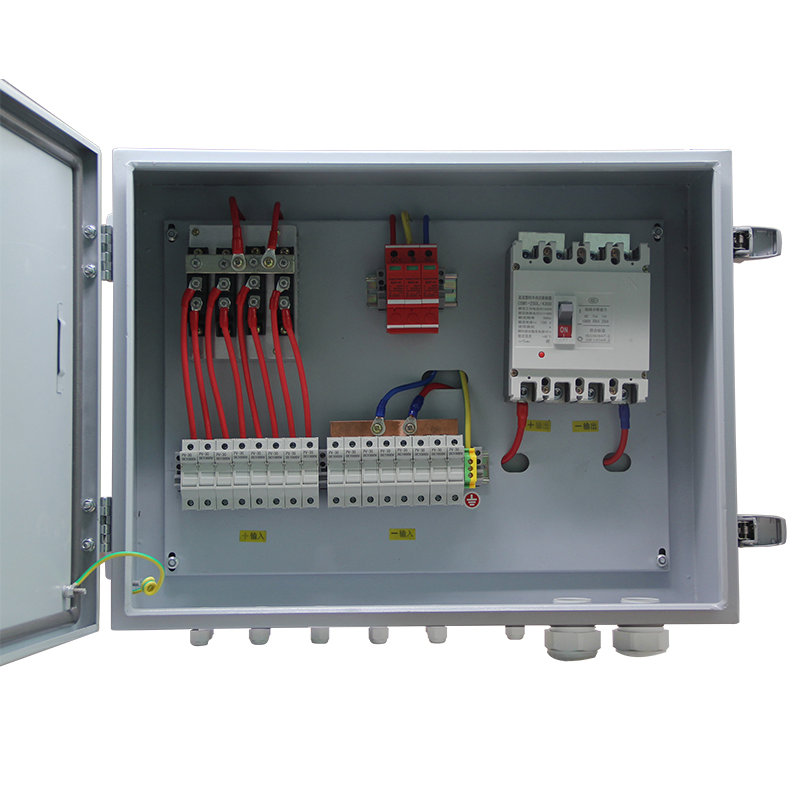

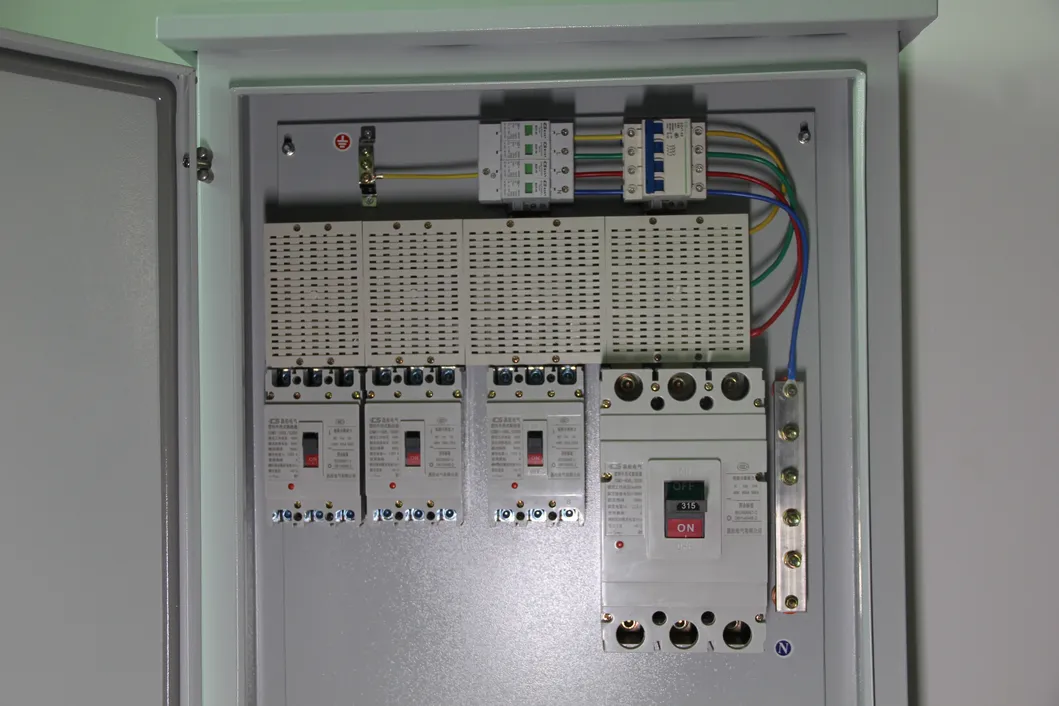

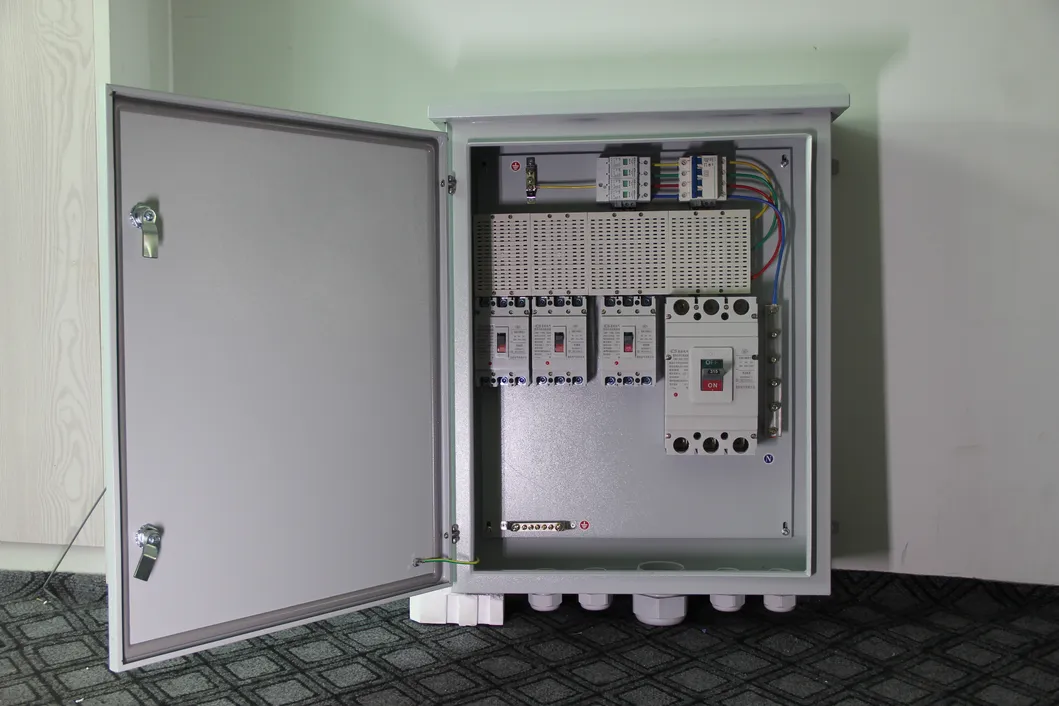

| Part Number | Description |
|---|---|
| 1 | Negative convergence copper busbar |
| 2 | Detection unit |

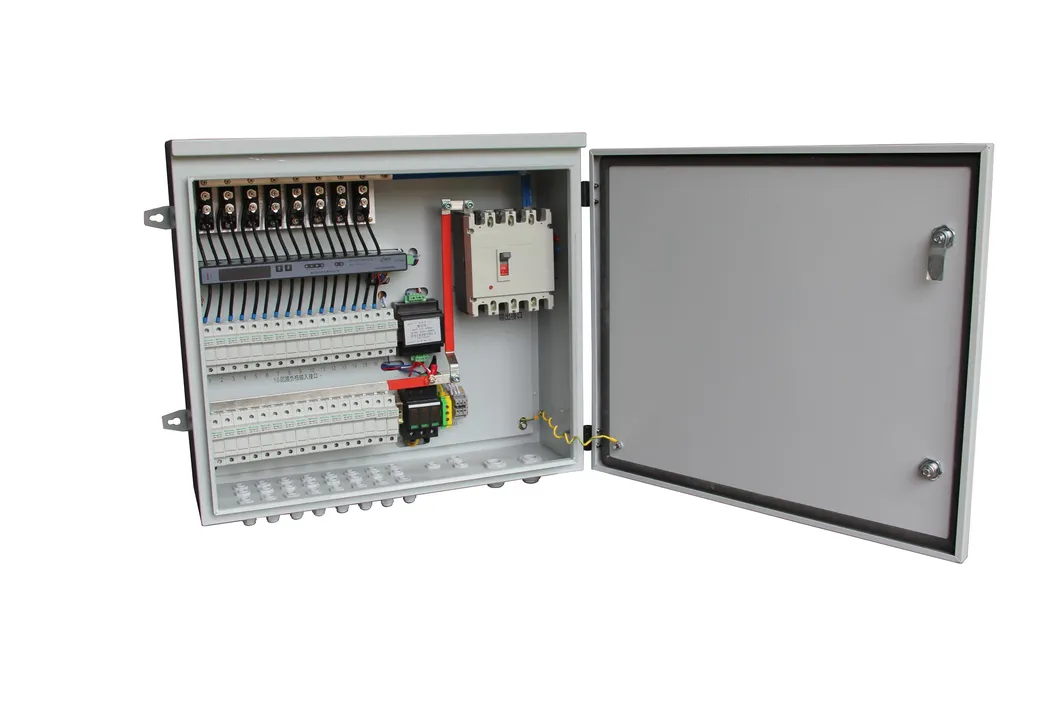

| 3 | DC MCB |
| 4 | DC positive Convergence output |
| 5 | DC negative Convergence output |
| 6 | RS485 communication terminal (output point) |
| 7 | Ground output point |
| 8 | Lightning protection device |
| 9 | Positive convergence copper |
| 10 | DC positive fuse holder and fuse (up to 16 way) |
| 11 | DC negative fuse holder and fuse (up to 16 way) |
| Specification | Width(A) mm | Height(B) mm | Depth(C) mm |
|---|---|---|---|
| 18 way | 645 | 550 | 205 |
| 14, 16 way | 610 | 550 | 205 |
| 10, 12 way | 530 | 550 | 205 |
| 6, 8 way | 460 | 550 | 205 |
| 2, 4 way | 390 | 550 | 205 |
