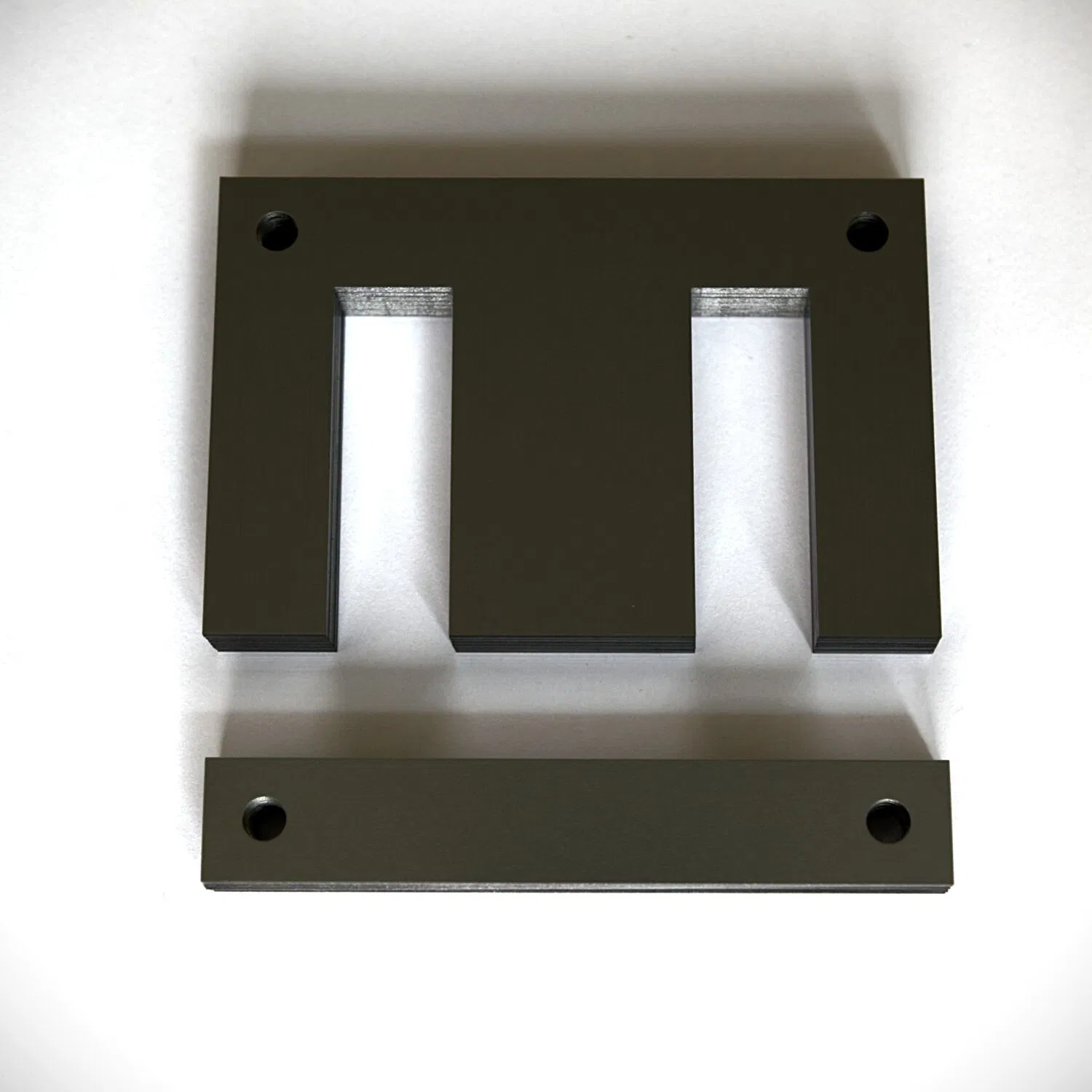

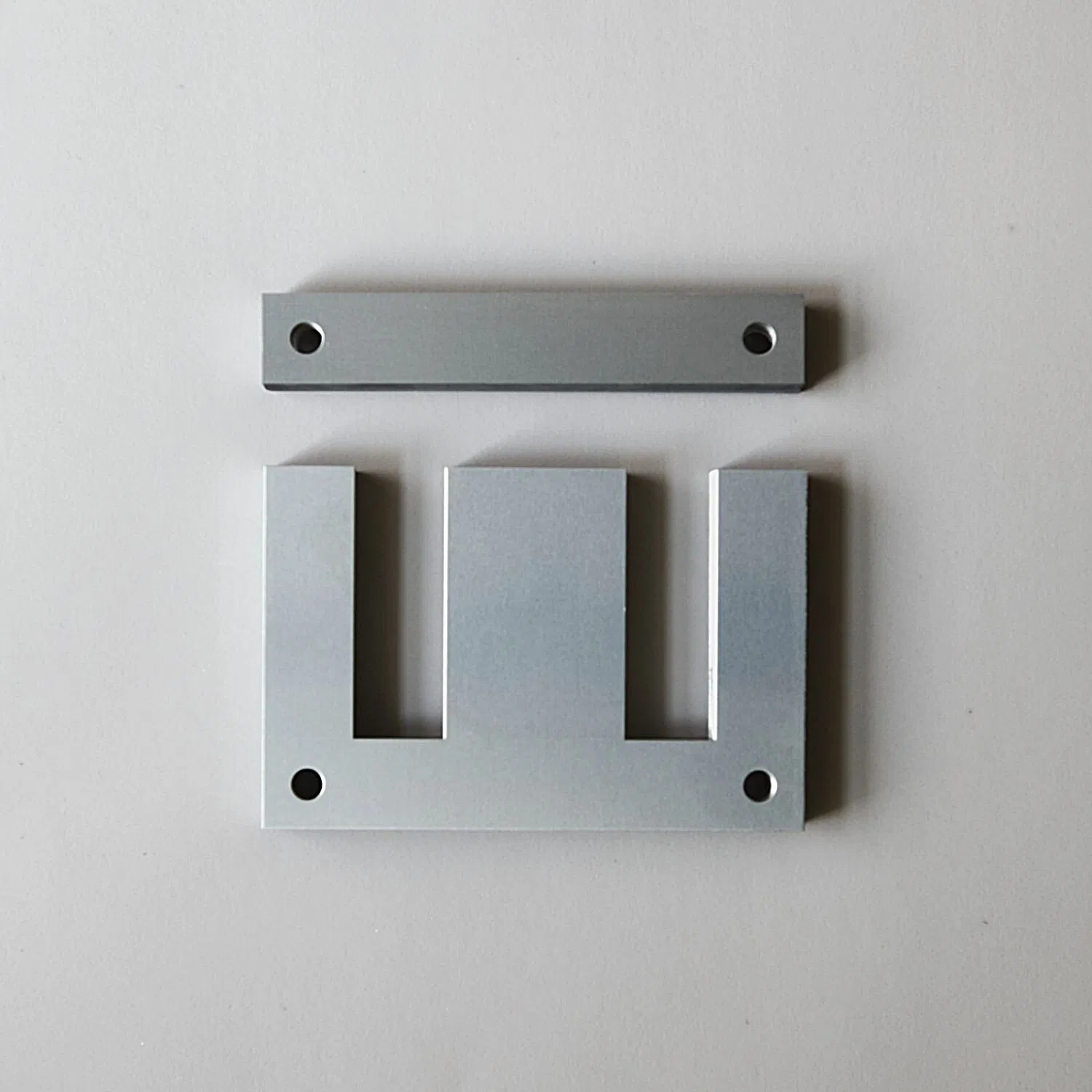

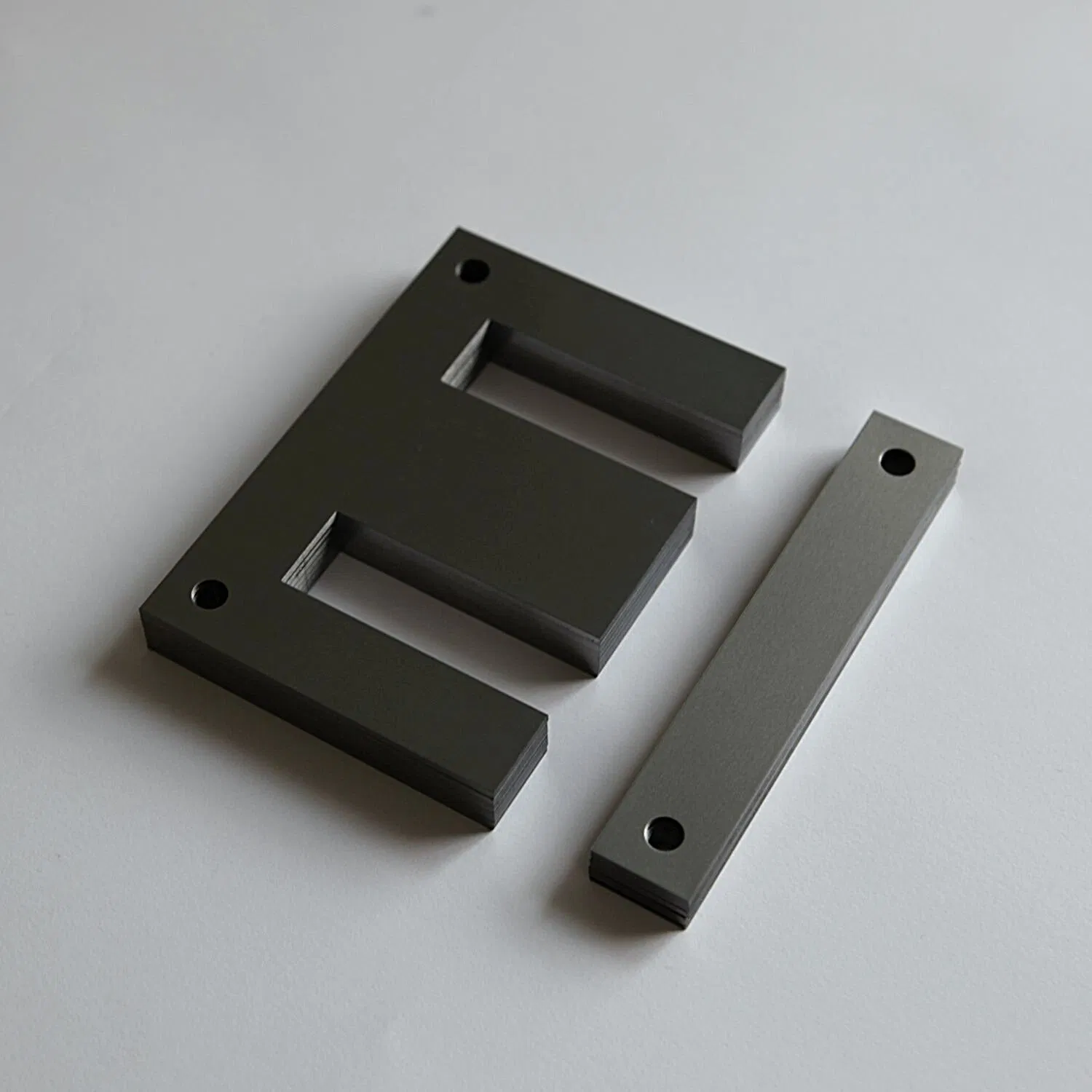

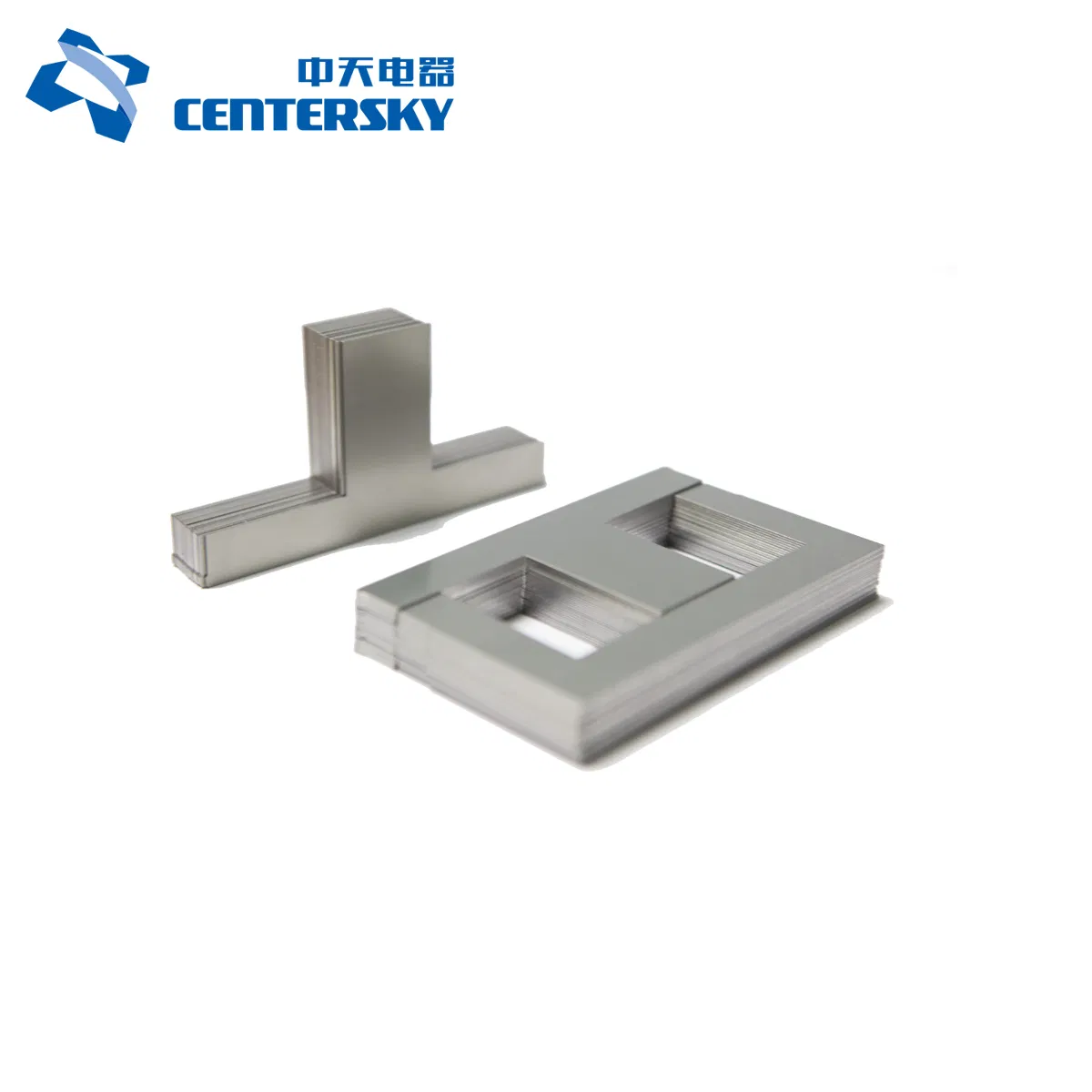

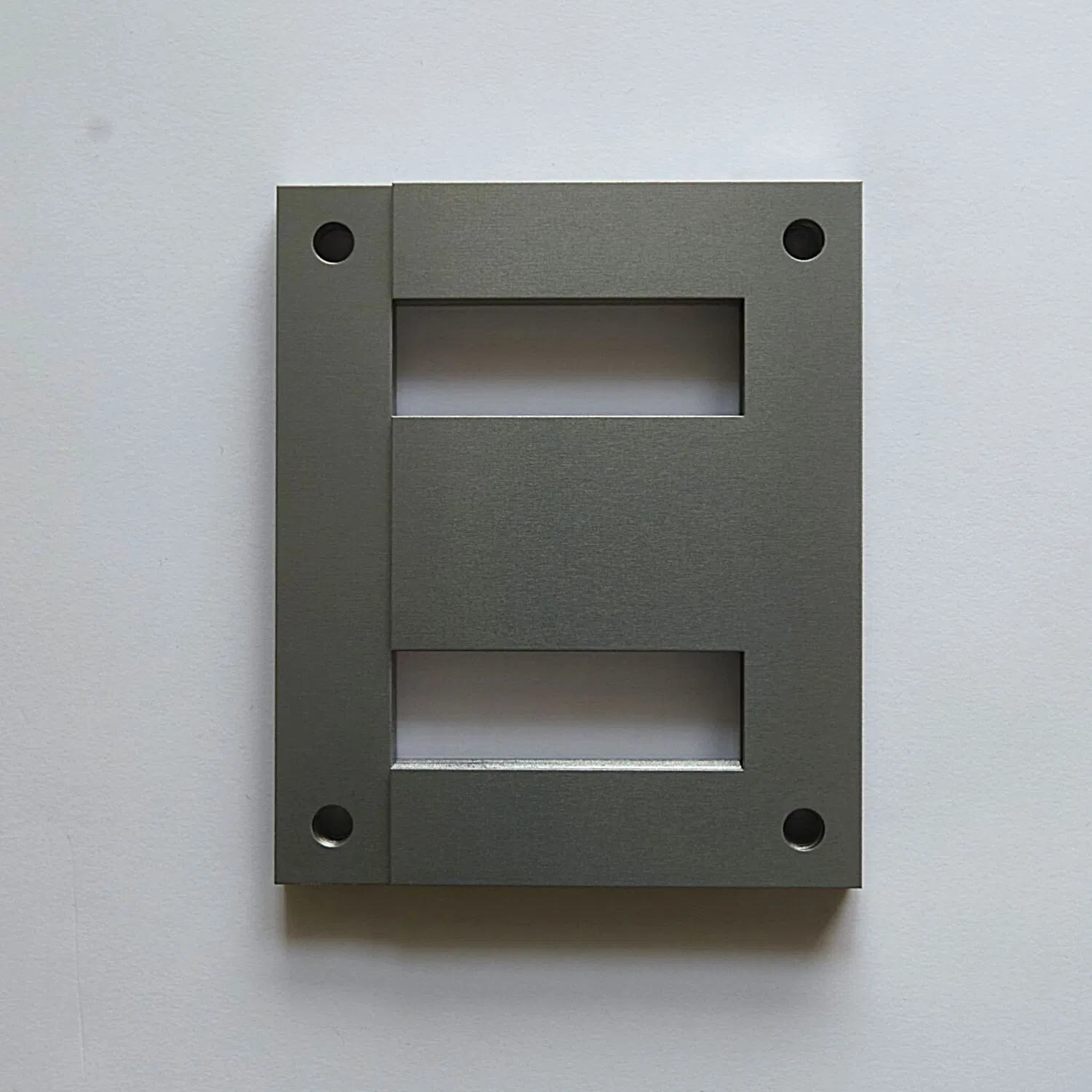

Are you looking for high-quality lamination silicon steel sheets? We are a leading silicon steel sheet producer serving worldwide electric reactor, electromotor, electric generator, and transformer manufacturers.
Our high-quality silicon steel laminations are widely used in control transformers, auto transformers, isolation transformers, UPS systems, ballast resistors, reactors, and voltage stabilizers.
| Specification | Details |
|---|---|

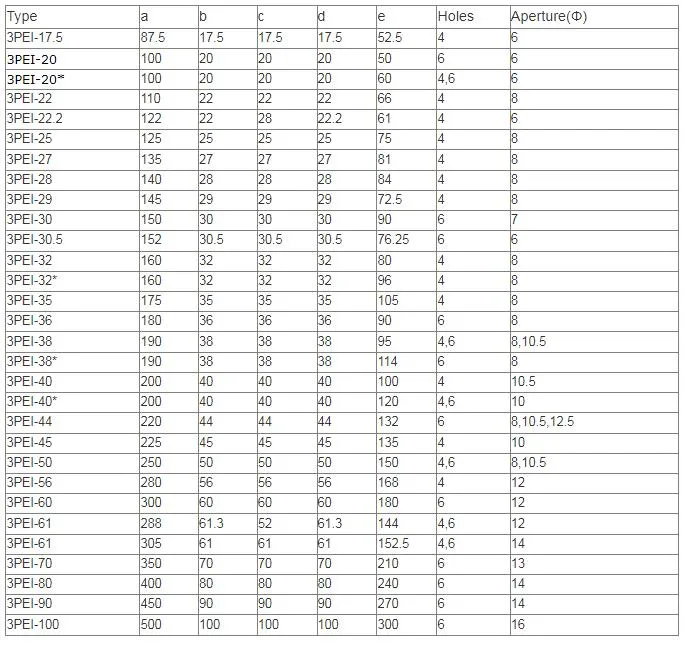

| Standard Sizes | EI-35 to EI-360, 3PEI-17.5 to 3PEI-100 |
| Thickness | 0.23-0.35mm (CRGO), 0.35-0.5mm (CRNGO) |
| Material Grade | M3, M4, M5, M6; 35W250-400; 50W250-800 |
| Coating | T2 Inorganic (CRGO), T4 Semi-organic (CRNGO) |
| Technology | Annealing & Without Annealing options available |

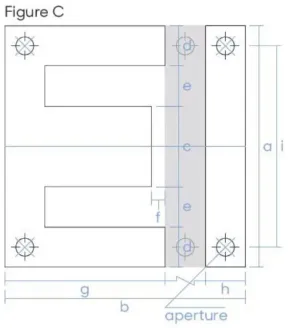

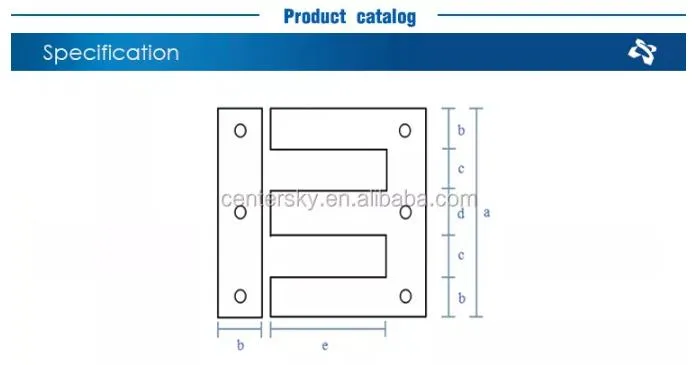

| Type | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | Holes | Aperture (Φ) |
|---|---|---|---|---|---|---|---|
| EI-48 | 48 | 8 | 8 | 16 | 24 | - | - |
| EI-66 | 66 | 11 | 11 | 22 | 33 | 4 | 4 |
| EI-76.2 | 76.2 | 12.7 | 12.7 | 25.4 | 38.1 | 4 | 5 |
| EI-96 | 96 | 16 | 16 | 32 | 48 | 4 | 6 |
| EI-114 | 114 | 19 | 19 | 38 | 57 | 4 | 7 |
| EI-150 | 150 | 25 | 25 | 50 | 75 | 4 | 8 |
| EI-300 | 300 | 50 | 50 | 100 | 150 | 4 | 12 |
