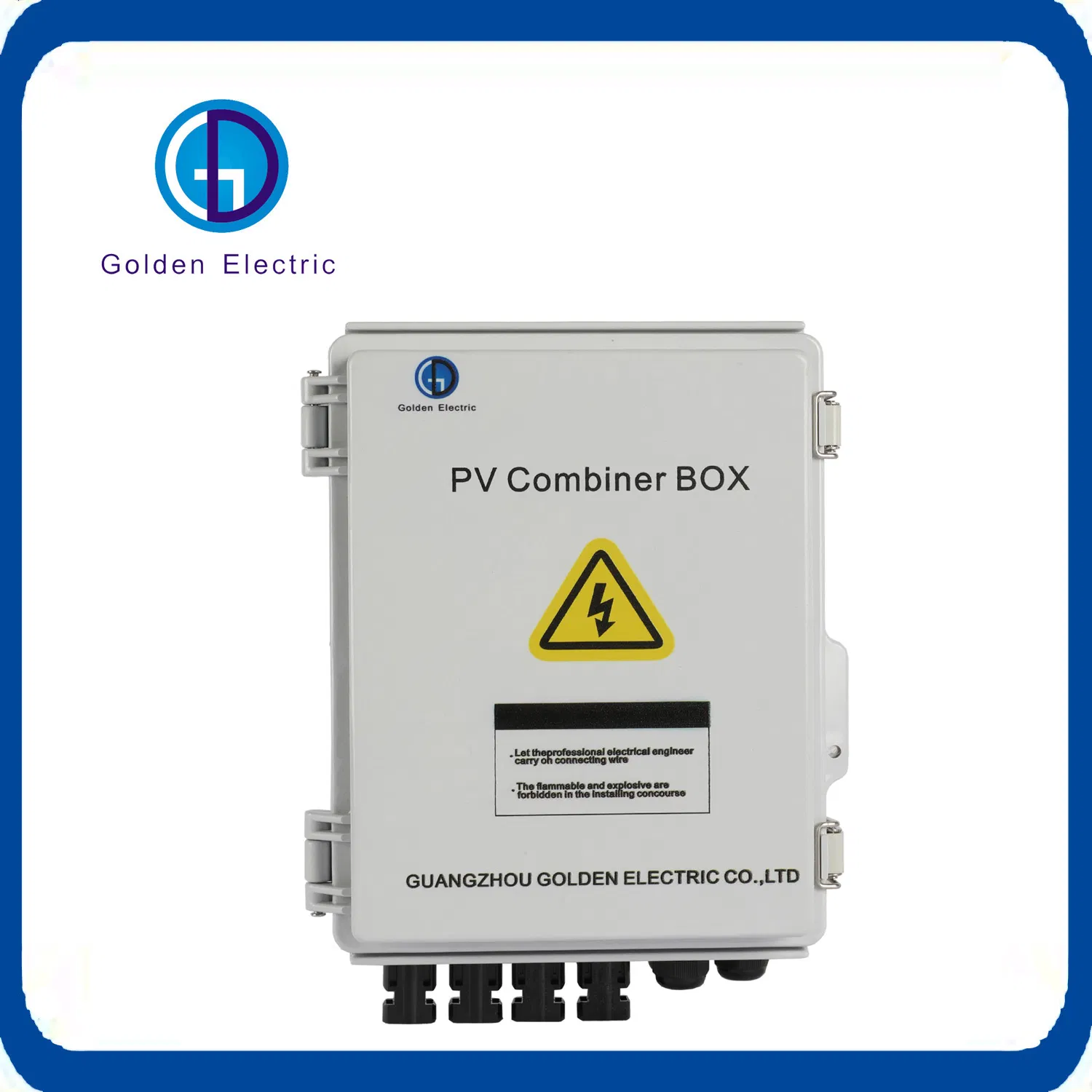

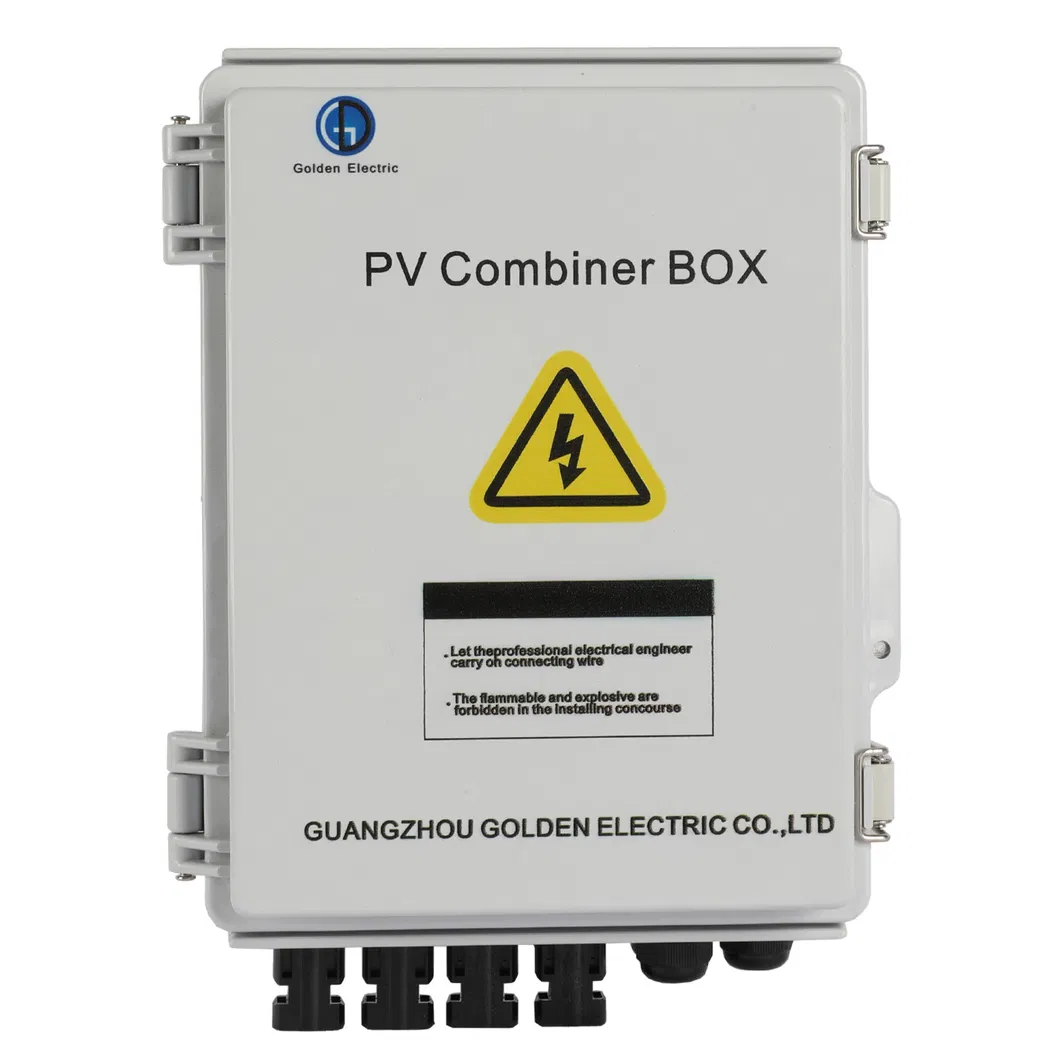

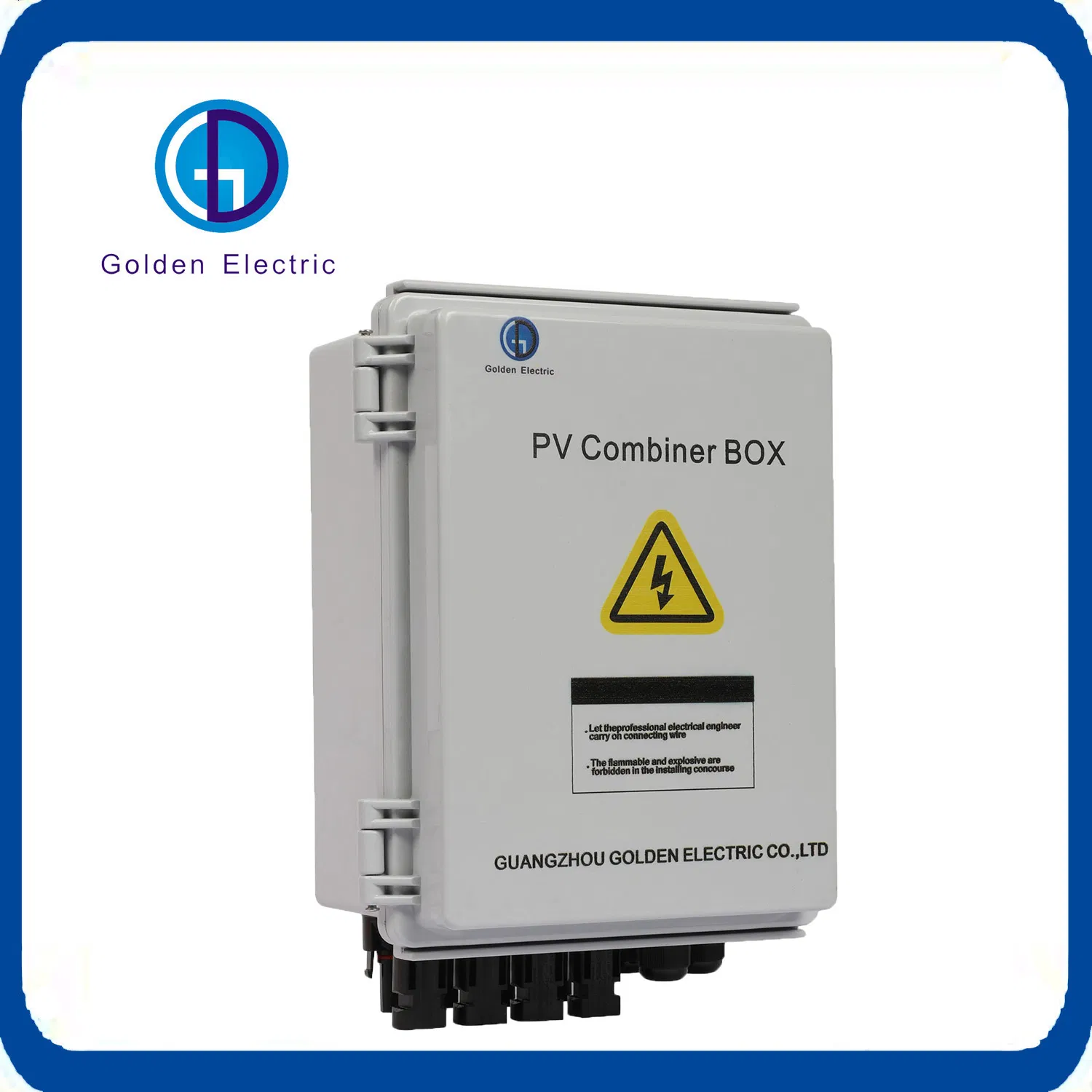

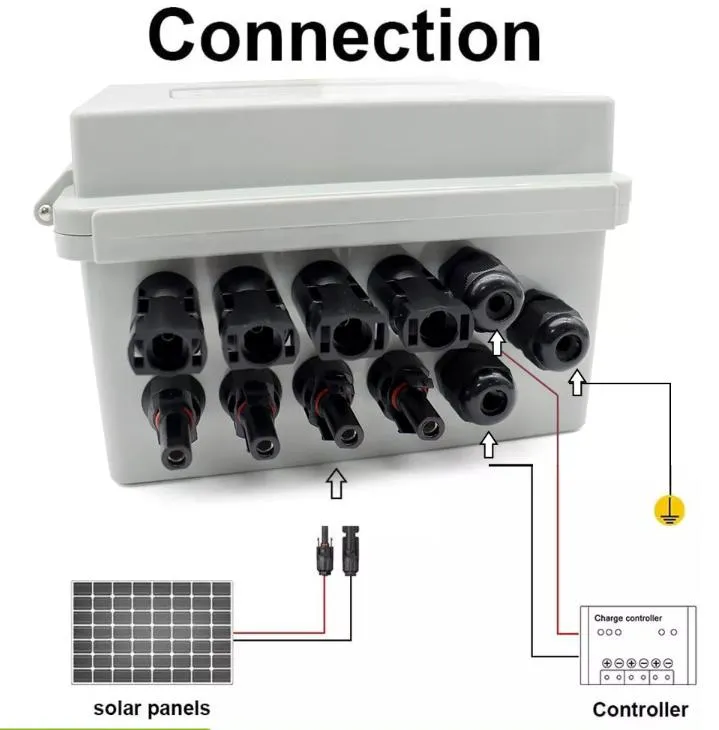

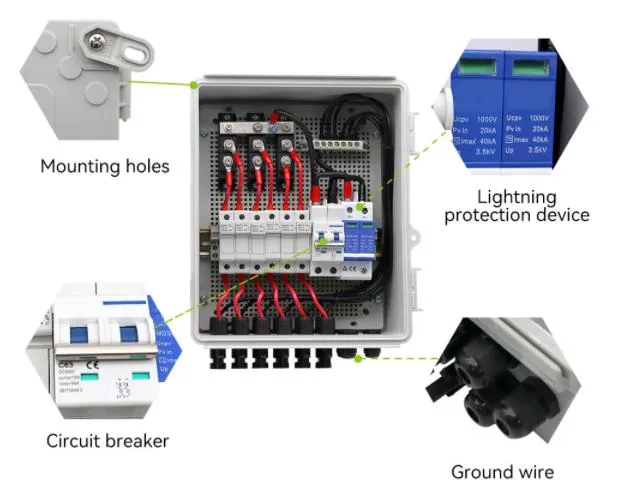

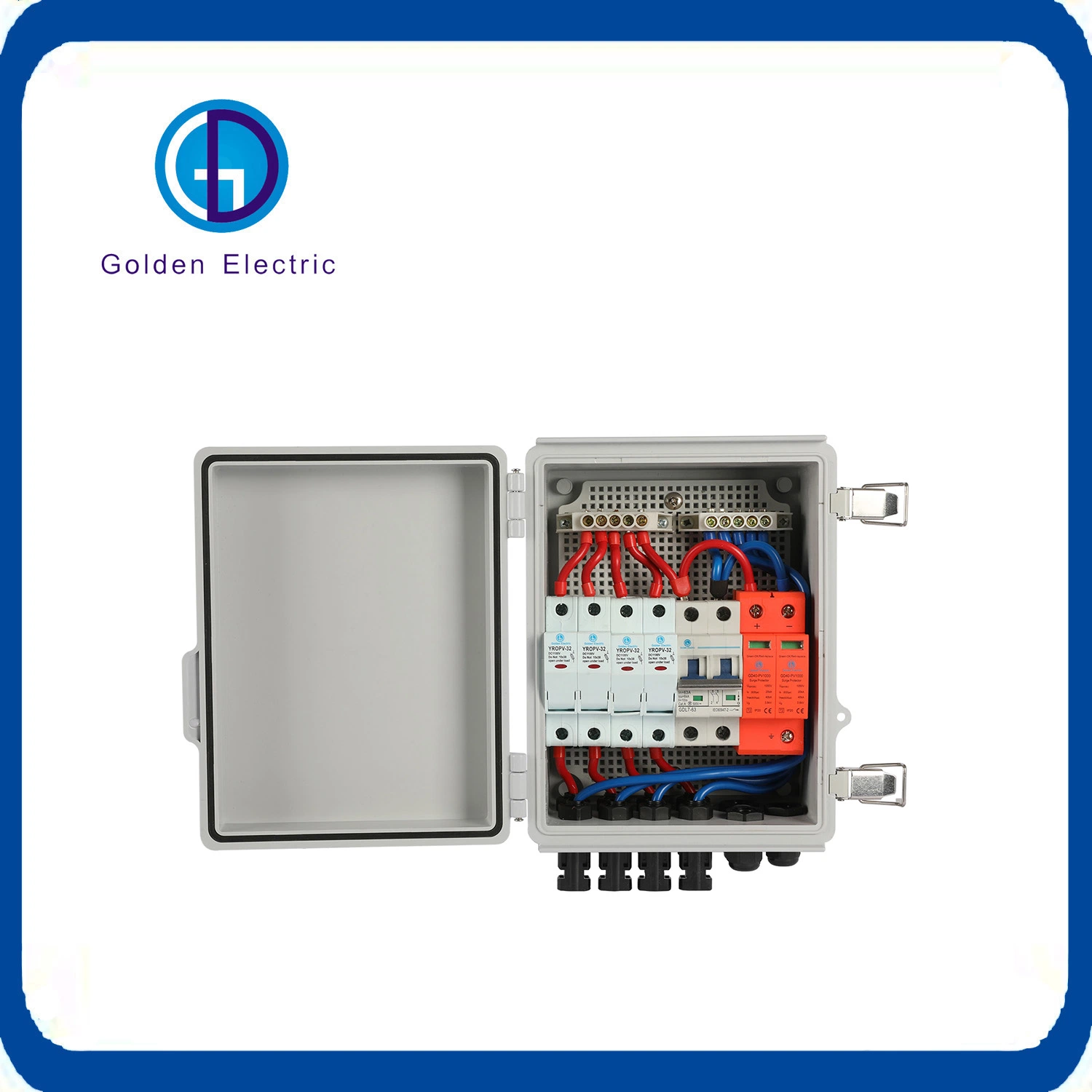

This new design combiner box is suitable for inverters with a maximum input voltage of DC550V/DC1000V. It features 6 PV input channels and 1 output channel for single MPPT inverters. The box body is constructed from high-quality PVC engineering materials, tested for fire retardancy, temperature rise, impact resistance, and anti-ultraviolet properties with an IP65 protection grade.
| Parameter Specification | Data Details | |
|---|---|---|
| System Maximum DC Voltage | 550 / 1000V | |
| Maximum Input Strings | 6 | |
| Max Input Current per String | 15A | |
| Max Output Switch Current | 20A / 32A | |
| Number of Output Strings | 1 | |
| Nominal Discharge Current | 20KA | |
| Voltage Protection Level | 2.8KV / 3.8KV | |
| Box Material | PC / ABS | |
| Operating Temperature | -25°C to +55°C | |
| Relative Humidity | 0-95%, no condensation | |
Customized Packing: Header card packing, Blister with card packing, Double blister packing, Canister packing, or other packing as per customer request.

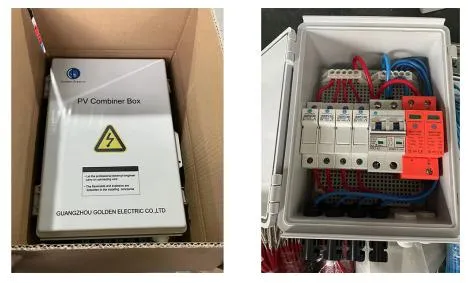

Shipping Information:
