Our professional team assists in identifying specific solar panel combination box requirements, guiding you from design through material selection and costing.
Each PV combiner box is thoroughly checked to ensure IP-rated performance, providing waterproof, dustproof, and corrosion-resistant protection.

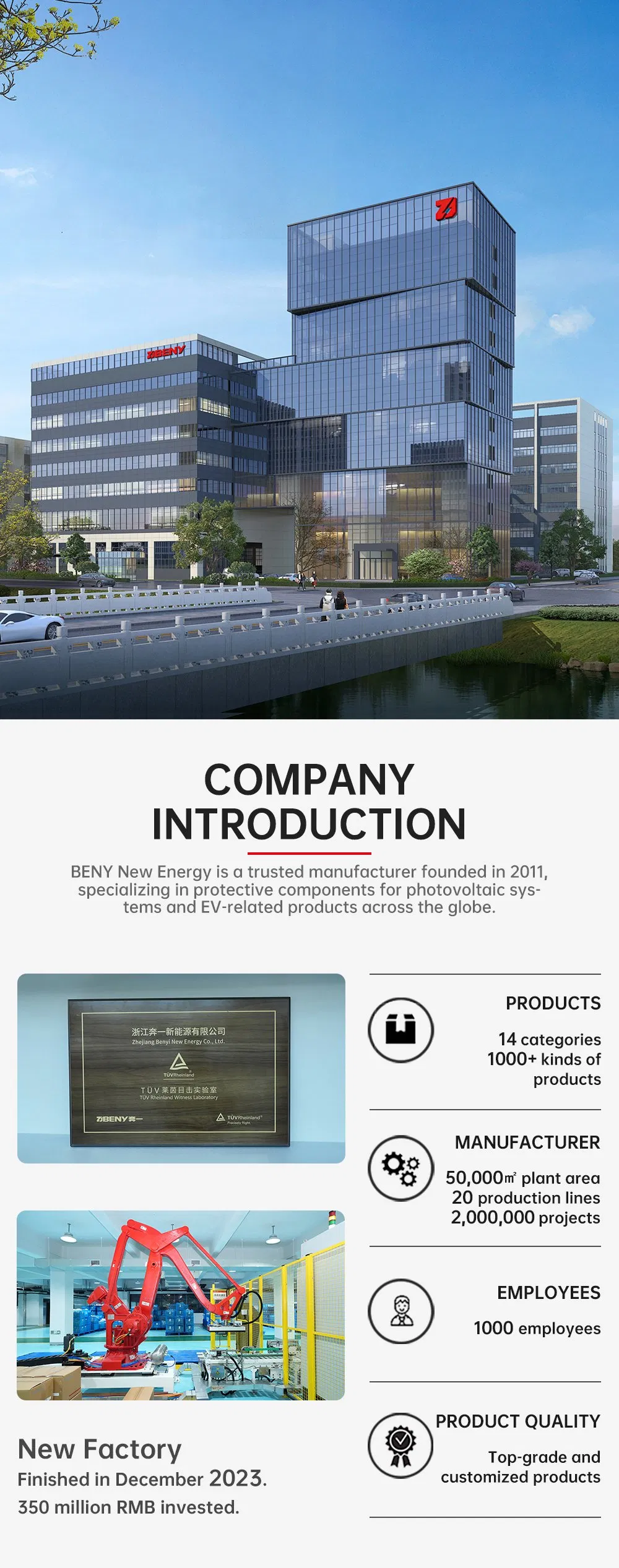

Tailored solutions using latest automated manufacturing tools to ensure speed and precision for high-volume orders.
| Technical Parameters | |
|---|---|

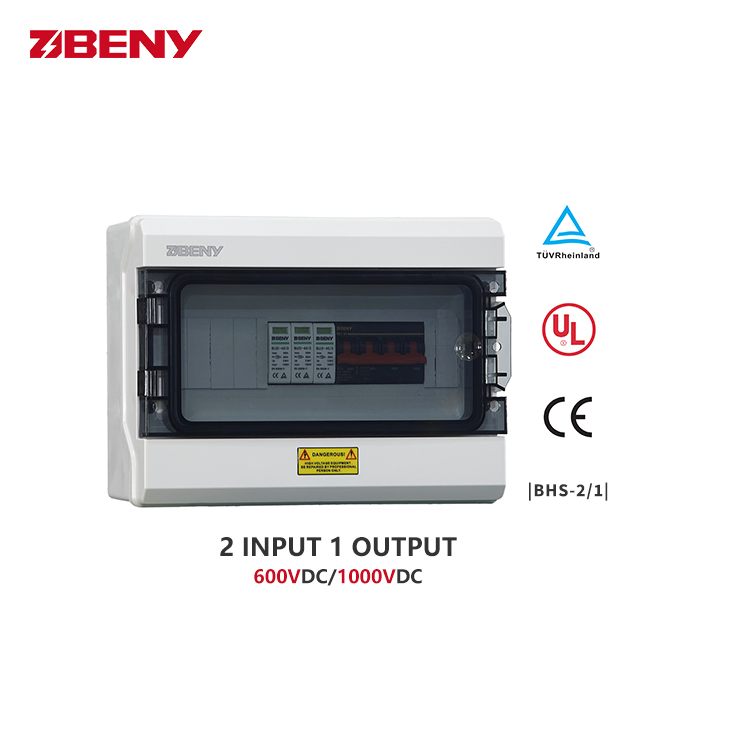

| Model No. | BHS-2/1 |
| Input / Output | 2 Strings / 1 String |
| Maximum Voltage | 600V |
| Rated Current of DC Breaker | 25A |
| Maximum Current Output | 63A |
| Enclosure Material | Polycarbonate/ABS |
| Degree of Protection | IP65 / IK10 |
| Dimensions (W*H*D) | 292*220*120mm |
| Operating Temperature | -25ºC to +60ºC |

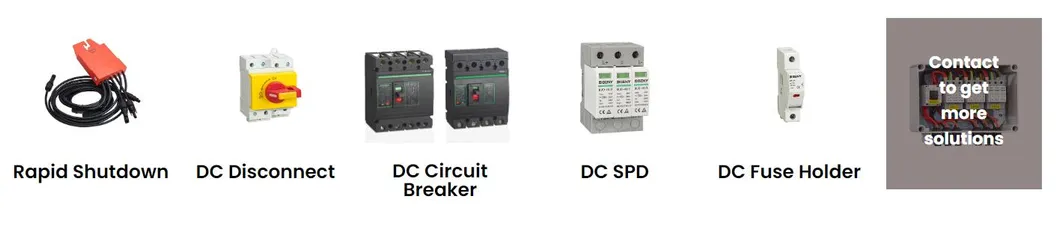

We provide custom features tailored to specific inverter requirements, including measurements, internal components, DC inputs/outputs, and over-voltage protection levels.
Grade IP 65/66: Waterproof, dustproof, and anti-corrosion for long-term outdoor use.
String Aggregation: Supports up to 24 strings with a maximum of 30A per string.
Effective Isolation: Isolator switches with voltage up to 1500V DC.
Lightning Protection: Integrated pluggable surge protector devices (SPD).
Over-current Protection: Touch-safe fuses with LED indicators for stable performance.

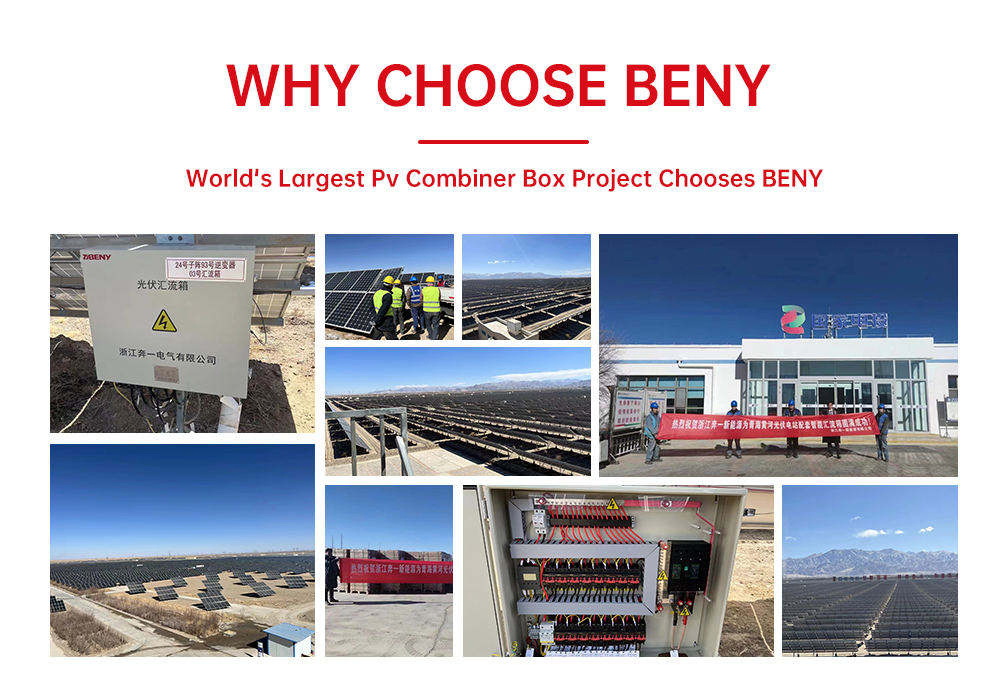

As a trusted manufacturer of protective components for photovoltaic systems, we create DC components that comply with the latest international standards. Our solutions are used in major solar, battery storage, and EV charging projects across Australia, Europe, North America, and South America.
We participate in major global energy exhibitions annually to stay aligned with market trends and continuously improve our cutting-edge technology.
